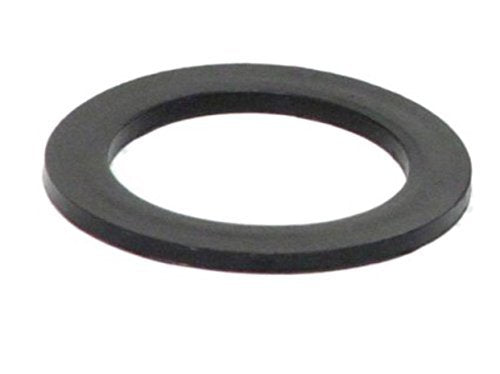

1275379 Gasket | Genuine Volvo Penta Part

🔧 Product Description

Genuine Volvo Penta gasket 1275379, part of the inlet and exhaust system group, used to seal a mating joint against air, exhaust and oil-side leakage. It is catalogued as an alternative sealing option and supersedes the earlier gaskets 1275370 and 940096. Fitment spans current D4 and D6 common-rail marine diesels as well as older AD31, TMD31 and TAMD31 engines.

🚤 Compatibility

• Engine Family: D, TMD, AD, TAMD
• HP Range: 145-480 HP
• Year Range: Approximately 1960s onward, controlled by oil filler cap and valve-cover design

Full model list at the end of this description.

⚙️ Key Features

• OEM Volvo Penta part number 1275379
• System group: Inlet and Exhaust System
• Listed as an alternative (Alt) gasket option
• Supersedes previous part numbers 1275370 and 940096
• Net weight approximately 0.005 kg
• Fits D4 and D6 series marine diesel engines plus AD31, TMD31 and TAMD31 series
• Engine type: Volvo Penta marine petrol and diesel
• Quantity varies by assembly, most commonly one
• Also supersedes Volvo part numbers 417018, 785870 and 803595

🔌 Function

The gasket forms a compressible seal between two bolted components in the inlet and exhaust system, preventing leakage of air, exhaust gas or oil at the joint. It also compensates for minor surface irregularities between the mating faces.

⚠️ Common Signs of Failure

• Visible leakage or staining around the joint face
• Hissing or whistling from an air or exhaust leak under load
• Hardened, cracked, flattened or brittle gasket material on inspection
• Loss of boost pressure or uneven running traced to a leaking joint
• Soot tracking or carbon streaks around the sealing surface

🛠️ Service Notes

• Fit a new gasket every time the joint is disturbed — a gasket takes a permanent set once it has been torqued and will not seal reliably a second time
• Scrape both faces back to clean bare metal, keeping the blade at a shallow angle so it lifts the old material without gouging the surface, and use a plastic scraper on aluminium castings
• Check the faces for flatness, cracks and corrosion pitting, and make sure no old gasket, carbon or hardened sealant is left in the corners or around the bolt holes
• Fit the gasket dry unless the workshop manual for your engine calls for a sealant, and then only the type it specifies — surplus sealant squeezes out into oil, coolant and fuel passages
• Draw the fasteners down progressively in the sequence and to the torque given in the manual for your engine, and recheck after the first heat cycle where the manual asks for it

🔄 Supersession & Cross Reference

OEM Supersession Chain

• 1275379 → Supersedes 1275370

OEM / Related Numbers

• 940096 earlier number superseded by this part
• 1275370 earlier number superseded by this part
• 16340 related reference
• 775725 related reference
• 1275403 related oil filler cap
• 3547599 related oil filler cap
• 420292 related earlier oil filler cap
• 421753 related earlier oil filler cap

Other-Brand OEM Numbers

• Victor Reinz: 40-77322-00
• Elring: 045.721

Aftermarket / Verified Equivalents

• Skandix: 1000193
• DT Spare Parts: 2.11061
• AJUSA: 24023300

📦 Condition

• Genuine Volvo Penta part
• Brand new
• Supplied in original or equivalent packaging

🔎 Full Model Compatibility

Typically suits:

• Volvo Penta D6-340I-G, D6-380I-G, D6-440I-G, D6-480I-G, D6-300A-G, D6-340A-G, D6-380A-G, D6-440I-WJ-G, D6-480I-WJ-G, D6-300D-G, D6-340D-G, D6-380D-G, D6-440D-G, D6-480D-G, D6-400A-G, D6-440A-G, D6-300I-G, D6-480A-G
• Volvo Penta D4-175I-G, D4-230I-G, D4-270I-G, D4-320I-G, D4-300I-G, D4-150A-G, D4-230A-G, D4-270A-G, D4-320A-G, D4-300A-G, D4-145I-G, D4-175 VG
• Volvo Penta TAMD31L-A, TAMD31M-A, TAMD31P, TAMD31P-A, TAMD31S
• Volvo Penta AD31L-A, AD31P-A
• Volvo Penta TMD31L-A
