12756 Mercury MerCruiser Bracket | Genuine Quicksilver OEM Part

🔧 Product Description

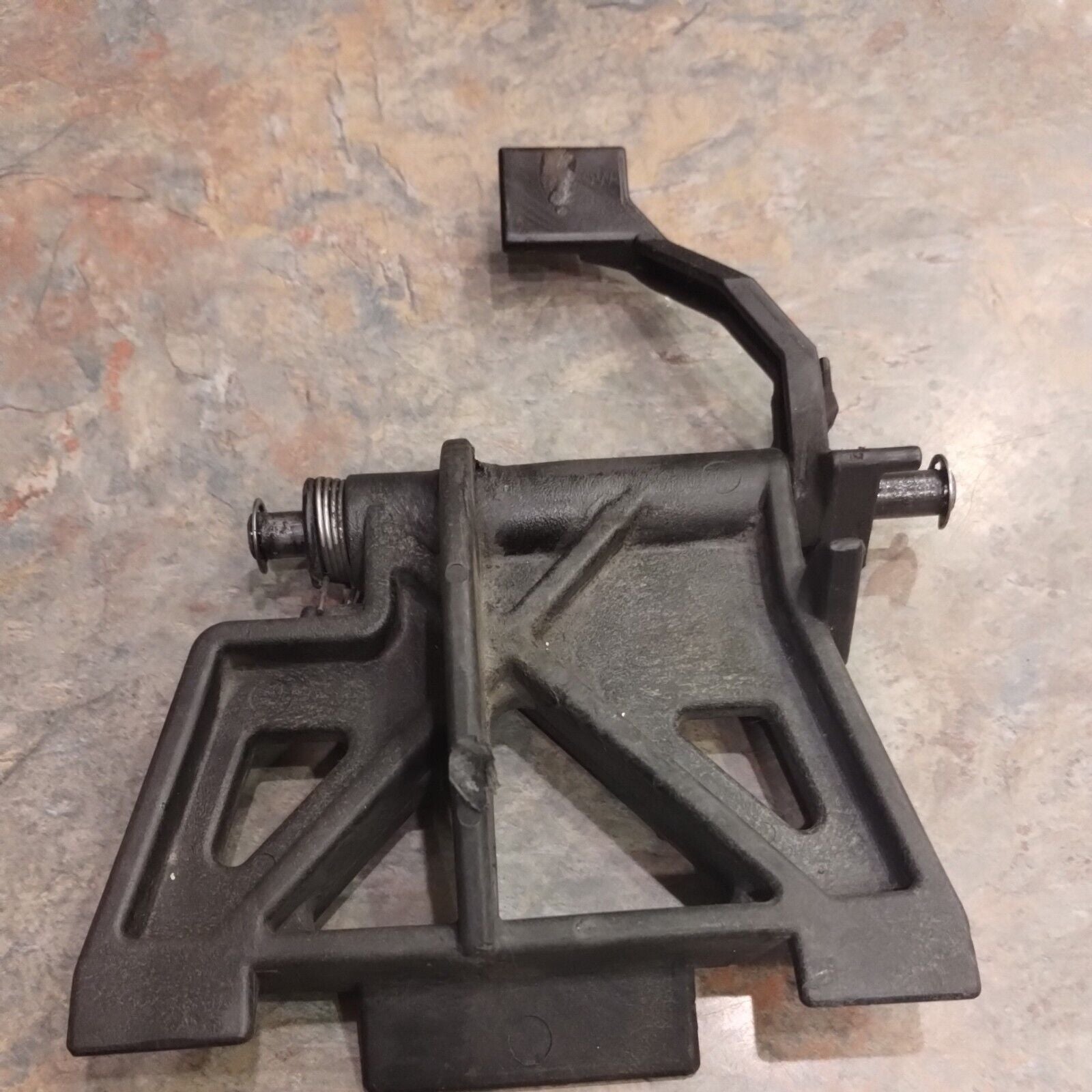

Genuine Quicksilver Shallow Water Tilt / Troll Bracket - Part Number: 12756

A genuine Quicksilver bracket used in Mercury and Mariner shallow-water tilt and troll bracket assemblies. This bracket works with the matching 12758 control lever, springs, pin and retaining rings to hold the outboard in the correct shallow-water tilt position during low-speed operation.

⚙️ Key Features

• Genuine Quicksilver OEM bracket

• Correct Mercury part number 12756

• Used in shallow-water tilt / troll bracket assemblies

• Works with matching Mercury control lever 12758

• Used on Mercury / Mariner 15HP, 20HP and 25HP small outboard tilt systems where specified

🔄 Supersession & Cross Reference

OEM Supersession Chain:

• 12756 current OEM service reference

OEM / Related Numbers:

• 12756

• MER12756

• Mercury 12756

• Quicksilver 12756

• 12756A1 related shallow water tilt kit

• 12758 matching control lever

• 24-12755 related spring

• 24-12754 related spring

• 17-13195 related troll bracket pin

• 53-13194 related retaining ring / E-ring

Aftermarket / Verified Equivalents:

• No aftermarket equivalent

🚤 Compatibility

Commonly used on:

• Mercury / Mariner shallow-water tilt kit assemblies

• Mercury / Mariner swivel bracket assemblies

• Small outboard manual tilt and troll bracket systems

Typically suits:

• Engine models:

• Mercury 9.9HP 4-stroke 323cc - 1999-2004 where fitted with shallow-water tilt kit 12756A1

• Mercury 13.5HP 4-stroke carbureted International - serial 0P134638 to 0P400999

• Mercury 13.5HP 4-stroke carbureted International - serial 0P401000 and up

• Mercury 15HP 4-stroke 323cc applications where fitted with shallow-water tilt kit 12756A1

• Mercury 15HP carb 2-cylinder - serial 9973100 to 0P016999

• Mercury 15HP carb 2-cylinder - serial 0G590000 to 0G760299

• Mercury 15HP carb 2-cylinder - serial 0G760300 to 1B226999

• Mercury 15HP carb 2-cylinder - serial 0P075166 to 0P400999

• Mercury 15HP carb 2-cylinder - serial 0P401000 and up

• Mercury 15HP carb 2-cylinder - serial 1B227000 to 1B727495

• Mercury 15 Marathon XD - serial 9927000 to 0P016999

• Mercury 15 Marathon XD - serial 0P017000 to 0P325499

• Mercury 15 Sea Pro XD - serial 9927000 to 0P016999

• Mercury 15 Sea Pro XD - serial 0P017000 to 0P325499

• Mercury 20HP 2-cylinder - serial 9507381 to 980790

• Mercury 20HP 2-cylinder - serial 9807909 to 0P016999

• Mercury 20HP 2-cylinder - serial 0A730007 and up

• Mercury 20HP 2-cylinder - serial 0B238464 to 0G044026

• Mercury 20HP 2-cylinder - serial 0G044027 to 0G760299

• Mercury 20HP 2-cylinder - serial 0G760300 to 0T979999

• Mercury 20HP 2-cylinder - serial 0P017000 to 0P325499

• Mercury 20HP 2-cylinder - serial 0P325500 and up

• Mercury 20 Jet - serial 9807909 to 0P016999

• Mercury 20 Jet - serial 0G044027 to 0G760299

• Mercury 20 Jet - serial 0G760300 to 0T979999

• Mercury 20 Jet - serial 0P017000 to 0P325499

• Mercury 20 Jet - serial 0T980000 to 0T999999

• Mercury 20 Jet - serial 1B000001 and up

• Mercury 25HP 2-cylinder - serial 0T980000 to 0T999999

• Mercury 25HP 2-cylinder - serial 0P325500 and up

• Mercury 25HP 2-cylinder - serial 1B000001 and up

• Mercury 25 Marathon / Super 15 2-cylinder - serial 9507381 to 980790

• Mercury 25 Marathon / Super 15 2-cylinder - serial 9807909 to 0P016999

• Mercury 25 Marathon / Super 15 2-cylinder - serial 0A730007 and up

• Mercury 25 Marathon / Super 15 2-cylinder - serial 0B238464 to 0G044026

• Mercury 25 Marathon / Super 15 2-cylinder - serial 0G044027 to 0G760299

• Mercury 25 Marathon / Super 15 2-cylinder - serial 0G760300 to 0T979999

• Mercury 25 Marathon / Super 15 2-cylinder - serial 0P017000 to 0P325499

• Mercury 25 Sea Pro / Super 15 2-cylinder - serial 9507381 to 980790

• Mercury 25 Sea Pro / Super 15 2-cylinder - serial 9807909 to 0P016999

• Mercury 25 Sea Pro / Super 15 2-cylinder - serial 0A730007 and up

• Mercury 25 Sea Pro / Super 15 2-cylinder - serial 0B238464 to 0G044026

• Mercury 25 Sea Pro / Super 15 2-cylinder - serial 0G044027 to 0G760299

• Mercury 25 Sea Pro / Super 15 2-cylinder - serial 0G760300 to 0T979999

• Mercury 25 Sea Pro / Super 15 2-cylinder - serial 0P017000 to 0P325499

• Mercury 8HP carb Bodensee International - serial 0P086824 to 0P400999

• Mercury 9.9HP carb 323cc - serial 0G760300 to 1B226999

• Mercury 9.9HP carb 323cc - serial 0P075166 to 0P400999

• HP Range: commonly 8HP - 25HP where the matching shallow-water tilt assembly is fitted

• Engine Type: Mercury / Mariner small outboard manual tilt hardware

• System Type: Shallow-water tilt / troll bracket

🔌 Function

The bracket forms part of the shallow-water tilt mechanism and helps support the outboard at a controlled tilt angle for low-speed shallow-water use.

Common signs of failure:

• Outboard will not stay in shallow-water tilt position

• Bracket bent, cracked, seized or missing

• Tilt lever does not engage correctly

• Excessive movement in the tilt lock mechanism

• Corrosion around bracket, pin or E-ring mounting points

📦 Condition

• Genuine Quicksilver part

• Brand new

• Supplied in original or equivalent packaging
