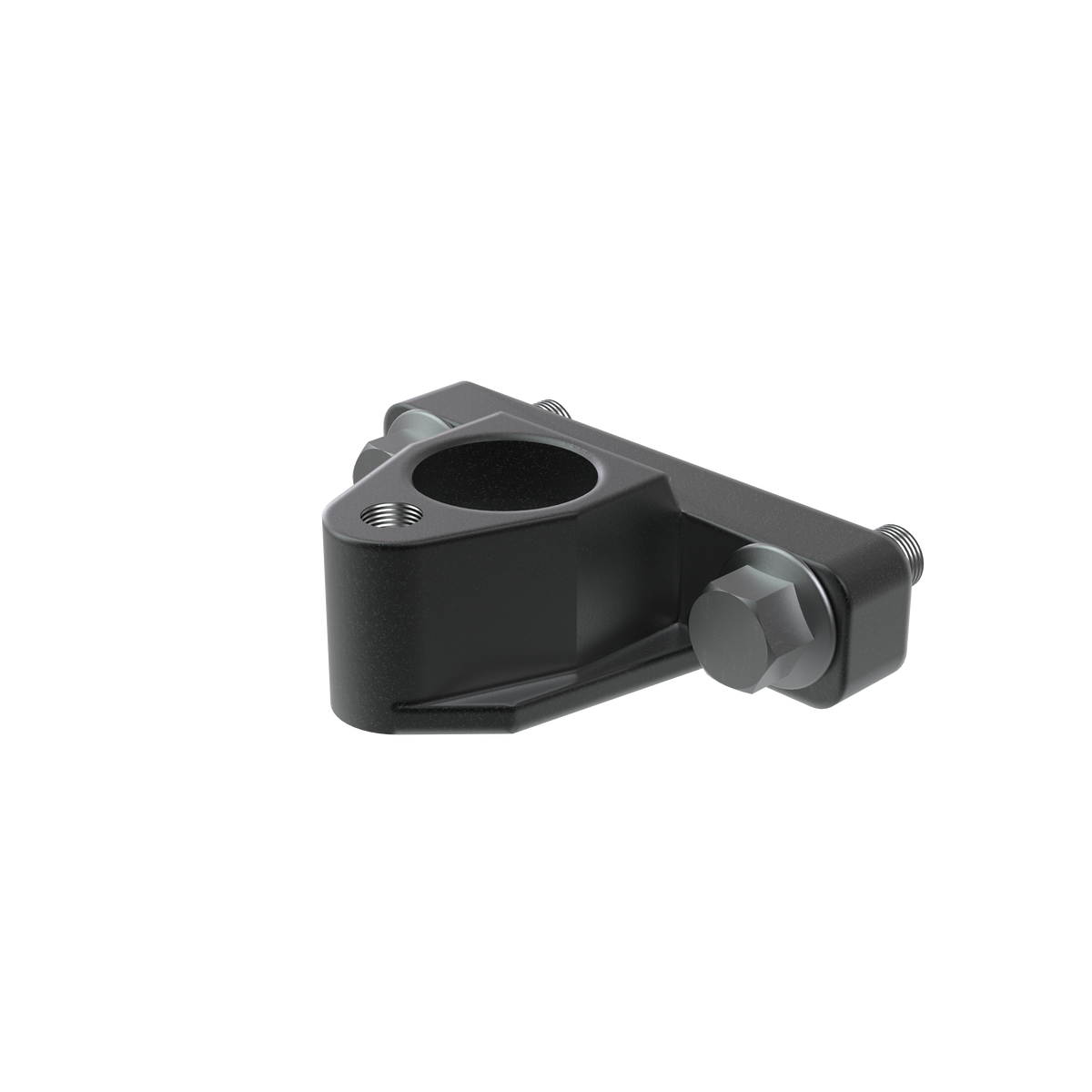

1275789 Bracket | Genuine Volvo Penta Part

🔧 Product Description

This is a genuine Volvo Penta bracket from the Ignition and Control Systems group, part number 1275789. It provides the mounting point that holds an electrical or control component securely in position on the engine, keeping it correctly located and isolated from vibration. It is specified for D3 series marine diesel engines in both inboard and sterndrive configurations.

🚤 Compatibility

Typically suits:

• Volvo Penta D3-130A-A
• Volvo Penta D3-160A-A
• Volvo Penta D3-110I-A
• Volvo Penta D3-130I-A
• Volvo Penta D3-160I-A

• Engine Family: D
• HP Range: 110-160 HP
• Year Range: Approximately 2004-2008, depending on D3-A/B/C wiring configuration

⚙️ Key Features

• OEM Volvo Penta part number 1275789
• System group: Ignition and Control Systems
• Net weight: 0.044 kg
• Fits D3 series marine diesel engines in inboard and sterndrive versions
• Supplied as a single bracket
• Engine type: Volvo Penta 2.4L inline 5-cylinder common-rail marine diesel

🔌 Function

The bracket secures a control or ignition system component to the engine at its designed location and orientation. This keeps wiring and connections correctly routed and protects the mounted component from vibration and movement.

⚠️ Common Signs of Failure

• Cracks or fractures around the mounting holes or bend radii
• Corrosion or pitting that weakens the bracket in the marine environment
• Loose or rattling mounted component due to distortion of the bracket
• Elongated or stripped fastener holes allowing movement
• Chafed wiring or repeated component failure caused by an unsupported mounting

🛠️ Service Notes

• Offer the bracket up and start every fastener by hand before tightening any of them, so the component is not pulled into a strained position
• Check the mating faces are clean, flat and free of corrosion scale — a bracket that does not sit flat will work loose and let the component move
• Renew self-locking nuts, lock washers, tab washers or thread-locking compound wherever the original assembly used them, and tighten to the figure given in the workshop manual for your engine
• Where the bracket carries a rubber mount or bush, renew that at the same time rather than reusing a perished one
• On brackets in the inlet and exhaust area, never force alignment to make the holes line up — cure the misalignment at its source, or the bracket and the component it holds will both crack

🔄 Supersession & Cross Reference

OEM / Related Numbers

• 975880 related flange screw, quantity 2
• 946544 related flange screw, quantity 1

📦 Condition

• Genuine Volvo Penta part
• Brand new
• Supplied in original or equivalent packaging
