12761-88L00 Suzuki Timing Chain | Genuine Used Part

🔧 Product Description

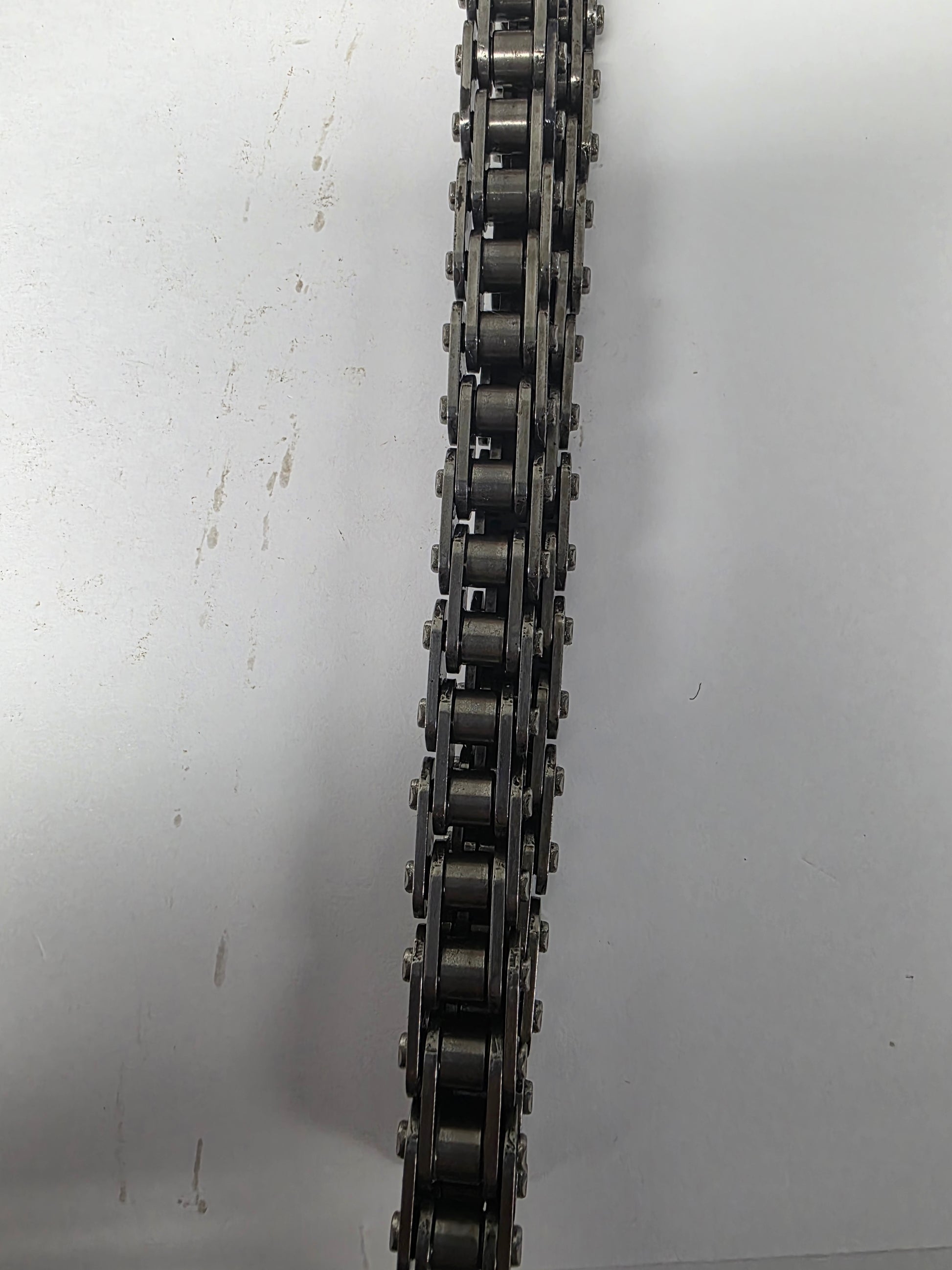

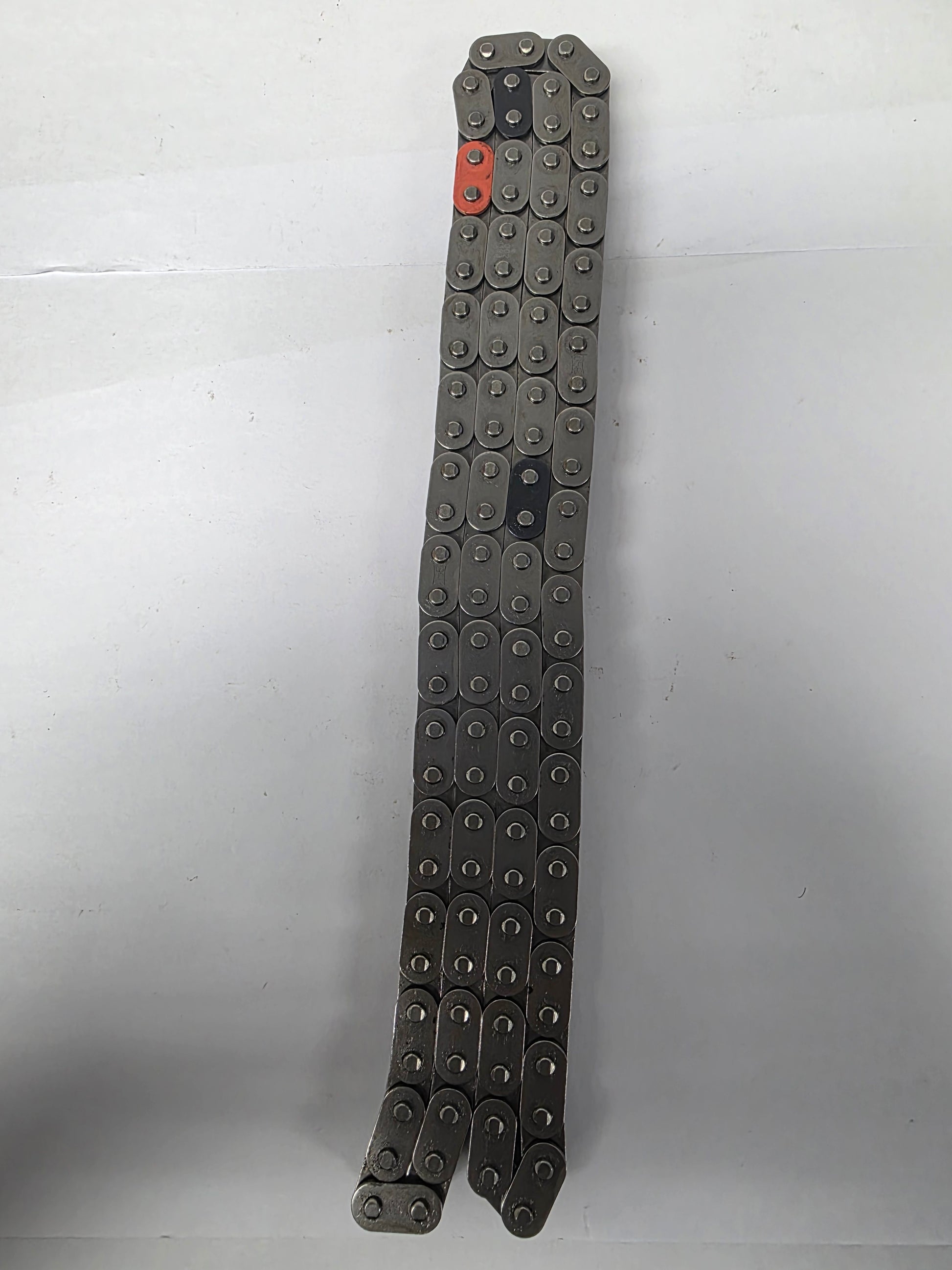

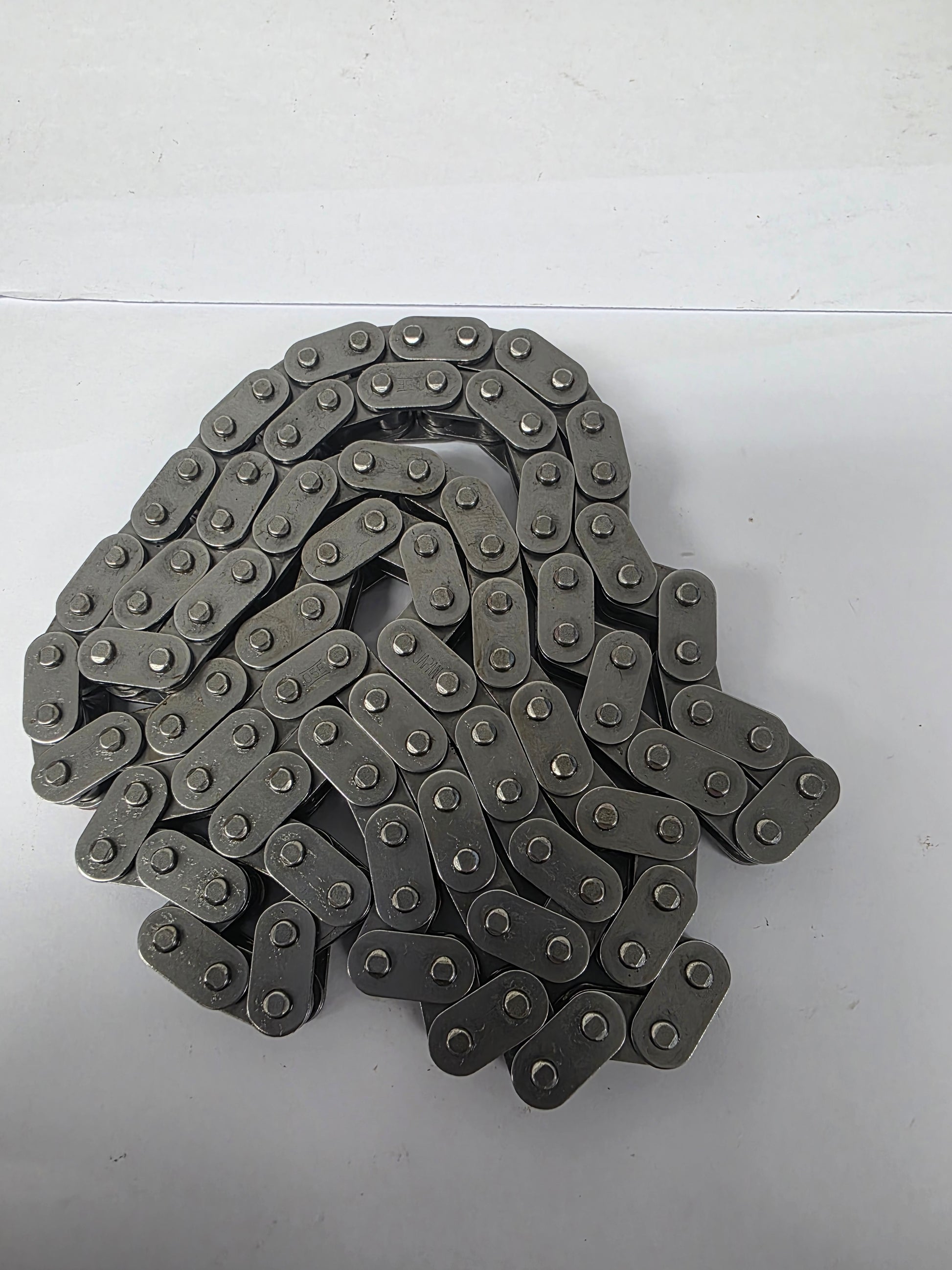

Genuine Used Suzuki DF40A / DF50A / DF60A Timing Chain - Part Number: 12761-88L00

A genuine pre-owned Suzuki Marine timing chain for selected DF40A, DF50A, DF50AV, DF60A and DF60AV four-stroke outboards.

The chain connects the crankshaft timing sprocket to the camshaft drive, maintaining the relationship between piston position and valve opening.

⚙️ Key Features

• Genuine Suzuki Marine used timing chain

• Correct OEM part number 12761-88L00

• Designed for selected 40HP to 60HP four-stroke outboards

• Used in Suzuki's inline three-cylinder A-series engines

• Works with guide 12771-87J00 and tensioning components

• Original endless-chain configuration

🔄 Supersession & Cross Reference

OEM Supersession Chain:

• No verified superseding part number identified

OEM / Related Numbers:

• 12761-88L00

• 1276188L00

• 12761-88L00-000

• OEM Description: Chain, Timing

• Related guide No.1: 12771-87J00

• Related timing tensioner: 12811-88L00

• Related tensioner link: 12821-88L00

• Related automatic adjuster: 12831-90J02

Aftermarket / Verified Equivalents:

• No aftermarket equivalent

🚤 Compatibility

Commonly used on:

• Suzuki DF40A outboards

• Suzuki DF50A outboards

• Suzuki DF50AV high-thrust outboards

• Suzuki DF60A outboards

• Suzuki DF60AV high-thrust outboards

Typically suits:

• DF40A model years from approximately 2011 onward

• DF50A model years from approximately 2011 onward

• DF60A model years from approximately 2010-2011 onward

• Applicable AV high-thrust variants using the same timing-chain diagram

• Horsepower Range: 40HP - 60HP

• Engine Configuration: Inline three-cylinder four-stroke

• Timing System: Chain-driven double overhead camshaft

Important fitment note:

• Confirm the engine model and starting VIN.

• Timing chains, guides and tensioners wear together.

• A visibly serviceable used chain may still have measurable pitch elongation.

• New timing components are generally preferred during a complete engine overhaul.

🔌 Function

The timing chain transfers crankshaft rotation to the camshafts at the correct ratio.

Accurate timing is essential to prevent piston-to-valve contact and maintain compression, starting performance and power output.

Common signs of timing-chain wear:

• Rattle during start-up

• Persistent chain noise

• Incorrect valve timing

• Difficult starting

• Reduced power

• Camshaft-position fault codes

• Uneven compression

• Visible chain elongation

• Worn or damaged chain rollers

• Metal debris around the chain drive

Recommended checks before installation:

• Measure chain elongation against the service limit

• Inspect every roller and side plate

• Check the crankshaft and camshaft sprockets

• Inspect both chain guides

• Check the tensioner and automatic adjuster

• Align all timing marks exactly

• Rotate the engine by hand before starting

• Confirm valve timing after assembly

📦 Condition

• Genuine Suzuki Marine used part

• Pre-owned internal engine component

• Oil staining and normal surface marks may be present

• Measurement against the factory wear limit is required

• Replacement with a new chain is recommended where wear history is unknown

• Supplied in protective or equivalent packaging
