🔧 Product Description

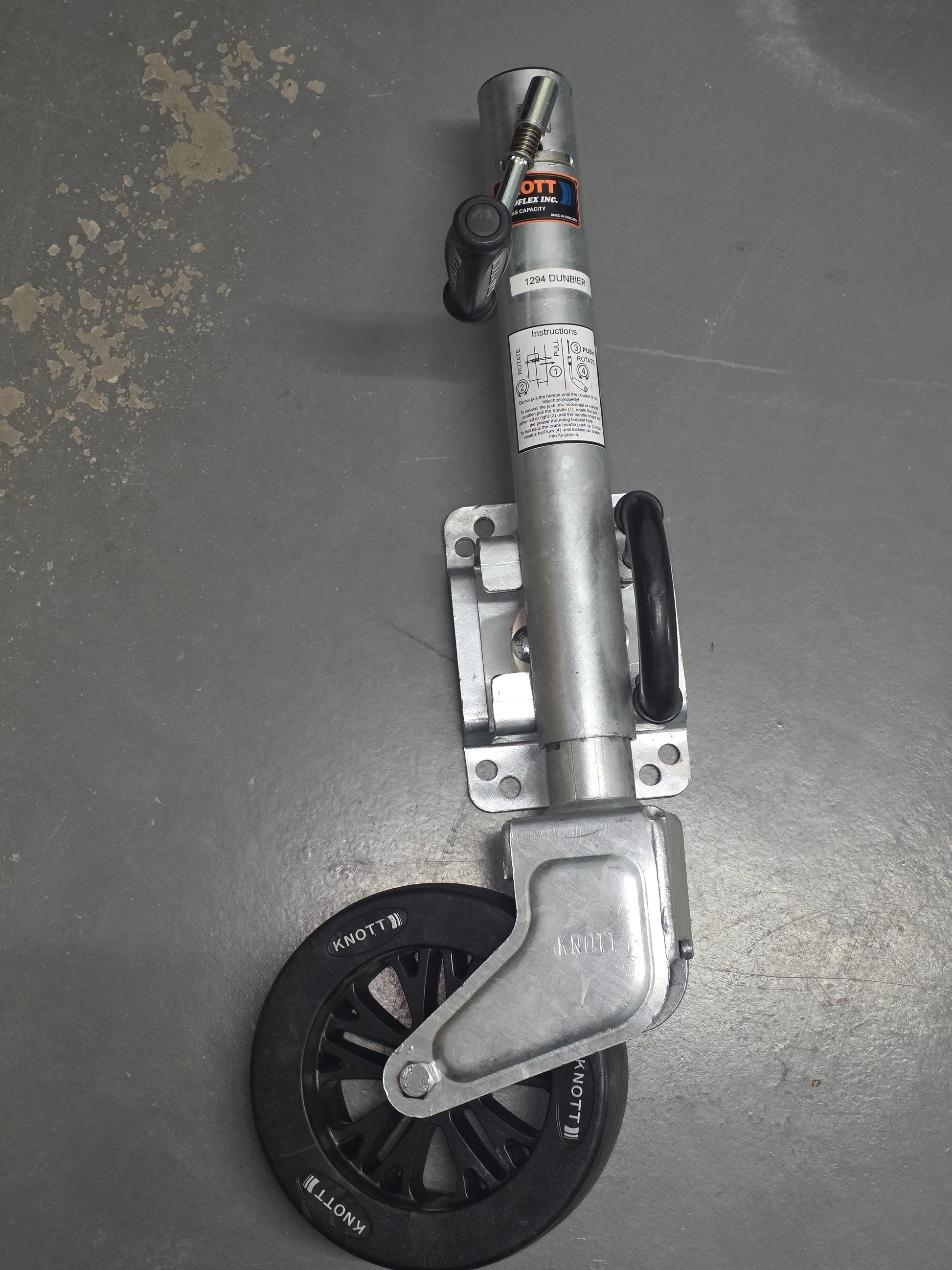

Dunbier Knott TK57 Heavy-Duty Side-Wind Swing-Up Jockey Wheel 210 × 75mm – Part Number: 1294
A premium heavy-duty Knott TK57 swing-up jockey wheel with a broad 210 × 75mm wheel for improved support on softer surfaces. Dunbier and Mackay catalogue a 545kg capacity and 255mm lift height; current Knott TK57 versions may be marked 500kg static load, so the supplied unit's rating governs.
⚙️ Key Features
- Knott TK57 side-wind mechanism
- Wide 210 × 75mm wheel
- Swing-up travel bracket
- Galvanised finish for marine trailer use
- Broad wheel reduces ground pressure compared with the 50mm version
📏 Specifications
- Catalogue capacity: 545kg Dunbier/Mackay
- Current Knott family static rating may be 500kg depending version
- Lift height: Approximately 255mm
- Wheel size: 210 × 75mm
- Outer tube diameter: TK57 57mm family
🔄 Cross Reference & Related Parts
- Dunbier: 1294
- Mackay: H3942
- Knott family: TK57 Premium
- Replacement handle: Dunbier 1295
- Replacement wheel: Dunbier 1296
- Replacement cap: Dunbier 1291
- Related gear components: Dunbier 1280, 1301 and 1302 where compatible
🚤 Trailer Compatibility & Application
- Suitable for medium and heavy trailers within the permanent rating
- Wide wheel is useful on gravel, compacted dirt and uneven launch areas
- Confirm sufficient clearance for the 75mm wheel when swung up
🔌 Function
Supports and height-adjusts the trailer drawbar and assists manual positioning on firm surfaces.
⚠️ Common Signs of Failure
- Wheel hub or tread is damaged
- Handle gear skips under load
- Swing lock is loose
- Tube bends or develops excessive play
- Grease is contaminated by water because the cap is missing
🛠️ Installation & Safety
- Mount to a structurally sound drawbar with correct hardware
- Use wheel chocks before uncoupling
- Retract and lock the assembly before road travel
- Maintain screw and gear lubrication
- Do not use as an axle jack or permanent support stand
📦 Condition
- Brand new Dunbier Marine Products trailer component
- Supplied as one complete Knott TK57 210 × 75mm heavy-duty jockey wheel
- Supplied in original or equivalent packaging
