129671-18001 Yanmar Aftermarket Turbocharger 4JH4-HTE 129671-18001 | Sawley's Select Marine Parts

🔧 Product Description

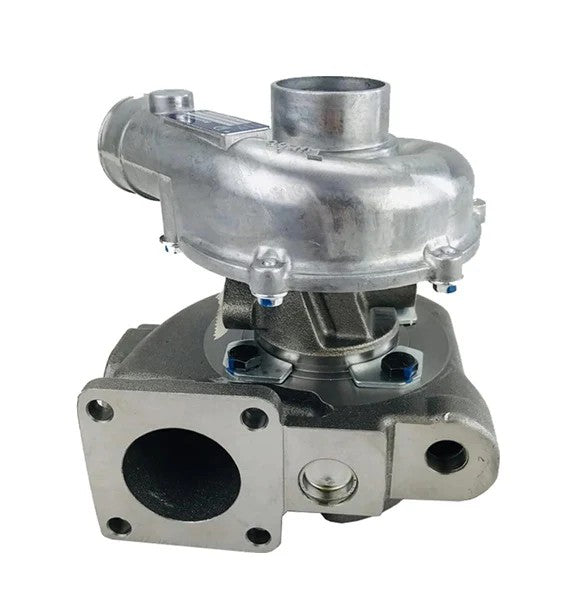

Sawley's Select Marine Parts IHI-Spec RHB52YW MYCZ Aftermarket Turbocharger - Part Number: 129671-18001

A new direct-fit aftermarket marine turbocharger manufactured to replace the IHI RHB52YW MYCZ unit fitted to selected Yanmar 4JH3-TE and 4JH4-HTE diesel engines.

This marine turbocharger uses the IHI 190016 specification and is configured for Yanmar 1.995-litre inline four-cylinder engines. The original Yanmar number, MYCZ identification and housing orientation should be matched before installation because the visually similar MYER turbo fitted to the 4JH4-TE uses a different specification.

⚙️ Key Features

• Direct-fit aftermarket replacement for Yanmar 129671-18001

• IHI RHB52YW MYCZ marine turbocharger specification

• Water-cooled bearing-housing configuration

• Four-bolt turbine inlet and three-bolt exhaust outlet

• Suits selected 75HP and 110HP Yanmar marine engines

🔄 Supersession & Cross Reference

OEM Supersession Chain:

• 129671-18001 current Yanmar MYCZ turbocharger reference

OEM / Related Numbers:

• 129671-18001

• 12967118001

• 1-29671-18001

• IHI: MYCZ

• IHI: RHB52YW

• IHI: RHB52YW-7005HP15NFBRL3611CE

• IHI: VA190016

• IHI: VB190016

• IHI: VC190016

• IHI: VD190016

• IHI: B55CND-S0016B

• IHI: B55CNDS0016B

• IHI: B55CND-S0016C

• 4042830

• Turbo mounting gasket: 129472-18090

• Turbo to exhaust elbow gasket: 129472-13520

• Air cleaner element: 129470-12330

• Turbo oil-drain O-ring: 24314-000180

Aftermarket / Verified Equivalents:

• Recmar: REC129671-18001

• IHI: MYCZ / VA190016 complete turbocharger

• IHI: VB190016 complete turbocharger

• IHI: VC190016 complete turbocharger

• IHI: VD190016 complete turbocharger

• IHI CHRA / Core Assembly: B55CND-S0016C

• FridayParts: ELFP200835

• TurboTurbos / IHI: MYCZ

• GCG Turbochargers: IHIVA190016

🚤 Compatibility

Commonly used on:

• Yanmar 4JH-series turbocharged marine diesel engines

• Inboard propulsion installations using the IHI MYCZ / 190016 turbocharger

Typically suits:

• Engine models:

• Yanmar 4JH3-T - 1.995L inline four-cylinder marine diesel

• Yanmar 4JH3-TE - 75mhp turbocharged marine diesel

• Yanmar 4JH4-HTE - 110mhp turbocharged and intercooled marine diesel

• Yanmar 4JH3-T and 4JH3-TE engines originally fitted with turbocharger 129671-18001

• Yanmar 4JH4-HTE engines originally fitted with MYCZ, VA190016, B55CND-S0016B or 129671-18001

• HP Range: 75HP - 110HP

• Engine Type: 1.995L inline four-cylinder, four-stroke, direct-injection, turbocharged marine diesel

• Year Range: Engine-model and turbo-identification controlled

🔌 Function

The turbocharger converts exhaust-gas energy into compressor-wheel rotation. The compressor forces additional air into the engine, allowing more fuel to be burned efficiently and restoring the engine's designed power and torque.

Common signs of failure:

• Reduced boost pressure and engine power

• Engine cannot reach its rated operating speed

• Excessive black smoke during acceleration

• Blue exhaust smoke or increased oil consumption

• Whining, siren, scraping or grinding noises

• Oil inside the compressor outlet or intake hose

• Excessive radial or axial shaft movement

• Compressor or turbine wheel contact

📦 Condition

• Sawley's Select Marine Parts aftermarket replacement

• Brand new

• Supplied in original or equivalent packaging
