129693-18001 Yanmar Aftermarket Turbocharger 4JH3-DTE 129693-18001 | Sawley's Select Marine Parts

🔧 Product Description

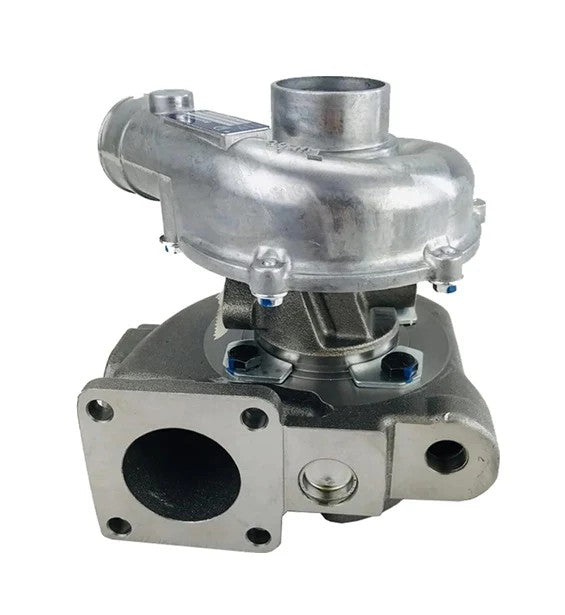

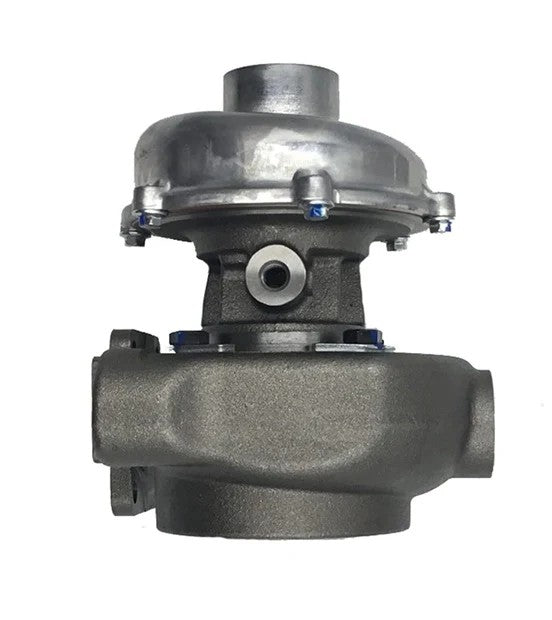

Sawley's Select Marine Parts IHI-Spec RHB52YW MYBG Aftermarket Turbocharger - Part Number: 129693-18001

A new direct-fit aftermarket marine turbocharger manufactured to replace the IHI RHB52YW MYBG / MYBGE unit fitted to selected Yanmar 4JH3-DTE, 4JH3-HTE and related 4JH3 marine engines.

This water-cooled turbocharger uses the IHI 180088 specification. It is designed for the 1.995-litre Yanmar four-cylinder engine family and is used on propulsion and generator configurations according to the original engine serial number and turbocharger identification.

⚙️ Key Features

• Direct-fit aftermarket replacement for Yanmar 129693-18001

• IHI RHB52YW MYBG / MYBGE specification

• Four-bolt turbine inlet and three-bolt exhaust outlet

• Suits 100HP and 125HP Yanmar propulsion engines

• Cross-references with complete-turbo and CHRA numbers

🔄 Supersession & Cross Reference

OEM Supersession Chain:

• 129693-18001 → Supersedes 129693-18000

• 129693-18000 earlier Yanmar turbocharger reference

OEM / Related Numbers:

• 129693-18001

• 12969318001

• 1-29693-18001

• 129693-18000

• 12969318000

• 1-29693-18000

• IHI: MYBG

• IHI: MYBGE

• IHI: RHB52YW

• IHI: RHB52YW-9000IVHP15NWBRL3831CE

• IHI: RHB52YW-9000IVHP15NFWBRL3831CE

• IHI: VA180088

• IHI: VB180088

• IHI: VC180088

• IHI: VD180088

• IHI: B52CND-S0088B

• IHI: B52CNDS0088B

• IHI: B52CND-S0088G

• IHI: B52CNDS0088G

• IHI: B52CND-S0088C

• IHI: B52CNDS0088C

• Turbo mounting gasket: 129472-18090

Aftermarket / Verified Equivalents:

• Recmar: REC129693-18001

• IHI: MYBG / VB180088 complete turbocharger

• IHI: MYBGE / VD180088 complete turbocharger

• IHI CHRA / Core Assembly: B52CND-S0088C

• IHI CHRA / Core Assembly: B52CNDS0088C

• Denco Diesel: MYBG-R remanufactured turbocharger

• Turbochargers Plus: VD180088 replacement turbocharger

• Boatparts: BP129693-18001

🚤 Compatibility

Commonly used on:

• Yanmar 4JH3-series turbocharged and intercooled marine diesel engines

• Yanmar propulsion and marine-generator installations using the MYBG / 180088 turbocharger

Typically suits:

• Engine models:

• Yanmar 4JH3-DTE - 125mhp marine propulsion engine

• Yanmar 4JH3-HTE - 100mhp marine propulsion engine from the applicable engine serial break

• Yanmar 4JH3-DT marine auxiliary and generator engine

• Yanmar 4JH3-DTZ marine engine

• Yanmar 4JH3-DTZA marine engine

• Yanmar 4JH3-DTZAY marine generator engine

• Yanmar 4JH3-DTE installations originally fitted with 129693-18000 or 129693-18001

• Yanmar 4JH3-HTE engines from serial E21461 where the parts catalogue specifies 129693-18001

• HP Range: 100HP - 125HP

• Engine Type: 1.995L inline four-cylinder, four-stroke, direct-injection, turbocharged and intercooled marine diesel

• Year Range: Approximately 1999 - 2006, dependent on engine model and serial number

🔌 Function

The turbocharger uses exhaust flow to rotate the turbine and compressor wheels. The compressor supplies pressurised air through the intercooler, allowing the engine to achieve its rated output while maintaining efficient combustion.

Common signs of failure:

• Loss of boost and reduced vessel performance

• Engine cannot achieve rated rpm

• Excessive black smoke under load

• Blue smoke or increased engine-oil consumption

• Whining, scraping, siren or grinding noises

• Oil accumulation inside the compressor outlet

• Excessive turbocharger shaft movement

• Damaged compressor or turbine blades

📦 Condition

• Sawley's Select Marine Parts aftermarket replacement

• Brand new

• Supplied in original or equivalent packaging
