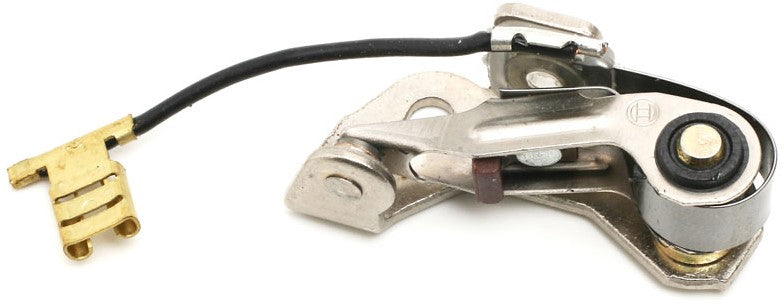

1306169 Switch Kit | Genuine Volvo Penta Part

🔧 Product Description

A genuine Volvo Penta ignition contact-breaker kit for Bosch distributor systems fitted to selected Volvo Penta petrol engines. The breaker points open and close the ignition-coil primary circuit as the distributor cam rotates, creating the high-voltage spark required for combustion. Distributor number and breaker-plate layout must be checked because similar Volvo petrol engines can use different Bosch or Prestolite ignition systems.

🚤 Compatibility

• Engine Family: AQ, BB, B, MD, MB, AQD
• HP Range: Approximately 90-170 HP
• Year Range: Approximately 1960s - 1980s

Full model list at the end of this description.

⚙️ Key Features

• OEM Volvo Penta part number 1306169
• System group: Ignition and Control Systems
• Supplied as a complete switch (contact) kit
• Supersedes previous part number 241664
• Net weight approximately 0.036 kg
• Fits classic Volvo Penta AQ, BB, MB, MD and B-series engines

📋 Kit Contents

• 1306169 moving breaker-point arm and contact assembly - 1
• 1306169 fixed contact and mounting plate assembly - 1
• 1306169 insulated terminal and primary-lead connection hardware - 1 set
• 1306169 mounting screw, adjustment and retaining hardware - 1 set
• Volvo Penta does not assign separate service part numbers to the individual pieces inside this contact kit; all pieces are serviced under kit number 1306169

🔌 Function

The switch kit forms the make-and-break contact set within the ignition circuit, opening and closing the primary current so that the coil can generate spark voltage. Correct contact condition and gap directly determine ignition timing accuracy and spark strength.

⚠️ Common Signs of Failure

• Hard starting or extended cranking before the engine fires
• Misfiring, stumbling or rough running under load
• Unstable or erratic idle speed
• Pitted, burned or badly worn contact faces causing weak or intermittent spark
• Engine cutting out or losing power at higher RPM

🛠️ Service Notes

• This kit is for the Bosch distributor fitted to these engines - some of the same engine models used a Prestolite distributor instead, so check the distributor markings before ordering
• Supersedes earlier kit 241664 - order against this number even if older paperwork or a parts list still shows 241664

🔄 Supersession & Cross Reference

OEM Supersession Chain

• 1306169 → Supersedes 241664

OEM / Related Numbers

• 241664 earlier number superseded by this part

Other-Brand OEM Numbers

• Bosch: 1 237 013 081; 1 237 013 063; 1 237 013 065; 1 237 013 087; 1 237 013 123

Aftermarket / Verified Equivalents

• Sierra Marine: 18-5305
• GLM Marine: 70082
• CDI Electronics: E66-0024
• BERU: 0 340 100 448; 0 340 100 621
• BREMI: 2027
• DODUCO: 251; 253
• Motorcraft: EDP50; EDP53

📦 Condition

• Genuine Volvo Penta part
• Brand new
• Supplied in original or equivalent packaging

🔎 Full Model Compatibility

Typically suits:

• Volvo Penta AQ130C, AQ130D, AQ130A, AQ130B
• Volvo Penta AQ170B, AQ170C, AQ170A
• Volvo Penta BB115A, BB115B, BB115C
• Volvo Penta BB170B, BB170C, BB170A
• Volvo Penta MB20A, MB20B, MB20C
• Volvo Penta AQ115A, AQ115B
• Volvo Penta 100S, 110S
• Volvo Penta AQ165A
• Volvo Penta AQD21A
• Volvo Penta B20
• Volvo Penta BB165A
• Volvo Penta MD21A
