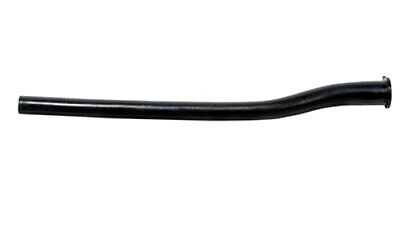

1306196 Draining Pipe | Genuine Volvo Penta Part

🔧 Product Description

A genuine Volvo Penta drain pipe used with the crankcase oil trap on selected four-cylinder petrol engines. The moulded hose returns separated oil from oil trap 1306398 to the engine while allowing crankcase vapour to continue through the ventilation system. The part is shared with Volvo automotive B18, B20, B21, B23 and B230 crankcase-ventilation systems and is supported by several established reproduction suppliers. Correct routing prevents kinking and keeps the hose away from hot exhaust components.

🚤 Compatibility

• Engine Family: AQ, B, BB
• HP Range: Approximately 90-170 HP
• Year Range: Approximately 1960s - 1990s
• Serial Range: AQ125A USA MO 7545501-. AQ125A MO 7545501-.

Full model list at the end of this description.

⚙️ Key Features

• Genuine Volvo Penta OEM part number 1306196
• System group: Inlet and Exhaust System
• Net weight approximately 0.045 kg
• Fits AQ125, AQ131, AQ145, AQ151, AQ171, 230/250/251 and B230-series petrol engines
• Specified for later-production AQ125A engines, including USA-market versions
• Engine type: Volvo Penta 4-cylinder marine petrol engine crankcase ventilation

🔌 Function

The draining pipe carries condensate or residual fluid away from the inlet and exhaust assembly so it cannot collect internally. Keeping this drain path clear protects surrounding components from standing moisture and corrosion.

⚠️ Common Signs of Failure

• Fluid or condensate pooling where the drain should be discharging
• Blockage from carbon, sludge or corrosion debris restricting flow
• Corroded, split or perforated pipe wall
• Loose or leaking connection at the pipe joint
• Corrosion staining on adjacent components fed by an overflowing drain

🛠️ Service Notes

• It carries oil back from trap 1306398 to the engine while still passing crankcase vapour on to the ventilation system, so check this pipe for a split or collapsed bore rather than replacing only the trap when ventilation performance drops.
• Route it clear of the exhaust and away from tight folds — this hose is shared with the automotive B18-B230 crankcase-ventilation system, where the same moulded hose is known to harden and crack when left close to heat.
• Because it is moulded rather than a straight length, check it for splitting at the moulded bends specifically, not just along the straight runs.

🔄 Supersession & Cross Reference

OEM / Related Numbers

• 1306398 related oil trap
• Volvo B18 / B20 / B21 / B23 / B230 crankcase-ventilation system

Aftermarket / Verified Equivalents

• Skandix: 1014161

📦 Condition

• Genuine Volvo Penta part
• Brand new
• Supplied in original or equivalent packaging

🔎 Full Model Compatibility

Typically suits:

• Volvo Penta B230, B230E, B230F, B230FB, B230FX
• Volvo Penta 230A, 230B, 250A, 250B, 251A
• Volvo Penta AQ131A, AQ131B, AQ131C, AQ131D
• Volvo Penta AQ151A, AQ151B, AQ151C
• Volvo Penta AQ125B, AQ125A
• Volvo Penta AQ145B, AQ145A
• Volvo Penta AQ171A, AQ171C
• Volvo Penta BB145A
