1308436 Housing | Genuine Volvo Penta Part

🔧 Product Description

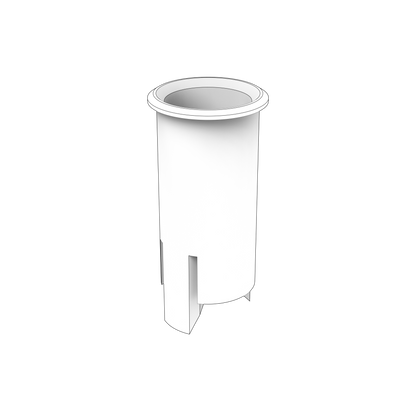

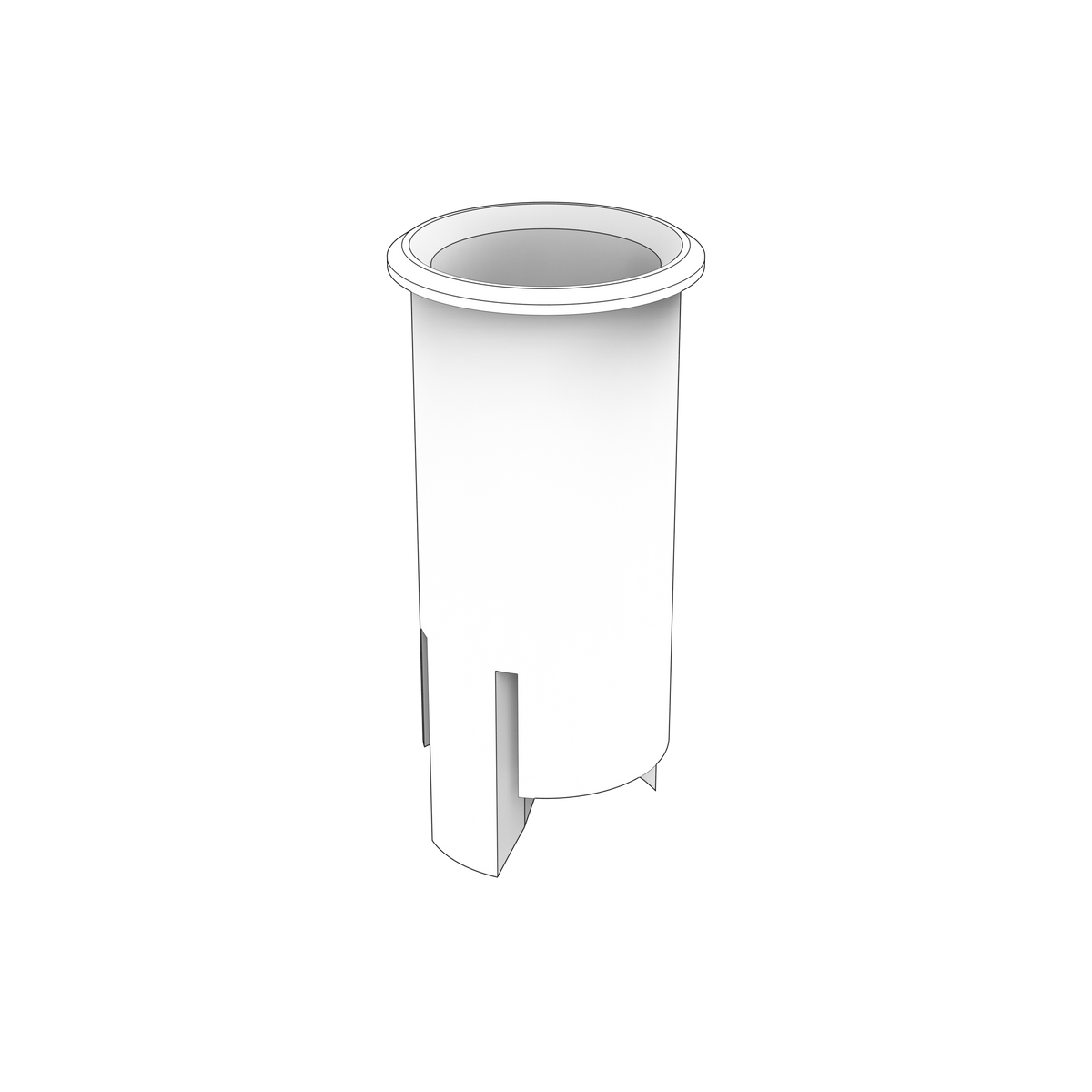

This is a genuine Volvo Penta 1-pole connector housing from the Cables and Fuses group, used to hold and insulate a single electrical terminal within an engine or drive wiring harness. The 1-pole configuration is what sets it apart from the multi-way housings that share the same name, so confirm the number of terminals in the connector you are repairing before ordering. It is a very light, small component supplied individually for harness and connector repair work.

🚤 Compatibility

• Engine Family: TAD, TAMD, D, TWD, TSK, TMD, THD, TID, TD, MS, AD, DP, SP, DH, DPX, MD, KAD, KAMD, TADH
• HP Range: 180-435 HP
• Year Range: Approximately 1980s - 2010s

Full model list at the end of this description.

⚙️ Key Features

• OEM Volvo Penta part number 1308436
• 1-pole (single-way) connector housing configuration
• System group: Cables and Fuses
• Net weight: 0.0023 kg
• Fits Volvo Penta marine diesel, petrol, industrial and genset engines plus SP, DP and DPX sterndrives
• Engine type: Volvo Penta marine / industrial electrical connector

🔌 Function

The housing retains and mechanically locks a single electrical terminal, keeping the connection correctly positioned and insulated within the wiring harness. It also provides protection for the terminal against vibration, chafing and moisture at the connection point.

⚠️ Common Signs of Failure

• Cracked, split or brittle housing body from heat ageing and vibration
• Terminal no longer locks in place or pushes out of the housing
• Intermittent or lost signal at the connected circuit
• Green or white corrosion around the terminal caused by moisture ingress
• Melted or discoloured plastic indicating a high-resistance connection

🛠️ Service Notes

• Isolate the batteries first, and note which way the housing sits and how the harness runs into it before anything is disturbed
• Move terminals across one at a time into the same cavity positions, releasing each locking tab with a proper extraction tool rather than pulling on the wire
• Check every terminal clicks fully home and locks before the housing is closed; a terminal that is not seated will back out under vibration
• Make sure all seals, grommets and blanking plugs are present and undamaged, and leave unused cavities plugged so the housing keeps water out
• Support and route the harness so nothing hangs on the housing, and check the connection is dry after the first run

🔄 Supersession & Cross Reference

OEM / Related Numbers

• 1307035 related one-pole receptacle housing
• 1307048 two-pole receptacle housing
• 1307049 two-pole tab housing

📦 Condition

• Genuine Volvo Penta part
• Brand new
• Supplied in original or equivalent packaging

🔎 Full Model Compatibility

Typically suits:

• Volvo Penta D6-370A-C, D6-350A-A, D6-350A-B, D6-330A-D, D6-330D-E, D6-370D-E, D6-370D-B, D6-330D-B, D6-330A-F, D6-370A-F, D6-370D-A, D6-330D-C, D6-330A-C, D6-370D-C, D6-330D-D, D6-370D-D, D6-330D-F, D6-370A-D, D6-330A-E, D6-370A-E, D6-370D-F, D6-330I-D, D6-310I-B, D6-280I-B, D6-280I-C, D6-280I-D, D6-280I-E, D6-310I-D, D6-435I-D, D6-310I-E, D6-280I-A, D6-310I-A, D6-300A-F, D6-300D-F, D6-300I-F, D6-310D-A, D6-310D-B, D6-310D-D, D6-310D-C, D6-310D-E, D6-370I-A, D6-370I-B, D6-330I-B, D6-330I-C, D6-370I-C, D6-370I-D, D6-310A-B, D6-280A-C, D6-310A-C, D6-310A-A, D6-280A-D, D6-310A-D, D6-280A-E, D6-310A-E, D6-310I-C, D6-280A-A, D6-280A-B, D6-330I-F, D6-370I-F, D6-400A-E, D6-435D-A, D6-435D-D, D6-435D-E, D6-435D-F, D6-435I-A, D6-435I-C, D6-435I-E, D6-400A-F, D6-435D-C, D6-435I-F, D6-330I-E, D6-370I-E, D6-330A-B, D6-370A-B
• Volvo Penta 740B, 8.1GiCE-JF, 8.1GiCE-J, 8.1GiCE-M, 8.1GiE-JF, 8.1GiE-J, 8.1GiE-KF, 8.1GiE-K, 8.1GiE-M, 8.1GiE-MF, 8.1GXiE-JF, 8.1GXiE-J, 8.1GXiE-K, 8.1GXiE-KF, 8.1GXiE-M, 8.1IPSCE-JF, 8.1IPSCE-MF, 8.1IPSE-JF, 8.1IPSE-KF, 8.1OSiE-JF, 8.1OSiE-J, 501B, 570A, 572A, 5.7GXiCE-JF, 5.7GXiCE-J, 5.7GXiCE-M, 5.7GXiE-JF, 5.7GXiE-J, 5.7GXiE-KF, 5.7GXiE-K, 5.7GXiE-M, 5.7GXiE-MF, 5.7OSiE-300-JF, 5.7OSiE-300-J, 5.7OSXiE-JF, 5.7OSXiE-J, 5.0OSiE-J, 5.0OSiE-JF, 5.7GiE-300-JF, 5.7GiE-300-J, 5.7GiCE-300-M, 5.7GiE-300-N, 5.7GiCE-300-MF, 5.7GiCE-300-J, 5.7GiCE-300-JF, 5.7GXiE-N, 5.7GiE-300-K, 5.7GiE-300-KF, 5.7GiE-300-M, 430A, 430B, 431A, 431B, 432A, 434A, 5.0GXiCE-JF, 5.0GXiCE-J, 5.0GXiCE-M, 5.0GXiCE-MF, 5.0GXiE-JF, 5.0GXiE-J, 5.0GXiE-K, 5.0GXiE-KF, 5.0GXiE-M, 5.0GXiE-MF, 5.0GXiE-N, 570, 500B, 430
• Volvo Penta D12C-A MP, D12D-A MG, D12D-A MH, D12D-A MP, D12D-B MH, D12D-B MP, D12D-C MH, D12D-C MP, D12D-D MP, D12D-E MG, D12D-E MH, D12D-E MP, D12D-F MP, D12D-G MH, D12D-G MP, D12D-H MP
• Volvo Penta D11B3-A MP, D11B4-A MP, D11A-A, D11A-B, D11A-C, D11A-D, D11A-E, D11A-C MP, D11A-D MP, D11A-E MP, D11A-C (IPS)
• Volvo Penta D13B-A MP, D13B-C MH, D13B-H MP, D13B-G MP, D13B-L MP, D13B-K MP, D13B-B MP, D13B-D MP, D13B-J MP, D13B-M MP, D13B-C MP
• Volvo Penta D4-260A-F, D4-260D-F, D4-260I-F, D4-300A-F, D4-300D-F, D4-180I-F, D4-225I-F, D4-300I-F, D4-225A-F
• Volvo Penta DP-C, DP-C1, DP-D, DP-D1, DP-E, DP-A, DP-A2
• Volvo Penta TAMD122A, TAMD122A/C, TAMD122AF, TAMD122D, TAMD122P-A, TAMD122P-B, TAMD122P-C
• Volvo Penta TAMD74P-A, TAMD74P-B, TAMD74A, TAMD74C-A, TAMD74C-B, TAMD74L-A, TAMD74L-B
• Volvo Penta TAMD162C-C, TAMD162A, TAMD162B, TAMD162C, TAMD162C-B
• Volvo Penta DH10A, DH10A 285, DH10A 360, DH10A Rail
• Volvo Penta SP-C, SP-E, SP-A2, SP-C1
• Volvo Penta TID162AG, TID162AGP, TID162AP, TID162APB
• Volvo Penta AD31D, AD31D-A, AD31XD
• Volvo Penta TAD1030G, TAD1030V, TAD1030VE
• Volvo Penta TAD1341-43GE-B, TAD1341VE, TAD1341GE
• Volvo Penta TAD1344-45GE-B, TAD1344VE, TAD1344GE
• Volvo Penta TAMD165A, TAMD165C, TAMD165P
• Volvo Penta THD102KB, THD102KD, THD102K-KB
• Volvo Penta TWD1210G, TWD1210P, TWD1210PB
• Volvo Penta D16C-A MG, D16C-D MH
• Volvo Penta MD2010-C, MD2010-D
• Volvo Penta MD2020-C, MD2020-D
• Volvo Penta MD2030-C, MD2030-D
• Volvo Penta MD2040-C, MD2040-D
• Volvo Penta MD22, MD22A
• Volvo Penta TAD1342VE, TAD1342GE
• Volvo Penta TAD1343VE, TAD1343GE
• Volvo Penta TAD1345GE, TAD1345VE
• Volvo Penta TAD1350GE, TAD1350VE
• Volvo Penta TAD1351GE, TAD1351-53VE
• Volvo Penta TAD1630P, TAD1630PB
• Volvo Penta TAD880-82GE, TAD880-84VE
• Volvo Penta TADH880-82GE, TADH880-84VE
• Volvo Penta TAMD102A, TAMD102D
• Volvo Penta TAMD163A-A, TAMD163P-A
• Volvo Penta TAMD31M, TAMD31D
• Volvo Penta TAMD71B, TAMD71A
• Volvo Penta TAMD72P-A, TAMD72WJ-A
• Volvo Penta TAMD73P-A, TAMD73WJ-A
• Volvo Penta TD121GP, TD121GPB
• Volvo Penta TSK DP-E, TSK DPX-A
• Volvo Penta TWD1211P, TWD1211G
• Volvo Penta TWD1630P, TWD1630PP
• Volvo Penta TWD610PB, TWD610V
• Volvo Penta DPX-A
• Volvo Penta KAD42B
• Volvo Penta KAMD42B
• Volvo Penta MS2B-A
• Volvo Penta MS4B
• Volvo Penta TAD1140-42VE
• Volvo Penta TAD1150-52VE
• Volvo Penta TAD1170-72VE
• Volvo Penta TAD1180-83VE
• Volvo Penta TAD1230G
• Volvo Penta TAD1231GE
• Volvo Penta TAD1232GE
• Volvo Penta TAD1340VE
• Volvo Penta TAD1352GE
• Volvo Penta TAD1353GE
• Volvo Penta TAD1354GE
• Volvo Penta TAD1355GE
• Volvo Penta TAD1360-62VE
• Volvo Penta TAD1363-65VE
• Volvo Penta TAD1371-75VE
• Volvo Penta TAD1380-82GE
• Volvo Penta TAD1381-85VE
• Volvo Penta TAD1384-85VE-IWP
• Volvo Penta TAD1643VE-B
• Volvo Penta TAD870-73VE
• Volvo Penta TAMD121D
• Volvo Penta TAMD41P
• Volvo Penta TAMD42B
• Volvo Penta TAMD61A
• Volvo Penta TAMD62A
• Volvo Penta TAMD75P-A
• Volvo Penta TD100G
• Volvo Penta TD1010G
• Volvo Penta TD1030VE
• Volvo Penta TD1210G
• Volvo Penta TD610V
• Volvo Penta TD630VE
• Volvo Penta TD640VE
• Volvo Penta TMD102A
• Volvo Penta TMD121C
• Volvo Penta TMD122A
• Volvo Penta TMD22A
• Volvo Penta TMD31D
• Volvo Penta TWD1010G
• Volvo Penta TWD1030ME
• Volvo Penta TWD1031VE
• Volvo Penta TWD1230ME
• Volvo Penta TWD1644-45GE
• Volvo Penta TWD1683VE
• Volvo Penta TWD630VE
