1311 Dunbier Ark Xo Jockey Wheel Xl Zinc 750kg | Marine Trailer Part

🔧 Product Description

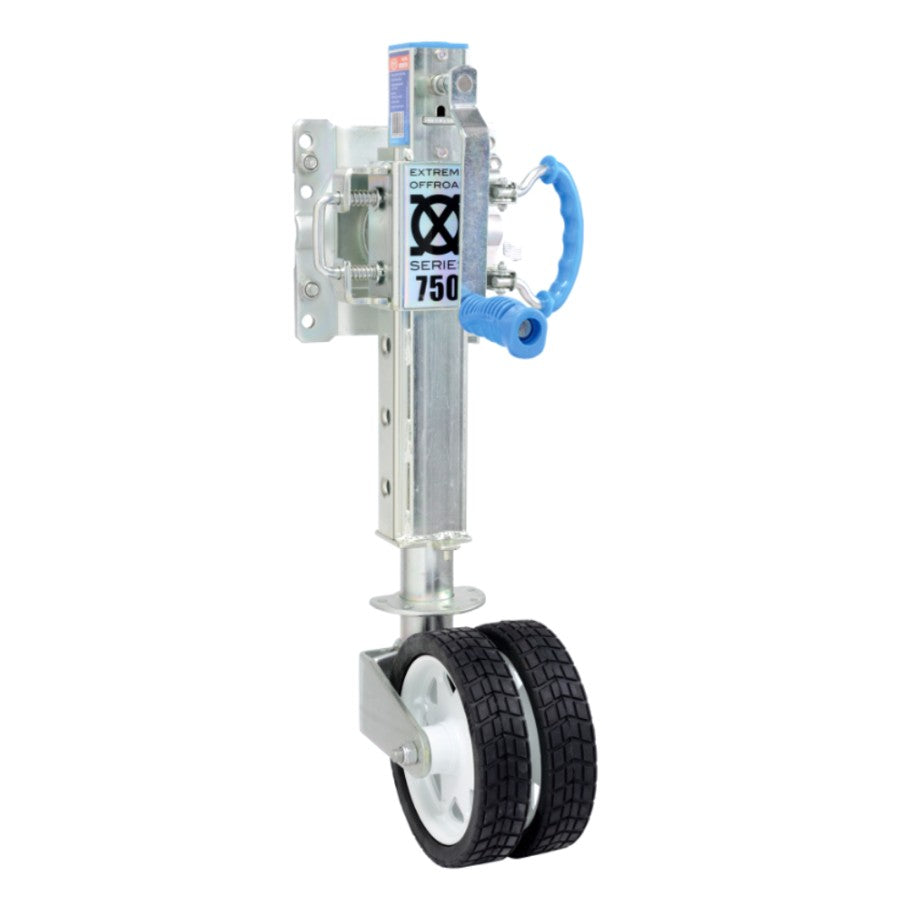

Genuine Dunbier-supplied ARK ARK XO750 XL Extreme Off-Road Jockey Wheel - Zinc - Part Number: 1311

A heavy-duty ARK XO750 XL side-wind jockey wheel supplied through Dunbier for large boat trailers, caravans and off-road trailers. The extra-long body, dual premium 8-inch wheels, six-position height adjustment and variable-lock yoke provide high ground clearance and controlled manoeuvring while supporting up to 750kg of static drawbar load.

⚙️ Key Features

• Heavy-duty 750kg static-load rating

• Extra-long telescopic body for raised trailer chassis and off-road drawbars

• Dual 8-inch off-road tread wheels with sealed bearings

• Six adjustable mounting-height positions provide approximately 250mm of bracket adjustment

• Variable yoke lock provides five stowed positions and an easy-pivot trailing-wheel action

• Removable magnetic side-wind handle reduces projection during storage and travel

📏 Specifications

• Manufacturer model: ARK XO750 XL

• ARK product reference: ORJW750XL / ORJW750XLD

• Static-load rating: 750kg

• Approximate minimum height: 295mm

• Approximate maximum height: 850mm

• Wheel configuration: Dual 8-inch premium off-road wheels

• Finish: Zinc-plated, salt-spray-tested corrosion protection

• Clamp compatibility: Approximately 75mm, 100mm, 130mm and 150mm drawbars

🔄 Cross Reference & Related Parts

• Manufacturer: ARK Corporation

• Comparable smaller ARK XO models must not be substituted without confirming load rating, body length and clamp geometry

• Use ARK XO replacement handles, wheels and mounting hardware matched to the ORJW750XL platform

🚤 Compatibility & Application

• Heavy boat trailers, caravans and off-road trailers requiring a long-body 750kg jockey wheel

• The 750kg figure is a supported static drawbar-load rating, not trailer ATM

• Confirm drawbar size, mounting clearance, wheel sweep and ground clearance before installation

• Mounting hardware must be tightened evenly and rechecked after initial use

• Fully raise and positively lock the yoke before road travel

🔌 Function

Supports the uncoupled trailer drawbar, adjusts coupling height and allows controlled low-speed manoeuvring on firm or moderately uneven ground.

Common signs of wear, damage or replacement required:

• Yoke does not lock positively in the selected position

• Side-wind screw binds, skips or develops excessive free play

• Sealed wheel bearings become loose, noisy or difficult to rotate

• Clamp or mounting plates shift on the drawbar

• Zinc coating is damaged and structural corrosion develops

📦 Condition

• Genuine Dunbier-supplied ARK part

• Brand new

• Supplied in original or equivalent packaging
