13110-88L00 Suzuki DF60A Air Intake Manifold | Genuine Used Part

🔧 Product Description

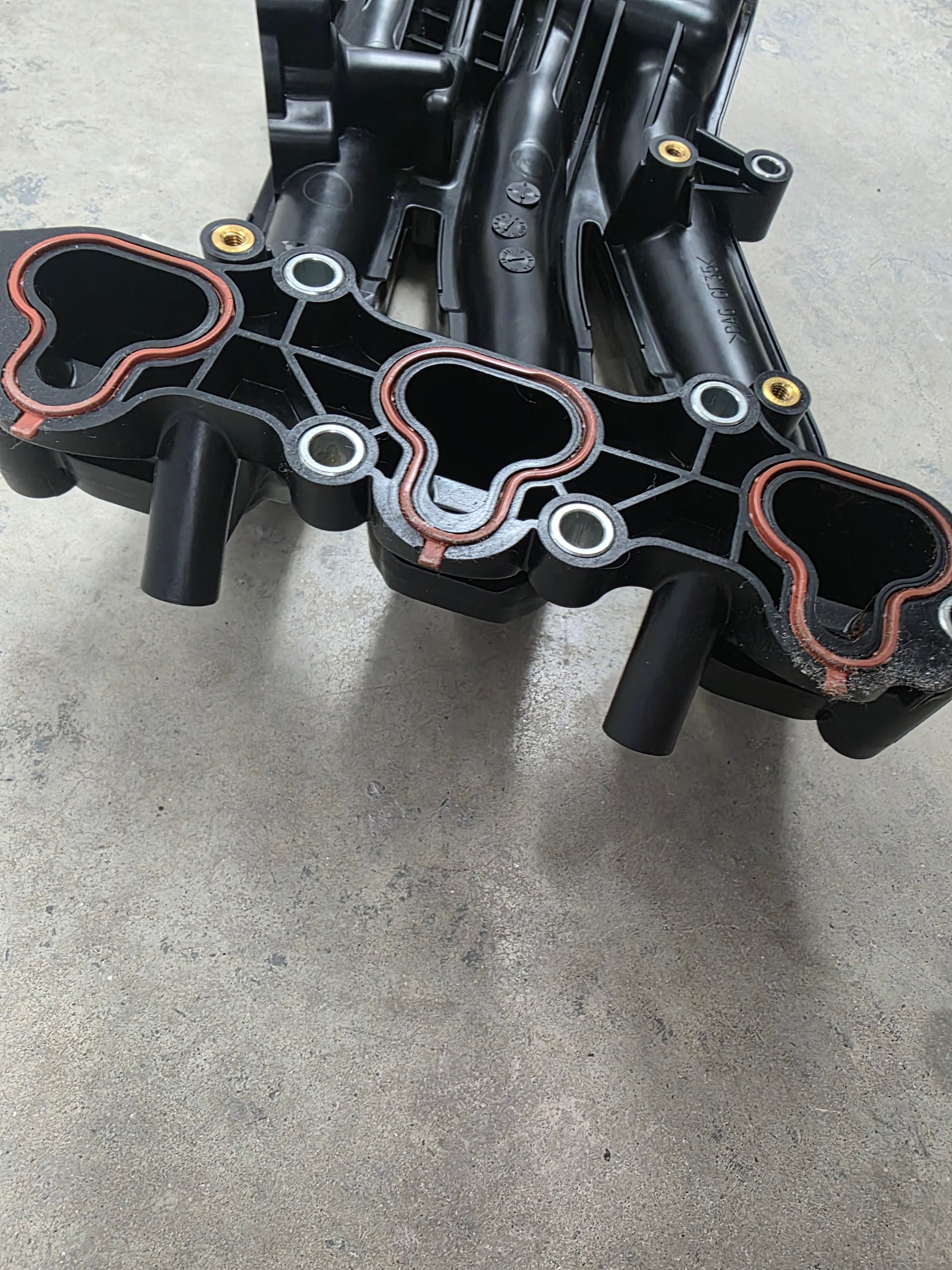

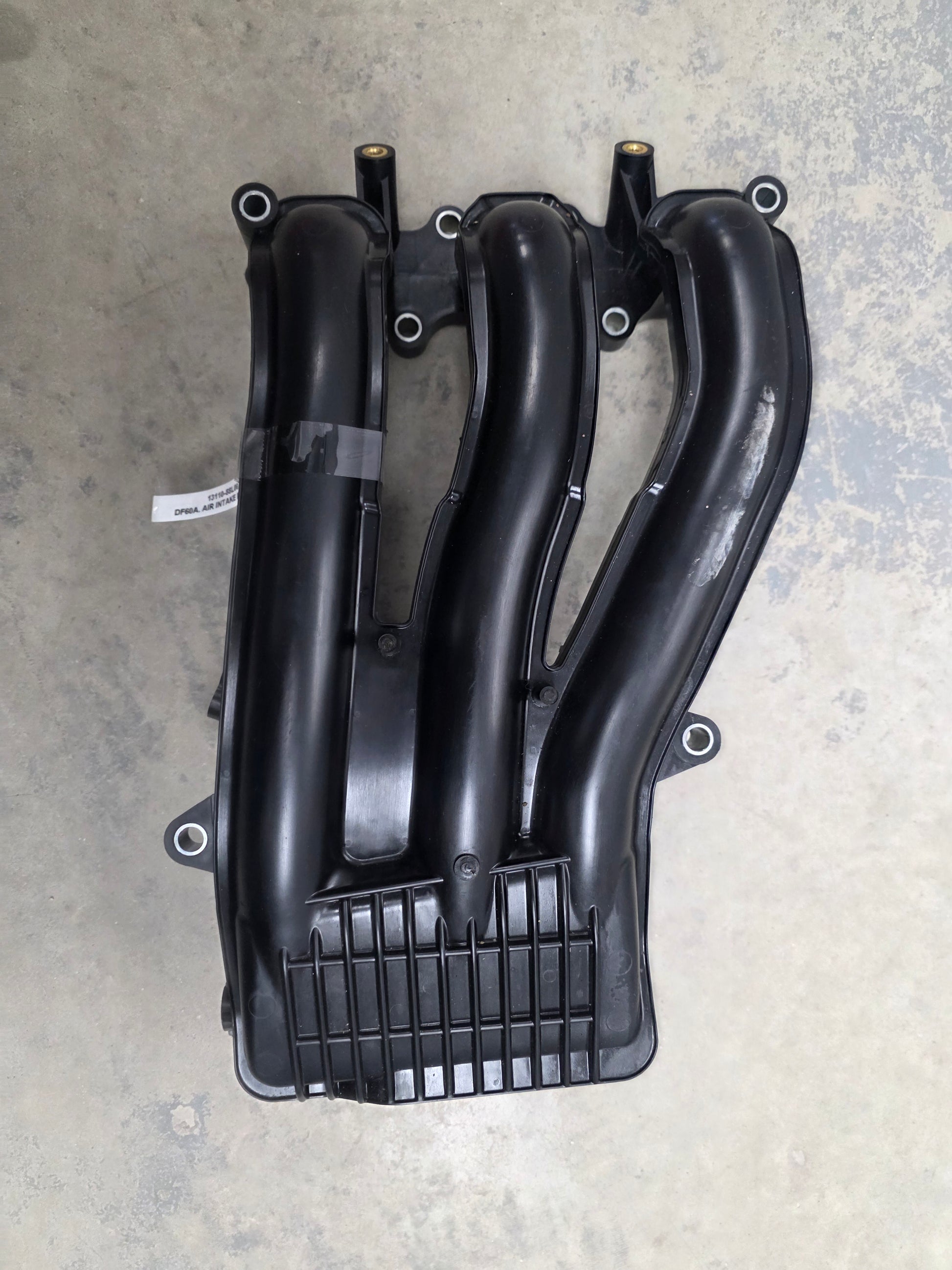

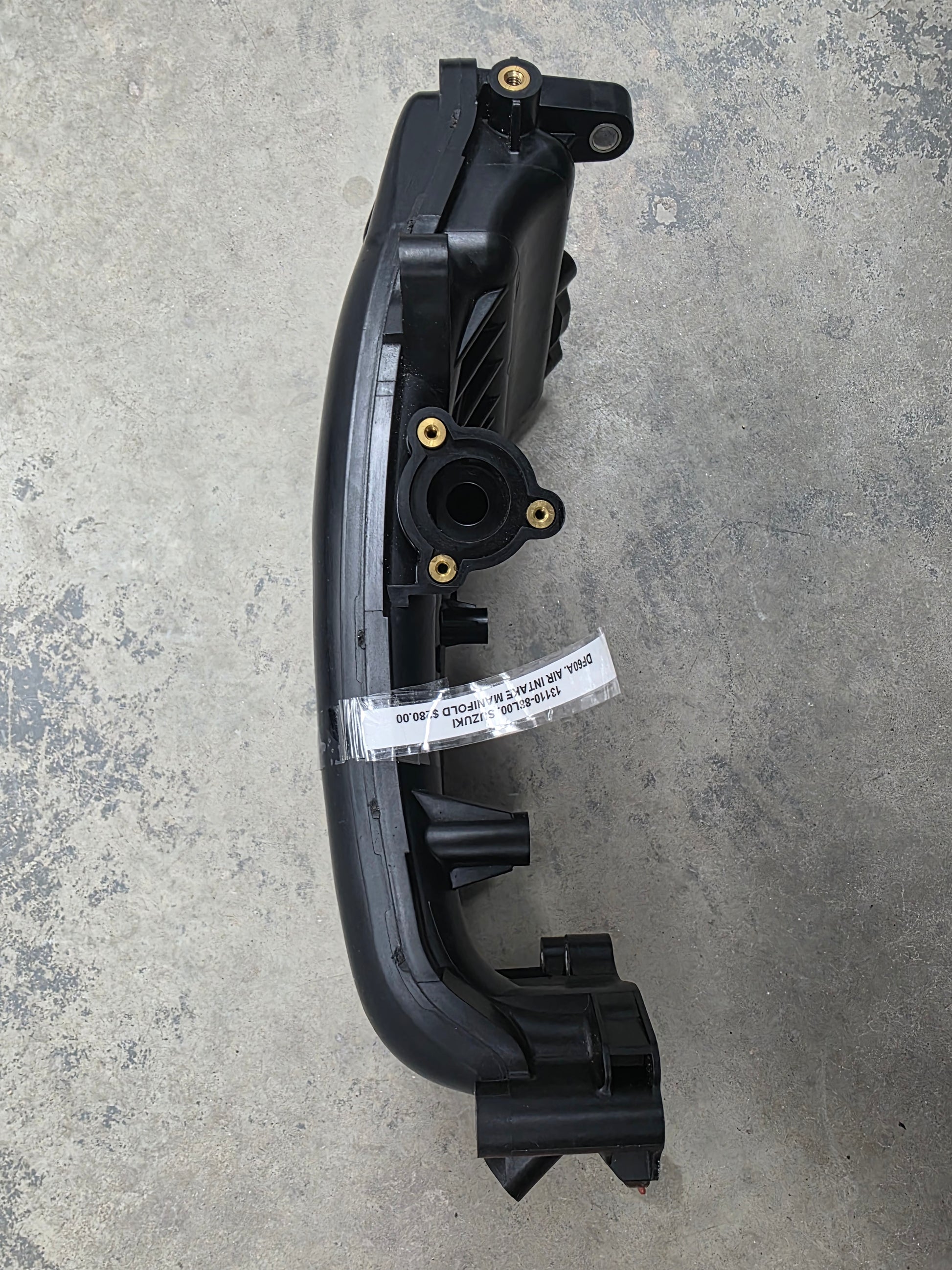

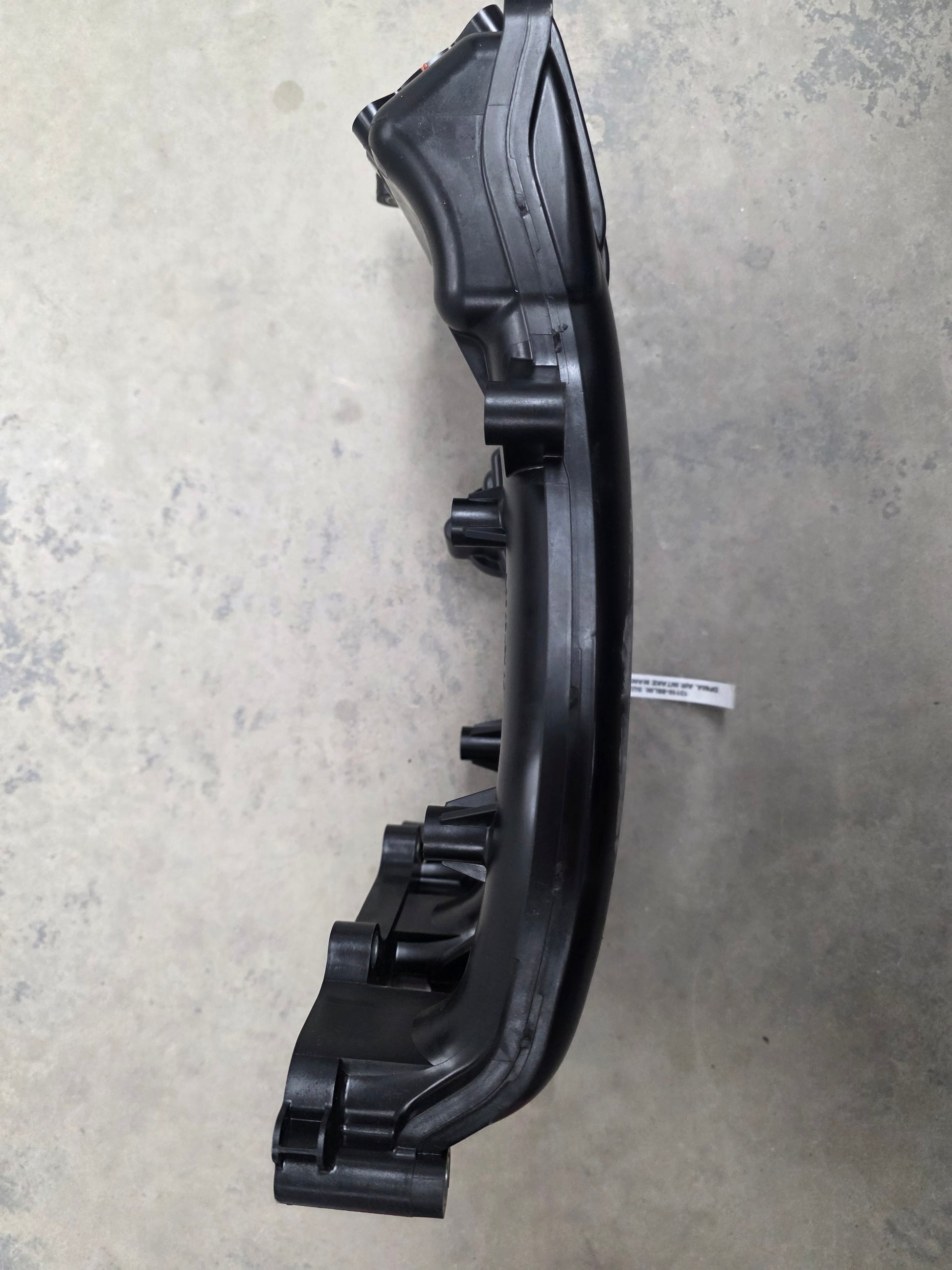

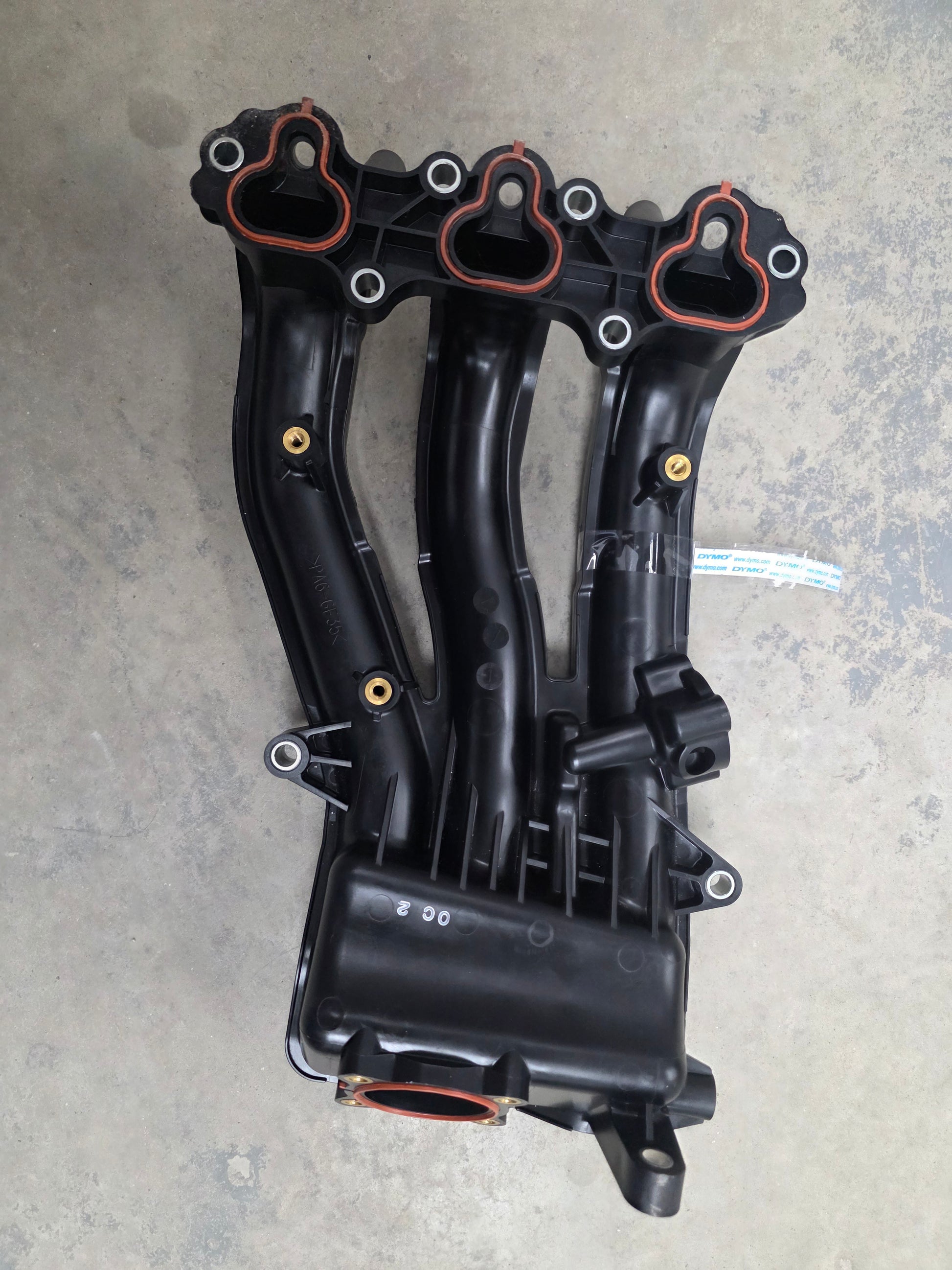

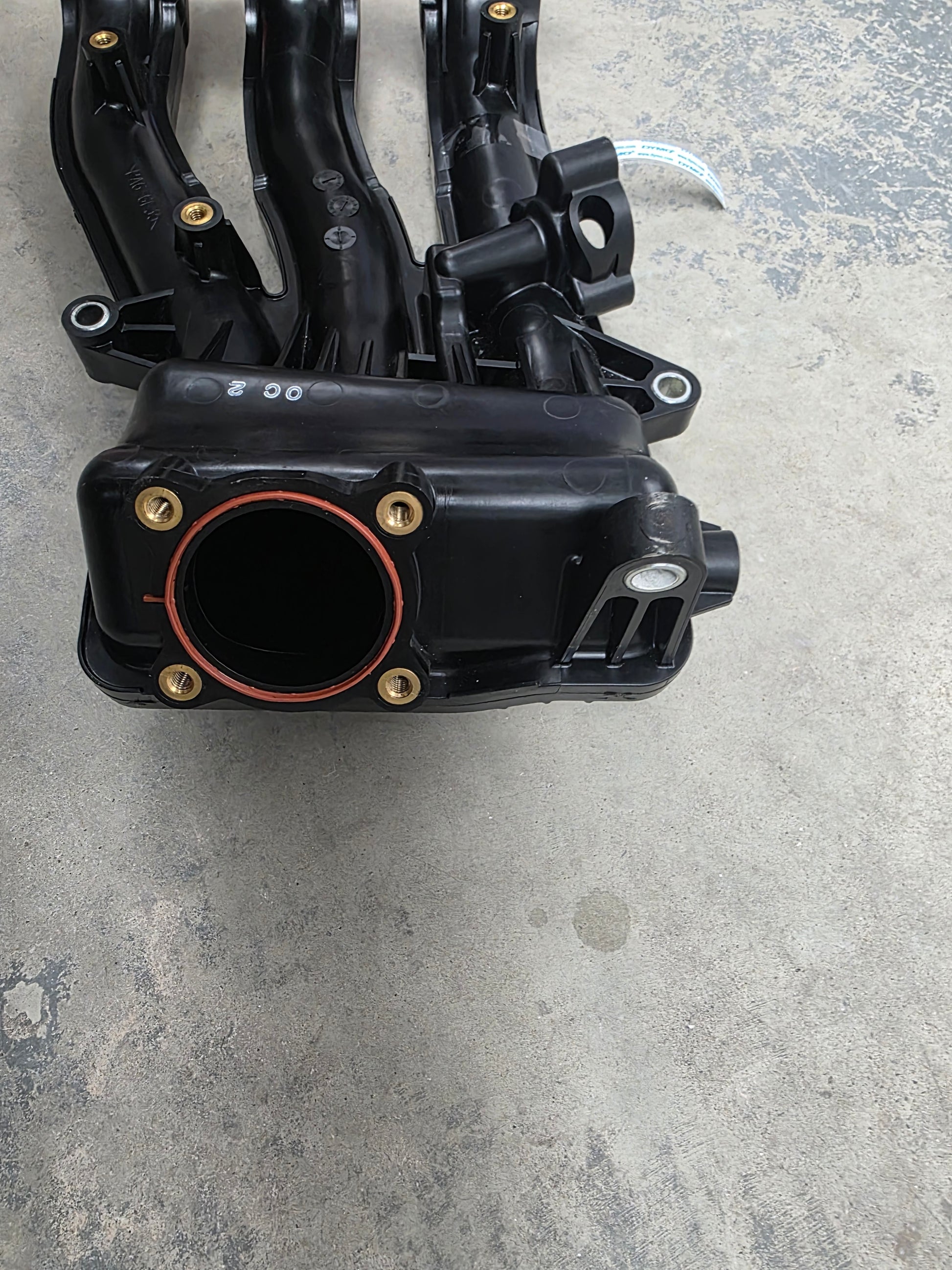

Genuine Suzuki DF40A / DF50A / DF60A Intake Manifold - Part Number: 13110-88L00

A genuine Suzuki moulded intake manifold for the 941 cc inline-three DF40A, DF50A and DF60A four-stroke outboard family. It mounts between the throttle body and cylinder head and distributes metered intake air to the three intake ports.

⚙️ Key Features

• Genuine Suzuki OEM intake manifold
• Correct part number 13110-88L00
• Formatted number 13110-88L00-000
• Used across DF40A, DF50A and DF60A families
• Moulded lightweight intake-plenum construction

🚤 Compatibility

• Suzuki DF40A and DF40A variants
• Suzuki DF50A and DF50A variants
• Suzuki DF60A, DF60AV and high-thrust / tiller variants where 13110-88L00 is listed
• Approximate year range: 2011 onward
• Includes later model-year catalogues through current-generation production where the same number is specified

🔌 Function

The manifold acts as a plenum and divides throttle-body airflow between the three cylinders while providing connections for sensors, hoses and engine-management components.

⚠️ Common Signs of Failure

• Cracked plastic or damaged mounting ears
• Vacuum leak at gasket surfaces
• Damaged sensor or hose ports
• Uneven idle or lean running
• Whistling intake noise
• Reduced power or stored MAP / air-leak faults

🔄 Supersession & Cross Reference

OEM Supersession Chain

• 13110-88L00 is the current documented manifold reference
• 13110-88L00-000 and 13110-88L00-0000 are formatted ordering versions
• No direct superseding part number has been verified

OEM / Related Numbers

• 13110-88L00
• 13110-88L00-000
• 13119-88L00 intake-manifold gasket
• 13125-88L00 throttle-body / inlet gasket
• 13610-88L00 related intake silencer
• Related MAP sensor, throttle body and mounting hardware

Aftermarket / Verified Equivalents

• No verified branded complete aftermarket manifold
• Genuine Suzuki 13110-88L00 remains the direct replacement
• Aftermarket gasket sets for DF40A-DF60A engines are available separately
• Used genuine manifolds are the practical replacement when the OEM part is unavailable

📦 Condition

• Genuine used part
• Removed from running engine where applicable
• In good working condition unless otherwise stated
