13110-90J02 Suzuki 5033535 Johnson Intake Manifold 90HP 100HP 115HP 140HP | Genuine Used Part
13110-90J02 Suzuki 5033535 Johnson Intake Manifold 90HP 100HP 115HP 140HP | Genuine Used Part
🔥 50% off all Used Parts - while stocks last 🔥
Low stock: 2 left
Couldn't load pickup availability
✓ Authorised Volvo Penta Dealer · Genuine used marine parts · Ships Australia-wide
🔧 Product Description
Genuine Suzuki / Johnson Four-Stroke Intake Manifold - Part Numbers: 13110-90J02 / 5033535
A genuine Suzuki intake manifold also supplied by BRP for Suzuki-manufactured Johnson and Evinrude four-stroke outboards. Suzuki number 13110-90J02 and Johnson / BRP number 5033535 are cross-brand OEM equivalents for the same original-generation inline-four intake system.
⚙️ Key Features
- Genuine Suzuki OEM manifold
- Johnson / BRP cross-reference 5033535
- Suzuki reference 13110-90J02
- Used on original-generation 90HP-140HP four-strokes
- Supports throttle body, sensors and intake runners
🚤 Compatibility
- Suzuki DF90 original-generation four-stroke
- Suzuki DF100 applications using 13110-90J02
- Suzuki DF115 original-generation four-stroke
- Suzuki DF140 original-generation four-stroke
- Suzuki-built Johnson / Evinrude 90HP, 115HP and 140HP four-strokes using 5033535
- Approximate year range: 2001-2011, controlled by model and serial number
🔌 Function
The manifold distributes intake airflow from the throttle body to each cylinder and provides mounting points and passages for idle-air and engine-management components.
⚠️ Common Signs of Failure
- Cracked or warped manifold
- Vacuum leak at the head or throttle body
- Damaged IAC or sensor mounting port
- Unstable idle
- Lean fault or hesitation
- Uneven cylinder airflow
🔄 Supersession & Cross Reference
OEM Supersession Chain
- 13110-90J02 is listed as discontinued in Suzuki cross-reference data
- 5033535 is the Johnson / BRP OEM equivalent
- The two numbers are cross-brand references rather than a conventional supersession chain
OEM / Related Numbers
- 13110-90J02
- 1311090J02
- 5033535
- Related intake-manifold gasket
- Related throttle body, IAC valve and MAP sensor
- Related Suzuki / Johnson fuel rail and injector components
Aftermarket / Verified Equivalents
- No known complete aftermarket intake manifold
- Genuine Suzuki or Johnson / BRP used manifolds are the direct replacement
- Aftermarket IAC valves, sensors, injectors and gasket kits are available separately
- The complete manifold should not be substituted with later DF90A-DF140A parts
📦 Condition
- Genuine used part
- Removed from running engine where applicable
- In good working condition unless otherwise stated
Shipping & Delivery
Shipping & Delivery
Flat-rate shipping Australia-wide — $14.99 per order, no matter how many parts you add. Orders dispatch from our Kadina, South Australia store. Need it urgently or want to collect in person? Call us on 0412 532 984 before ordering.
Returns & Warranty
Returns & Warranty
14-day returns — if it's not right or you ordered the wrong part, tell us within 14 days of delivery and send it back in the condition you received it (return freight is at your cost; fitted parts can't be returned). Used parts are sale items, so a return may be limited to store credit. Full details in our Refunds & Returns policy.
What you get with this used part
What you get with this used part

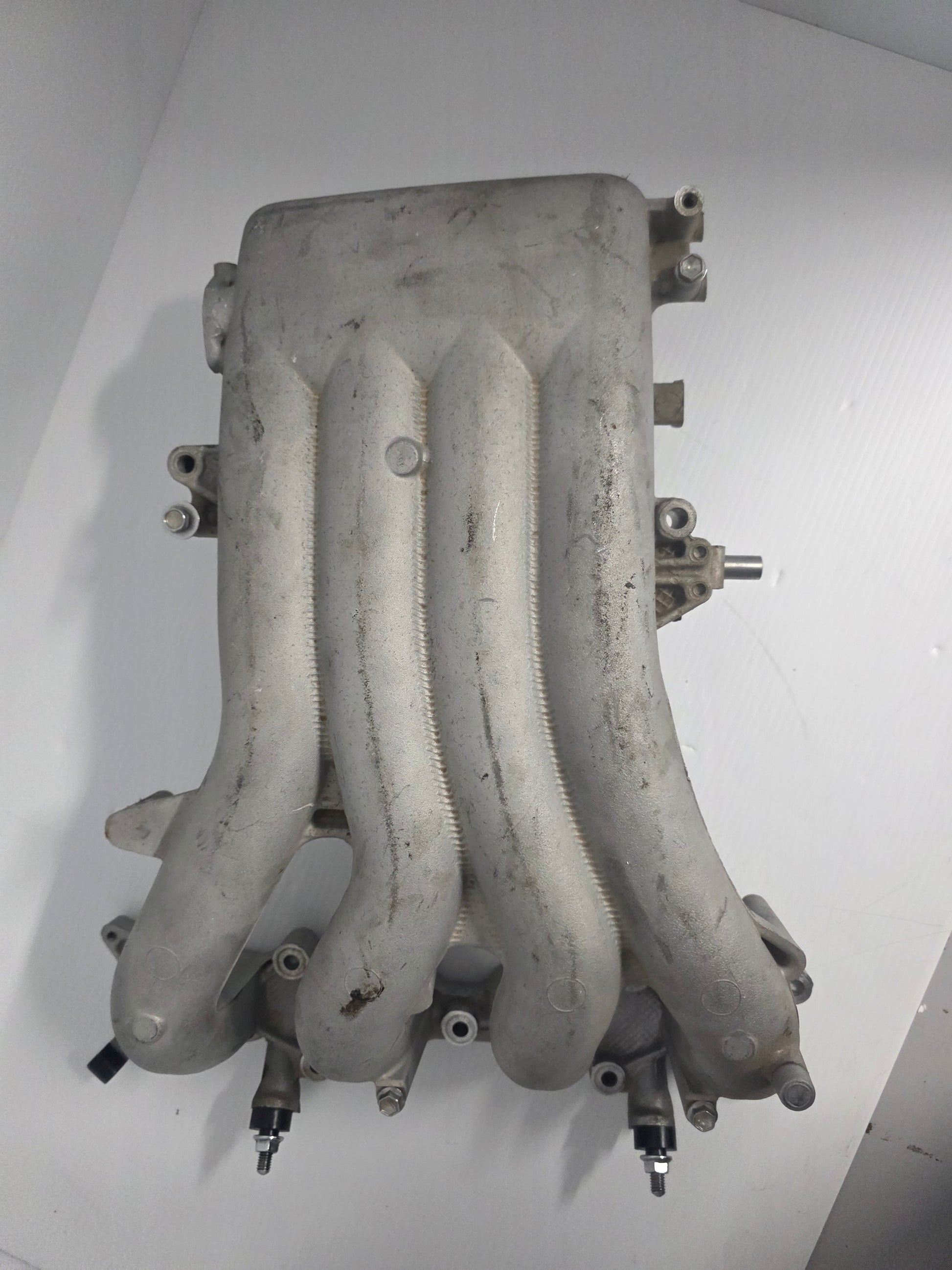

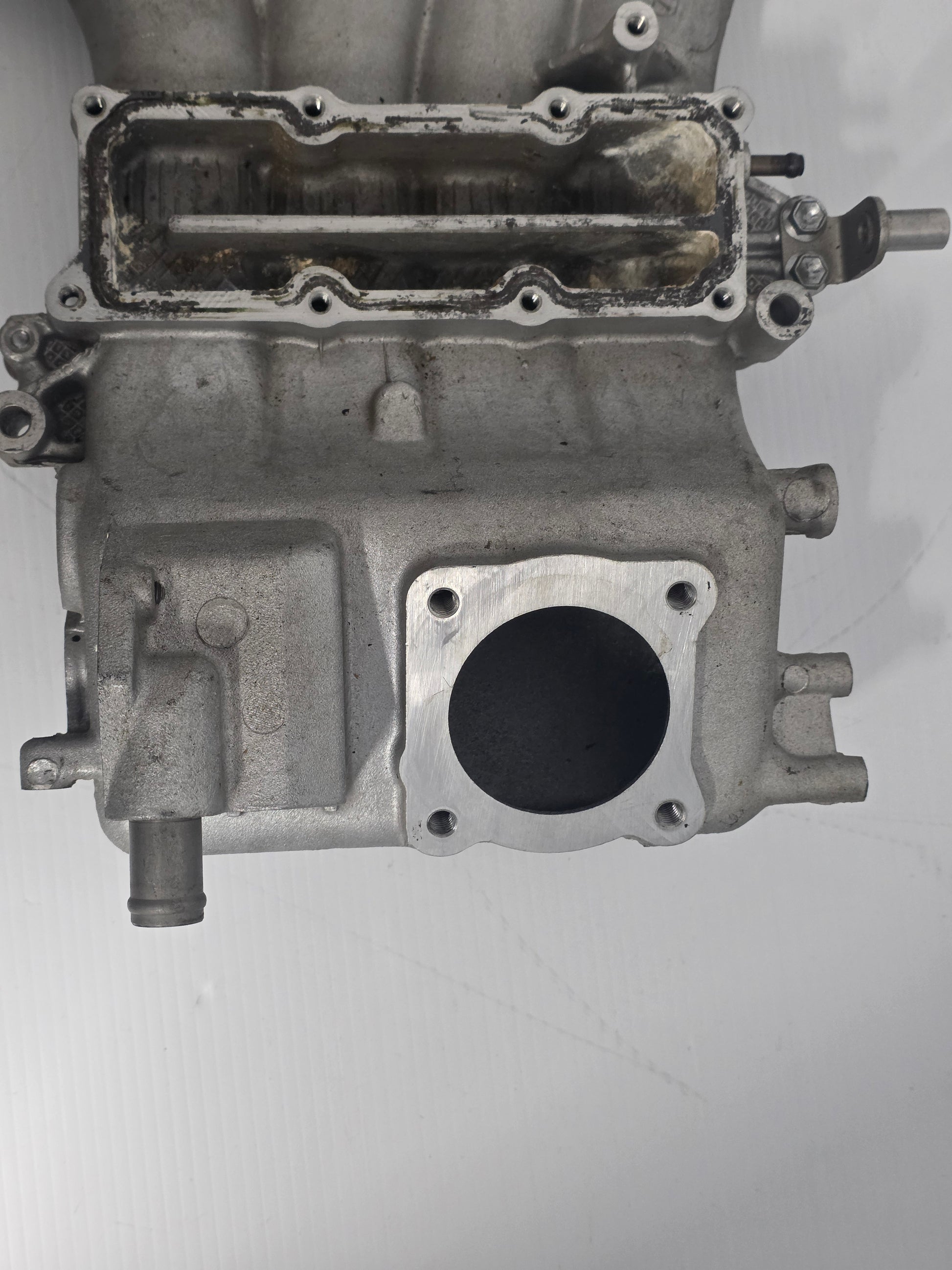

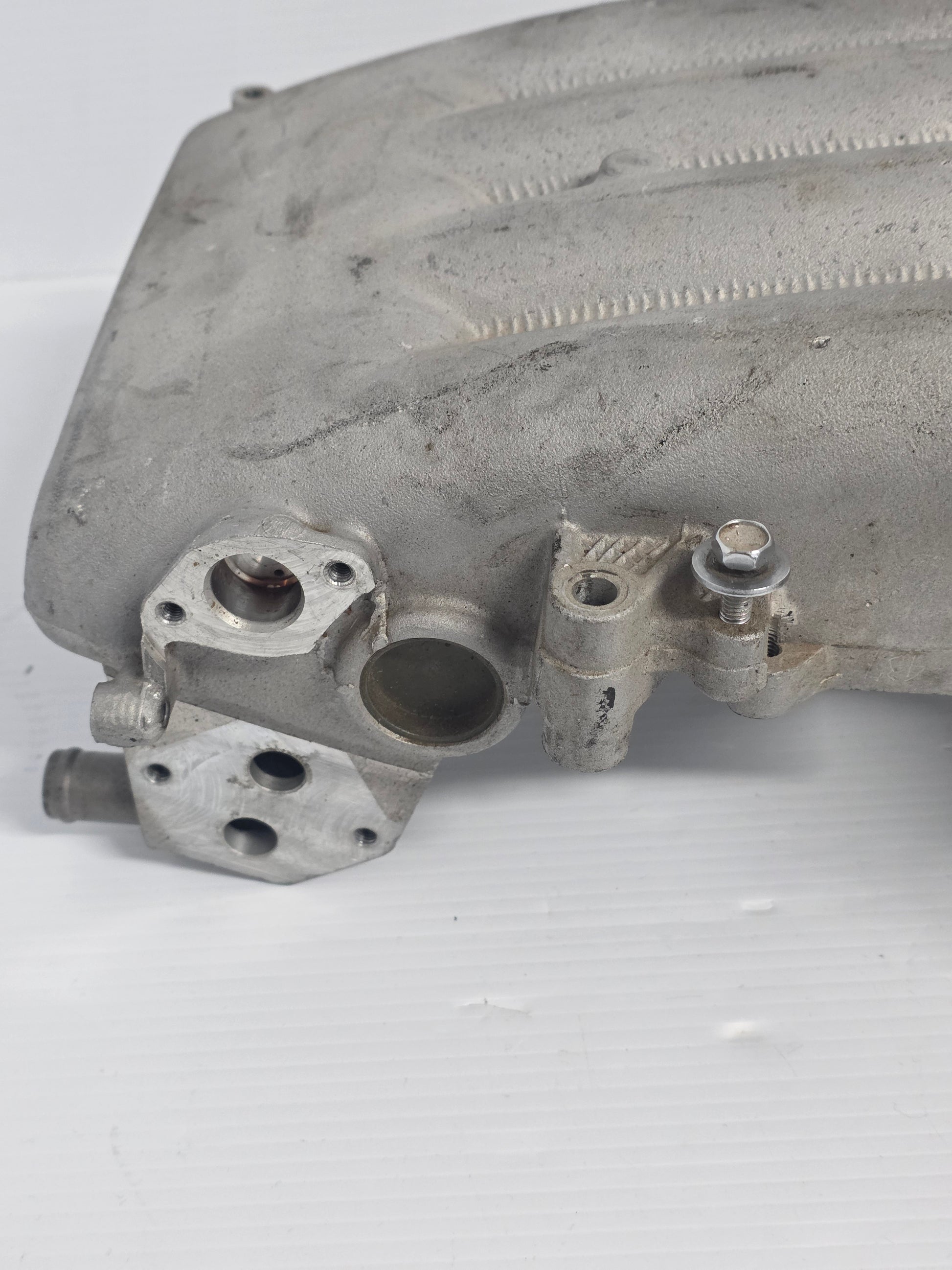

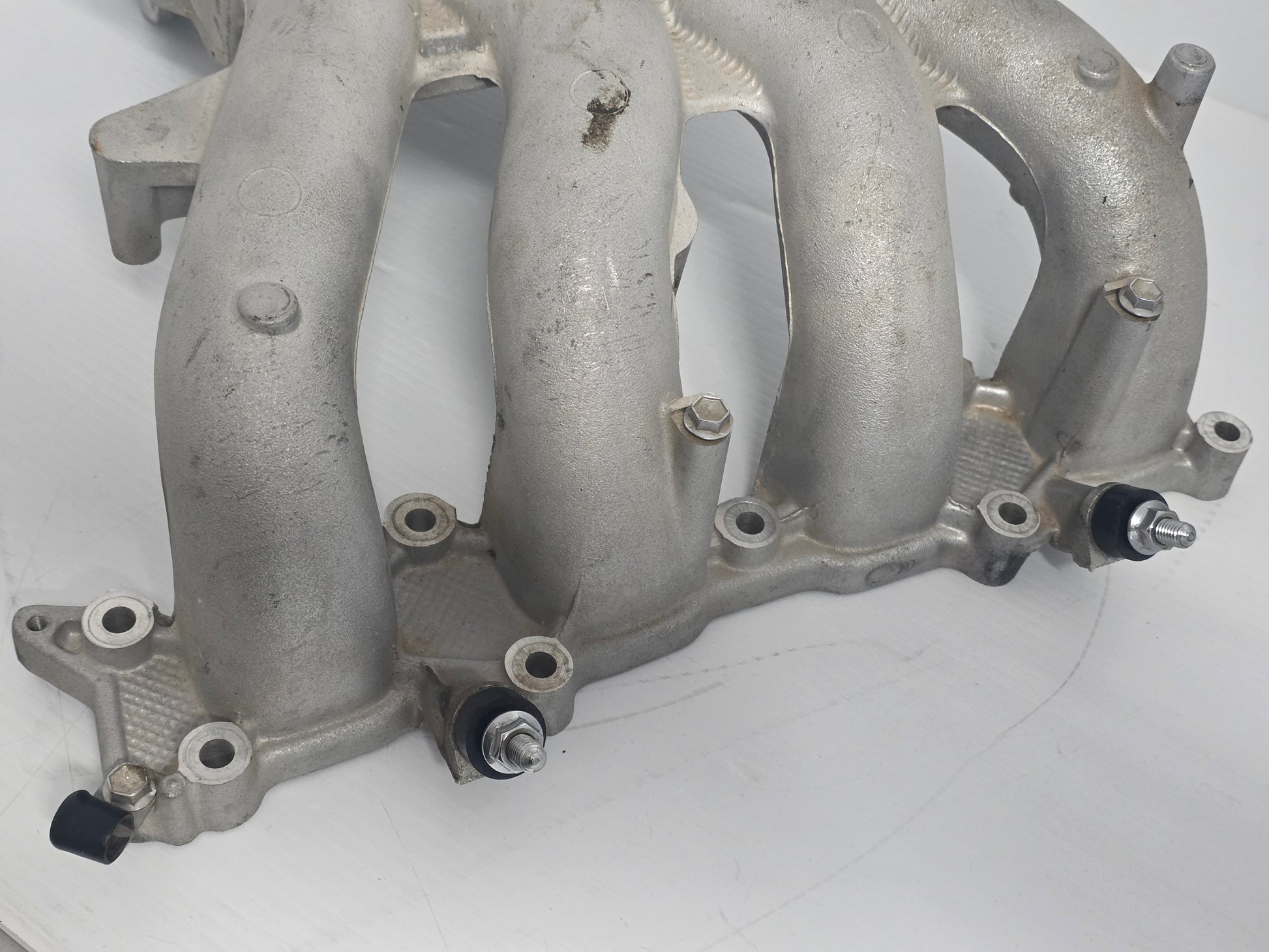

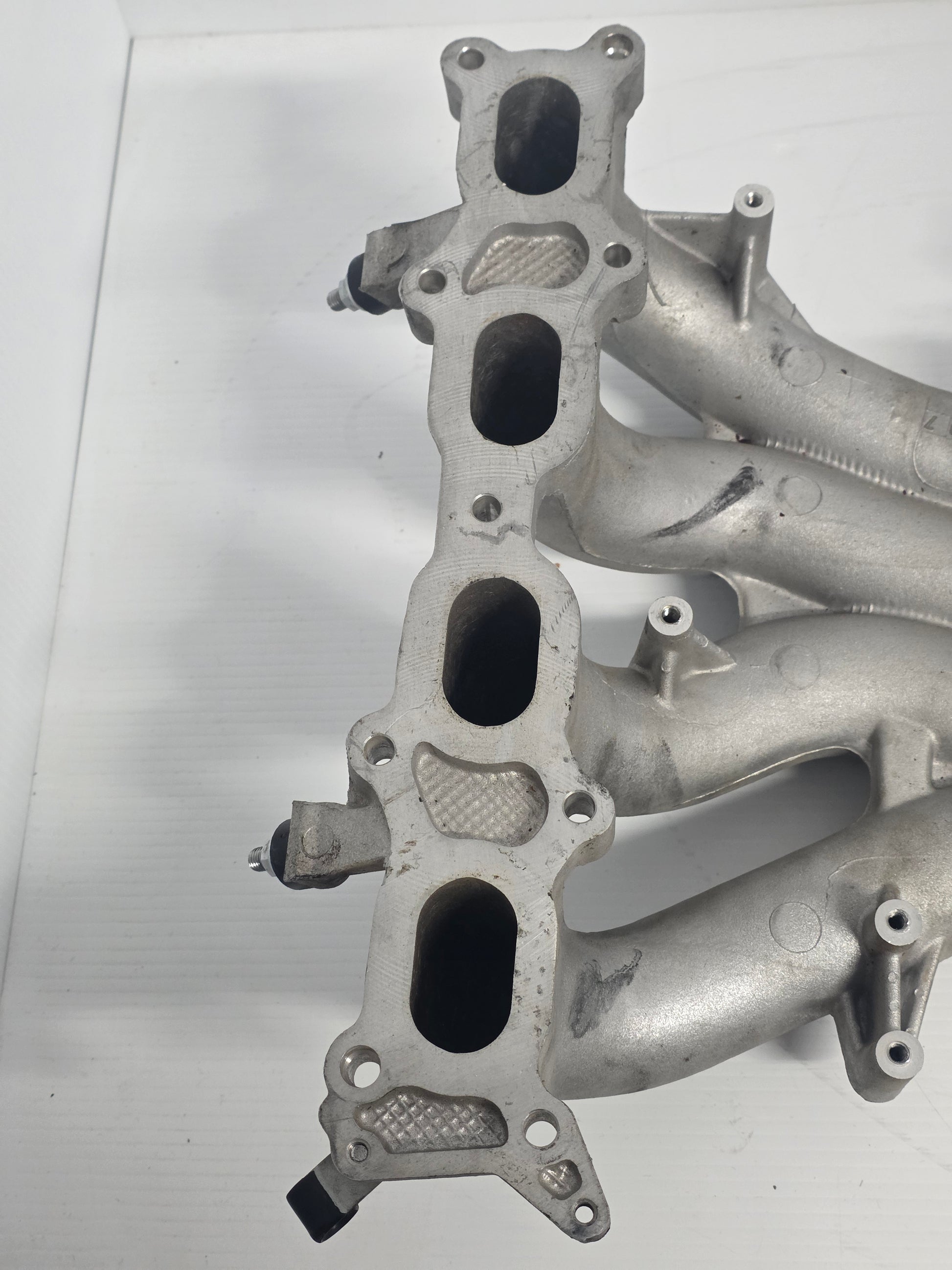

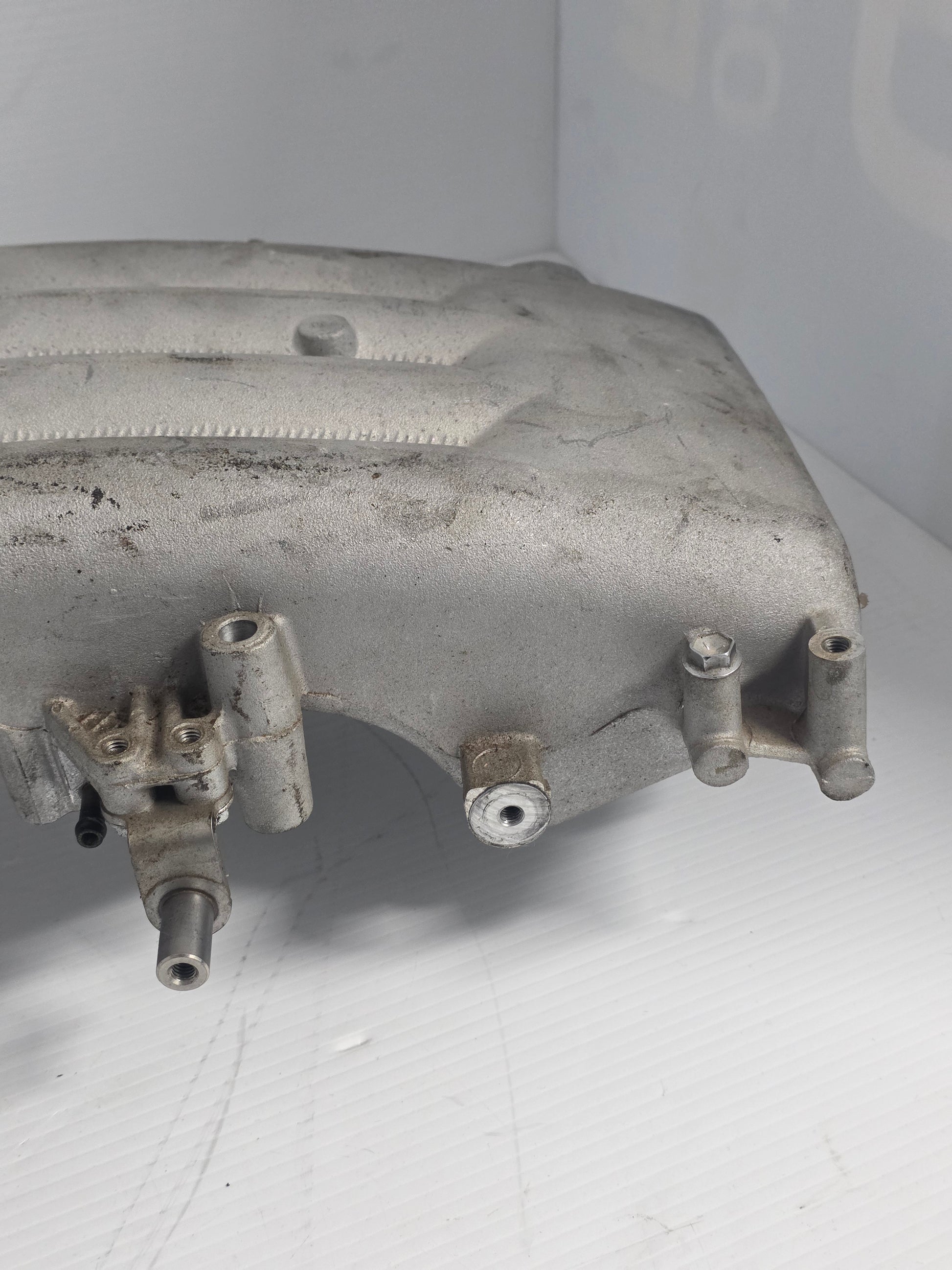

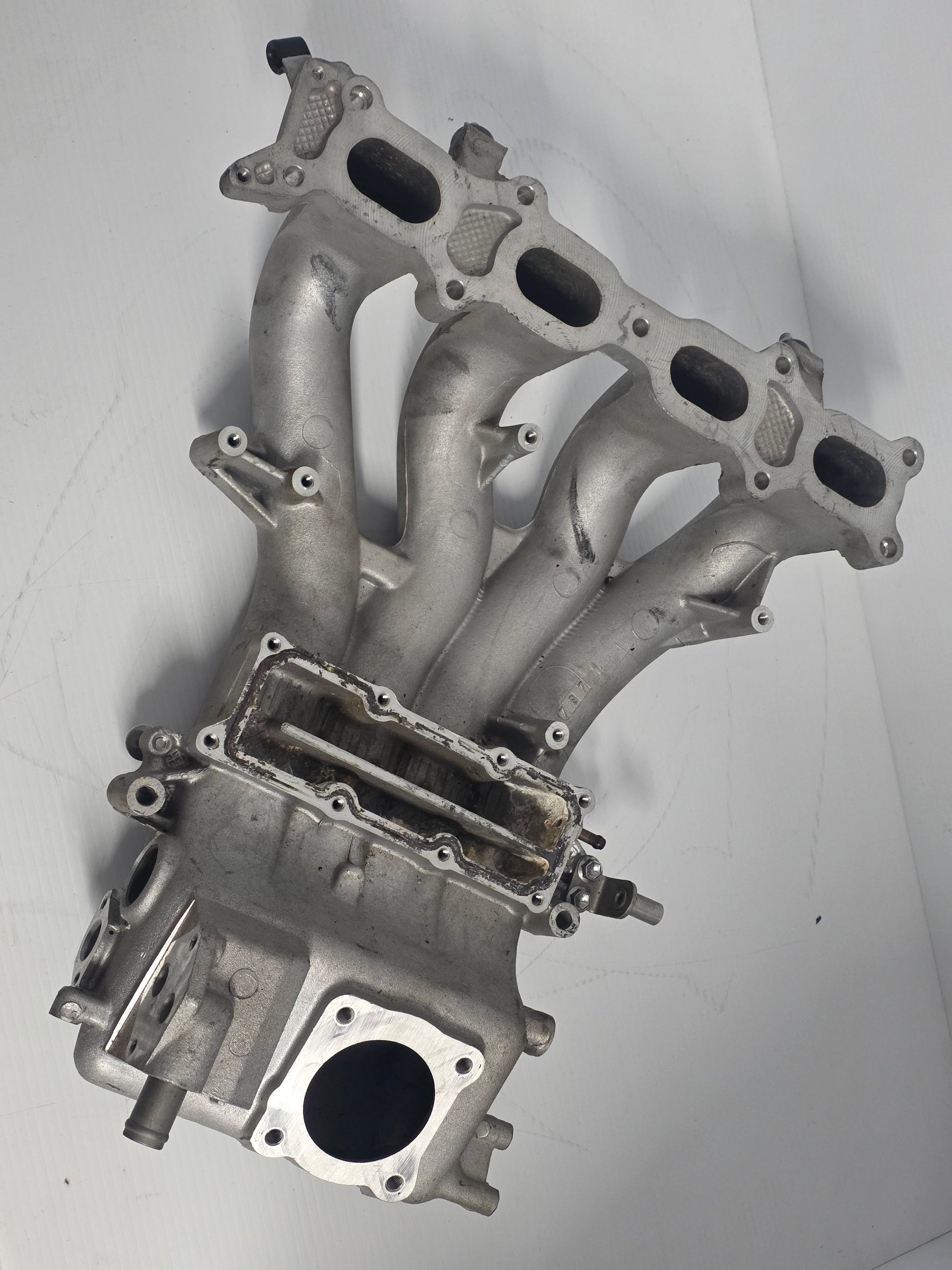

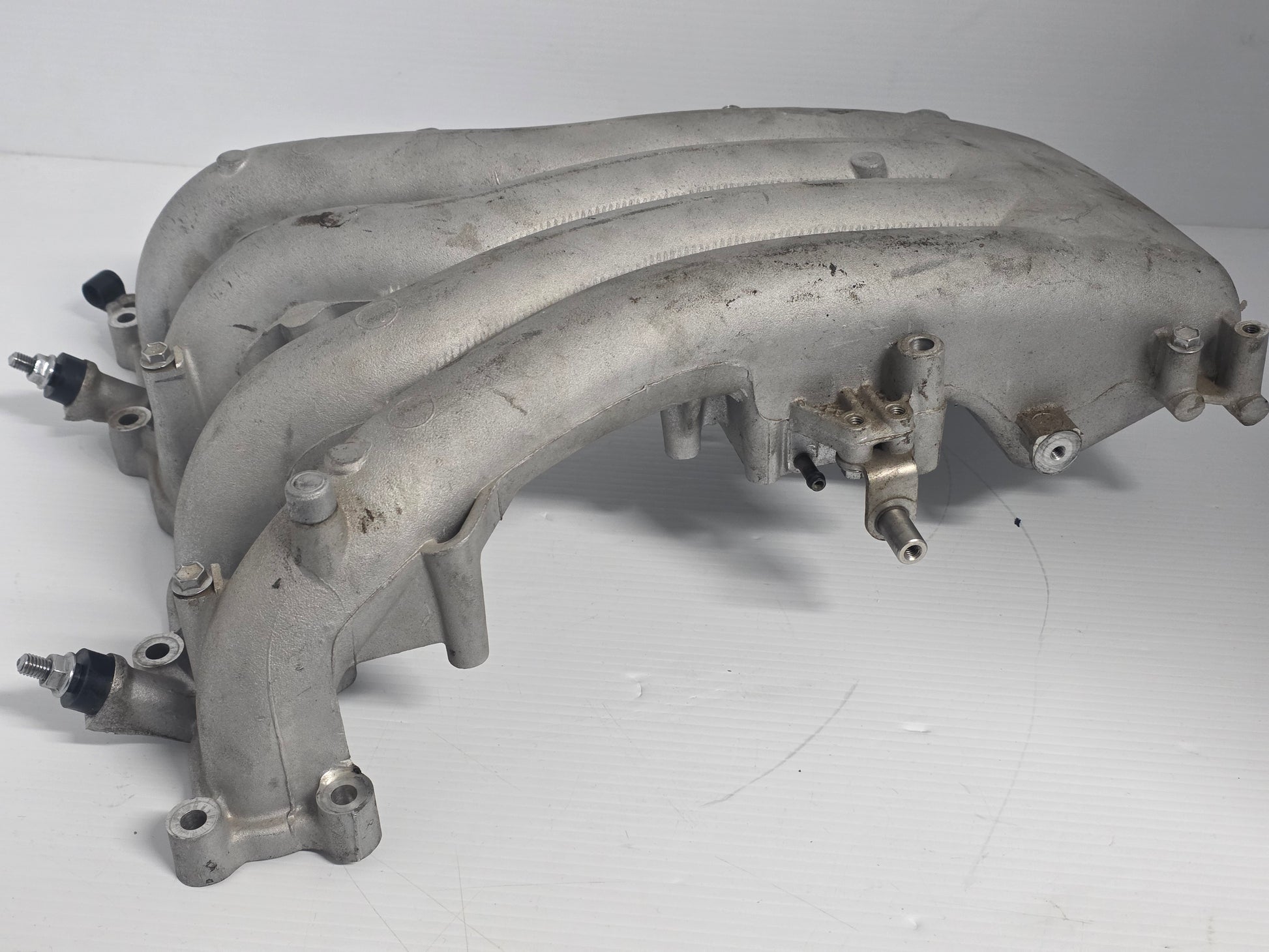

- A genuine part removed from an engine, drive or jet ski dismantled in our Kadina workshop, inspected before listing. The photos show the actual part on our shelf.
