🔧 Product Description

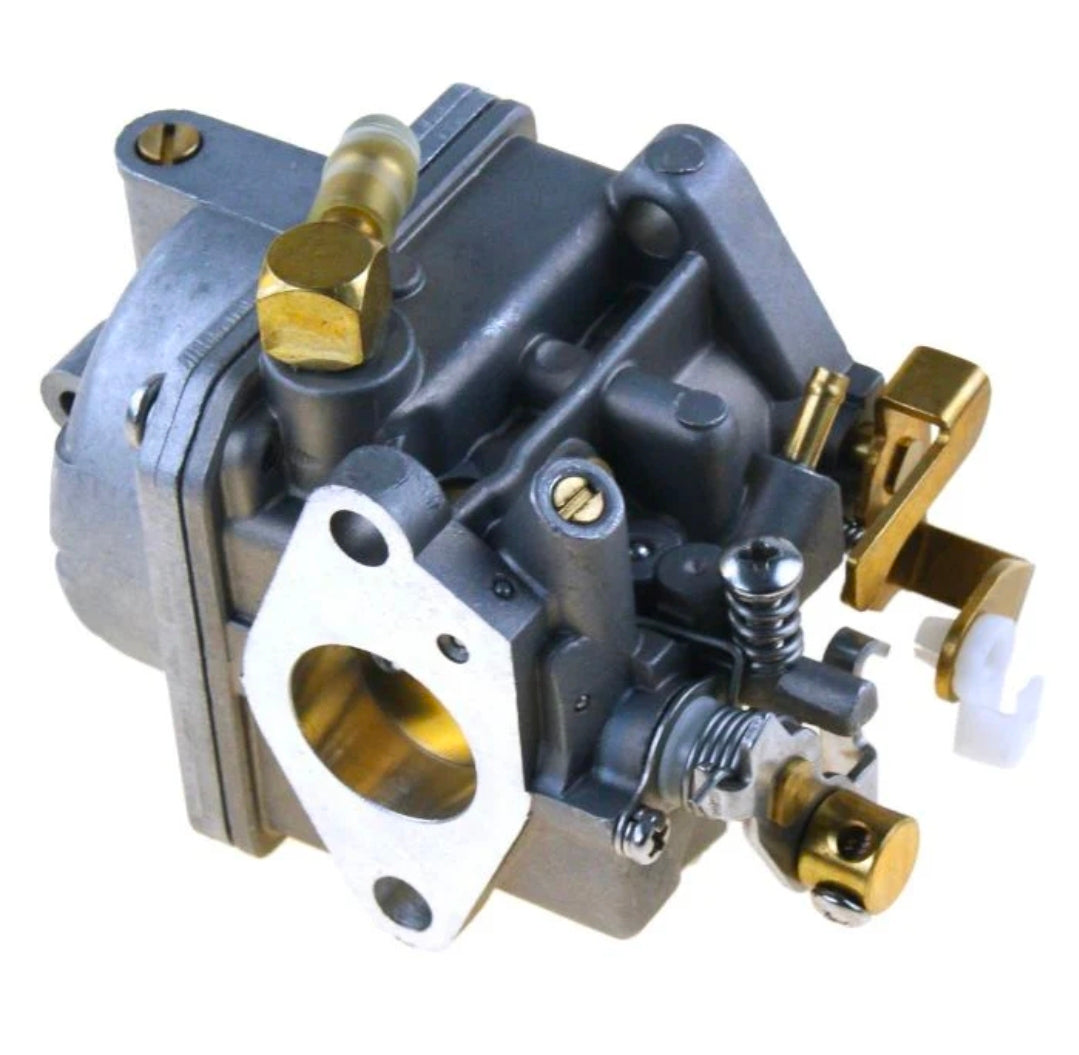

Aftermarket Suzuki carburettor assembly - Replacement Part Number: 13200-91J70

A complete replacement carburettor for Suzuki DF4, DF5 and DF6 four-stroke outboards produced through the 2002-2011 carburetted model period. The same Suzuki-built engine platform was also supplied under selected Johnson and Evinrude 4HP, 5HP and 6HP four-stroke model families, creating several valid BRP cross-reference numbers. Match the original carburettor number and, on applicable DF6 engines, confirm the serial break before ordering.

⚙️ Key Features

• Complete aftermarket carburettor assembly

• Designed for Suzuki 4HP, 5HP and 6HP four-stroke outboards

• Cross-references to Suzuki and Johnson/Evinrude service numbers

• Restores correct cold starting, idle mixture and throttle response

• Direct-fit replacement where the original number matches

🔄 Supersession & Cross Reference

OEM Supersession Chain:

• 13200-91J70 (primary Suzuki OEM reference)

• 13200-91J81, 13200-91JB1 and later service references are used on related calibrations

OEM / Related Numbers:

• Suzuki 13200-91J70

• Suzuki 13200-91J81

• Suzuki 13200-91JB1

• Suzuki 13200-91J00

• Suzuki 13200-91J90

• Suzuki 13200-91JM0

• Suzuki 13200-91JC0

• Johnson/Evinrude 5036191

• Johnson/Evinrude 5036192

• Johnson/Evinrude 5036549

• Johnson/Evinrude 5037520

Aftermarket / Verified Equivalents:

• Recmar: REC13200-91J70

• OMAX: 13200-91J70

• Sea Sierra: 13200-91J70 / 5036192

🚤 Compatibility

Commonly used on:

• Suzuki DF-series four-stroke outboards

• Suzuki-built Johnson and Evinrude four-stroke outboards using the listed BRP numbers

Typically suits:

• Engine models:

• Suzuki DF4

• Suzuki DF5

• Suzuki DF6

• Johnson 4HP, 5HP and 6HP four-stroke derivatives

• Evinrude 4HP, 5HP and 6HP four-stroke derivatives

• HP Range: 4HP - 6HP

• Engine Type: Carburetted four-stroke outboard

• Year Range: Approximately 2002 - 2011

• Serial Reference: Selected DF6 applications up to serial 511203 where this carburettor is specified

🔌 Function

The carburettor controls the air-and-fuel mixture supplied to the engine across the starting, idle, transition and main operating circuits. Correct metering is essential for dependable cold starts, stable trolling speed and clean acceleration.

Common signs of failure:

• Difficult cold or hot starting

• Engine only runs with partial choke

• Unstable idle or repeated stalling at low speed

• Hesitation or loss of power when the throttle is opened

• Rich running, blackened spark plug or excessive fuel use

• Fuel overflow, leakage or flooding from the float circuit

📦 Condition

• Brand new aftermarket replacement part

• New and unused

• Supplied in manufacturer or equivalent protective packaging
