13200-93E12 Aftermarket Suzuki Carburetor | Sawley's Select Marine Parts

🔧 Product Description

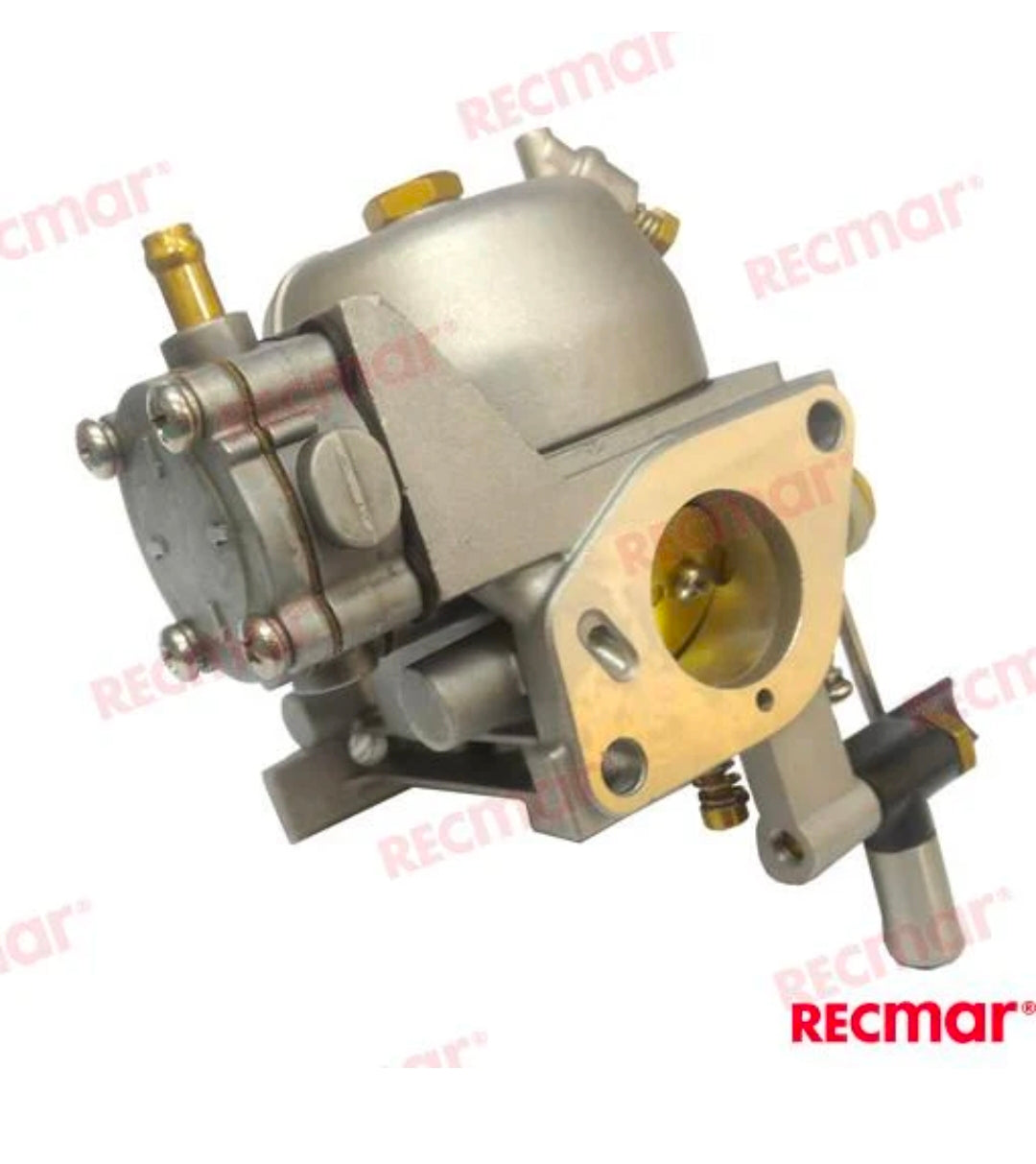

Aftermarket Suzuki carburettor assembly - Replacement Part Number: 13200-93E12

A complete replacement carburettor for early Suzuki DF9.9 and DF15 four-stroke outboards. Part number 13200-93E12 is the later service reference in the 13200-93E10 and 13200-93E11 supersession family and is used across DF9.9 and DF15 production from the mid-1990s through the early 2000s. The original carburettor number, engine model, model year and beginning VIN should be checked because jetting and linkage details can differ between production groups.

⚙️ Key Features

• Complete aftermarket carburettor assembly

• Designed for early Suzuki DF9.9 and DF15 four-stroke engines

• Covers the 13200-93E10, 13200-93E11 and 13200-93E12 service family

• Restores correct fuel metering, idle stability and acceleration

• Direct-fit replacement when matched to the original carburettor number

🔄 Supersession & Cross Reference

OEM Supersession Chain:

• 13200-93E12 → Supersedes 13200-93E11

• 13200-93E11 → Supersedes 13200-93E10

• 13200-93E10 (earlier OEM reference)

OEM / Related Numbers:

• 13200-93E12

• 13200-93E11

• 13200-93E10

• 1320093E12

• 1320093E11

• 1320093E10

Aftermarket / Verified Equivalents:

• Raptor Marine: 13200-93E12

• Asaki: 13200-93E10 / 13200-93E11 / 13200-93E12

🚤 Compatibility

Commonly used on:

• Suzuki DF-series early four-stroke outboards

Typically suits:

• Engine models:

• DF9.9

• DF15

• HP Range: 9.9HP - 15HP

• Engine Type: Carburetted four-stroke outboard

• Year Range: Approximately 1996 - 2003

• Beginning VIN references used within this carburettor family:

• 00991F-371001

• 00991F-652501

• 01501F-151001

• 01501F-651001

• 01501F-751001

• 01501F-971001

🔌 Function

The carburettor combines fuel and intake air at the calibrated ratio required by the DF9.9 and DF15 engine. Its choke, idle, transition and main circuits support starting, trolling, acceleration and higher-speed operation.

Common signs of failure:

• Hard starting or extended cranking

• Engine will not remain running without choke

• Rough idle, hunting or low-speed stalling

• Hesitation, bogging or reduced top-end power

• Rich exhaust smell, plug fouling or excessive fuel consumption

• Fuel leakage or flooding from the bowl and float system

📦 Condition

• Brand new aftermarket replacement part

• New and unused

• Supplied in manufacturer or equivalent protective packaging
