13200-94J60 Suzuki Carburetor | Genuine Used Part

🔧 Product Description

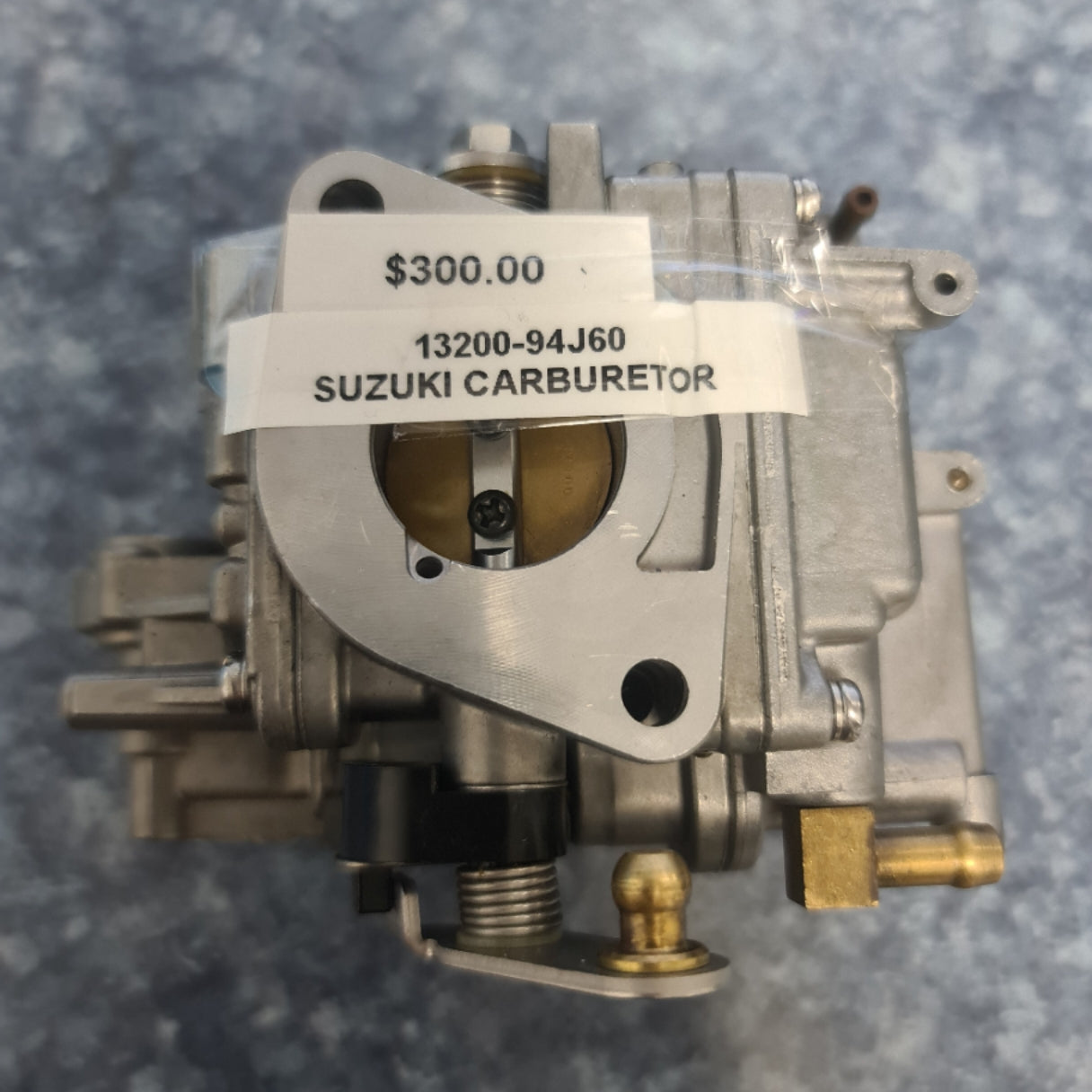

Genuine Suzuki DF15 Carburettor Assembly - Part Number: 13200-94J60

A genuine Suzuki carburettor assembly for selected DF15 four-stroke tiller-steer outboards.

The assembly regulates the fuel-and-air mixture supplied to the engine during starting, idle, acceleration and full-load operation. It incorporates the float chamber, throttle system, jets and internal fuel passages.

⚙️ Key Features

• Genuine Suzuki Marine carburettor assembly

• Correct part number 13200-94J60

• Tiller-model DF15 carburettor calibration

• Complete factory carburettor body and float-chamber assembly

• Distinct from DF9.9 and remote-control carburettor calibrations

🔄 Supersession & Cross Reference

OEM Supersession Chain:

• 13200-94J60 current OEM carburettor reference

OEM / Related Numbers:

• 13200-94J60

• 13200-94J60-000

• 1320094J60

• 13200-94J70 / 13200-94J71 related DF15 remote-control carburettors

• 13200-94J20 related DF9.9 carburettor

• 13200-94J30 / 13200-94J31 related DF9.9 remote carburettors

Aftermarket / Verified Equivalents:

• No aftermarket equivalent

🚤 Compatibility

Commonly used on:

• Suzuki DF15 four-stroke tiller-steer fuel systems

Typically suits:

• Engine models:

• Suzuki DF15 four-stroke tiller models

• Suzuki DF15S

• Suzuki DF15L

• Suzuki DF15SK6 - serial 01502F-680001 and above

• DF15 carburetted engines using assembly 13200-94J60

• HP Range: 15HP

• Engine Type: Suzuki twin-cylinder carburetted four-stroke outboard

• Year Range: Approximately 2005 onward, dependent on model and serial number

🔌 Function

The carburettor meters petrol into the intake air and maintains the correct mixture across the engine's operating range. The float and needle control fuel level within the bowl.

Common signs of failure:

• Engine is difficult to start or requires excessive choke

• Unstable idle or stalling at low speed

• Fuel leaking or overflowing from the bowl

• Hesitation during acceleration

• Blocked jets cause lean running or reduced power

📦 Condition

• Genuine used part

• Removed from running engine where applicable

• In good working condition unless otherwise stated
