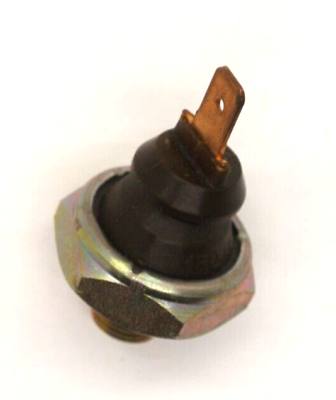

1324750 Oil Pressure Sensor | Genuine Volvo Penta Part

🔧 Product Description

This is the Volvo Penta oil pressure sensor from the Instruments group, supplied as the current replacement for superseded part 1266085. It senses engine oil pressure and feeds the signal to the helm-mounted oil pressure gauge or warning circuit, giving the operator continuous confirmation that the lubrication system is holding pressure. It suits the 2000-series marine diesels along with the AQ-series petrol engines, MB10A and TD70G listed in the fitment data.

🚤 Compatibility

• Engine Family: MB, AQ, TD
• Year Range: Approximately 1960s - 1990s

Full model list at the end of this description.

⚙️ Key Features

• Genuine Volvo Penta OEM part number 1324750
• System group: Instruments
• Supersedes and replaces earlier part number 1266085
• Fits 2000-series marine diesels plus AQ-series petrol, MB10A and TD70G engines
• Net weight approximately 0.05 kg
• Engine type: Volvo Penta marine petrol / diesel low-oil-pressure alarm circuit

🔌 Function

The sensor monitors pressure in the engine's lubrication circuit and converts it into an electrical signal for the instrument panel gauge or low-pressure warning. It provides the early warning a operator needs to shut down before oil starvation damages bearings or other internal components.

⚠️ Common Signs of Failure

• Gauge reads zero, erratically, or pegs at maximum while oil pressure is actually normal
• Low oil pressure warning light or alarm triggering intermittently with no mechanical cause
• Oil weeping or dripping from the sensor body or its threaded port
• Corroded, loose or broken electrical terminal at the sensor connection
• No gauge movement at all when the engine is started

🛠️ Service Notes

• Thread is 1/8-27 NPT with a crimp terminal connection - confirm the housing thread before fitting, as other Volvo Penta oil pressure senders use different threads
• Supersedes earlier sender 1266085; fits the 2000-series diesels plus AQ-series petrol, MB10A and TD70G rather than the D3-D13 electronically managed range

🔄 Supersession & Cross Reference

OEM Supersession Chain

• 1324750 → Supersedes 1266085 → Supersedes 1218690

OEM / Related Numbers

• 1266085 earlier number superseded by this part
• 1218684 earlier number superseded by this part
• 653874 earlier number superseded by this part
• 672910 earlier number superseded by this part
• 807124 earlier number superseded by this part
• 1218690 earlier number superseded by this part
• 1606877 related reference
• 339500 related reference
• OPS-088

Other-Brand OEM Numbers

• Hella: 6ZL 003 259-381
• Bosch: 0 344 101 054
• Bosch: 0 986 344 054

Aftermarket / Verified Equivalents

• Recmar: REC1324750
• Aftermarket reference: OPS-088
• Febi Bilstein: 11526
• FAE: 11420
• Facet: 7.0047
• DT Spare Parts: 2.27000
• EPS: 1.800.047
• Quinton Hazell: XOPS1
• Quinton Hazell: XOPS31
• Calorstat by Vernet: OS3537
• KW: 500 047
• ERA: 330352
• AKUSAN: AG 0409
• Intermotor: 50500
• MEAT & DORIA: 72063
• FISPA: 82.046
• SIDAT: 82.046
• HOFFER: 7532063
• Herth+Buss Elparts: 70 541 033

📦 Condition

• Genuine Volvo Penta part
• Brand new
• Supplied in original or equivalent packaging

🔎 Full Model Compatibility

Typically suits:

• Volvo Penta 2003, 2003R, 2003R SOLAS, 2003TB, 2001B, 2001D, 2003D, 2003T, 2003TR, 2002B, 2002D, 2003B, 2003B SOLAS, 2003 SOLAS, 2001, 2002, 2001R
• Volvo Penta AQ120B
• Volvo Penta AQ125A
• Volvo Penta AQ140A
• Volvo Penta AQ145A
• Volvo Penta MB10A
• Volvo Penta TD70G
