13300-88L02 13300-88L00 Suzuki DF60A Throttle Body | Genuine Used Part

🔧 Product Description

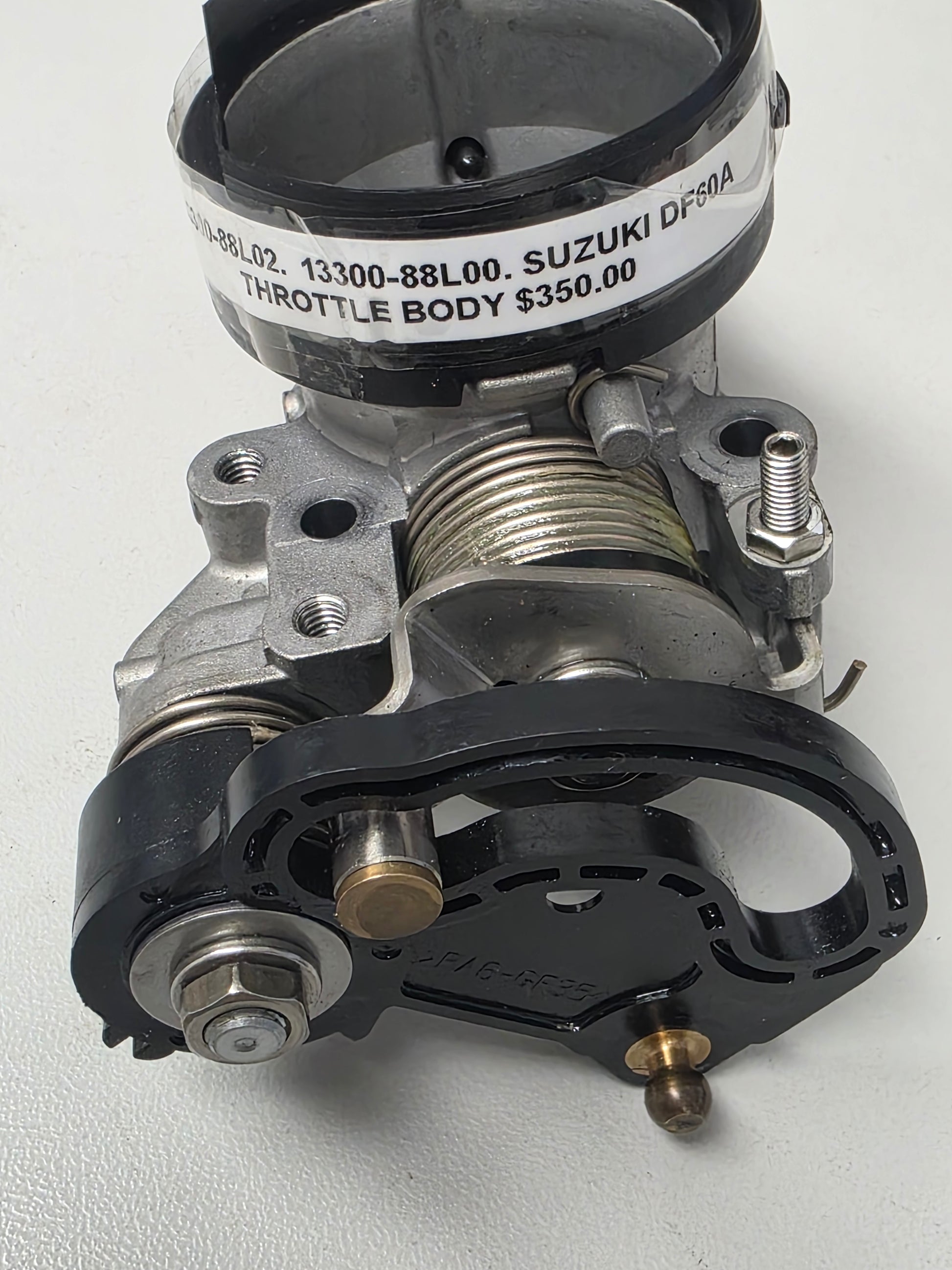

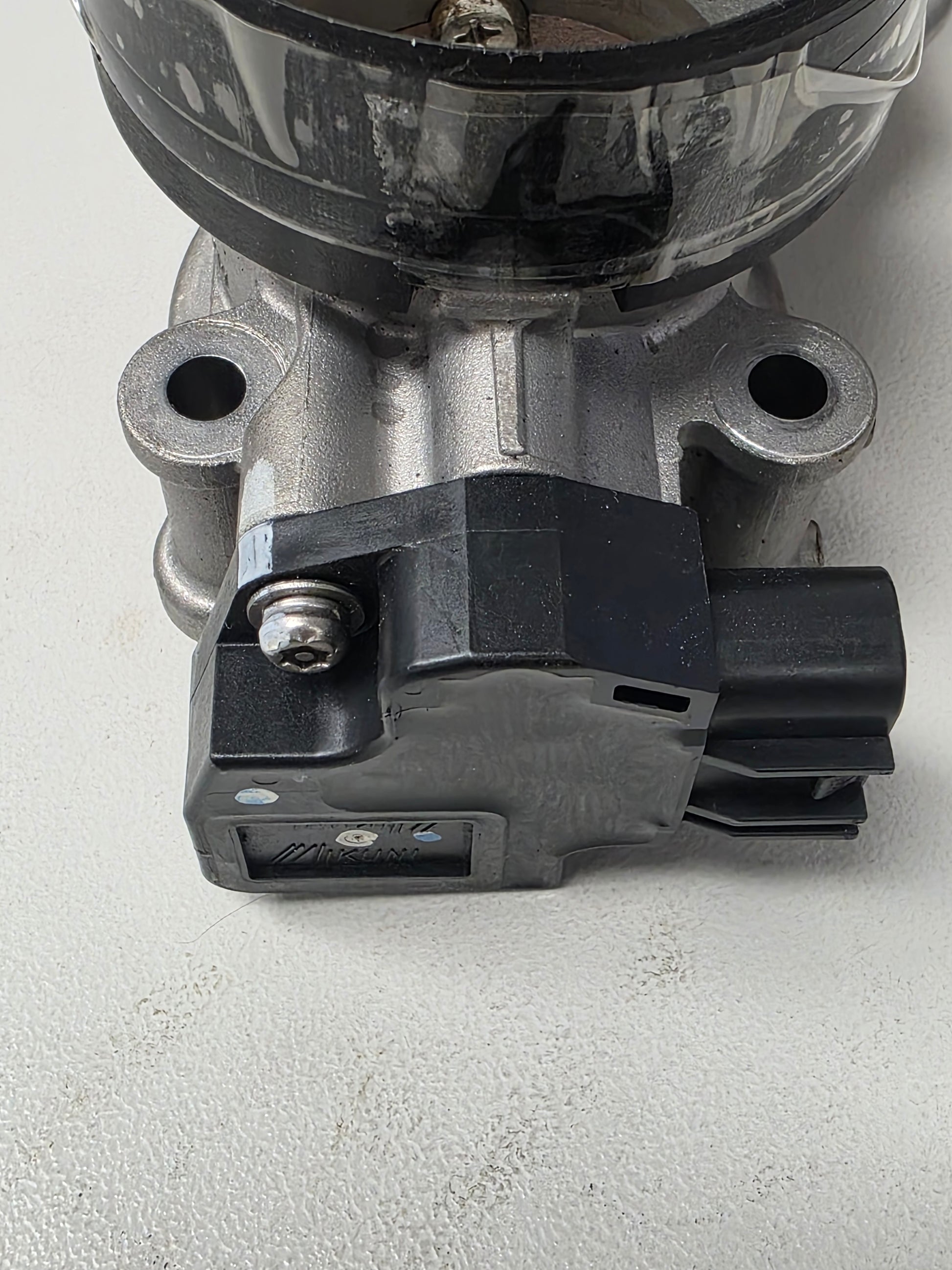

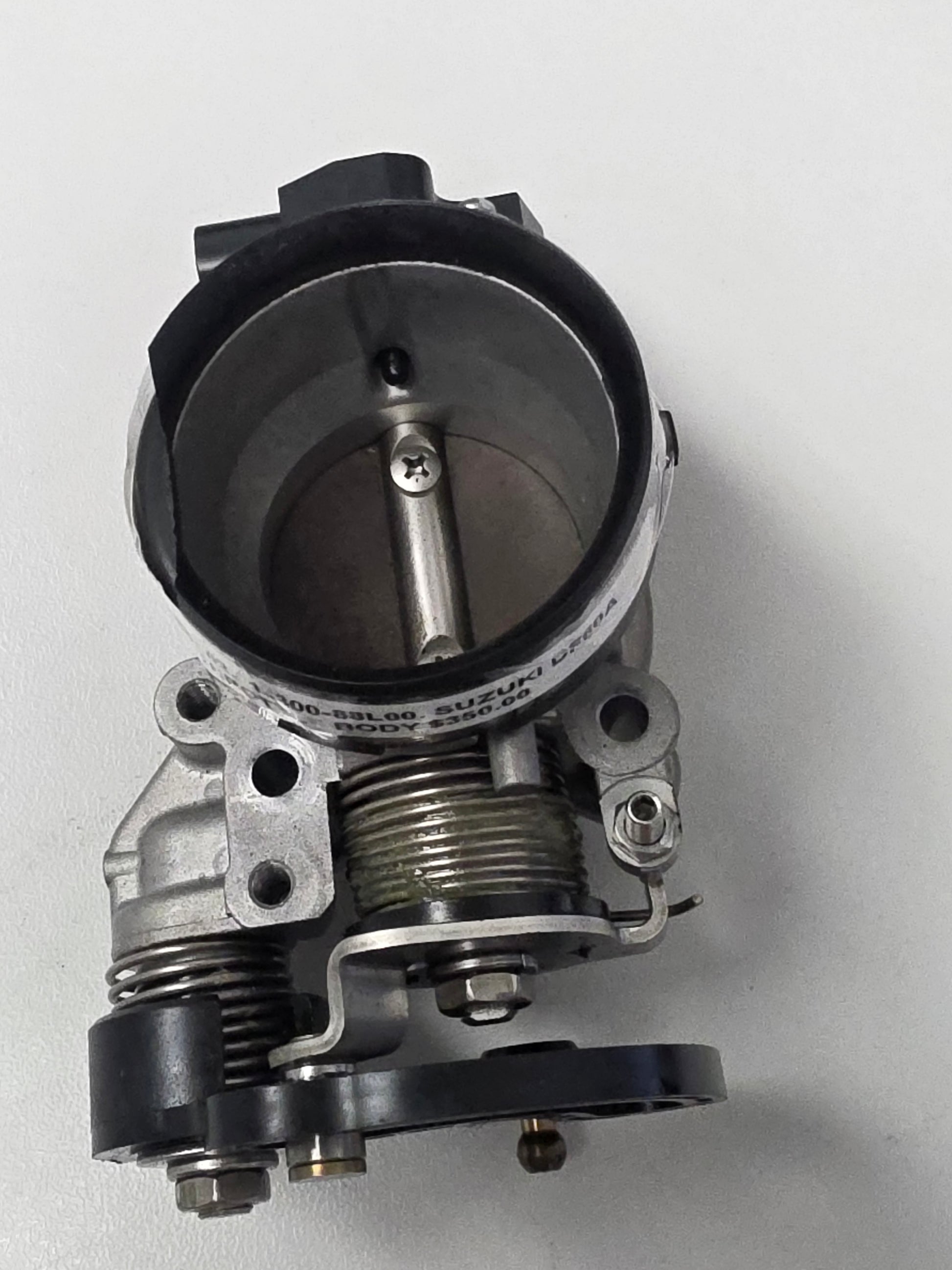

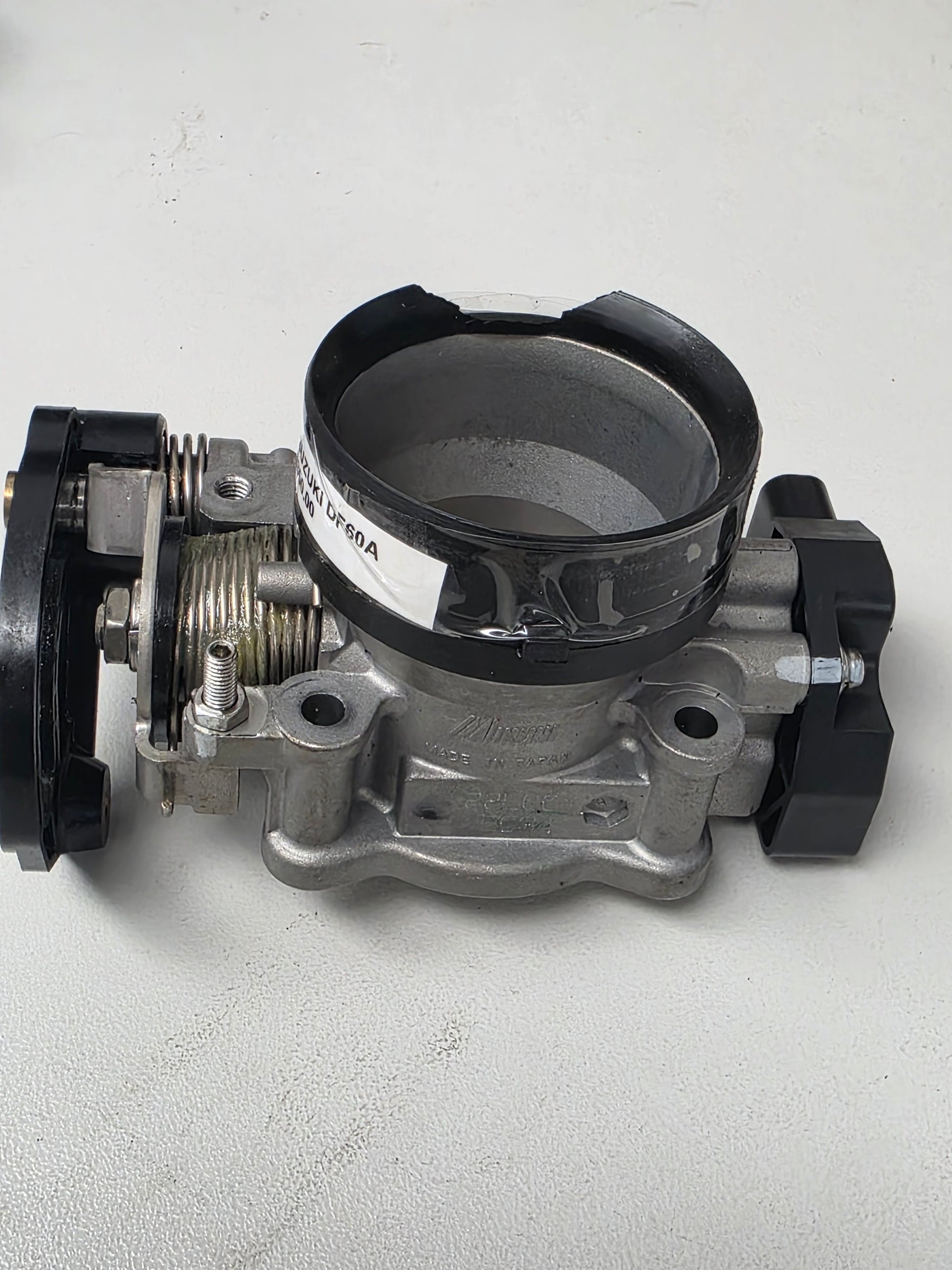

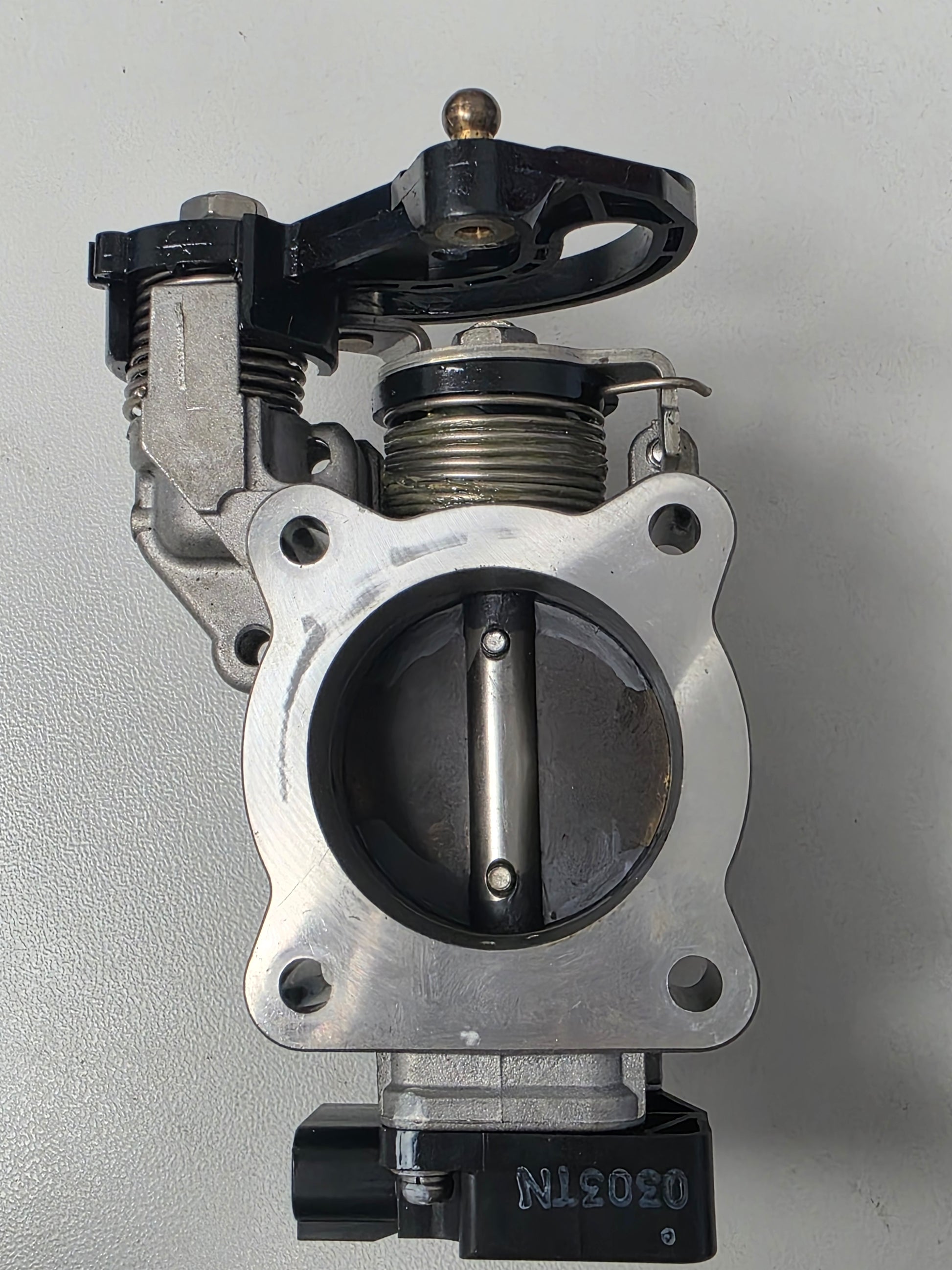

Genuine Suzuki DF40A / DF50A / DF60A Throttle Body Assembly - Part Number: 13300-88L02

A genuine Suzuki mechanical throttle-body assembly for selected DF40A, DF50A and DF60A inline three-cylinder four-stroke outboards. The assembly controls intake airflow and carries the throttle plate, shaft and related linkage for remote-control and tiller models.

⚙️ Key Features

• Genuine Suzuki OEM throttle body
• Current part number 13300-88L02
• Supersedes 13300-88L00
• Used on DF40A, DF50A and DF60A engine families
• Compatible with mechanical-control and applicable tiller-handle configurations

🚤 Compatibility

Commonly used on

• Suzuki DF40A, DF50A and DF60A electronic-fuel-injection intake systems
• Mechanical-control and selected tiller-handle throttle arrangements

Typically suits

• Engine models:
• Suzuki DF40A
• Suzuki DF40ATL
• Suzuki DF40ATHL
• Suzuki DF40AQH / DF40AQHL
• Suzuki DF50A
• Suzuki DF50ATL
• Suzuki DF50ATHL
• Suzuki DF50AV / DF50AVTL
• Suzuki DF60A
• Suzuki DF60ATL
• Suzuki DF60ATHL
• Suzuki DF60AQH / DF60AQHL
• Suzuki DF60AV / DF60AVTL
• DF60A serial family 06002F-210001 and above
• Later DF40A / DF50A / DF60A serial families through current mechanical-control production
• HP Range: 40HP - 60HP
• Engine Type: Suzuki inline three-cylinder EFI four-stroke outboard
• Year Range: Approximately 2010 onward

🔌 Function

The throttle body meters intake air according to throttle-lever position. The engine control module matches fuel injection and ignition timing to the airflow and throttle-position signal.

⚠️ Common Signs of Failure

• Sticking throttle plate
• High, low or unstable idle
• Poor throttle response
• Throttle-position sensor fault
• Air leakage around the shaft or gasket
• Corrosion or damage to the linkage

🔄 Supersession & Cross Reference

OEM Supersession Chain

• 13300-88L02 → Supersedes 13300-88L00
• 13300-88L00 earlier throttle-body assembly

OEM / Related Numbers

• 13300-88L02
• 13300-88L02-000
• 13300-88L00
• 13315-88L00 throttle-body bracket
• 13510-88L00 throttle rod
• 19120-88L12 throttle lever
• 13343-88L00 throttle-body gasket

Aftermarket / Verified Equivalents

• No aftermarket equivalent

📦 Condition

• Genuine used part
• Removed from running engine where applicable
• In good working condition unless otherwise stated
