13310-98J01 Suzuki Throttle Body | Genuine Used Part

13310-98J01 Suzuki Throttle Body | Genuine Used Part

$350.00 AUD
$350.00 AUD
Sale Sold out
Shipping calculated at checkout.

Low stock: 1 left

🔧 Product Description

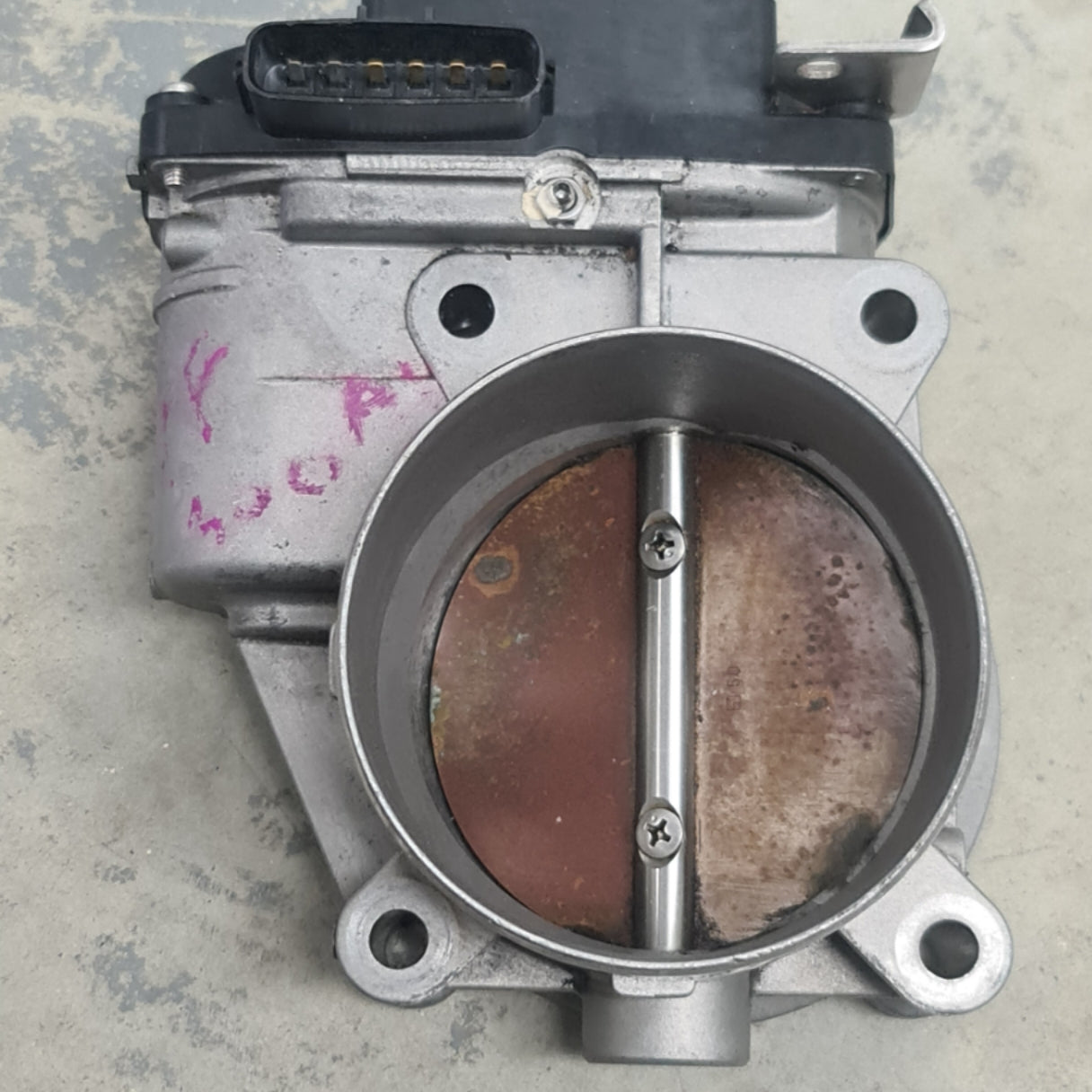

Genuine Suzuki DF250AP / DF300AP Throttle Body Assembly - Part Number: 13310-98J01

A genuine Suzuki large-V6 electronic throttle-body assembly used on selected DF250AP and DF300AP four-stroke outboards. The assembly is part of Suzuki Precision Control and electronically regulates intake airflow according to helm-command and engine-control-module input.

⚙️ Key Features

  • Genuine Suzuki OEM electronic throttle body
  • Current part number 13310-98J01
  • Supersedes 13310-98J00
  • Used on selected DF250AP and DF300AP V6 outboards
  • Compatible with Suzuki drive-by-wire throttle control systems

🚤 Compatibility

Commonly used on

  • Suzuki DF250AP and DF300AP electronic-throttle intake systems
  • Suzuki Precision Control drive-by-wire outboards

Typically suits

  • Engine models:
  • Suzuki DF250AP
  • Suzuki DF250APL
  • Suzuki DF250APX
  • Suzuki DF250APXX
  • Suzuki DF300AP
  • Suzuki DF300APL
  • Suzuki DF300APX
  • Suzuki DF300APXX
  • DF300AP serial family 410001 and above
  • DF300AP serial family 810001 and above
  • Later DF250AP / DF300AP production through current model diagrams
  • HP Range: 250HP - 300HP
  • Engine Type: Suzuki large-displacement V6 EFI four-stroke with electronic throttle
  • Year Range: Approximately 2013 onward

🔌 Function

The electronic throttle body uses an actuator motor and position sensors to control intake airflow. The ECM compares helm-command, engine-speed and load data to position the throttle plate accurately.

⚠️ Common Signs of Failure

  • Electronic throttle-control warning
  • Reduced-power or fail-safe mode
  • Delayed or inconsistent throttle response
  • Throttle-position correlation fault
  • Sticking throttle plate
  • Actuator-motor or internal position-sensor failure

🔄 Supersession & Cross Reference

OEM Supersession Chain

  • 13310-98J01 → Supersedes 13310-98J00
  • 13310-98J00 earlier throttle-body assembly

OEM / Related Numbers

  • 13310-98J01
  • 13310-98J01-000
  • 13310-98J00
  • 13343-98J10 throttle-body gasket
  • 13343-98J20 later throttle-body gasket
  • 13139-98J01 collector gasket
  • DF250AP / DF300AP electronic-control intake components

Aftermarket / Verified Equivalents

  • No aftermarket equivalent

📦 Condition

  • Genuine used part
  • Removed from running engine where applicable
  • In good working condition unless otherwise stated
View full details
