13315-88L00 Suzuki DF60A Throttle Body Bracket | Genuine Used Part

🔧 Product Description

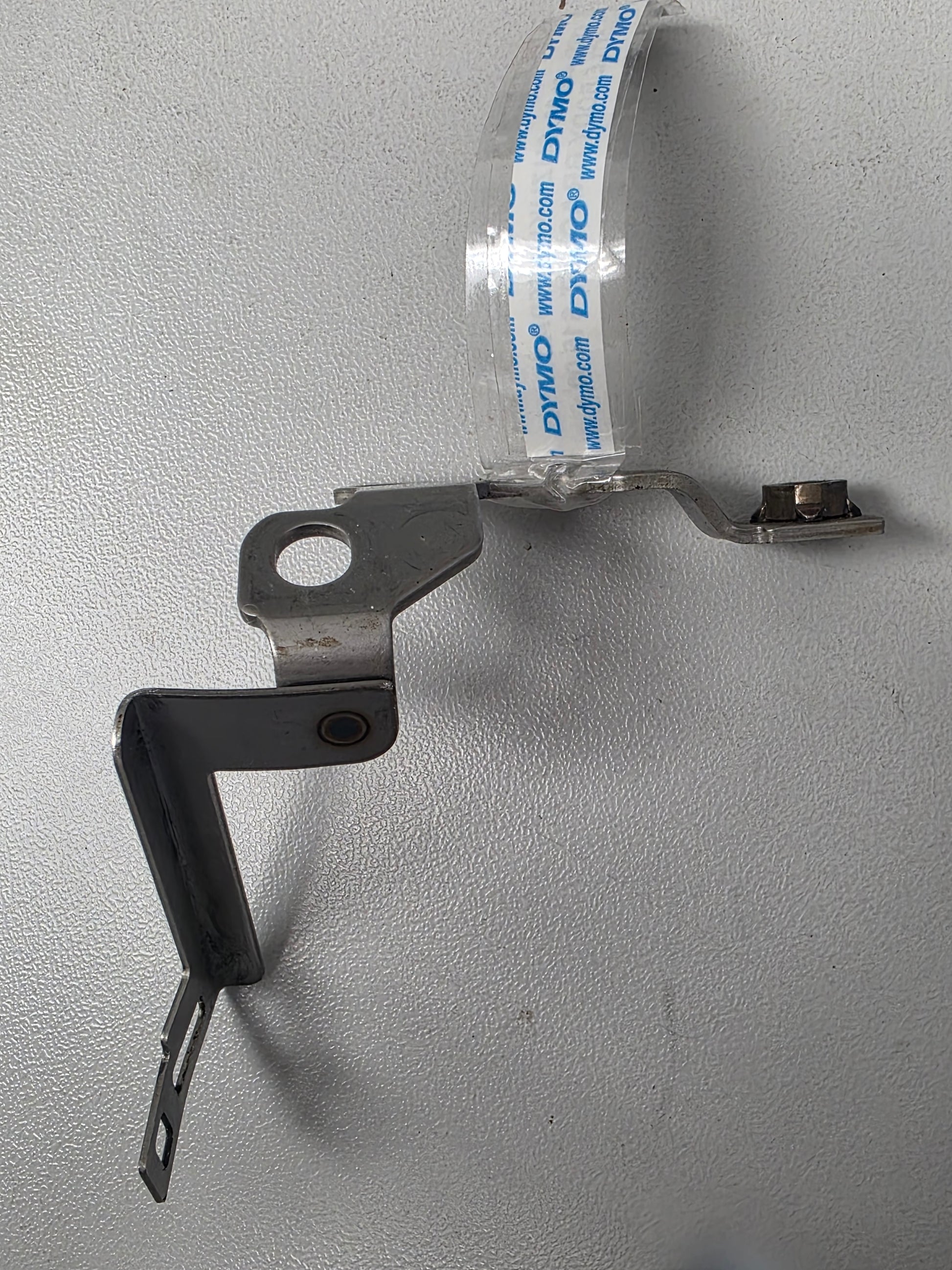

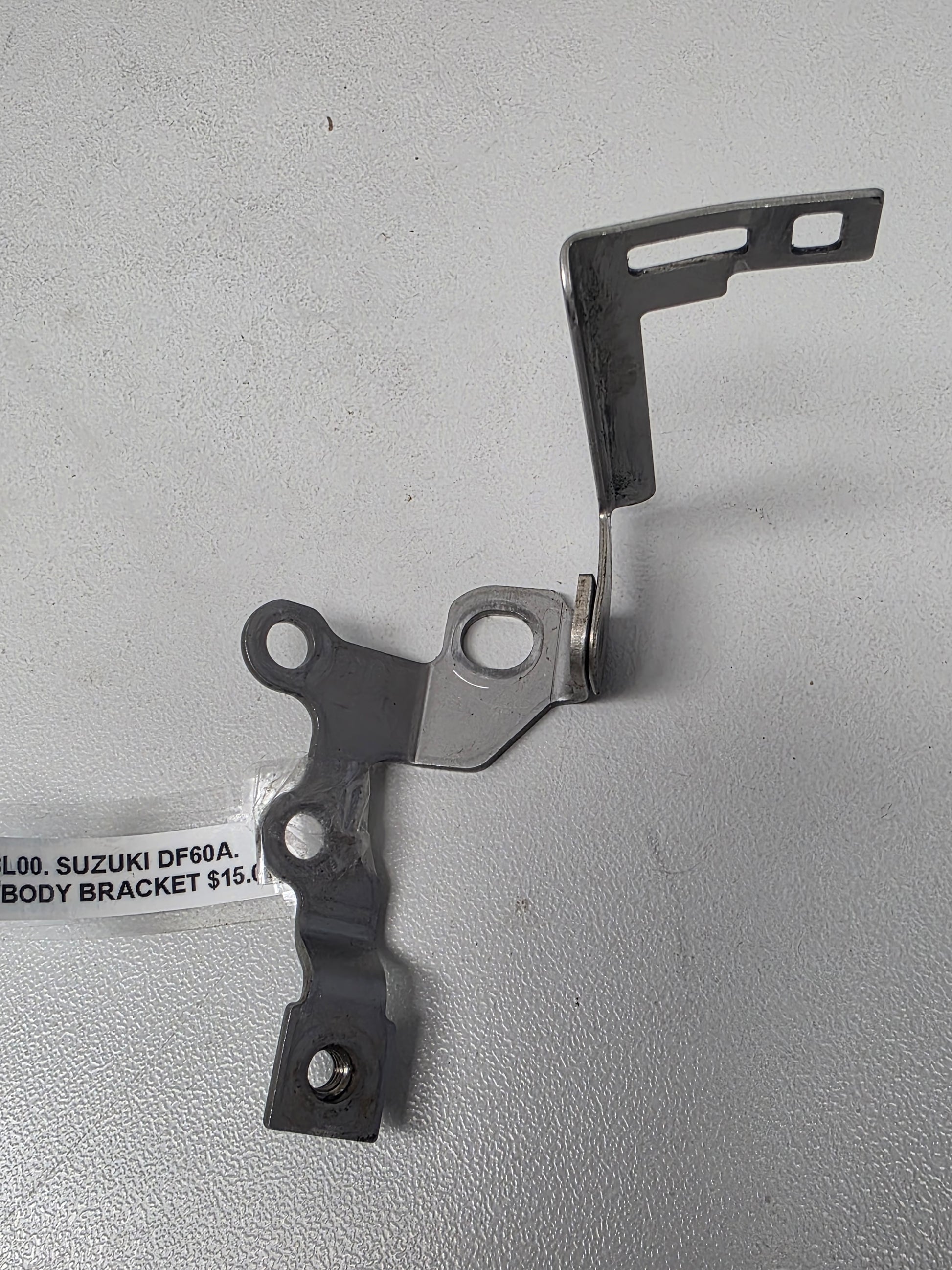

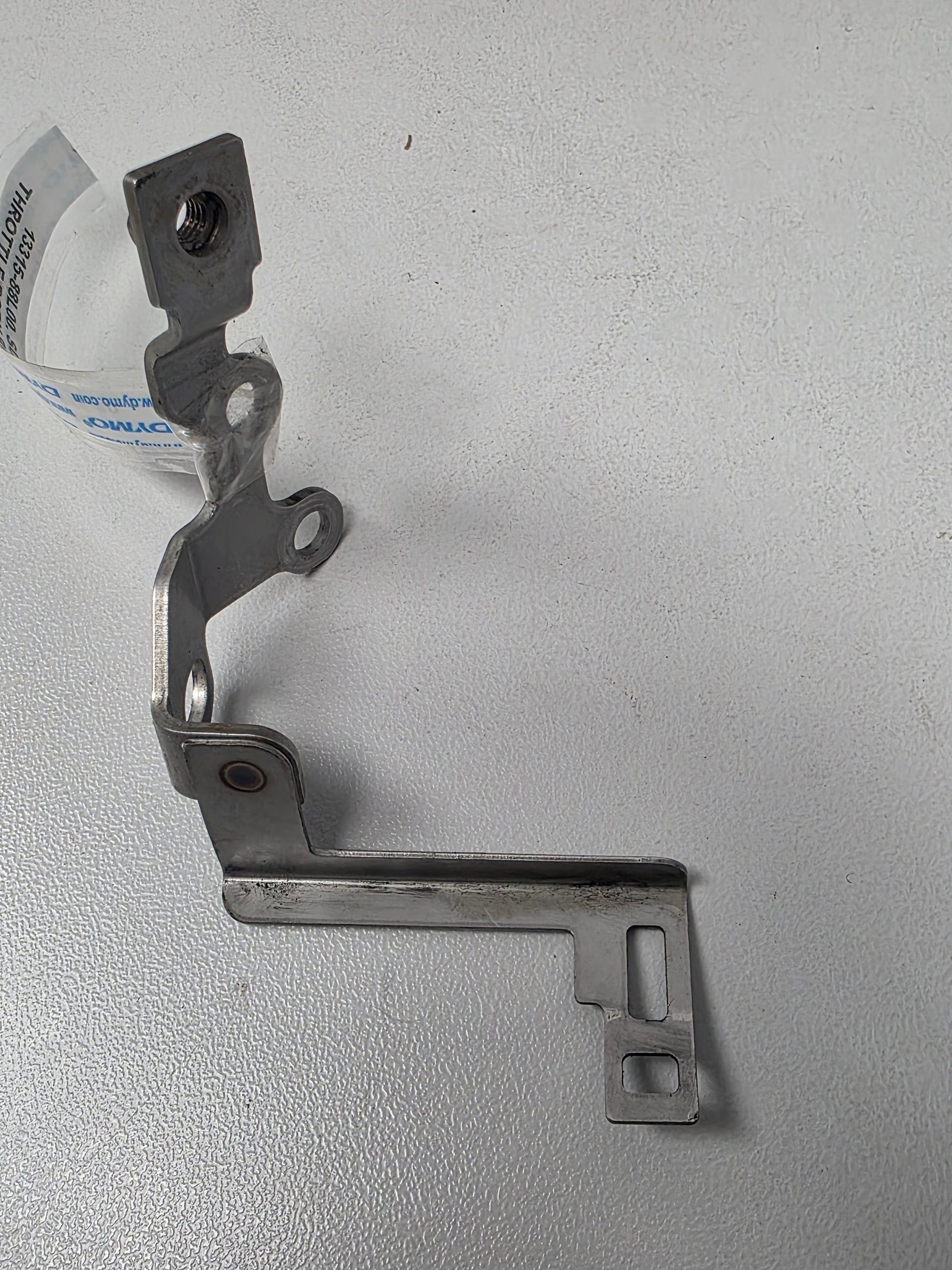

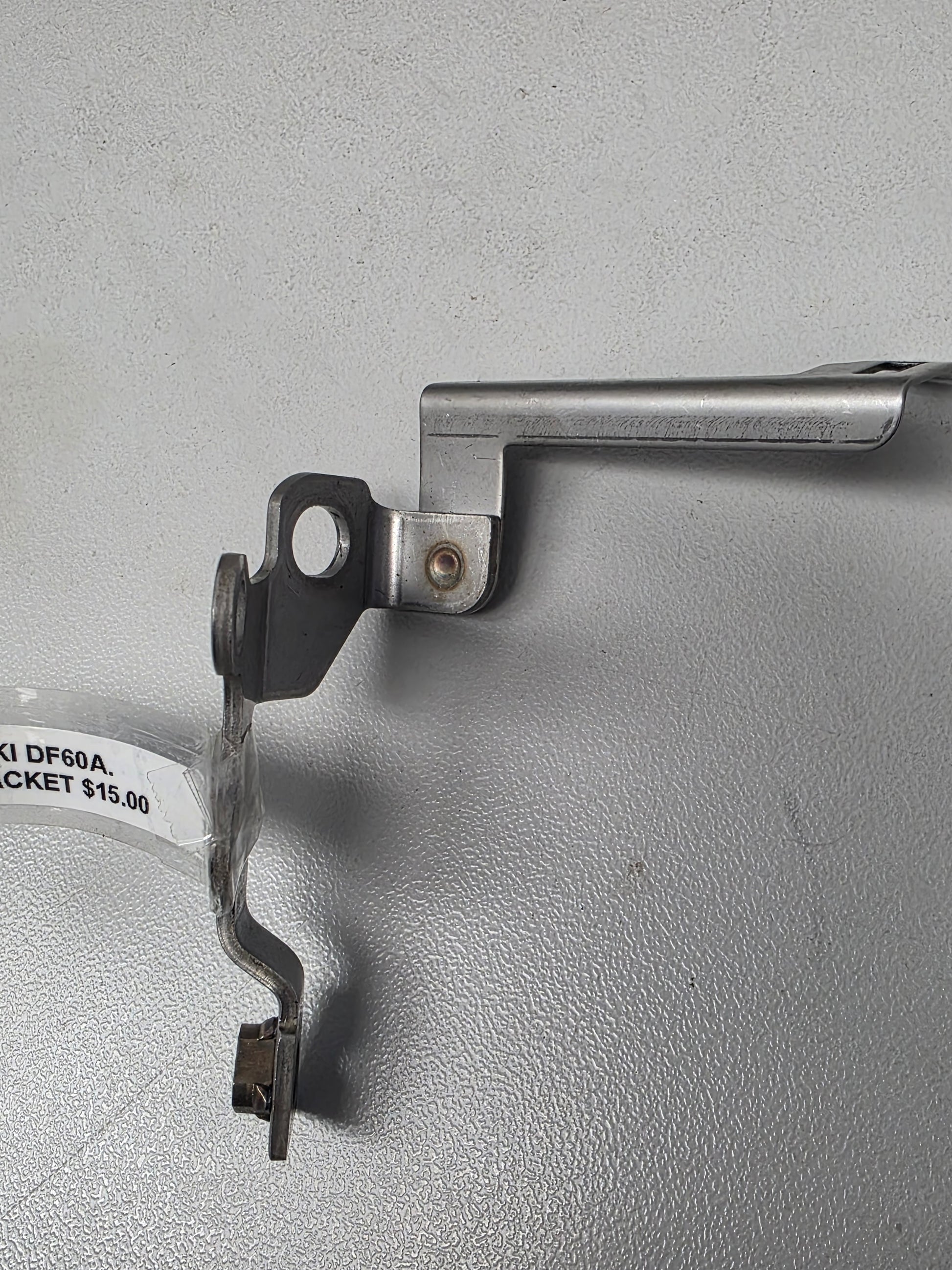

Genuine Suzuki DF40A-DF60A Throttle Body Bracket - Part Number: 13315-88L00

A genuine Suzuki bracket that supports and locates the throttle-body assembly on selected DF40A, DF50A and DF60A EFI four-stroke outboards.

The bracket mounts to throttle body 13300-88L00 and maintains the correct relationship between the intake, throttle lever and linkage components.

⚙️ Key Features

• Genuine Suzuki throttle-body bracket
• Correct part number 13315-88L00 / 13315-88L00-000
• Supports throttle body 13300-88L00
• Factory mounting-hole spacing and alignment
• Used on 941cc inline-three engines
• Suitable for standard and high-thrust variants

🚤 Compatibility

Documented on

• Suzuki DF40A
• Suzuki DF40AS
• Suzuki DF50A
• Suzuki DF50AV
• Suzuki DF60A
• Suzuki DF60AV
• VIN families from approximately 2010 through current 2024 production where 13315-88L00 is specified
• HP Range: 40HP - 60HP
• Engine Type: Suzuki 941cc inline-three EFI four-stroke outboard

🔌 Function

The bracket secures the throttle body and maintains its alignment with the intake manifold and throttle linkage.

⚠️ Common Signs of Failure

• Throttle body moves or vibrates
• Bracket is cracked or bent
• Mounting holes are damaged
• Linkage alignment is incorrect
• Intake seal repeatedly leaks because the throttle body is not supported

🔄 Supersession & Cross Reference

OEM Supersession Chain

• 13315-88L00 current documented bracket reference
• No direct supersession confirmed

OEM / Related Numbers

• 13315-88L00
• 13315-88L00-000
• 13300-88L00 throttle-body assembly
• 19120-88L01 throttle lever
• 19131-95502 throttle connector
• 01550-06457 mounting bolt
• 09140-05005 nut
• 09160-06047 washer

Aftermarket / Verified Equivalents

• Specialist used Suzuki 13315-88L00 bracket
• Used complete 88L throttle-body assembly
• No verified direct aftermarket bracket

📦 Condition

• Genuine used part
• Removed from running engine where applicable
• In good working condition unless otherwise stated
• Inspect mounting faces and threads before installation
