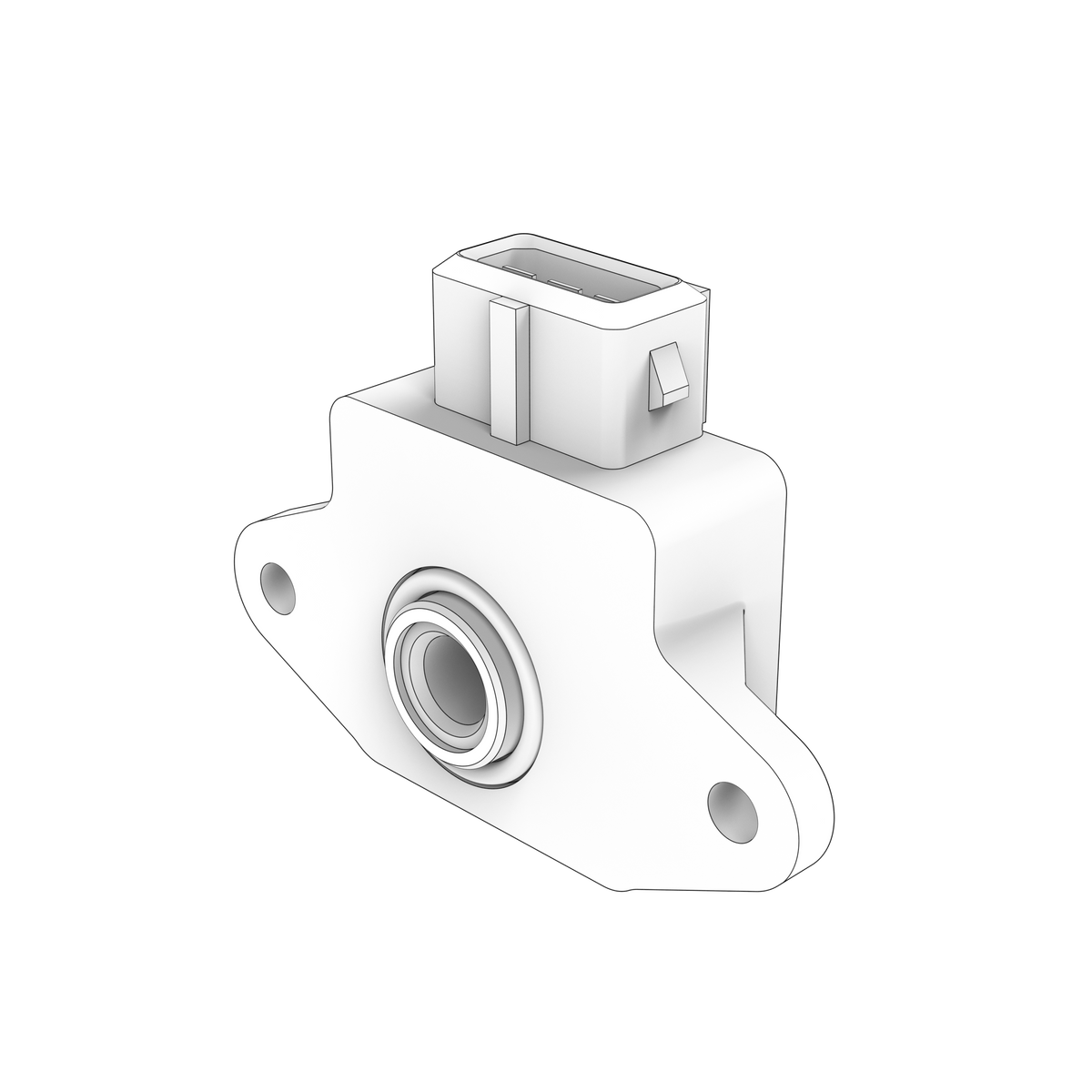

1336385 Potentiometer | Genuine Volvo Penta Part

🔧 Product Description

This is a genuine Volvo Penta potentiometer from the ignition and control systems group, used within the engine's electrical control circuit to provide a variable resistance signal for control and adjustment functions. It is a common service item across the D3, D4, D6, D8, D9, D11 and D13 marine diesel families as well as the V6 and V8 petrol sterndrive range. Supplied as an individual component with a net weight of approximately 0.025 kg.

🚤 Compatibility

• Engine Family: D, V, TAD
• HP Range: 110-480 HP
• Year Range: Approximately 1990s onward, dependent on control-system generation

Full model list at the end of this description.

⚙️ Key Features

• Genuine Volvo Penta OEM part number 1336385
• System group: Ignition and Control Systems
• Net weight: 0.025 kg
• Fits D3, D4, D6, D8, D9, D11 and D13 marine diesel engines plus V6 and V8 petrol sterndrive models
• Supplied as a single individual component
• Engine type: Volvo Penta petrol and diesel engines with compatible EDC / electronic remote control

🔌 Function

The potentiometer provides a variable electrical resistance that the control system reads as a position or setting signal. This allows the engine or control electronics to interpret an adjustable input and respond accordingly.

⚠️ Common Signs of Failure

• Erratic, jumpy or non-linear signal output as the control is moved
• Dead spots or no response over part of the adjustment range
• Intermittent operation, particularly with vibration or when the harness is disturbed
• Corroded or damaged terminals causing high resistance or open circuit
• Stored fault codes or warning indications relating to an out-of-range control signal

🛠️ Service Notes

• This is the throttle-position potentiometer feeding the EDC engine control - it reports accelerator position, not the panel voltage-adjust or speed-control trims used elsewhere under this item type
• Check the throttle/accelerator linkage for binding or wear before condemning the sensor, since erratic or absent throttle response often traces back to the linkage rather than the potentiometer itself

🔄 Supersession & Cross Reference

OEM Supersession Chain

• 8857195 later / replacement control potentiometer reference in selected control assemblies
• 1271892 related earlier Volvo control-potentiometer reference

OEM / Related Numbers

• 8857195 related reference
• 1271892 related reference
• 873737 related EDC control-lever component
• 873998 related electronic control component

Other-Brand OEM Numbers

• Bosch: 0 280 122 001
• Delphi: SS10992-12B1

Aftermarket / Verified Equivalents

• Aftermarket replacement: 8857195 electronic throttle potentiometer
• Metzger: 0904002
• Walker Products: 200-1347
• Walker Products: 200-1221
• AIC: 51497
• Abakus: 120-08-003
• EFI Automotive: 1477305
• EPS: 1995002
• ERA: 550144
• ESEN SKV: 17SKV005
• Facet: 10.5002
• Maxgear: 24-0018
• Casals: 65425

📦 Condition

• Genuine Volvo Penta part
• Brand new
• Supplied in original or equivalent packaging

🔎 Full Model Compatibility

Typically suits:

• Volvo Penta D6-370A-C, D6-350A-A, D6-350A-B, D6-330A-D, D6-330A-F, D6-370A-F, D6-330A-C, D6-330D-F, D6-370A-D, D6-330A-E, D6-370A-E, D6-370D-F, D6-330I-D, D6-310I-B, D6-280I-B, D6-280I-C, D6-280I-D, D6-280I-E, D6-310I-D, D6-435I-D, D6-310I-E, D6-280I-A, D6-310I-A, D6-300A-F, D6-300D-F, D6-300I-F, D6-370I-A, D6-370I-B, D6-330I-B, D6-330I-C, D6-370I-C, D6-370I-D, D6-310A-B, D6-280A-C, D6-310A-C, D6-310A-A, D6-280A-D, D6-310A-D, D6-280A-E, D6-310A-E, D6-310I-C, D6-280A-A, D6-280A-B, D6-340I-G, D6-380I-G, D6-440I-G, D6-480I-G, D6-300A-G, D6-340A-G, D6-380A-G, D6-440I-WJ-G, D6-480I-WJ-G, D6-300D-G, D6-340D-G, D6-380D-G, D6-440D-G, D6-480D-G, D6-400A-G, D6-440A-G, D6-300I-G, D6-330I-F, D6-370I-F, D6-400A-E, D6-435D-F, D6-435I-A, D6-435I-C, D6-435I-E, D6-400A-F, D6-435I-F, D6-330I-E, D6-370I-E, D6-330A-B, D6-370A-B
• Volvo Penta D3-110I-B, D3-110I-C, D3-130I-C, D3-220I-G, D3-130A-A, D3-160A-A, D3-130A-B, D3-160A-B, D3-130A-C, D3-160A-C, D3-140A-D, D3-170A-D, D3-200A-D, D3-220A-D, D3-140I-D, D3-140A-E, D3-170A-E, D3-200A-E, D3-220A-E, D3-140I-E, D3-140A-F, D3-170A-F, D3-200A-F, D3-220A-F, D3-140I-F, D3-140A-G, D3-170A-G, D3-200A-G, D3-220A-G, D3-140I-G, D3-190A-B, D3-190A-C, D3-190I-A, D3-110I-A, D3-130I-A, D3-160I-A, D3-110I-D, D3-150I-D, D3-170I-D, D3-200I-D, D3-220I-D, D3-110I-E, D3-150I-E, D3-170I-E, D3-200I-E, D3-220I-E, D3-110I-F, D3-150I-F, D3-170I-F, D3-200I-F, D3-220I-F, D3-110I-G, D3-150I-G, D3-170I-G, D3-200I-G, D3-110I-H, D3-160I-C, D3-190I-B, D3-190I-C, D3-140A-H, D3-170A-H, D3-200A-H, D3-220A-H, D3-130I-B, D3-160I-B, D3-150I-H, D3-170I-H, D3-200I-H, D3-220I-H, D3-140I-H
• Volvo Penta D4-260A-B, D4-260A-A, D4-260A-C, D4-260A-D, D4-260A-E, D4-260A-F, D4-260D-F, D4-260I-A, D4-260I-B, D4-260I-C, D4-260I-D, D4-260I-E, D4-260I-F, D4-300A-A, D4-300A-C, D4-300A-D, D4-300A-E, D4-300A-F, D4-300D-F, D4-300I-A, D4-180I-C, D4-225I-C, D4-180I-D, D4-225I-D, D4-180I-E, D4-225I-E, D4-180I-F, D4-225I-F, D4-210A-A, D4-210A-B, D4-225A-B, D4-225A-C, D4-225A-D, D4-300I-C, D4-300I-D, D4-300I-E, D4-300I-F, D4-225A-E, D4-225A-F, D4-210I-A, D4-210I-B, D4-180I-B, D4-225I-B, D4-175I-G, D4-230I-G, D4-270I-G, D4-320I-G, D4-300I-G, D4-230A-G, D4-270A-G, D4-320A-G, D4-300A-G
• Volvo Penta D13C1-A MP, D13C2-A MP, D13C3-A MP, D13C4-A MP, D13B-E MH, D13B-E MH (FE), D13B-N MH, D13B-N MH (FE), D13C6-A MP, D13C1-A MH, D13C2-A MH, D13C5-A MP
• Volvo Penta D8A5-A MH, D8A6-A MH, D8A1-A MP, D8A2-A MP, D8A3-A MP, D8A4-A MP
• Volvo Penta V6-200-CE-P, V6-250-CE-P, V6-280-CE-P, V6-250-CE-R, V6-280-CE-R
• Volvo Penta D11B3-A MP, D11B4-A MP, D11B2-A MP, D11B1-A MP
• Volvo Penta V8-300-CE-P, V8-350-CE-P, V8-380-CE-P, V8-430-CE-P
• Volvo Penta D9A2L MH, D9A2M MP
• Volvo Penta TAD1360-62VE
• Volvo Penta TAD1363-65VE
