13400-PT3-010 13500-ZW5-000 13520-ZW5-000 Shift Balancer Assembly | Genuine Used Part

🔧 Product Description

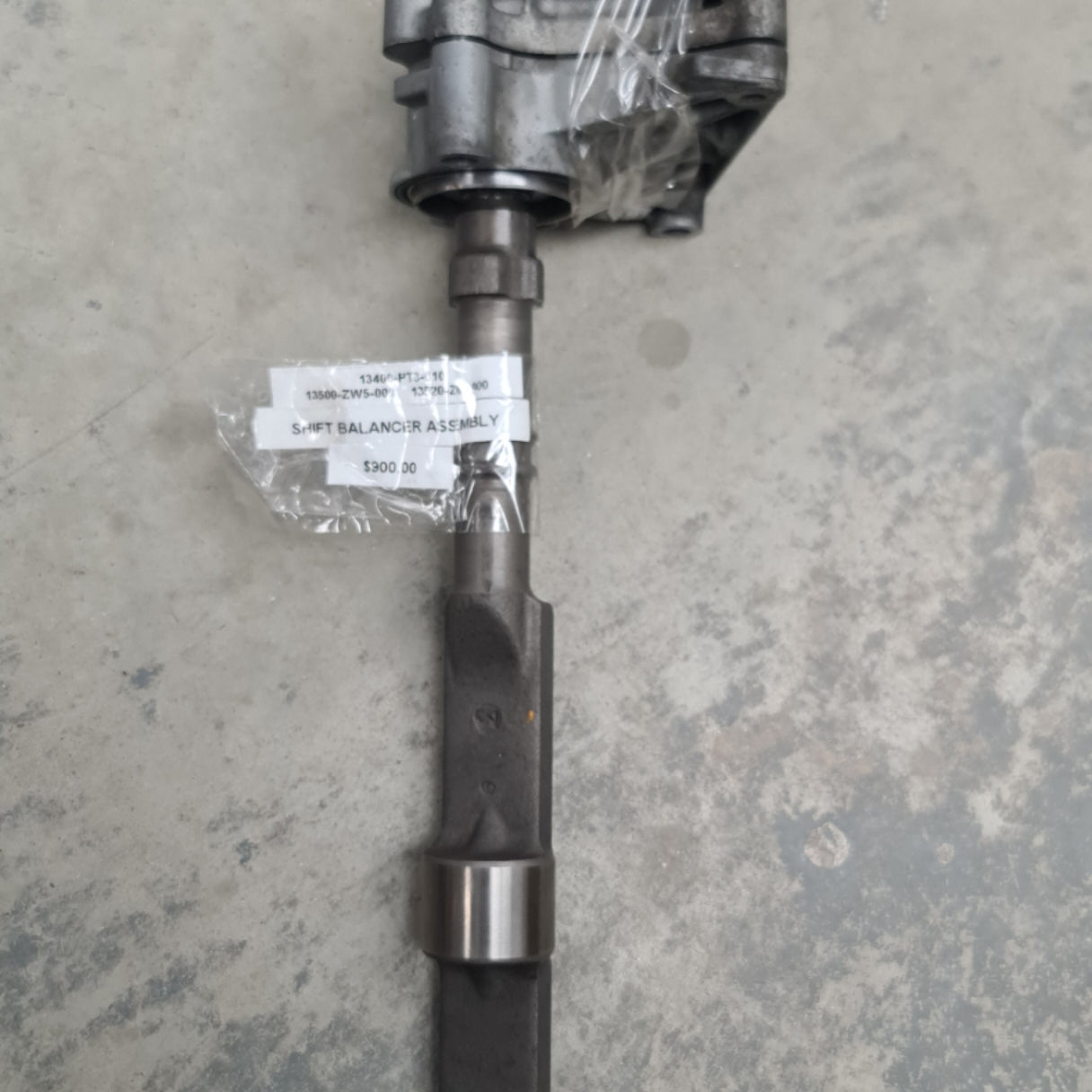

Genuine Used Honda BF115A / BF130A Rear Balancer Shaft, Balancer Gear Case and Spacer Assembly - Part Numbers: 13400-PT3-010, 13500-ZW5-000 and 13520-ZW5-000

A genuine pre-owned Honda Marine balancer-system component set for selected BF115A and BF130A four-stroke outboards.

The listing numbers identify

• 13400-PT3-010 - Rear balancer shaft
• 13500-ZW5-000 - Balancer gear case
• 13520-ZW5-000 - Gear-case spacer

These components belong to the engine's vibration-cancelling balancer-shaft system. They are not transmission shift components.

⚙️ Key Features

• Genuine Honda Marine used balancer components
• Rear balancer shaft 13400-PT3-010
• Balancer gear case 13500-ZW5-000
• Gear-case spacer 13520-ZW5-000
• Suitable for selected BF115A and BF130A engines
• Designed to reduce four-cylinder engine vibration
• Original Honda-machined components

🚤 Compatibility

Commonly used on

• Honda BF115A four-stroke outboards
• Honda BF130A four-stroke outboards
• Honda inline four-cylinder marine powerheads

Typically suits selected

• BF115AX
• BF115AY
• BF115A1 through BF115A5
• BF130AX
• BF130AY
• BF130A1 through BF130A4
• Horsepower Range: 115HP - 130HP
• Engine Configuration: Inline four-cylinder four-stroke
• Representative Production Period: Approximately 1999-2007

Important fitment note

• The listing title describes a shift balancer assembly, but the verified components are part of the engine balancer-shaft system.
• Confirm which shafts, gears, case, spacer, bearings and pulleys are actually included.
• The front balancer shaft is a separate component.
• Timing and balancer-belt alignment must be set correctly during installation.

🔌 Function

The balancer shafts rotate in a timed relationship with the crankshaft to counteract vibration generated by the inline four-cylinder engine.

The gear case and spacer support and locate the balancer-drive components within the powerhead.

⚠️ Common Signs of Failure

• Abnormal engine vibration
• Rumbling or knocking from the front of the powerhead
• Balancer belt or gear noise
• Excessive shaft movement
• Worn shaft journals
• Damaged bearing surfaces
• Oil leakage around the balancer case
• Cracked or corroded gear case
• Incorrect balancer timing
• Metal debris in the engine oil

🛠️ Service Notes

Recommended checks before installation

• Inspect shaft journals and bearing surfaces
• Measure shaft runout
• Check balancer gears and pulleys
• Inspect the case for cracks or corrosion
• Replace O-rings and gaskets
• Inspect the balancer belt and tensioner
• Align crankshaft and balancer timing marks
• Rotate the engine manually before starting
• Verify oil pressure and vibration after installation

🔄 Supersession & Cross Reference

Rear Balancer Shaft

• 13400-PT3-010
• 13400PT3010
• OEM Description: Shaft, Rear Balancer

Balancer Gear Case

• 13500-ZW5-000
• 13500ZW5000
• OEM Description: Case, Balancer Gear

Gear-Case Spacer

• 13520-ZW5-000
• 13520ZW5000
• OEM Description: Spacer Complete, Gear Case

Related Numbers

• Front balancer shaft: 13401-P5M-000
• Front driven pulley: 13402-ZW5-003
• Balancer-shaft cover: 13421-ZW5-000
• Balancer-cover O-ring: 13422-ZW5-000
• Gear-case-spacer O-ring: 13522-ZW5-000
• Thrust washer: 13512-PT0-020
• Oil-pump gasket: 15114-PT0-003

Aftermarket / Verified Equivalents

• No aftermarket equivalent

📦 Condition

• Genuine Honda Marine used components
• Pre-owned internal engine parts
• Oil staining, marks and light oxidation may be present
• Bearings, seals and O-rings should be inspected or replaced
• Included components are limited to those shown or described
• Supplied in protective or equivalent packaging
