13402-ZW5-003 Balancer Belt Pulley | Genuine Used Part

13402-ZW5-003 Balancer Belt Pulley | Genuine Used Part

$40.00 AUD
$40.00 AUD
Sale Sold out
Shipping calculated at checkout.

Low stock: 1 left

✓ Authorised Volvo Penta Dealer · Genuine used marine parts · Ships Australia-wide

🔧 Product Description

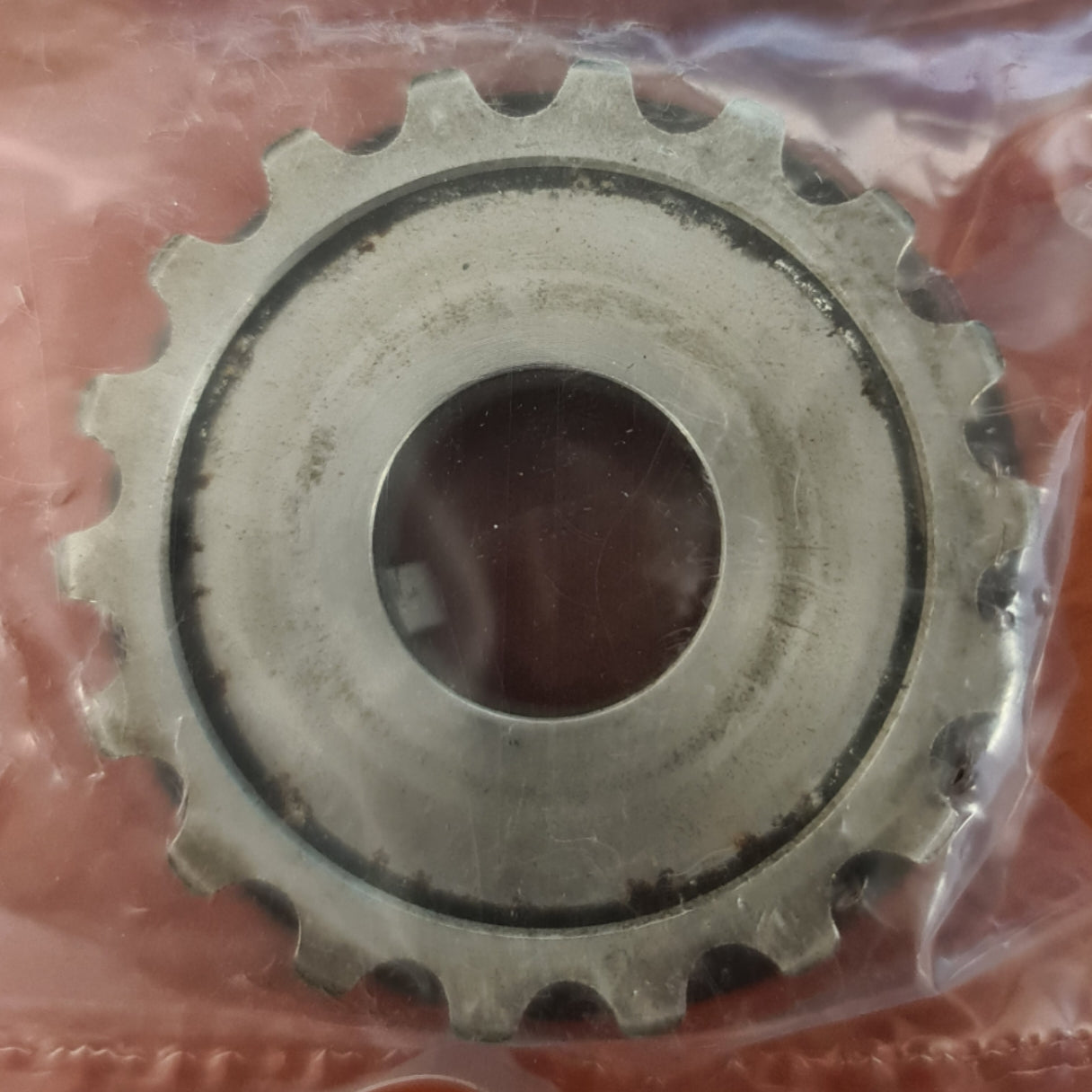

Genuine Used Honda BF115A / BF130A Front Balancer Belt Driven Pulley - Part Number: 13402-ZW5-003

A genuine pre-owned Honda Marine front driven pulley for the counter-rotating balancer-shaft system used in selected BF115A and BF130A four-stroke outboards.

Honda identifies this component as the front balancer-belt driven pulley. It transfers motion from the balancer-belt drive pulley to the front balancer shaft, helping the two balancer shafts rotate in the correct timed relationship with the crankshaft.

⚙️ Key Features

  • Genuine Honda Marine used pulley
  • Correct OEM part number 13402-ZW5-003
  • Front balancer-belt driven pulley
  • Used in the BF115A and BF130A vibration-control system
  • Works with balancer belt 13405-PT0-004
  • Original precision-machined Honda component

🚤 Compatibility

Commonly used on

  • Honda BF115A four-stroke outboards
  • Honda BF130A four-stroke outboards
  • Honda inline four-cylinder balancer-shaft systems

Typically suits selected

  • BF115AX and BF115AY
  • BF115A1 through BF115A5
  • BF130AX and BF130AY
  • BF130A1 through BF130A4
  • Horsepower Range: 115HP - 130HP
  • Engine Type: Inline four-cylinder four-stroke
  • Representative Production Period: Approximately 1999-2007

Important fitment note

  • This is the front driven pulley; the rear driven pulley is a separate component.
  • Confirm the part number, pulley timing marks and belt width before installation.
  • Pulley bolt, key, shaft and balancer belt are included only when shown or described.

🔌 Function

The pulley transfers balancer-belt movement to the front balancer shaft.

Correct pulley timing allows the balancer shaft to generate an opposing vibration force at the correct crankshaft position.

⚠️ Common Signs of Failure

  • Damaged or rounded belt teeth
  • Cracks around the pulley hub
  • Worn keyway
  • Corrosion on the belt-contact surface
  • Pulley wobble
  • Abnormal engine vibration
  • Balancer belt tracks incorrectly
  • Timing marks are damaged or unreadable

🛠️ Service Notes

Recommended checks before installation

  • Inspect every belt tooth
  • Check the hub and keyway
  • Measure pulley runout
  • Inspect the shaft journal and mounting bolt
  • Replace a worn or oil-contaminated balancer belt
  • Align all balancer timing marks before tensioning the belt
  • Rotate the engine manually before starting

🔄 Supersession & Cross Reference

OEM Supersession Chain

  • No verified superseding part number identified

OEM / Related Numbers

  • 13402-ZW5-003
  • 13402ZW5003
  • OEM Description: Pulley, Balancer Belt Driven Front
  • Rear driven pulley: 13403-ZW5-000
  • Balancer-belt tensioner: 13404-ZW5-003
  • Balancer timing belt: 13405-PT0-004
  • Balancer-belt drive pulley: 13408-ZW5-003
  • Front balancer shaft: 13401-P5M-000

Aftermarket / Verified Equivalents

  • No aftermarket equivalent

📦 Condition

  • Genuine Honda Marine used part
  • Pre-owned internal engine component
  • Cosmetic marks, oil staining and light oxidation may be present
  • Inspect the belt teeth, hub and keyway before installation
  • Supplied in protective or equivalent packaging
