13510-88L00 19131-95502 Suzuki Throttle Rod | Genuine Used Part

🔧 Product Description

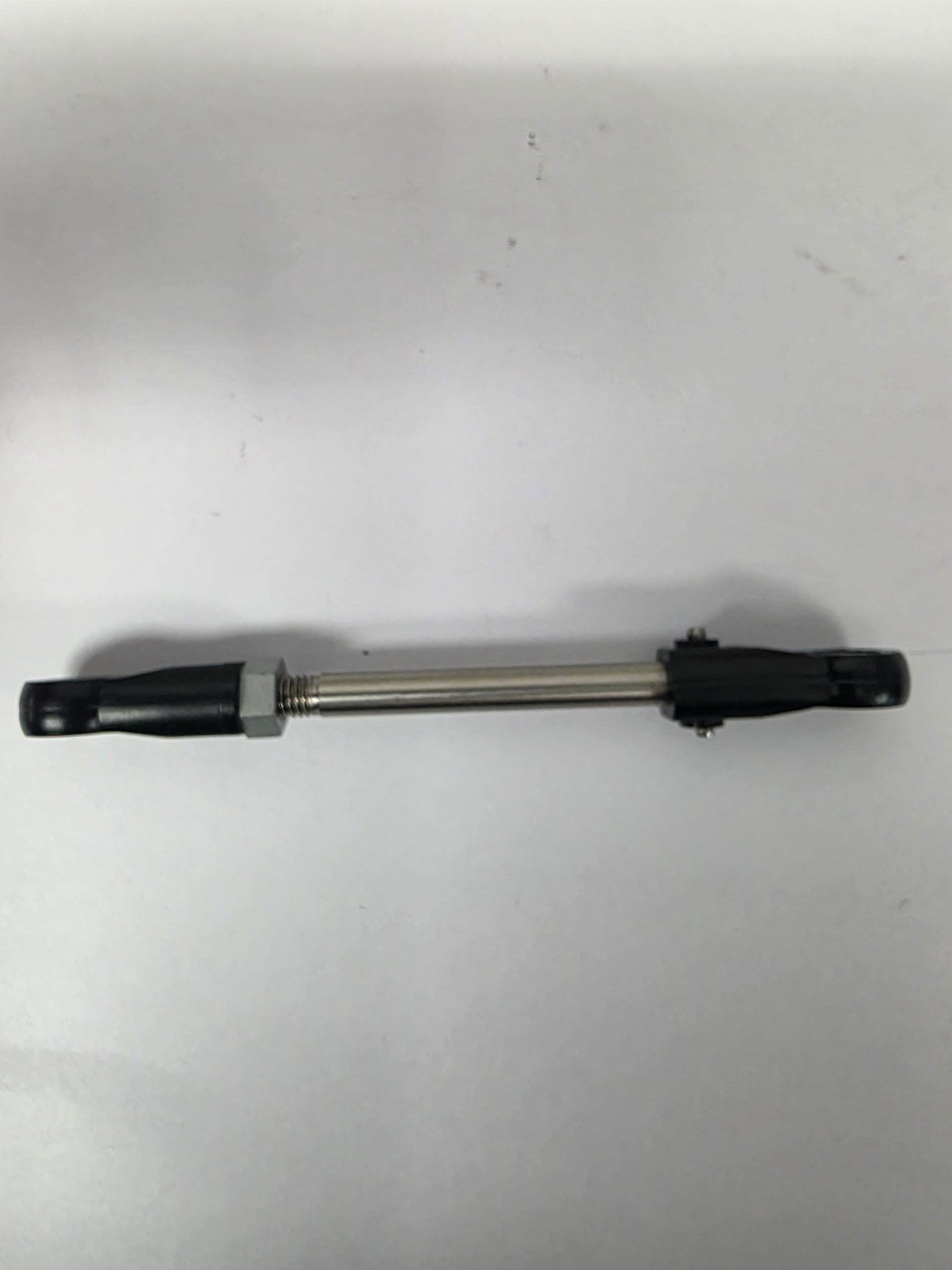

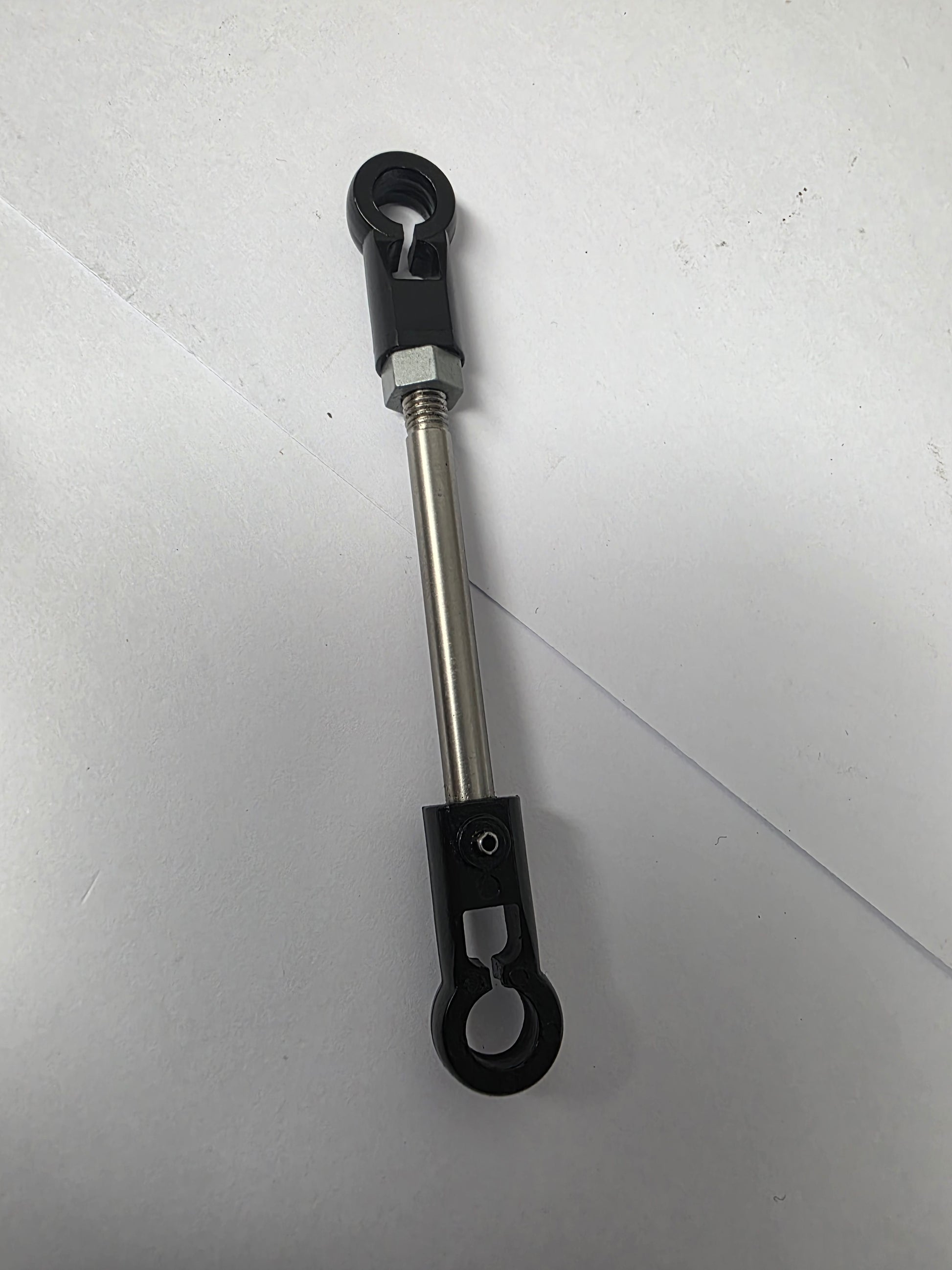

Genuine Suzuki DF40A-DF60A Throttle Rod and Connector - Part Numbers: 13510-88L00 / 19131-95502

A genuine Suzuki throttle-link rod supplied with its plastic rod connector for selected DF40A, DF50A and DF60A EFI four-stroke outboards.

The rod transfers movement between the throttle lever and throttle-body linkage. Connector 19131-95502 clips the rod to the lever pin while allowing the linkage to articulate through its operating range.

⚙️ Key Features

• Genuine Suzuki throttle-linkage components
• Throttle rod part number 13510-88L00
• Rod connector part number 19131-95502
• Designed for the 88L throttle-body assembly
• Factory rod length maintains correct throttle synchronisation
• Supplied together as the listed used assembly

🚤 Compatibility

Documented on

• Suzuki DF40A
• Suzuki DF50A
• Suzuki DF50AV
• Suzuki DF60A
• Suzuki DF60AV
• Selected remote-control and tiller models using the 88L throttle-body assembly
• HP Range: 40HP - 60HP
• Engine Type: Suzuki 941cc inline-three EFI four-stroke outboard
• Fitment Requirement: Confirm throttle-body type and lever part number

🔌 Function

The rod transfers lever movement to the throttle-body shaft so the throttle plate opens and closes in response to the control input. The connector retains the rod while allowing angular movement.

⚠️ Common Signs of Failure

• Engine does not reach full throttle
• Idle stop cannot be set correctly
• Plastic connector is cracked or loose
• Rod is bent or incorrectly adjusted
• Throttle linkage binds or has excessive free play

🔄 Supersession & Cross Reference

OEM Supersession Chain

• 13510-88L00 current documented throttle-rod reference
• 19131-95502 current documented rod-connector reference

OEM / Related Numbers

• 13510-88L00
• 19131-95502
• 19120-88L01 related throttle lever
• 09140-05005 related M5 nut
• 09160-06047 related washer
• Related throttle-body and return-spring components

Aftermarket / Verified Equivalents

• Specialist used complete 88L throttle linkage
• Generic linkage clips are not direct replacements unless the pin diameter and retention geometry match
• No verified direct aftermarket throttle rod

📦 Condition

• Genuine used assembly
• Supplied with the listed rod and connector
• Removed from running engine where applicable
• In good working condition unless otherwise stated
