13622-ZW5-000 Timing Belt Guide | Genuine Used Part

13622-ZW5-000 Timing Belt Guide | Genuine Used Part

$20.00 AUD
$20.00 AUD
Sale Sold out
Shipping calculated at checkout.

Low stock: 1 left

🔧 Product Description

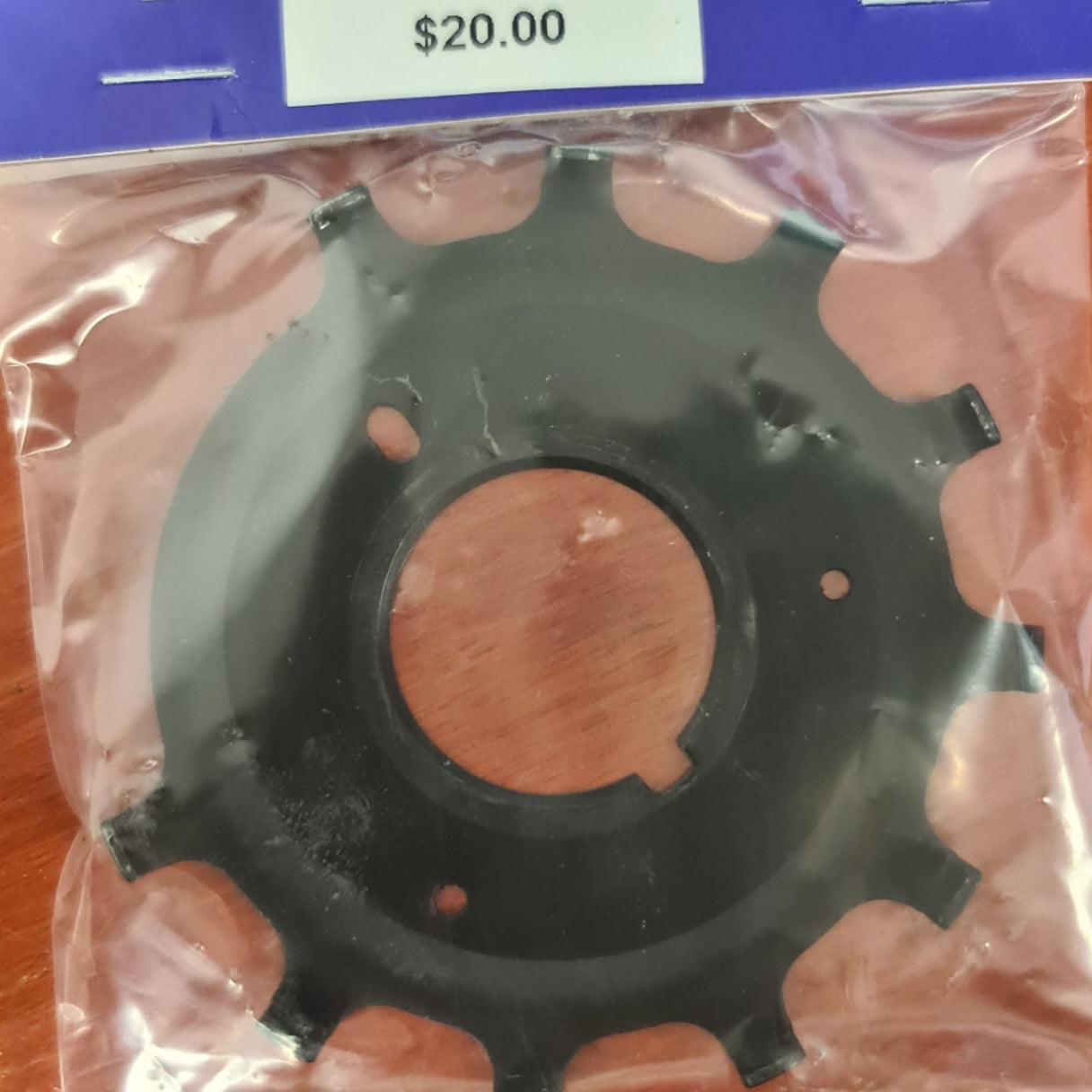

Genuine Used Honda BF115A / BF130A Timing Belt Guide Plate - Part Number: 13622-ZW5-000

A genuine pre-owned Honda Marine guide plate for the timing-belt drive pulley used on BF115A and BF130A outboards.

The plate helps retain the timing belt laterally on the crankshaft drive pulley and prevents the belt from walking away from its intended running position.

⚙️ Key Features

  • Genuine Honda Marine used guide plate
  • Correct OEM part number 13622-ZW5-000
  • OEM description: Plate, Timing Belt Guide
  • Used with timing pulley 13621-ZW5-003
  • Suitable for BF115A and BF130A engines
  • Original Honda stamped timing component

🚤 Compatibility

Commonly used on

  • Honda BF115A
  • Honda BF130A

Typically suits selected

  • BF115AX through BF115A5
  • BF130AX through BF130A4

Important fitment note

  • This is a belt-retaining guide plate, not an electronic pulser plate.
  • Confirm the plate is installed in the correct orientation.

🔌 Function

The plate forms a lateral guide beside the timing-belt drive pulley and helps keep the belt centred.

⚠️ Common Signs of Failure

  • Plate is bent
  • Belt-contact grooves
  • Corrosion
  • Plate rubs the belt
  • Belt tracks off-centre
  • Mounting hole is enlarged
  • Timing belt edge is frayed

🛠️ Service Notes

Recommended checks before installation

  • Check the plate for flatness
  • Inspect for belt-contact marks
  • Confirm the correct orientation
  • Check the drive pulley for runout
  • Inspect the belt and tensioner
  • Verify clearance after tightening

🔄 Supersession & Cross Reference

OEM Supersession Chain

  • No verified superseding number identified

OEM / Related Numbers

  • 13622-ZW5-000
  • 13622ZW5000
  • Timing-belt drive pulley: 13621-ZW5-003
  • Timing belt: 14400-ZW5-004
  • Timing-belt tensioner: 14510-ZW5-003

Aftermarket / Verified Equivalents

  • No aftermarket equivalent

📦 Condition

  • Genuine Honda Marine used part
  • Pre-owned internal timing component
  • Surface marks and light corrosion may be present
  • Inspect for bending before installation
  • Supplied in protective or equivalent packaging
