13809 BRP Trim Gauge | Genuine Used Part

🔧 Product Description

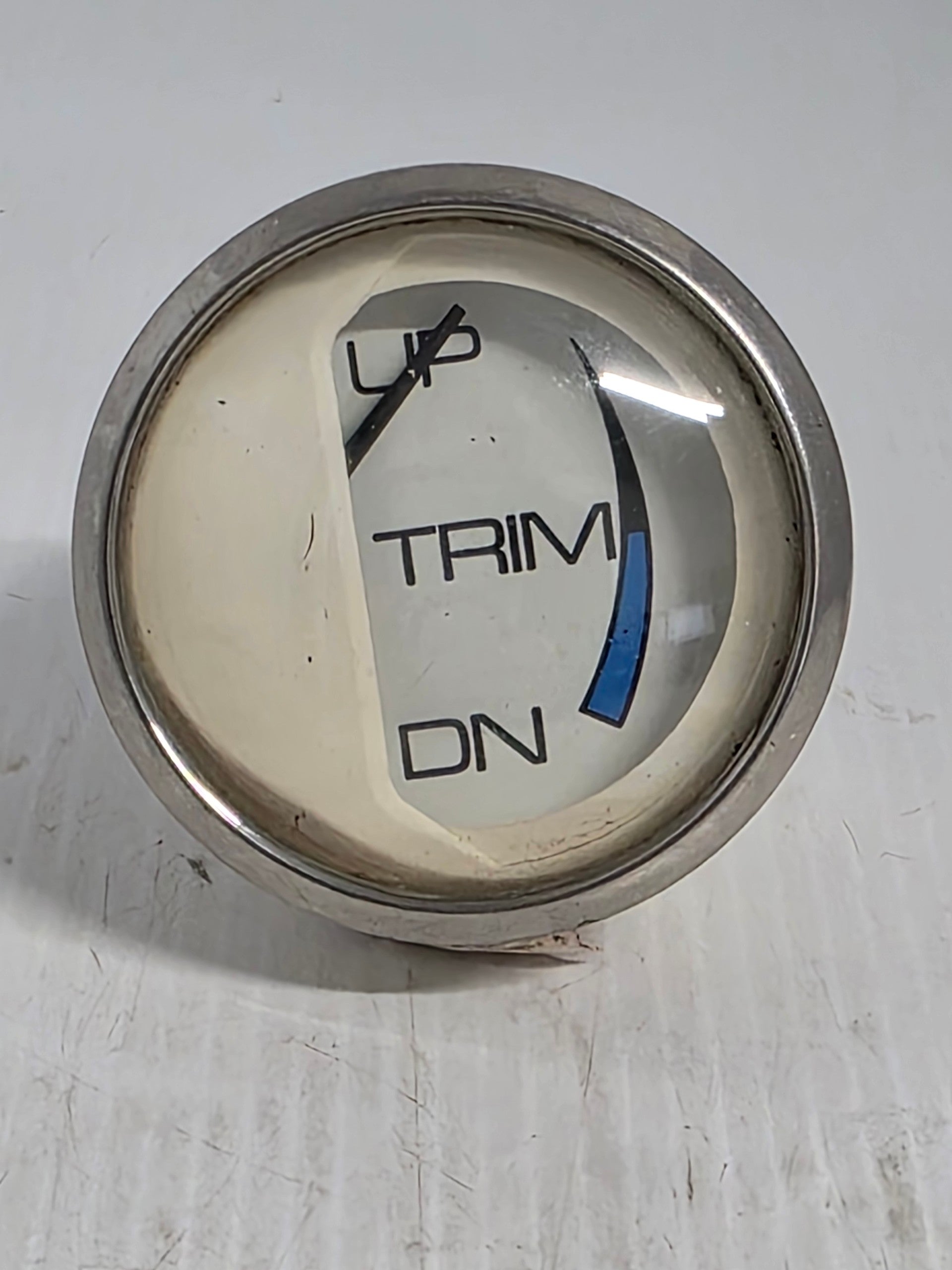

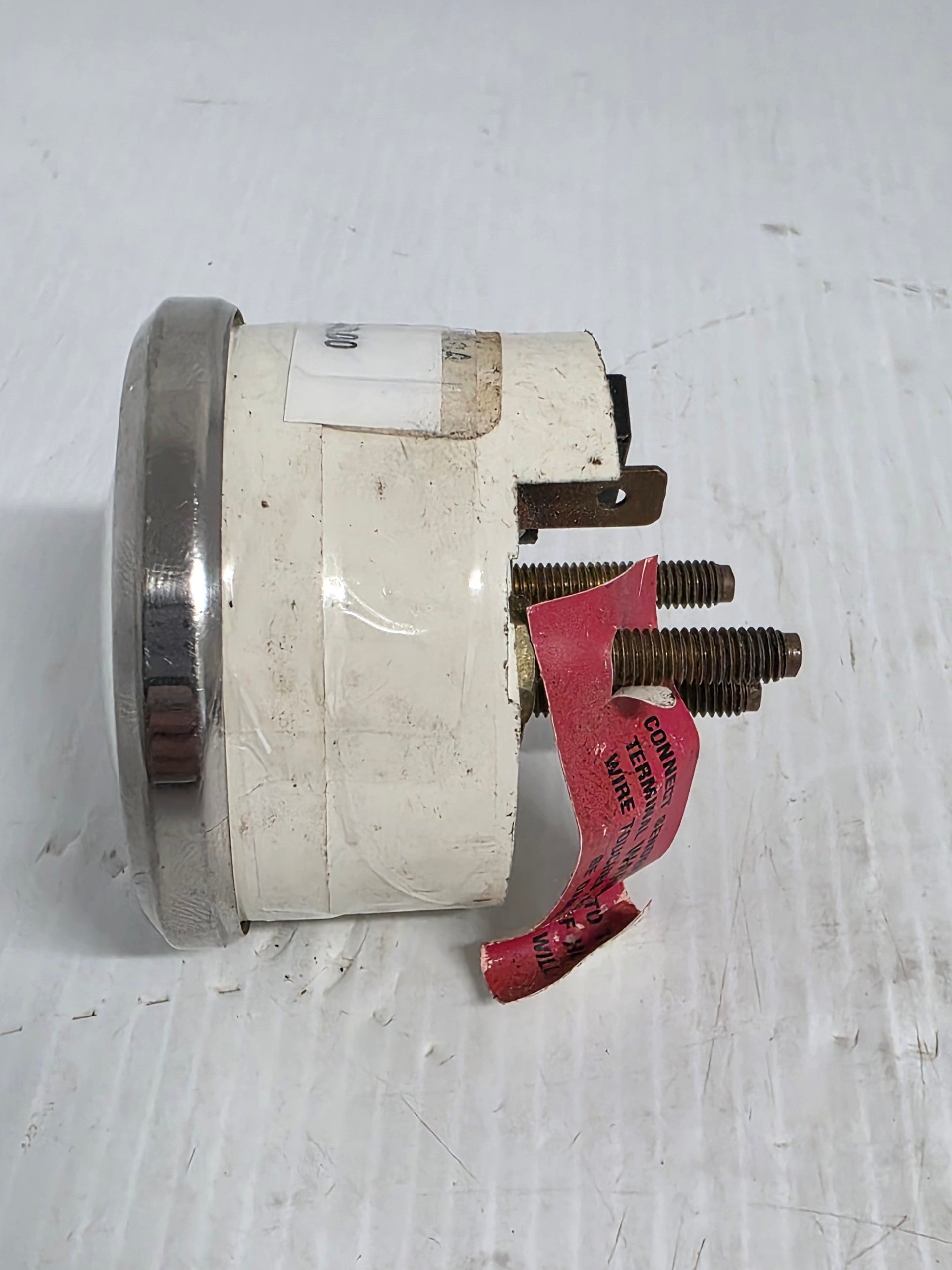

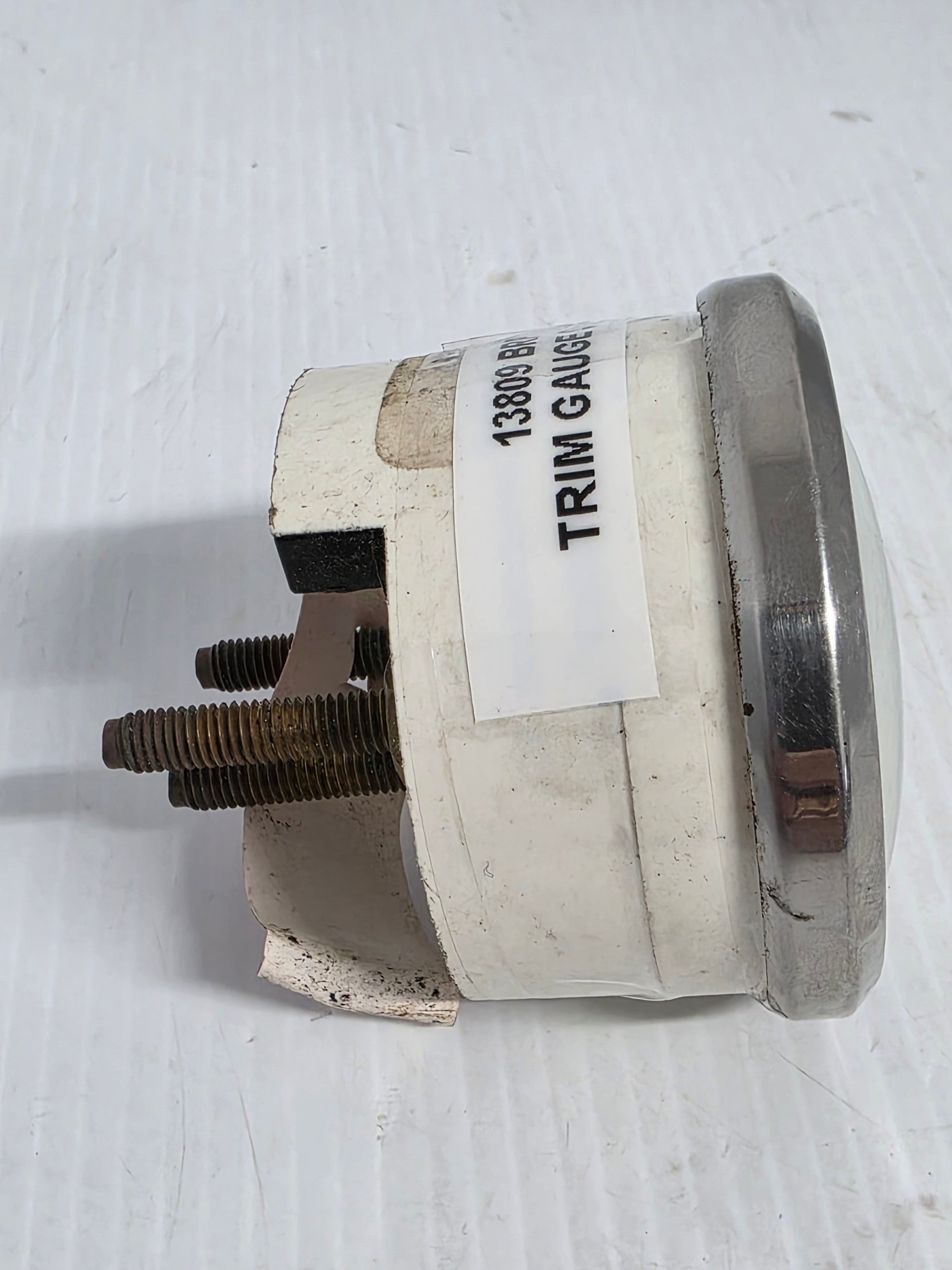

Genuine Faria Chesapeake White SS Johnson / Evinrude / Suzuki Trim Gauge - Catalogue Number: 13809

A genuine Faria Beede 2-inch trim-position gauge calibrated for Johnson, Evinrude and Suzuki outboards.

This is a Faria aftermarket or boat-builder instrument rather than a BRP-manufactured gauge. It uses the trim-sender resistance curve fitted to compatible Johnson, Evinrude and Suzuki outboards and displays the engine position between Down and Up.

⚙️ Key Features

• Genuine Faria Beede trim gauge
• Faria catalogue number 13809
• Faria factory number GP9418
• Calibrated for Johnson, Evinrude and Suzuki outboards
• Chesapeake White SS face with polished stainless bezel

🚤 Compatibility

Commonly used on

• Johnson and Evinrude power-trim outboards
• BRP outboards using the compatible analogue trim sender
• Suzuki outboards using the matching sender curve
• Boat dashboards using a 2-inch Faria Chesapeake White SS gauge

Typically suits

• Johnson / Evinrude carburetted two-stroke outboards
• Johnson / Evinrude Ficht and selected E-TEC installations with analogue trim output
• Suzuki two-stroke and four-stroke outboards with compatible sender calibration
• Gauge Type: Analogue trim-position indicator
• Nominal Size: 2 inches
• Electrical System: 12 VDC negative ground
• Sender Type: Johnson / Evinrude / Suzuki resistance curve

🔌 Function

The gauge converts the changing resistance of the engine-mounted trim sender into a visual indication of outboard angle.

⚠️ Common Signs of Failure

• Gauge remains at full Up or Down
• Needle moves in the wrong direction
• Reading jumps as the engine trims
• Sender and gauge curves do not match

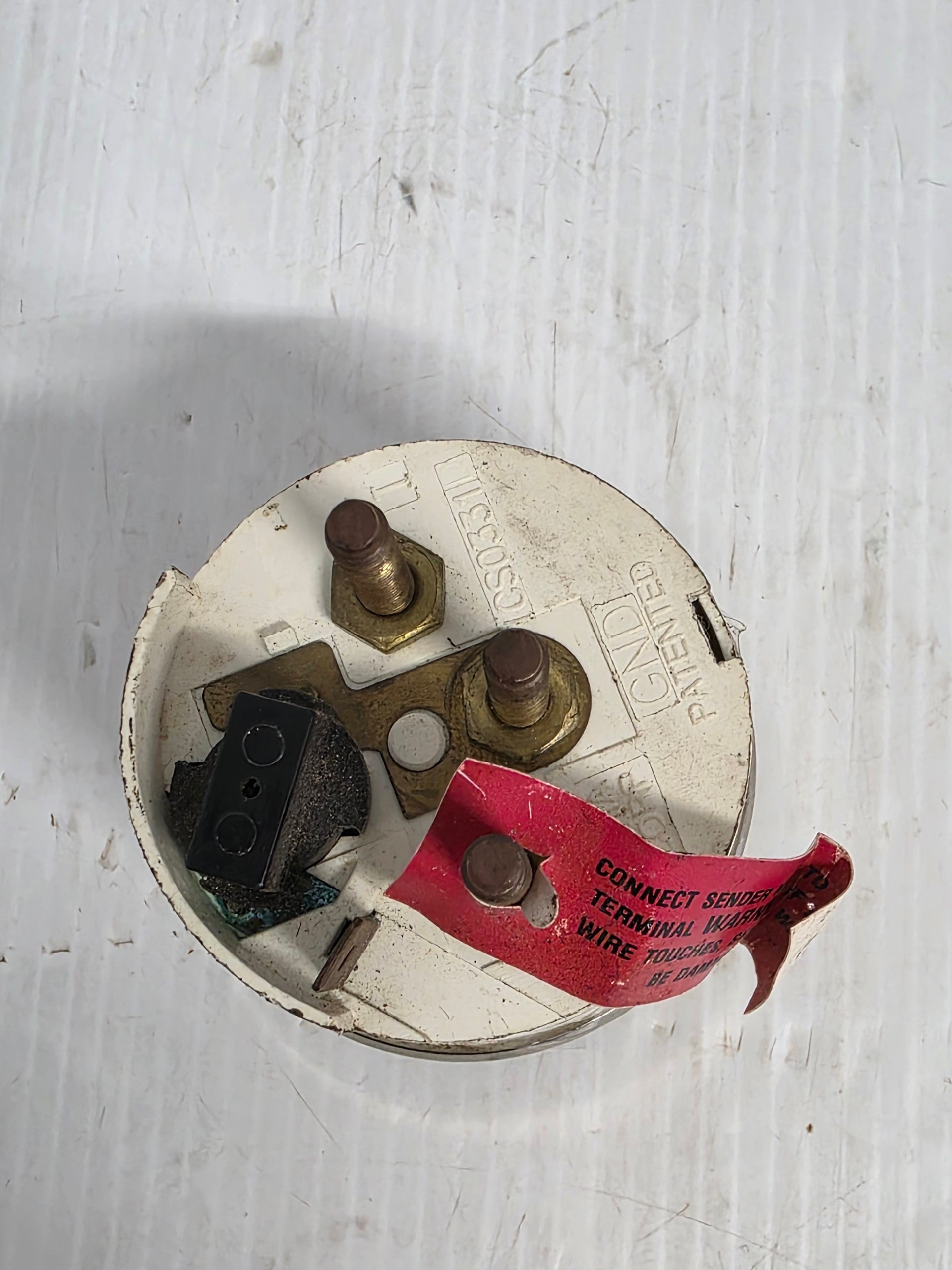

• Sender ground or signal wire is open
• Lens or perimeter lighting has deteriorated

🔄 Supersession & Cross Reference

OEM Supersession Chain

• 13809 is the Faria catalogue number
• GP9418 is the corresponding Faria factory number
• No BRP OEM supersession applies because this is a Faria instrument

OEM / Related Numbers

• Faria: 13809
• Faria factory: GP9418
• Related BRP / OMC trim sender
• Related Suzuki trim sender
• Related sender wire, ignition feed and ground

Aftermarket / Verified Equivalents

• Faria 13809 / GP9418 is the verified direct replacement
• Faria 22001 BRP / Suzuki Packard trim gauge is a later functional alternative where the connector and sender system match
• Faria, Sierra and Teleflex Johnson / Evinrude-compatible trim gauges are functional alternatives
• Honda-, Mercury- and Volvo-calibrated trim gauges are not equivalent

📦 Condition

• Genuine used part
• Removed from a running boat where applicable
• In good working condition unless otherwise stated
