13813-90J01 13710-99E00 Flame Arrester | Genuine Used Part

🔧 Product Description

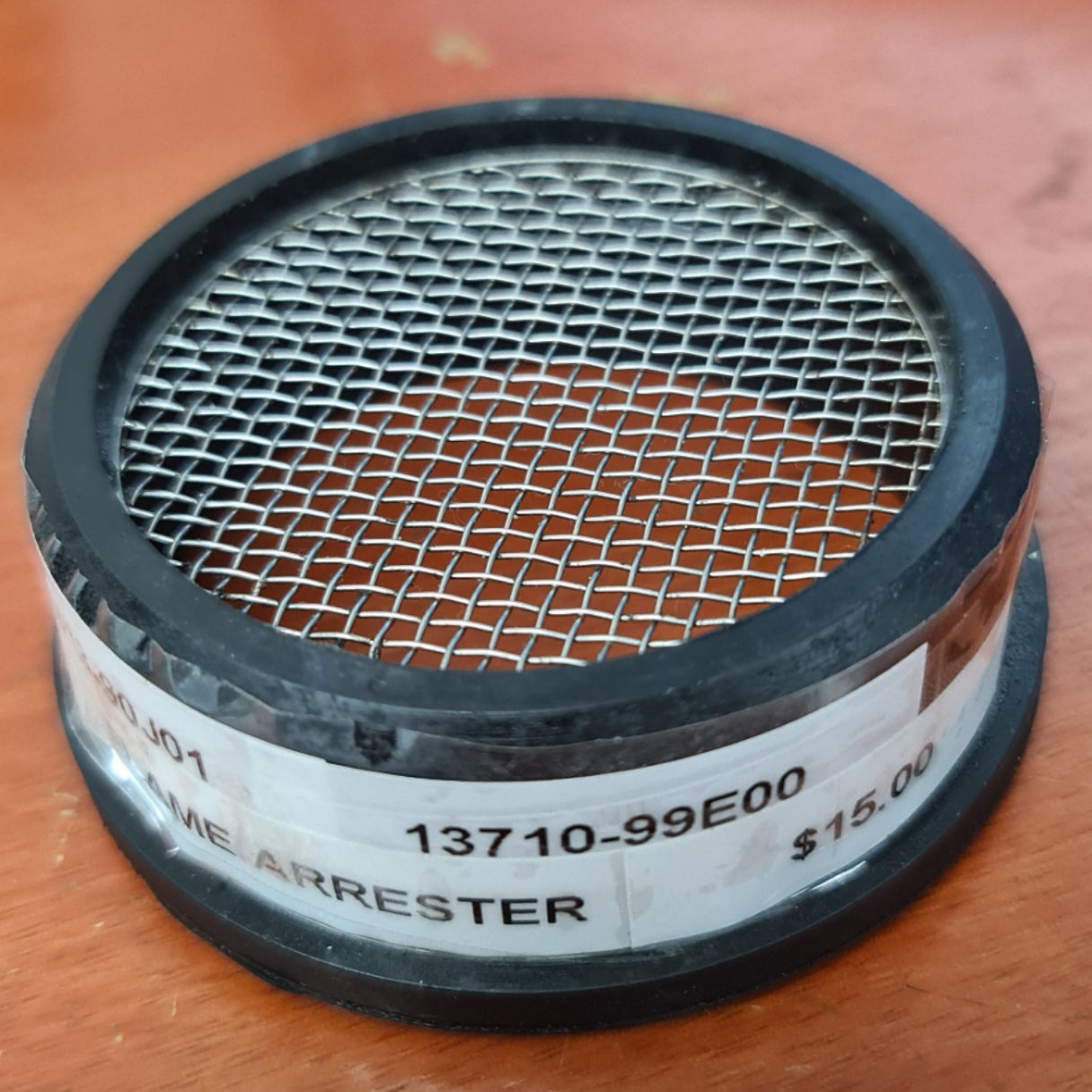

Genuine Used Suzuki Johnson Flame Arrester and Holder Components - Part Numbers: 13710-99E00 and 13813-90J01

Genuine pre-owned Suzuki-manufactured intake components for selected Suzuki and Johnson four-stroke outboards.

Catalogue correction: the two numbers in the listing title identify two separate components:

• 13710-99E00 - Flame arrester
• 13813-90J01 - Flame-arrester holder

The flame arrester fits at the air-silencer intake and is retained by the matching holder. Confirm from the product photographs whether the listing includes the arrester, the holder or both parts.

⚙️ Key Features

• Genuine Suzuki-manufactured used intake components
• Flame arrester number 13710-99E00
• Holder number 13813-90J01
• Used with air silencer 13810-90J01 / 5033694
• Helps contain an intake backfire
• Maintains correct intake-air passage
• Exact Suzuki-to-Johnson OEM interchange available

🚤 Compatibility

The 13710-99E00 flame arrester is used across numerous Suzuki four-stroke silencer assemblies.

The 13813-90J01 holder pairing is commonly associated with selected:

• Suzuki DF90
• Suzuki DF100
• Suzuki DF115
• Suzuki DF140
• Johnson 90HP four-stroke
• Johnson 100HP four-stroke
• Johnson 115HP four-stroke
• Johnson 140HP four-stroke
• Suzuki-manufactured Johnson engine families using silencer 5033694

Important fitment note

• Flame arrester 13710-99E00 also appears on other Suzuki horsepower families with different holders and silencer cases.
• Confirm that holder 13813-90J01 is correct for the intended silencer.
• Later engines can use different holder suffixes while retaining the same flame arrester.

🔌 Function

The flame arrester allows intake air to pass while helping prevent flame from an intake backfire escaping into the engine-cowl area.

The holder

• Retains the flame arrester in the correct position
• Prevents vibration and movement
• Maintains an even seal against the air silencer
• Keeps the intake passage correctly aligned

⚠️ Common Signs of Failure

• Arrester mesh is crushed
• Mesh is coated in oil or debris
• Holder is cracked
• Retaining tabs are broken
• Arrester is loose
• Engine intake noise increases
• Airflow is restricted
• Engine performance drops at higher throttle
• Backfire damages the arrester or holder

🛠️ Service Notes

Recommended checks before installation

• Confirm which of the two components are supplied
• Inspect the arrester mesh against a light source
• Clean only with a compatible non-damaging solvent
• Allow the arrester to dry completely
• Do not enlarge, drill or remove the mesh
• Inspect all holder tabs
• Confirm the assembly locks securely into the silencer
• Replace a crushed or corroded flame arrester
• Check the engine for the cause of any intake backfire

🔄 Supersession & Cross Reference

Flame Arrester Numbers

• Suzuki: 13710-99E00
• Suzuki: 1371099E00
• Johnson / BRP: 5031070
• OEM Description: Arrester, Flame

Flame-Arrester Holder Numbers

• Suzuki: 13813-90J01
• Suzuki: 1381390J01
• Johnson / BRP: 5033695
• OEM Description: Holder, Flame Arrester

Related Numbers

• Suzuki: 13810-90J01 - Air silencer
• Johnson / BRP: 5033694 - Air-silencer assembly
• Suzuki: 13840-90J00 - Silencer duct
• Johnson / BRP: 5033696 - Silencer duct
• Suzuki: 13851-90J00 - Silencer grommet
• Johnson / BRP: 5033697 - Silencer grommet

Aftermarket / Verified Equivalents

• No aftermarket equivalent

Other-Brand Equivalents

• Johnson / BRP 5031070 - Exact OEM equivalent to Suzuki 13710-99E00
• Johnson / BRP 5033695 - Exact OEM equivalent to Suzuki 13813-90J01

Important component note

• The holder is not the flame arrester.
• The flame arrester should not be operated loose inside the silencer.
• Confirm which components are physically included before listing or installation.

📦 Condition

• Genuine Suzuki or Johnson used component
• Pre-owned flame-arrester and/or holder component as shown
• Cosmetic marks and intake residue may be present
• Mesh condition and retaining tabs must be inspected before installation
• No claim is made that the component has been cleaned or flow-tested
• Supplied components are limited to those shown or described
• Supplied in protective or equivalent packaging
