13889 Faria/Honda Trim Gauge | Genuine Used Part

🔧 Product Description

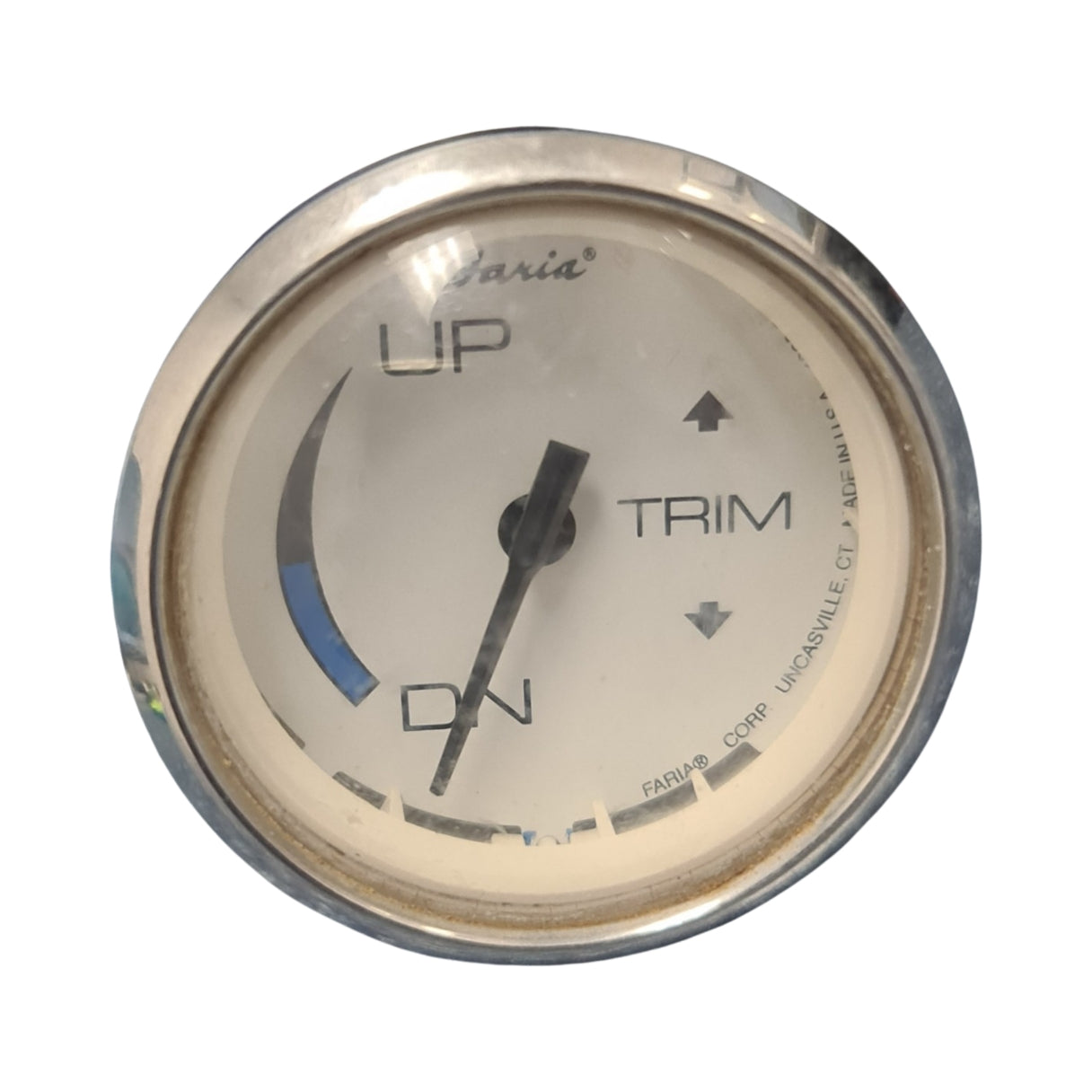

Genuine Faria Chesapeake White SS Honda Trim Gauge - Catalogue Number: 13889

A genuine Faria Beede 2-inch trim-position gauge calibrated specifically for Honda outboards.

The gauge displays the position of the outboard between Down and Up using the signal from a compatible Honda trim sender. It is not interchangeable with Faria 13809, which is calibrated for Johnson, Evinrude and Suzuki sender systems.

⚙️ Key Features

• Genuine Faria Beede Honda trim gauge
• Faria catalogue number 13889
• Faria factory number GP7440
• Specifically calibrated for Honda outboards
• Chesapeake White SS face with polished stainless bezel

🚤 Compatibility

Commonly used on

• Honda outboards equipped with analogue power-trim senders
• Honda remote-control installations with a separate trim gauge
• Dashboards using a 2-inch Chesapeake White SS instrument

Typically suits

• Honda BF40 through BF250 model families where an analogue Honda trim-sender signal is provided
• Carburetted and PGM-FI Honda four-stroke outboards with compatible trim wiring
• Gauge Type: Analogue trim-position indicator
• Nominal Size: 2 inches
• Mounting Hole: Approximately 53 mm
• Electrical System: 12 VDC negative ground
• Sender Type: Honda outboard trim-sender calibration

🔌 Function

The gauge converts the variable resistance of the Honda trim sender into a visual indication of engine angle.

⚠️ Common Signs of Failure

• Gauge remains at Up or Down
• Needle responds in the wrong direction
• Reading is erratic while trimming
• Sender arm or sender wiring is damaged
• Gauge is connected to an incompatible sender curve
• Lens fogs or perimeter lighting fails

🔄 Supersession & Cross Reference

OEM Supersession Chain

• 13889 is the Faria catalogue number
• GP7440 is the corresponding Faria factory number
• No Honda OEM supersession applies because this is a Faria instrument

OEM / Related Numbers

• Faria: 13889
• Faria factory: GP7440
• Related Honda outboard trim sender
• Related sender signal, ignition and ground wiring
• Related Faria 22002 GBC112 Honda Packard trim gauge

Aftermarket / Verified Equivalents

• Faria 13889 / GP7440 is the verified direct replacement
• Faria 22002 / GBC112 Honda Packard trim gauge - later functional alternative where the connector matches
• Other Faria, Sierra and Teleflex Honda-compatible trim gauges are functional alternatives
• Johnson / Evinrude / Suzuki, Mercury and Volvo trim gauges are not equivalent

📦 Condition

• Genuine used part
• Removed from a running boat where applicable
• In good working condition unless otherwise stated
