1395-6452 Aftermarket Mercruiser Carburettor Service Kit 135/225HP 2.4L | Sawley's Select Marine Parts

🔧 Product Description

Aftermarket replacement WH-Series Carburettor Gasket Kit - Replaces Part Number: 1395-6452

New aftermarket gasket kit replacing Mercury 1395-6452 for WH-series V6 carburettors. It covers numerous 2.0L and 2.4L carburetted V6 configurations and is sold as one kit per carburettor.

⚙️ Key Features

• Direct replacement for Mercury 1395-6452 and 1395-6026

• Services WH-series V6 carburettors

• Suitable for selected 2.0L and 2.4L Mercury/Mariner V6 engines

• Fuel-resistant gasket and seal materials

• One kit required per carburettor

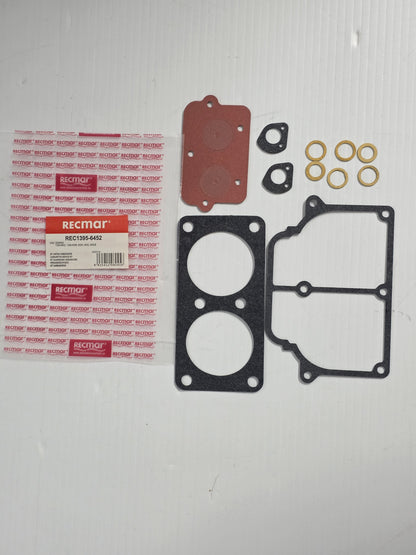

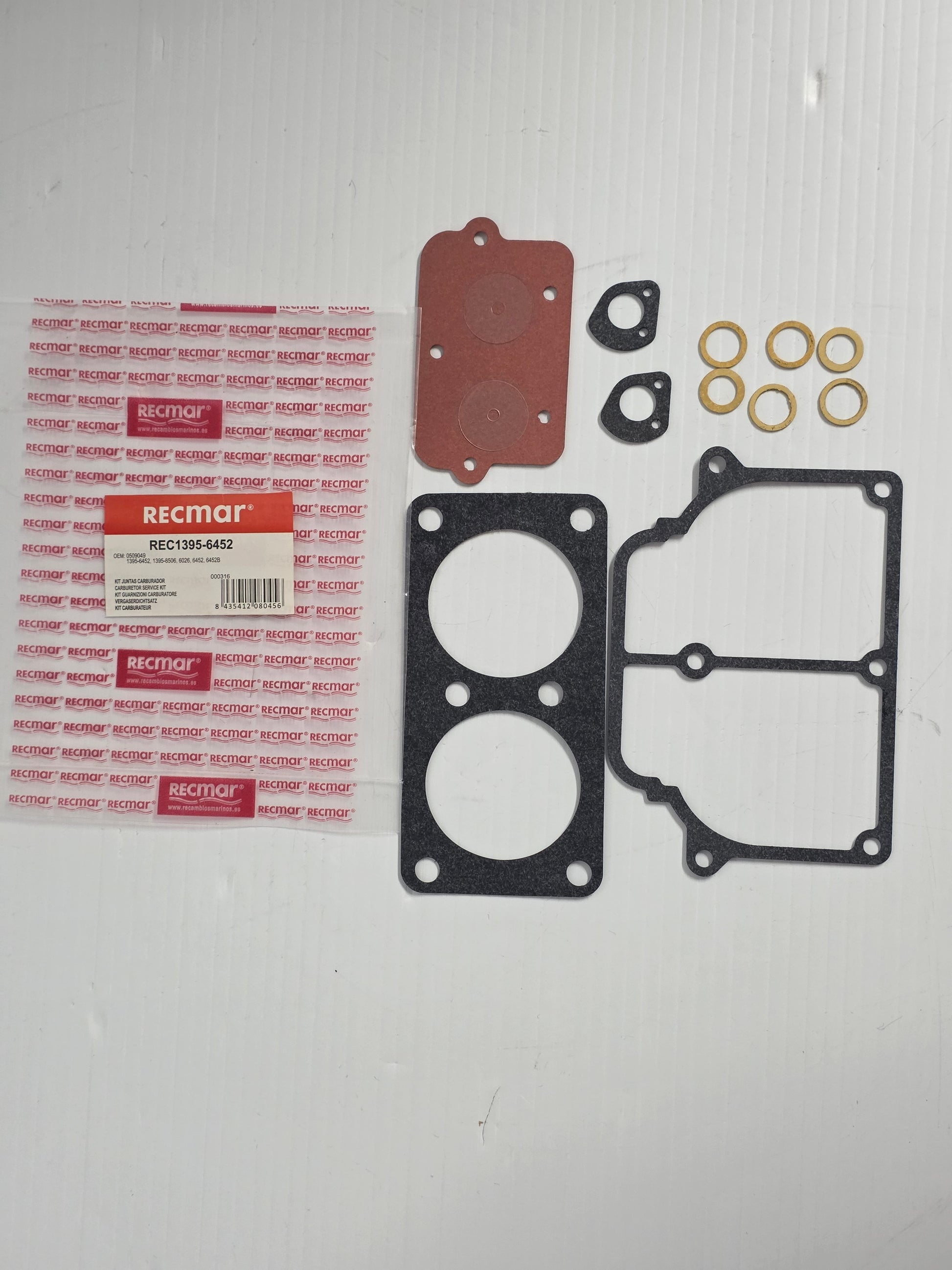

🧰 Kit Contents

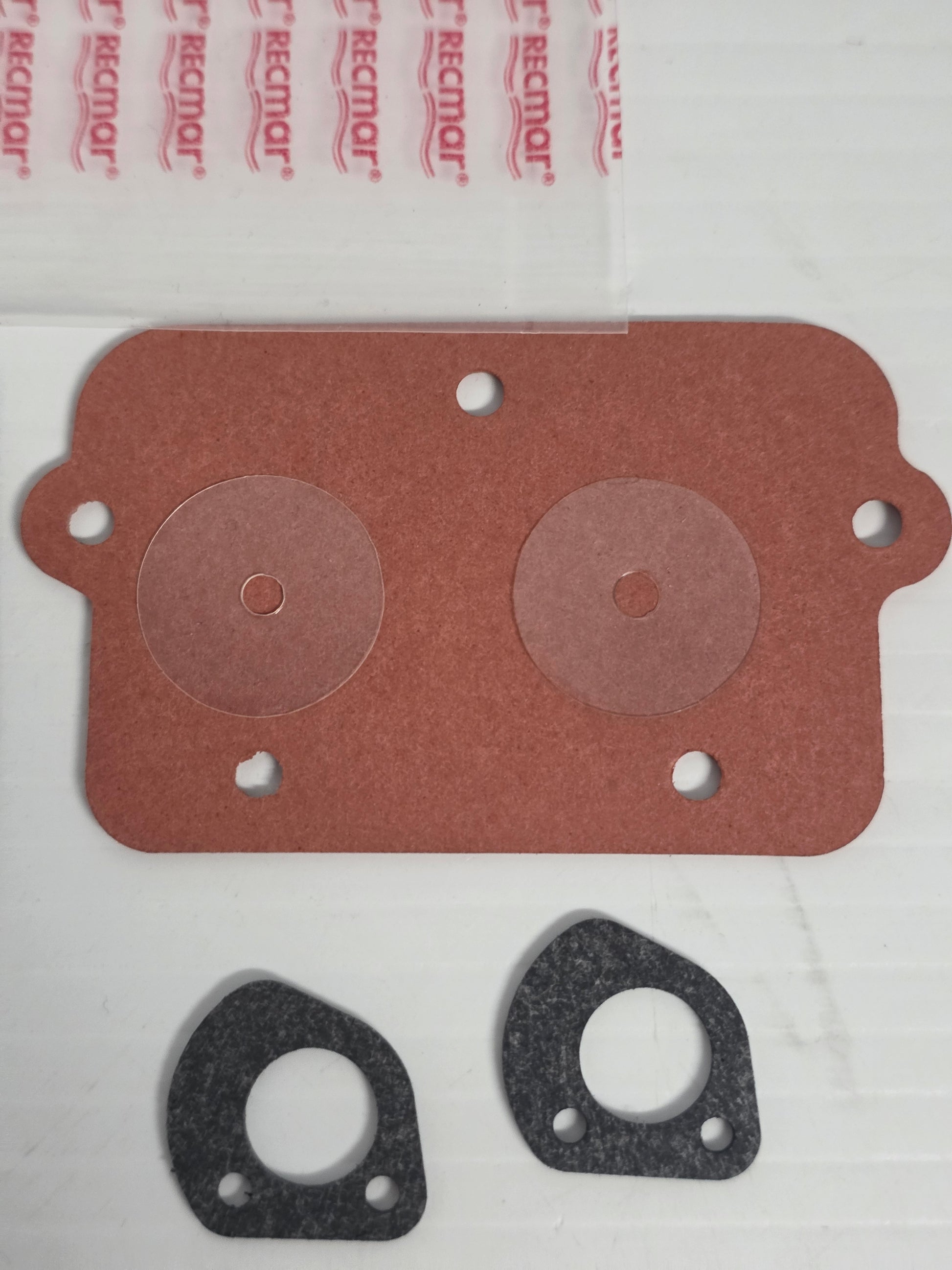

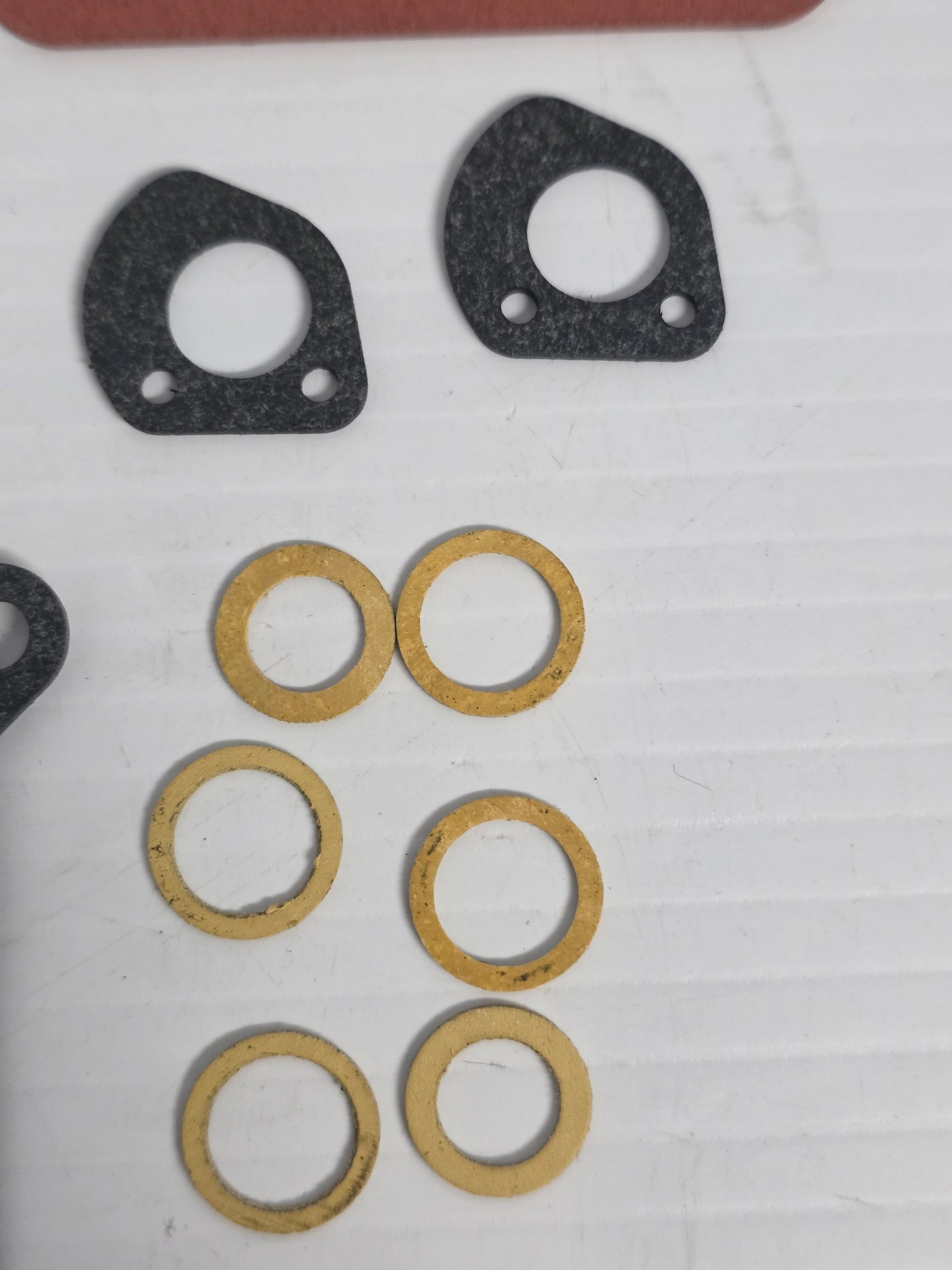

• WH-series carburettor gasket and seal set - Sierra P/N 18-7005 / GLM P/N 40420

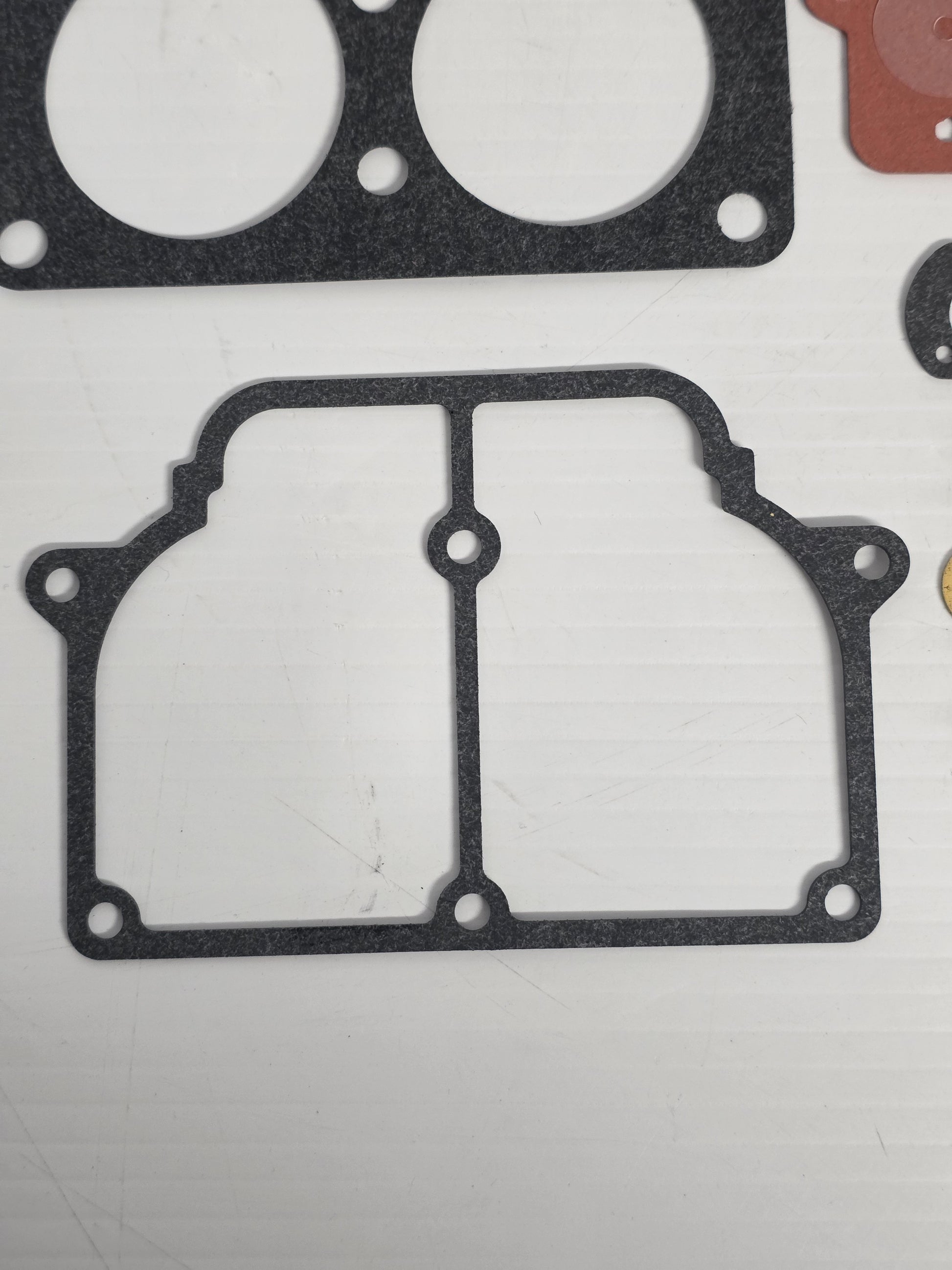

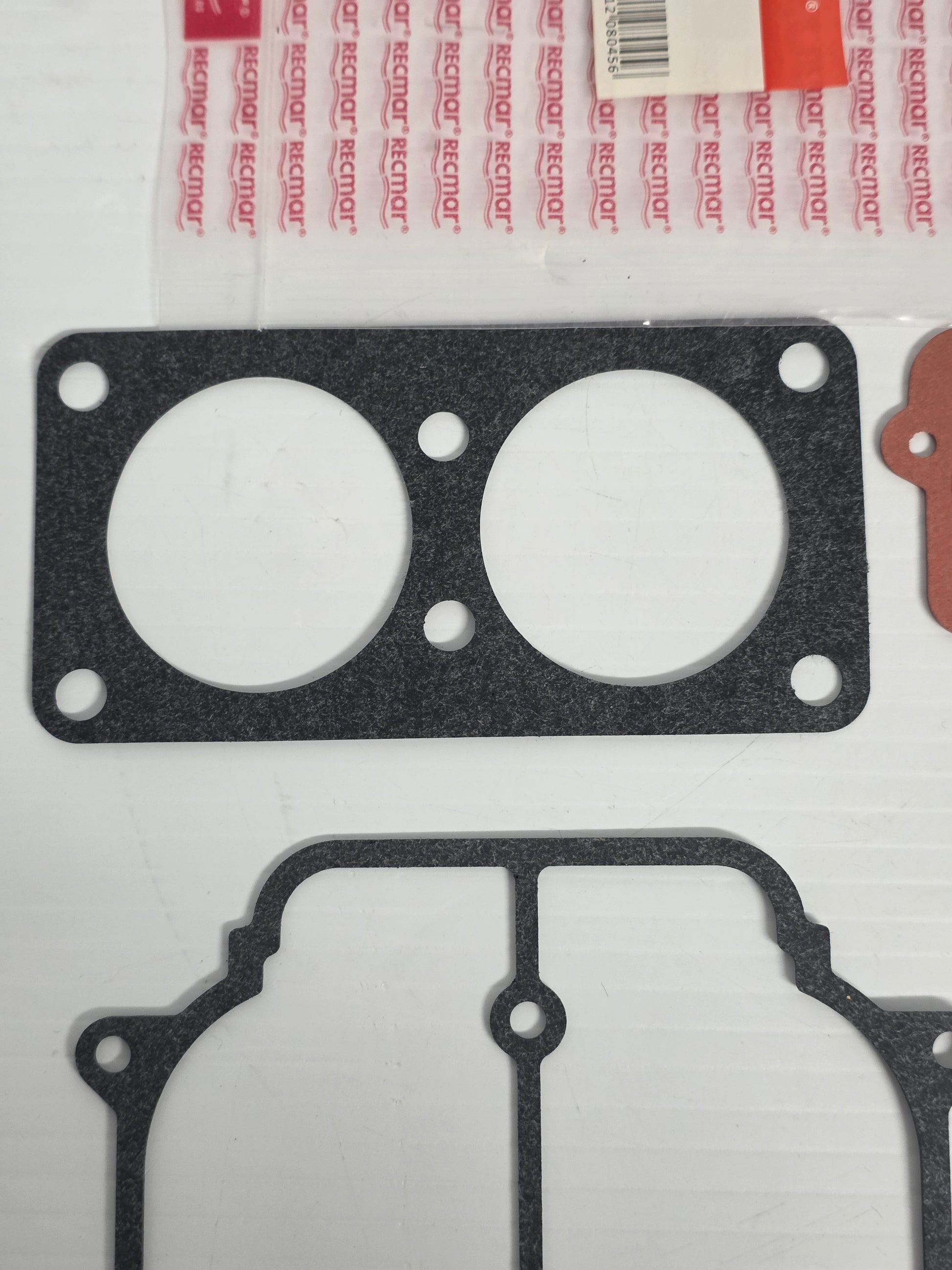

• Bowl, body and mounting gaskets - supplied under kit P/N 1395-6452

🔄 Supersession & Cross Reference

OEM Supersession Chain:

• 1395-6452 → Supersedes/cross-references 1395-6026

• 1395-6026 (earlier OEM reference)

OEM / Related Numbers:

• 1395-6026

• 1395-6452B

• 5262

Aftermarket / Verified Equivalents:

• Sierra: 18-7005

• GLM: 40420

• Mallory: 9-37300

🚤 Compatibility

Commonly used on:

• Mercury/Mariner carburetted V6 two-stroke outboards

Typically suits:

• Engine models:

• V135 (1986-1990)

• V150 (1979-1991)

• V150 XR4/MAG II (1988-1989)

• V175 (1976-1990)

• V200 (1980-1982)

• V225 (1980-1981)

• V225 2.4L (1981 onward where WH carburettors are fitted)

• XR4 (1988-1990)

• HP Range: 135HP - 225HP

• Engine Type: Carburetted 2.0L/2.4L V6 two-stroke outboard

• Year Range: Approximately 1976 - 1991

• Serial / Carburettor Identification: Confirmed WH carburettor families include WH-1, 3A, 4, 5, 7, 7A, 9, 11, 12, 13, 15, 17, 17R, 20, 22, 26, 28-35, 38-41A, 46 and 48.

🔌 Function

The kit renews the wear and sealing components used to control fuel level, meter fuel through the carburettor and prevent air or fuel leaks after the carburettor is dismantled for cleaning.

Common signs of failure:

• Hard starting or the need for excessive choke

• Unstable, hanging or excessively low idle

• Fuel leaking, flooding or fuel smell around the carburettor

• Hesitation, flat spot or stalling during acceleration

• Uneven cylinder fuelling, poor power or excessive fuel consumption

📦 Condition

• New aftermarket replacement part

• Brand new

• Supplied in original or equivalent packaging
