14024233 Plug | Genuine Volvo Penta Part

🔧 Product Description

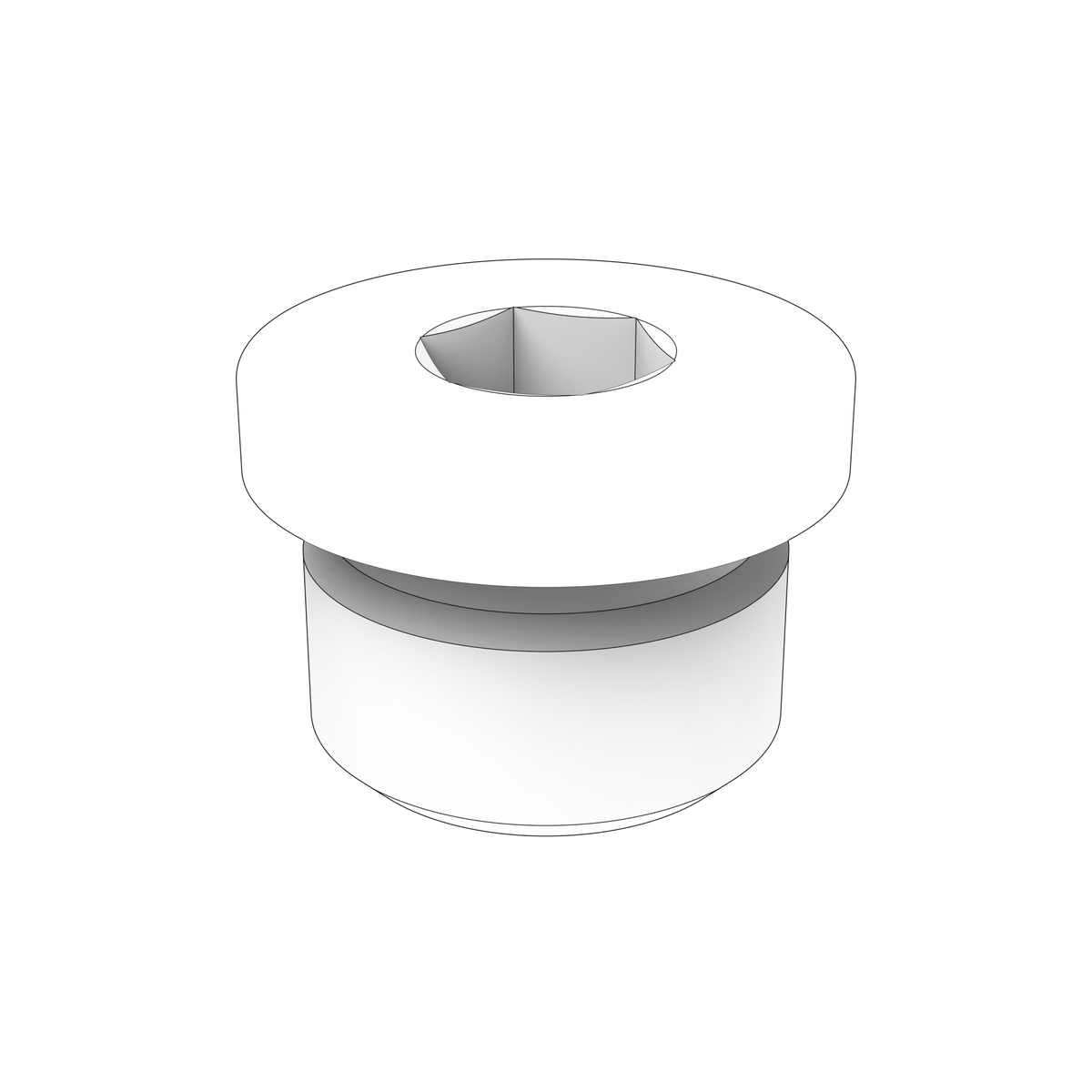

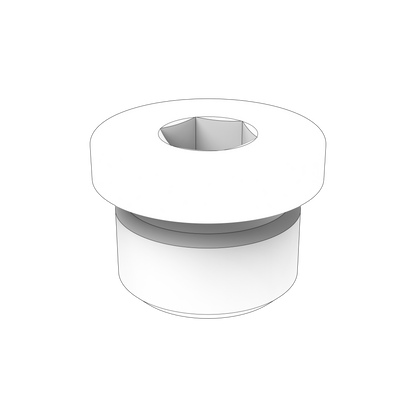

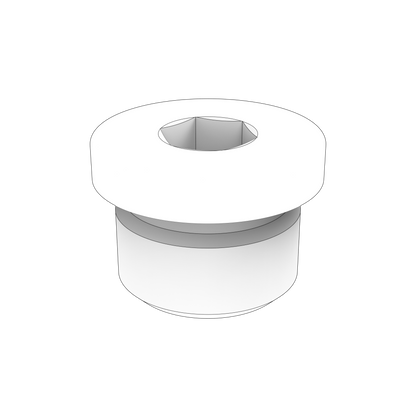

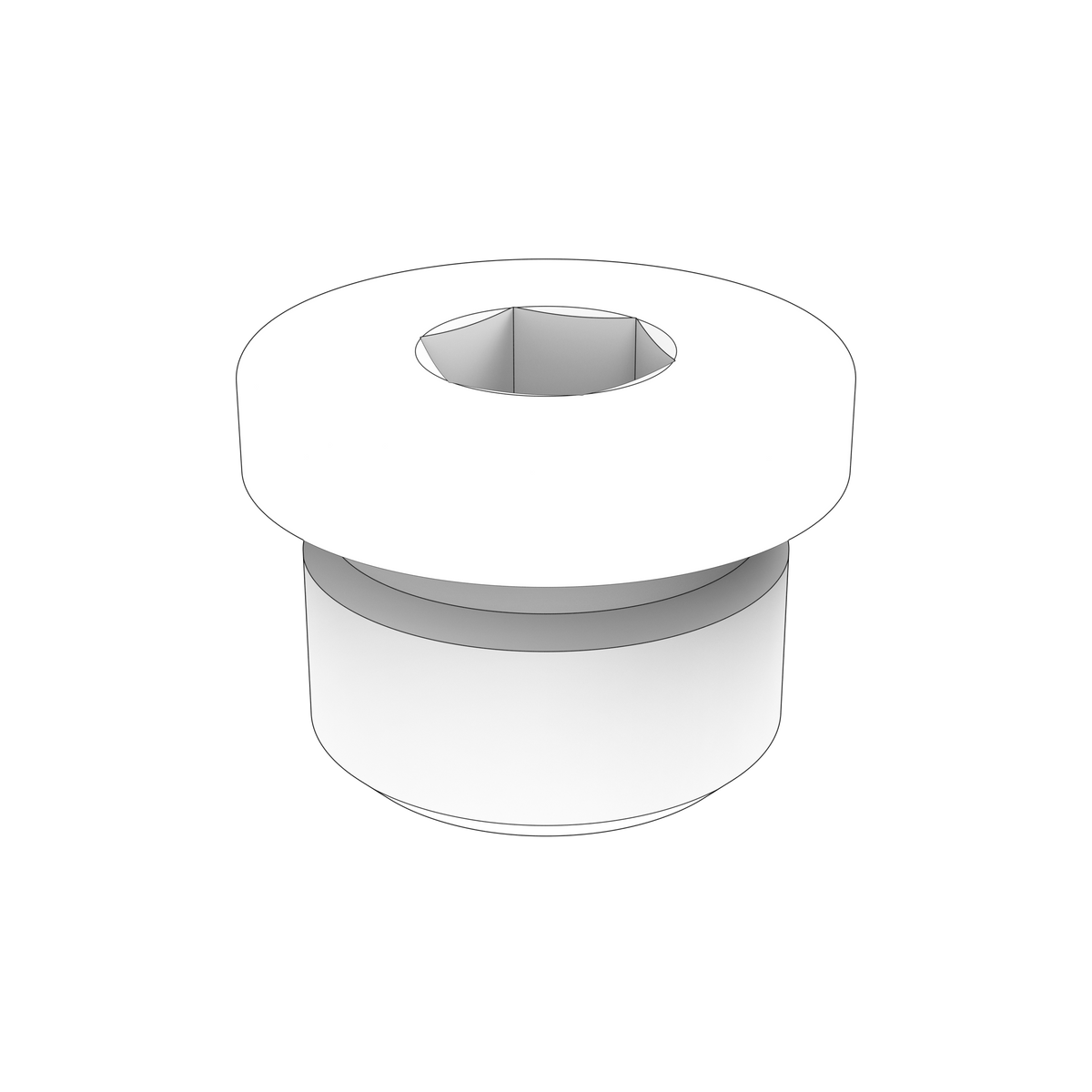

Genuine Volvo Penta plug (part number 14024233), a sealing and closure component used on D6 series marine diesel engines and IPS10 drive installations. It closes off a machined port or passage so the surrounding circuit stays sealed and pressure-tight during operation. Supplied as an individual item with a net weight of approximately 0.052 kg.

🚤 Compatibility

Typically suits:

• Volvo Penta D6-300D-G
• Volvo Penta D6-340D-G
• Volvo Penta D6-380D-G
• Volvo Penta D6-440D-G
• Volvo Penta D6-480D-G
• Volvo Penta IPS10-A
• Volvo Penta IPS10-B

• Engine Family: D, IPS
• HP Range: 300-480 HP

⚙️ Key Features

• OEM Volvo Penta part number 14024233
• Net weight 0.052 kg
• Fits D6 series marine diesel engines and IPS10 drive applications
• Supplied as a single individual plug
• Genuine Volvo Penta replacement component
• System type: Engine or transmission oil-filter housing gallery closure

🔌 Function

The plug seals a machined port or passage so that fluid, pressure or contaminants cannot pass through an opening that is not in service. It also provides a removable access point for servicing, draining or inspection of the circuit it closes.

⚠️ Common Signs of Failure

• Seepage, weeping or visible fluid residue around the plug seat
• Corrosion or pitting on the plug body preventing a clean seal
• Damaged, stripped or galled threads that will not torque up correctly
• Loss of system pressure or repeated top-ups of the affected fluid
• Plug loosening in service due to a deformed or worn sealing face

🛠️ Service Notes

• Clean the threads and the seating face before fitting, and make sure the opening itself is clear of old sealant, swarf and corrosion
• Renew the sealing washer or O-ring where one is fitted rather than reusing a flattened one, and only use thread sealant where the workshop manual for your engine calls for it
• Tighten to the figure given in the workshop manual for your engine — plugs in aluminium and other soft castings strip easily, and a plug pulled up hard to cure a leak usually distorts the seat and makes it worse
• Where the plug closes an oil, fuel or coolant passage, run the engine up to temperature afterwards and check the joint under pressure before signing the job off
• Keep removed plugs paired with the holes they came out of during a strip-down — plugs of very similar appearance often differ in thread, reach or sealing type

🔄 Supersession & Cross Reference

OEM / Related Numbers

• 23811960 oil-filter housing
• 23182441 nipple
• 22863663 oil filter
• 23935461 related later oil filter
• 23266815 valve kit
• 17202573 pressure sensor
• 22992495 related sensor
• 955989 sealing O-ring

📦 Condition

• Genuine Volvo Penta part
• Brand new
• Supplied in original or equivalent packaging
