14141-88L10 32120-88L00 Suzuki DF60A Stator | Genuine Used Part

🔧 Product Description

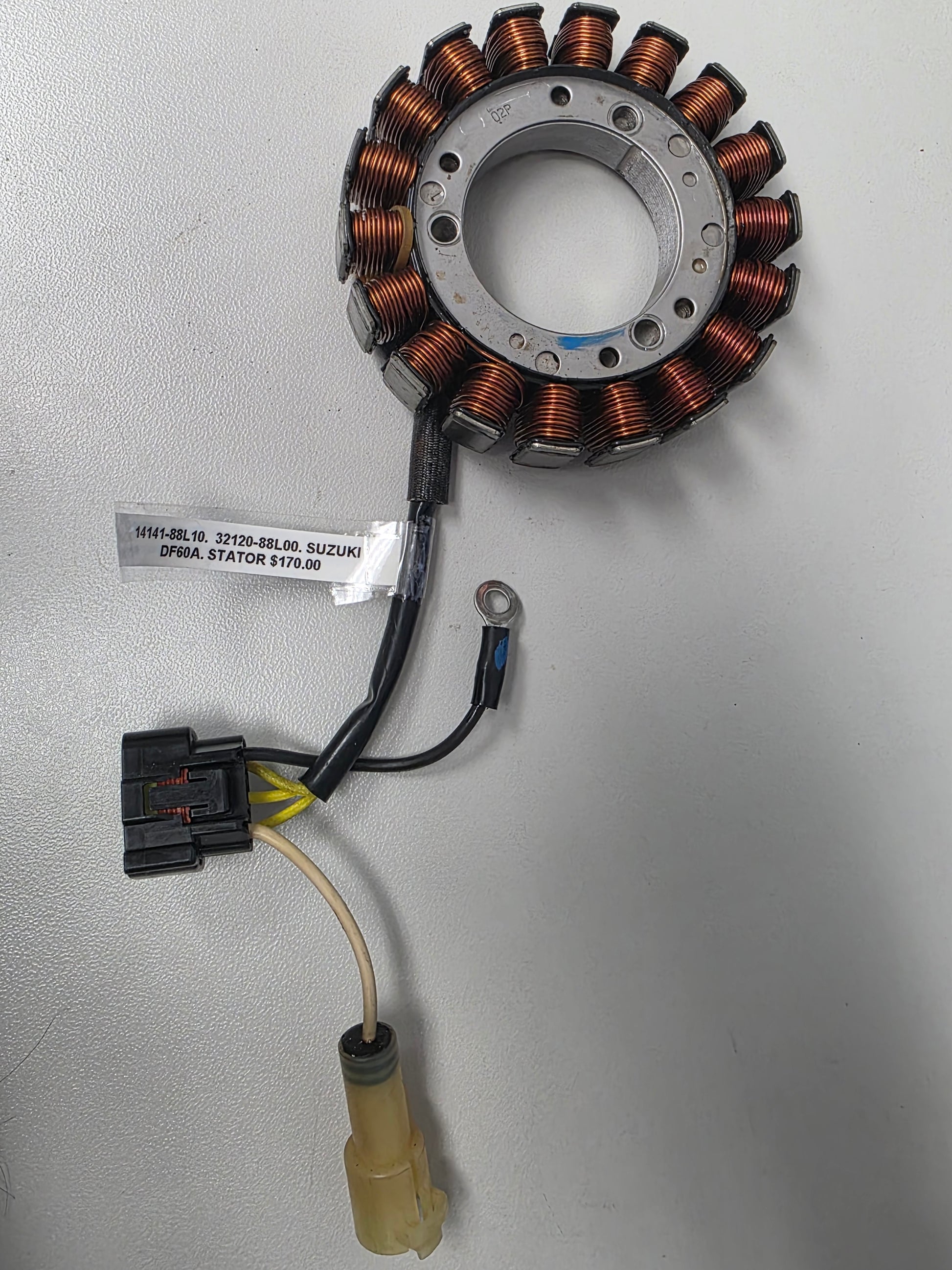

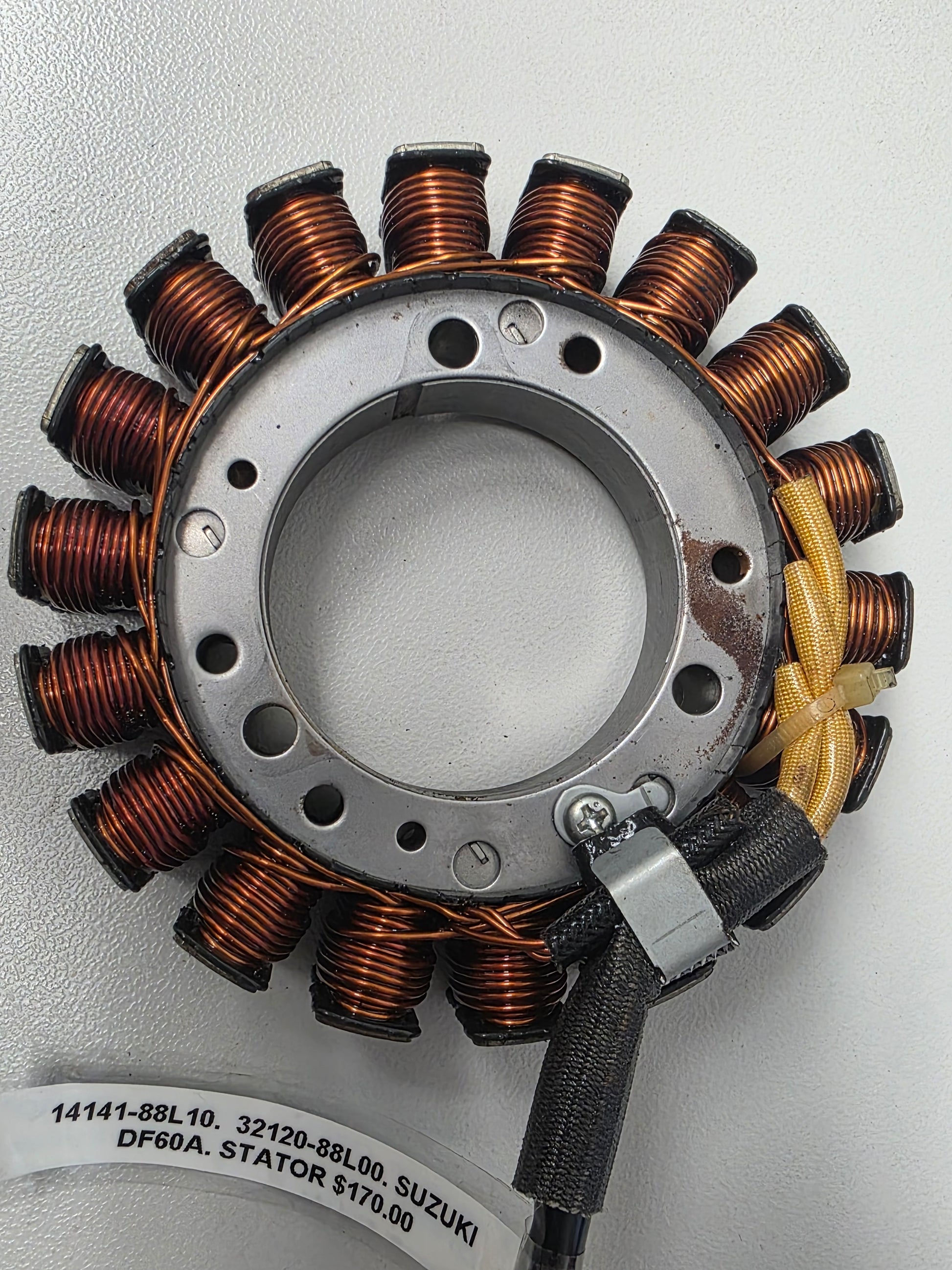

Genuine Suzuki Charging Coil / Stator Assembly - Part Number: 32120-88L00

A genuine Suzuki stator assembly used on Suzuki DF40A, DF50A and DF60A four-stroke EFI outboards. This charging coil assembly mounts under the flywheel and supplies charging-system output for the engine electrical system.

⚙️ Key Features

• Genuine Suzuki stator / charging coil assembly

• Correct primary OEM reference 32120-88L00

• Related associated component reference 14141-88L10

• Used on DF40A, DF50A and DF60A EFI four-stroke engines

• Direct replacement charging-system component where specified

🔄 Supersession & Cross Reference

OEM Supersession Chain:

• 32120-88L00 current / primary Suzuki charging coil reference

• 14141-88L10 associated Suzuki component reference from the listed assembly group

OEM / Related Numbers:

• 32120-88L00

• 3212088L00

• 32120-88L00-000

• 14141-88L10

• 1414188L10

Aftermarket / Verified Equivalents:

• Aftermarket reference: 32120-88L00

• Aftermarket DF40A / DF50A / DF60A charging coil replacement

🚤 Compatibility

Commonly used on:

• Suzuki DF40A / DF50A / DF60A four-stroke EFI outboards

• Suzuki small-block four-stroke charging systems using the 88L stator family

Typically suits:

• Engine models:

• Suzuki DF40A EFI four-stroke charging coil applications

• Suzuki DF40AQH / DF40ATL / DF40ATHL applications where 32120-88L00 is specified

• Suzuki DF50A EFI four-stroke charging coil applications

• Suzuki DF50AV EFI four-stroke charging coil applications

• Suzuki DF50ATL / DF50ATHL applications where 32120-88L00 is specified

• Suzuki DF60A EFI four-stroke charging coil applications

• Suzuki DF60AV EFI four-stroke charging coil applications

• Suzuki DF60ATL / DF60ATHL / DF60AQHL applications where 32120-88L00 is specified

• HP Range: 40HP - 60HP

• Engine Type: Suzuki inline 3-cylinder four-stroke EFI outboard

• Year Range: approximately 2010 onward depending on model and serial range

• Serial / Model Range: DF60A 06002F-010001 and later / 06002F-210001 and later families where the generator diagram specifies 32120-88L00

🔌 Function

The stator generates charging current beneath the flywheel and supplies electrical output to the rectifier / regulator so the battery and engine electrical systems remain charged during operation.

Common signs of failure:

• Battery not charging

• Low charging voltage at idle or cruise

• Electrical accessories draining the battery while running

• Warning lights or charging faults

• Hard starting from weak battery recharge

• Burnt winding smell or discoloured stator coils

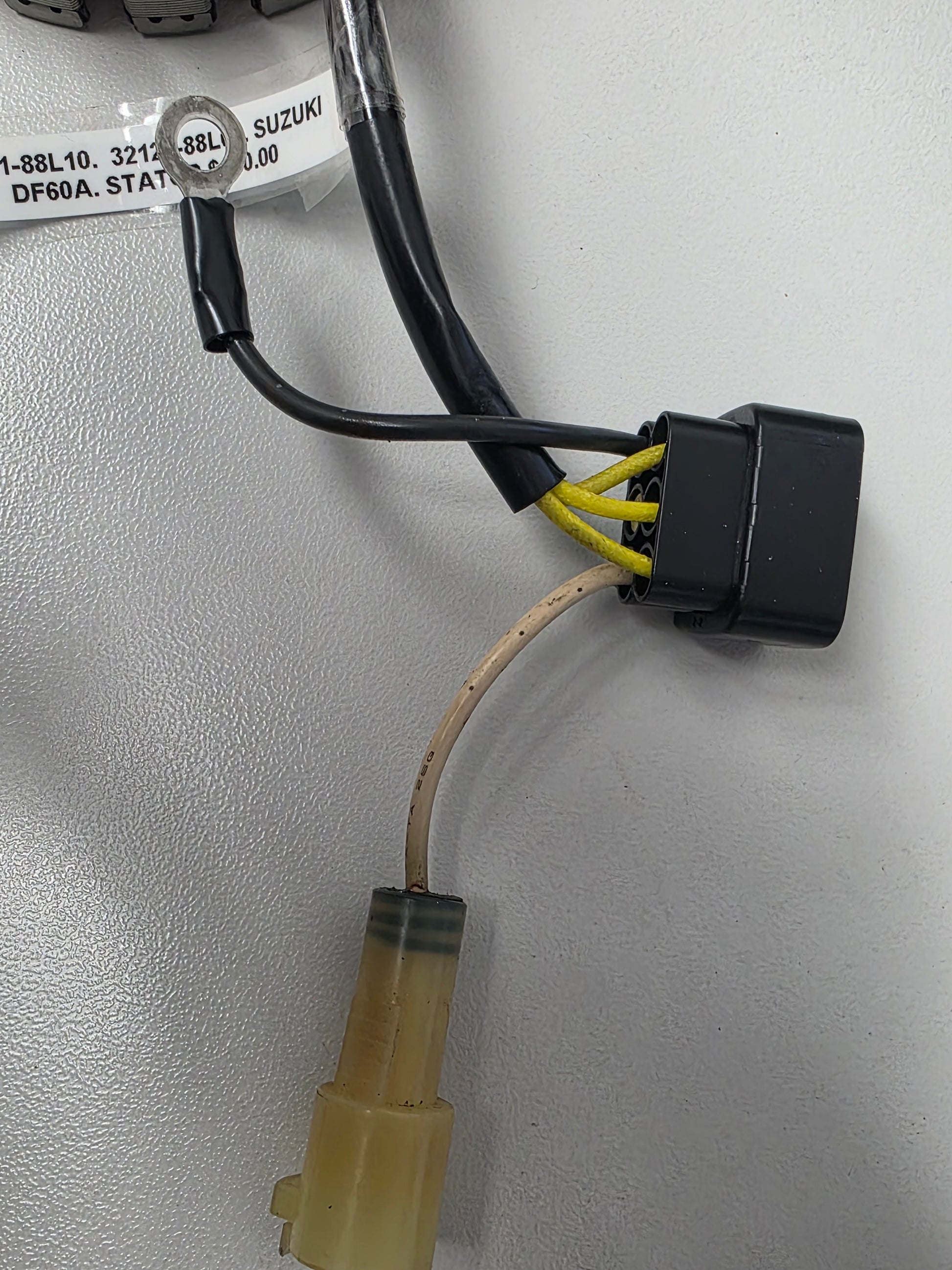

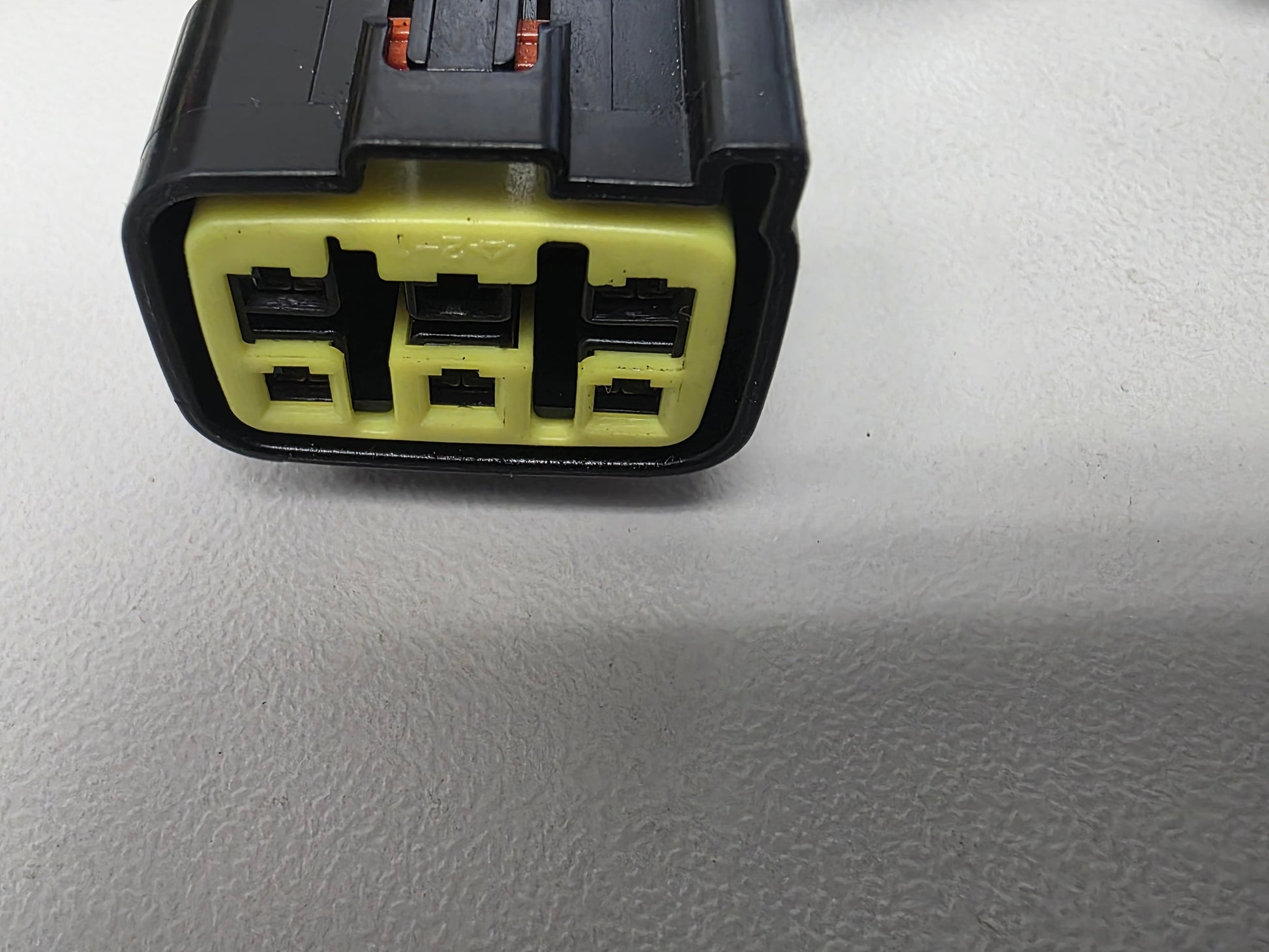

• Damaged wiring, rubbed insulation or corroded connectors

• AC output below specification during testing

📦 Condition

• Genuine used part

• Removed from running engine where applicable

• In good working condition unless otherwise stated
