14261-ZY3-C00 Honda Timing Belt Pulley | Genuine Used Part

🔧 Product Description

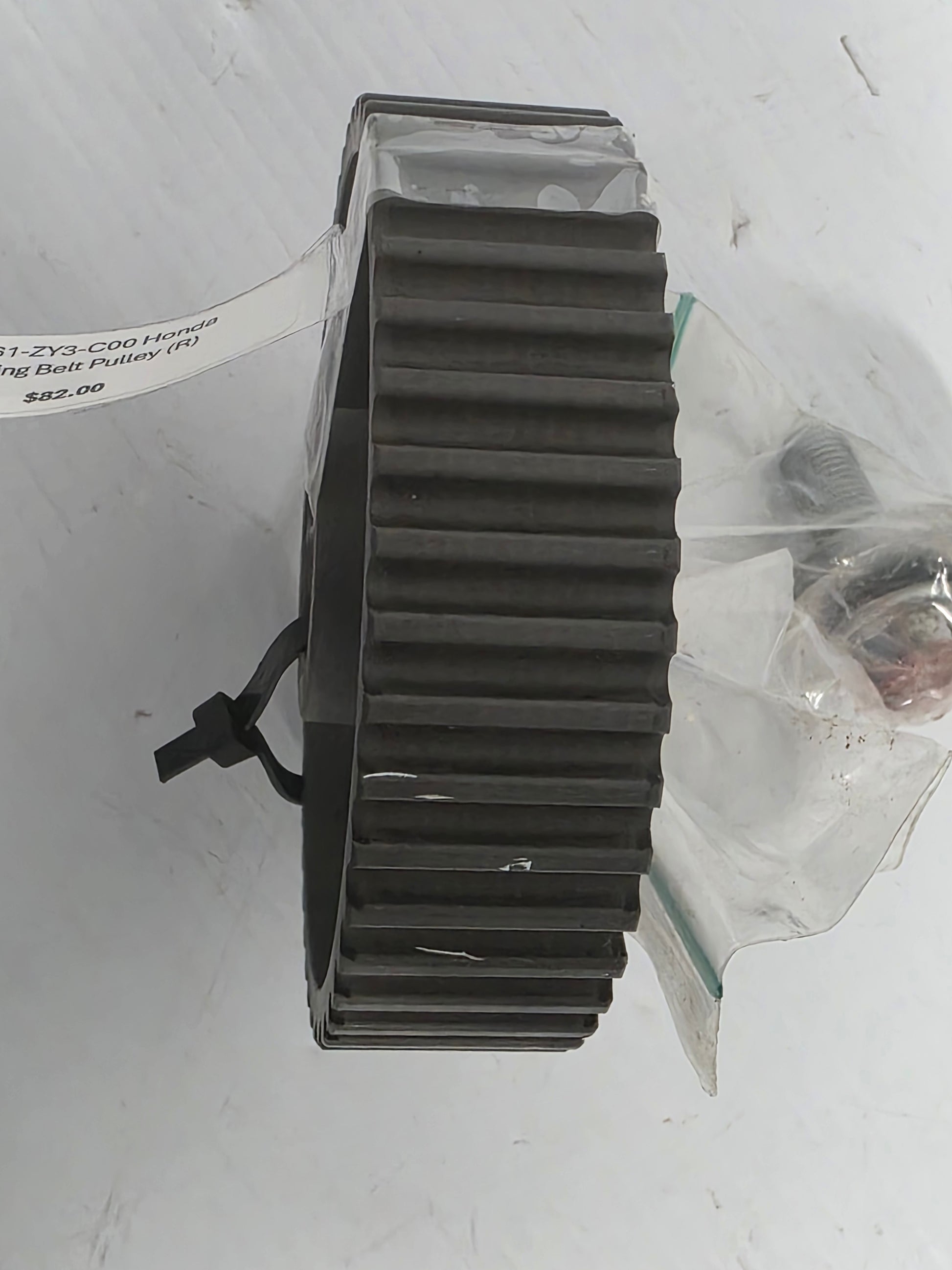

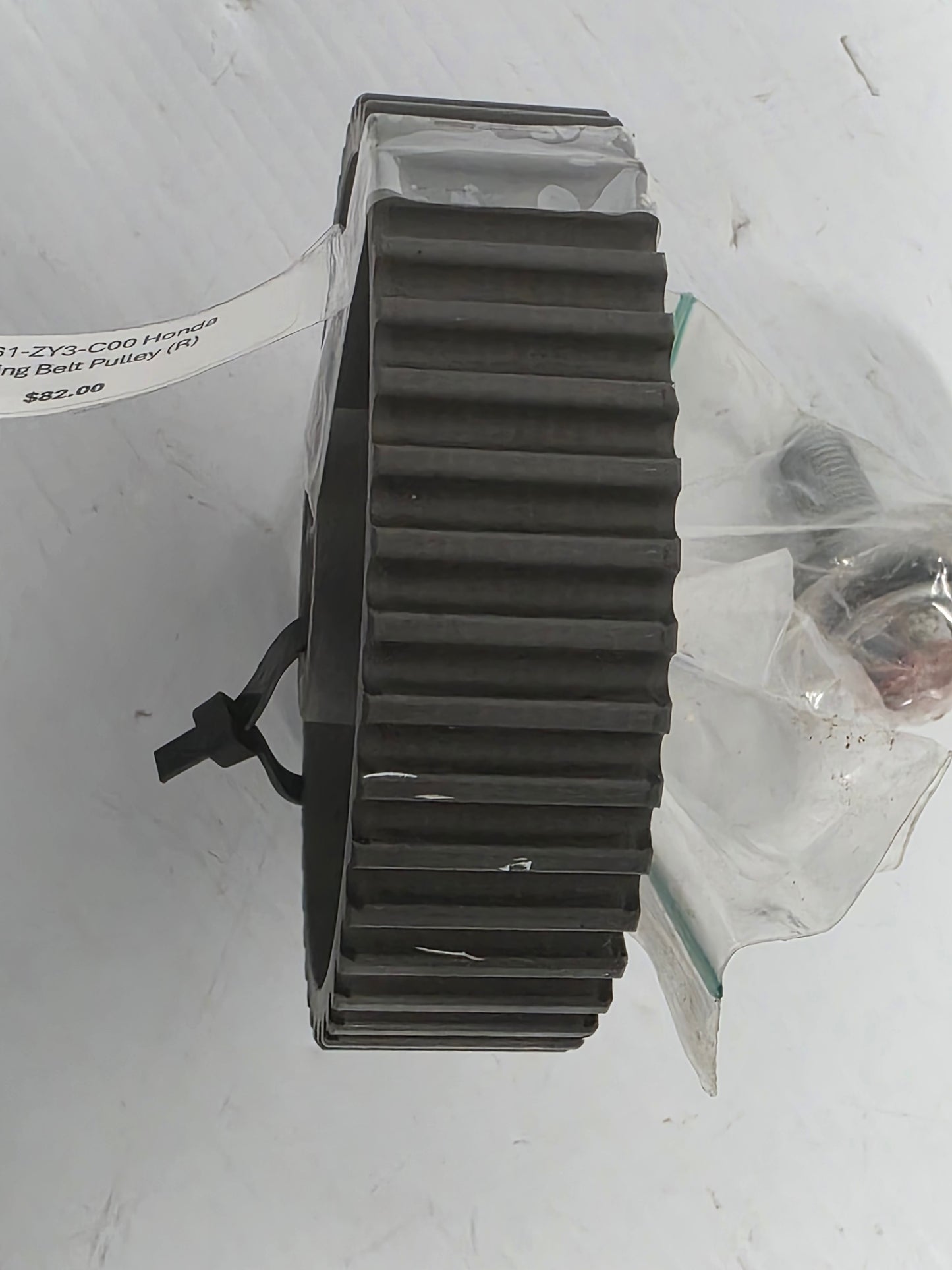

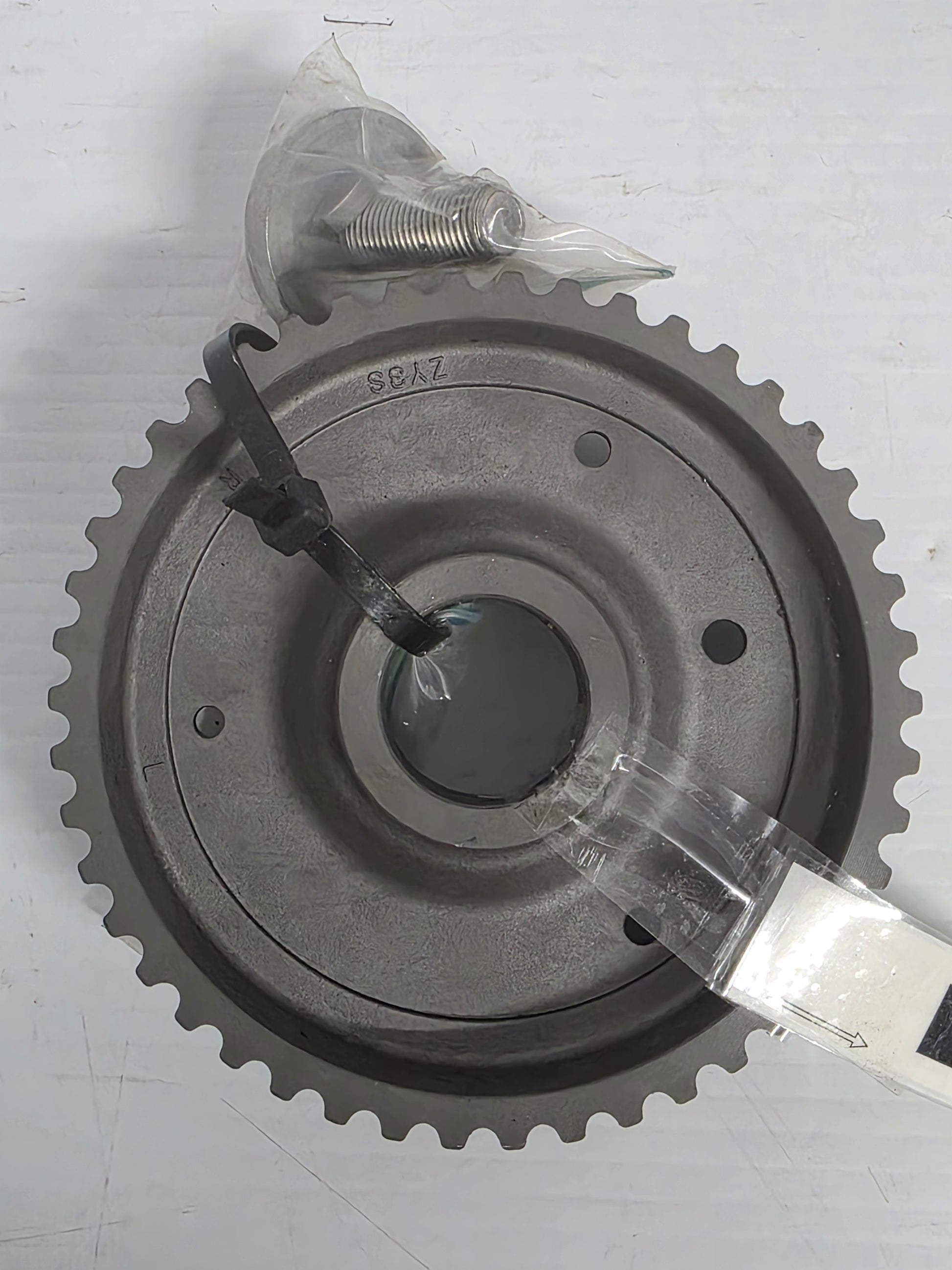

Genuine Used Honda V6 Right Timing Belt Driven Pulley - Part Number: 14261-ZY3-C00

A genuine pre-owned Honda Marine right-bank camshaft timing pulley for selected V6 four-stroke outboards.

Honda identifies 14261-ZY3-C00 as the right timing-belt driven pulley. The pulley is attached to the right-bank camshaft drive and receives motion from the crankshaft-driven timing belt.

⚙️ Key Features

• Genuine Honda Marine used camshaft pulley

• Correct OEM part number 14261-ZY3-C00

• Right-bank timing-belt driven pulley

• Used on selected Honda V6 outboards

• Precision timing marks for camshaft alignment

• Original Honda machined component

🔄 Supersession & Cross Reference

OEM Supersession Chain:

• No verified direct supersession identified

OEM / Related Numbers:

• 14261-ZY3-C00

• 14261ZY3C00

• OEM Description: Pulley, Right Timing Belt Driven

• Left pulley: 14270-ZY3-C00 or generation-specific 14270-ZVL-000

• Drive pulley: 13621-ZY3-C01

• Timing belt varies by engine generation

• Special pulley key: 90741-ZY3-000

Aftermarket / Verified Equivalents:

• No aftermarket equivalent

🚤 Compatibility

Commonly used on selected:

• Honda BF175A

• Honda BF200A

• Honda BF225A

• Honda BF250A

• Selected BF250D or later engines whose diagram retains 14261-ZY3-C00

• Horsepower Range: Approximately 175HP - 250HP

• Engine Configuration: V6 four-stroke

• Position: Right or starboard cylinder-bank camshaft

Important fitment note:

• Confirm the engine generation and right-bank designation.

• Left and right camshaft pulleys are not automatically interchangeable.

• Check the timing marks and key position against the original pulley.

🔌 Function

The pulley transfers timing-belt movement to the right-bank camshaft.

Common signs of wear or damage:

• Damaged belt teeth

• Worn keyway

• Cracked hub

• Corrosion

• Pulley wobble

• Timing mark damage

• Valve timing cannot be aligned

• Belt tracks incorrectly

Recommended checks before installation:

• Inspect every tooth

• Check the keyway and mounting face

• Measure runout

• Inspect the camshaft nose and key

• Replace the timing belt where service history is unknown

• Align both banks to the factory timing marks

📦 Condition

• Genuine Honda Marine used part

• Pre-owned internal engine component

• Oil staining and surface marks may be present

• Inspect the teeth, hub and keyway before installation

• Supplied in protective or equivalent packaging
