1469 Dunbier 13" x 165/70R Radial Tyre and Galvanised Spoke Wheel | Marine Trailer Part
1469 Dunbier 13" x 165/70R Radial Tyre and Galvanised Spoke Wheel | Marine Trailer Part
Couldn't load pickup availability
✓ Authorised Volvo Penta Dealer · Marine & auto specialists · Ships Australia-wide
🔧 Product Description

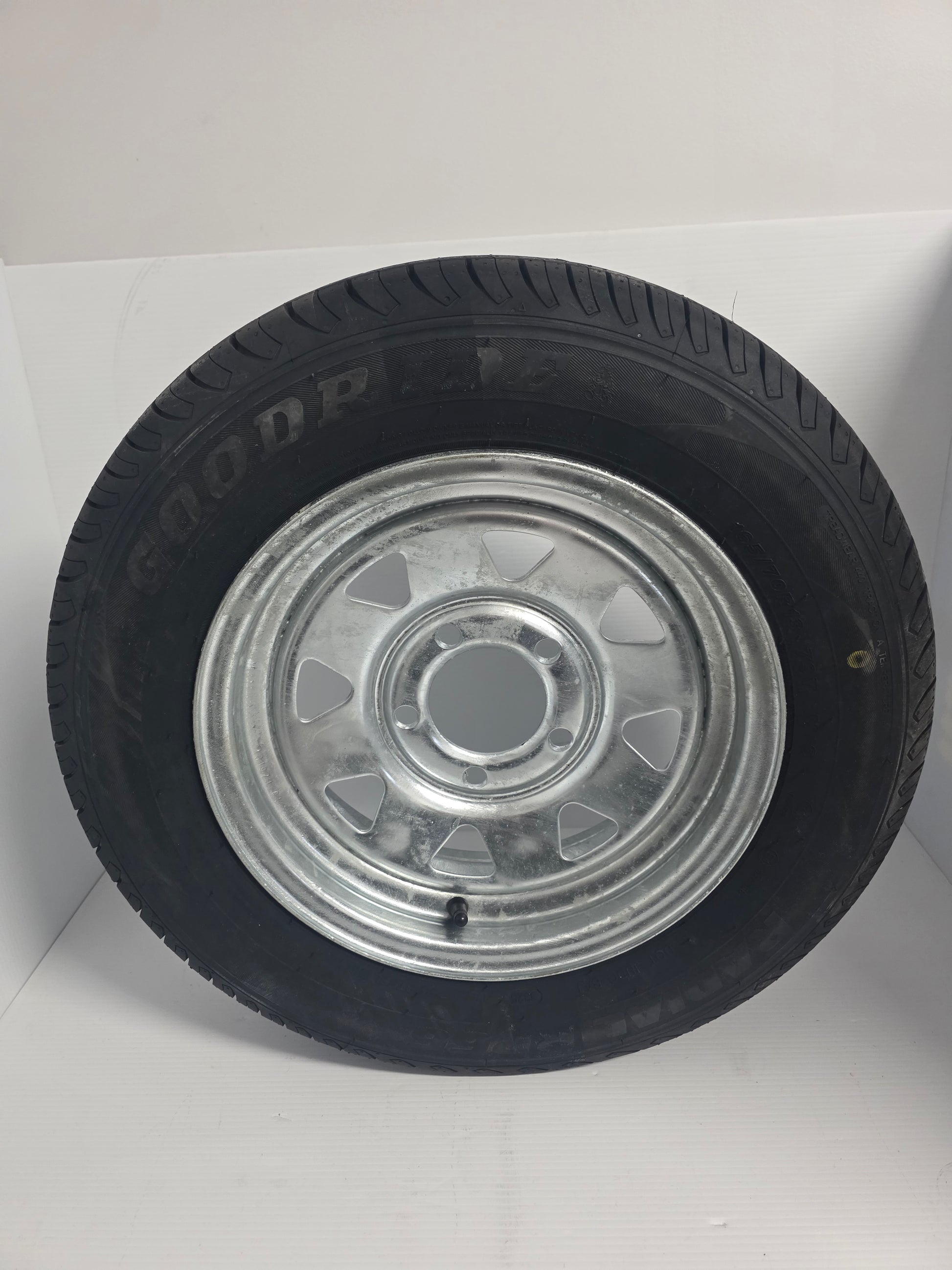

Genuine Dunbier Marine Products Galvanised Ford-Pattern Spoke Wheel and Tyre 13" – 165/70R13 – Part Number: 1469
A complete 13-inch galvanised spoke wheel fitted with a 165/70R13 radial tyre for compatible five-stud Ford-pattern trailer hubs.
⚙️ Key Features
- Complete tyre-and-wheel assembly ready for compatible trailer hubs
- Marine-trailer wheel finish or alloy design as specified
- Commercial/light-truck or trailer radial tyre construction where stated
- Suitable for use as a road wheel or matched spare when specifications agree
- Factory-assembled combination avoids separate tyre fitting before installation
📏 Specifications

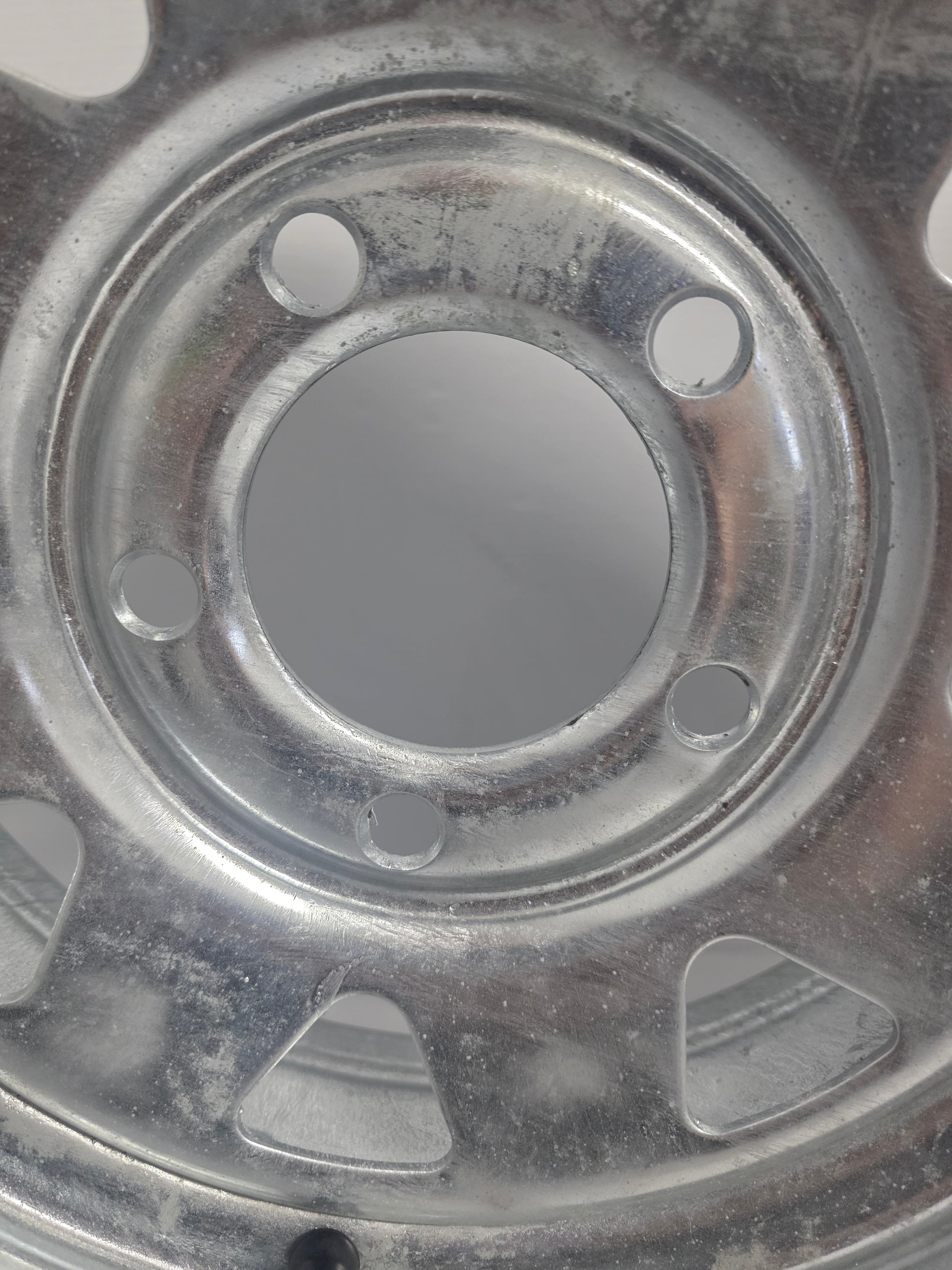

- Rim size: 13" galvanised spoke steel

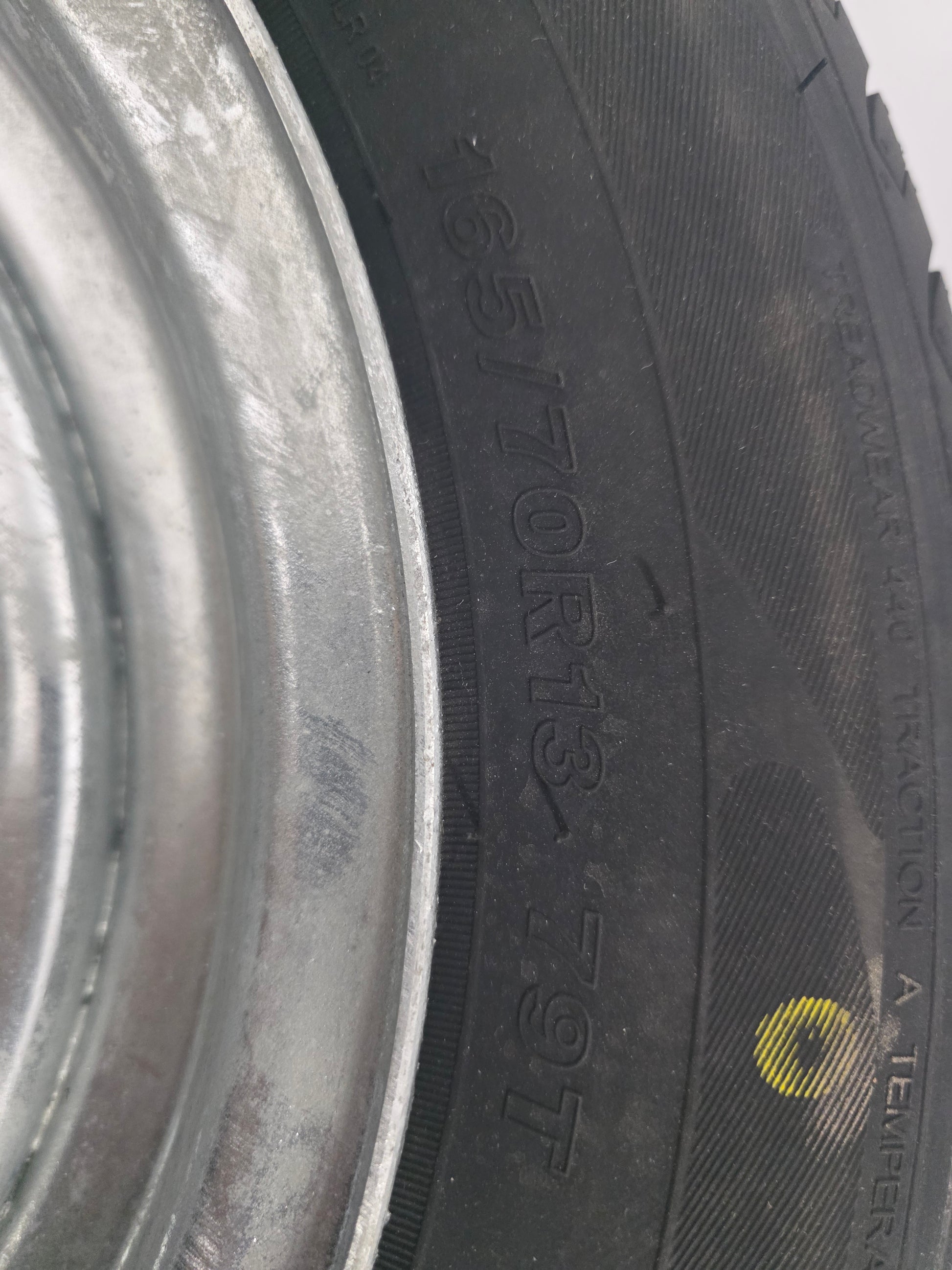

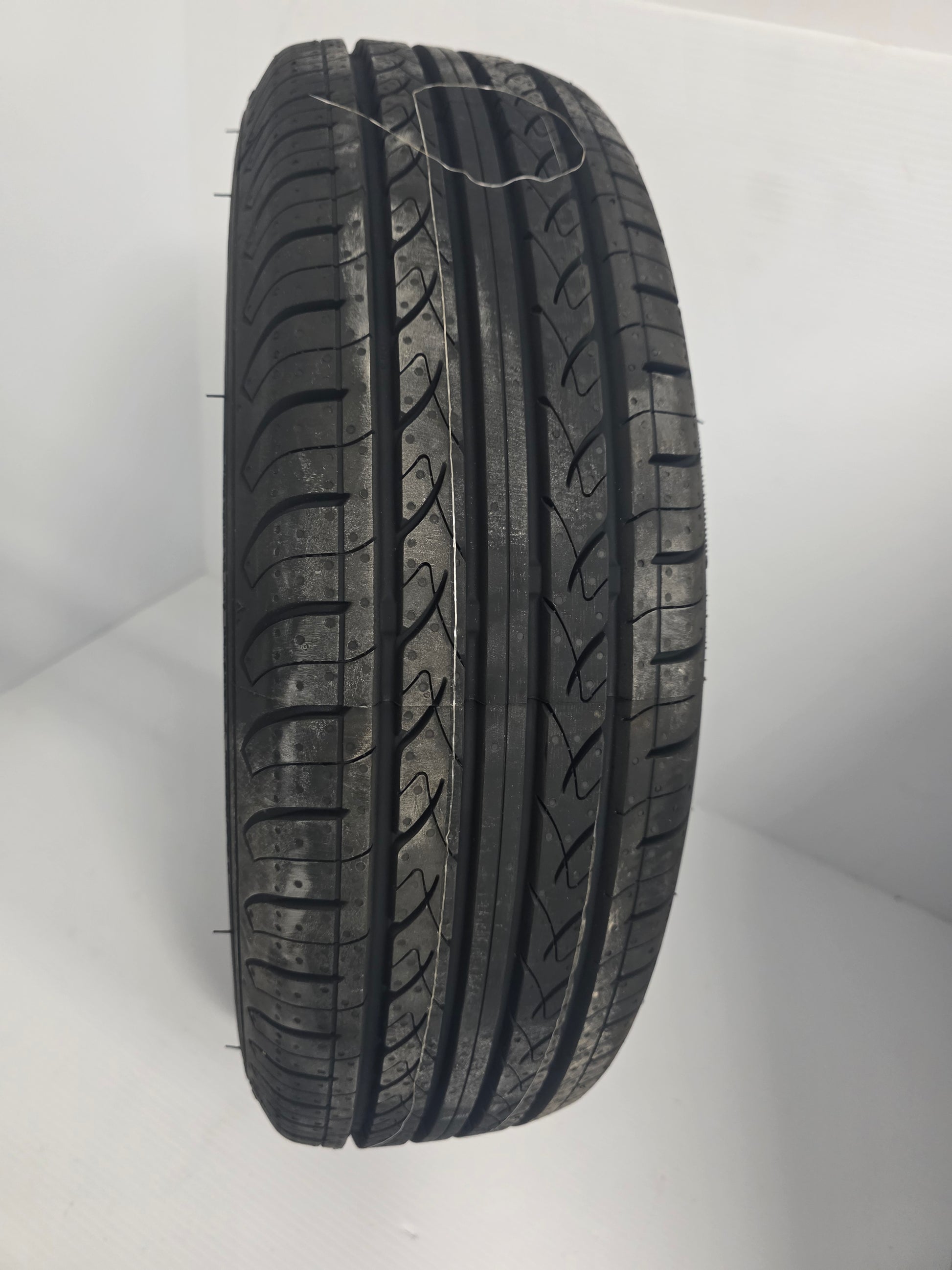

- Tyre size: 165/70R13
- Stud pattern: 5 stud × 114mm/114.3mm PCD
- Published assembly capacity: 600kg
- Wheel finish/style: Galvanised spoke steel
- Tyre brand, tread pattern, load index and speed symbol may vary with current supply; sidewall markings govern the supplied tyre
🔄 Cross Reference & Related Parts
- Matching rim-only reference: Dunbier 1492
🚤 Compatibility & Application
- Confirm rim diameter and width, stud count, pitch-circle diameter, centre bore, offset/backspacing and wheel-nut seat
- Check tyre clearance to guards, brakes, suspension and trailer frame through full travel
- The safe load is limited by the lowest rating of the tyre, rim, hub, bearings, axle, suspension and trailer placard
- Inflate only to the pressure required by the supplied tyre, load and trailer manufacturer
- Wheel nuts must be tightened in sequence to the specified torque and rechecked after the initial short trip
🔌 Function
Supports the trailer load, transmits braking and cornering forces and provides the road-contact surface for the trailer.
⚠️ Common Signs of Failure
- Tyre sidewall cracking, bulges, cuts or exposed cords
- Tread is worn unevenly, aged or below the legal limit
- Rim is cracked, buckled or corroded around the bead or stud holes
- Wheel loses pressure or develops vibration
- Stud holes elongate or wheel nuts no longer retain torque
📦 Condition
- Genuine Dunbier Marine Products part
- Brand new
- Supplied in original or equivalent packaging
