15-07090000W Aftermarket Yamaha Carburetor for Parsun F9.9, F13.5 & F15 | Sawley's Select Marine Parts

🔧 Product Description

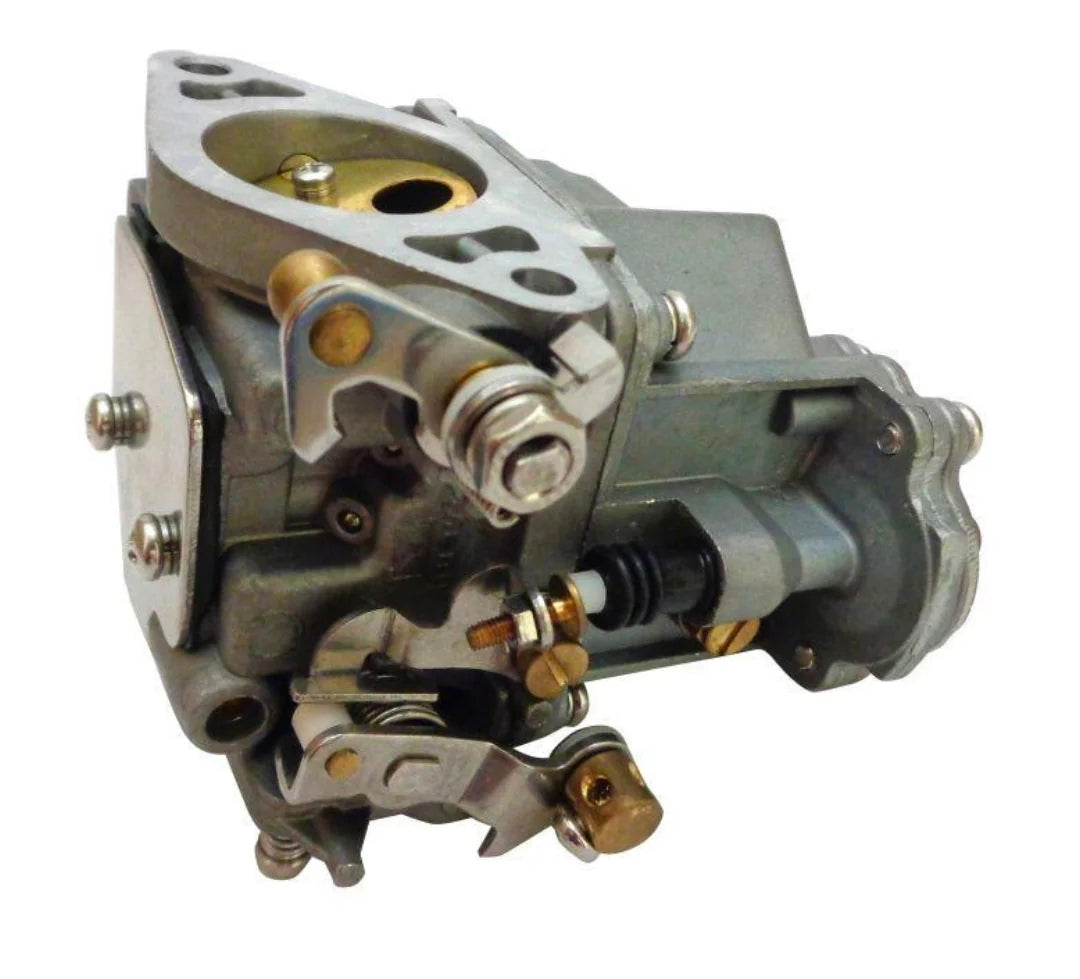

Aftermarket Yamaha-pattern carburettor for Parsun F9.9, F13.5 and F15 - Replacement Part Number: 15-07090000W

A complete replacement carburettor for the electric-start configuration of Parsun and Yamaha-pattern 9.9HP, 13.5HP and 15HP four-stroke outboards. The W-suffix assembly is catalogued against Parsun PAF15-07090000W and Yamaha 66M-14301-00, 66M-14301-21 and 6D4-14301-00. Because control, choke and starter-related linkage can differ from the non-W version, the original part number and external fittings must be compared before installation.

⚙️ Key Features

• Complete aftermarket carburettor assembly

• W-suffix configuration for applicable electric-start engines

• Designed for 9.9HP, 13.5HP and 15HP four-stroke outboards

• Cross-references to Parsun, Yamaha and Sierra numbers

• Restores correct starting enrichment, idle metering and throttle response

🔄 Supersession & Cross Reference

OEM Supersession Chain:

• 15-07090000W (catalogue replacement reference)

• PAF15-07090000W (Parsun/Recmar reference)

OEM / Related Numbers:

• 15-07090000W

• PAF15-07090000W

• Yamaha 66M-14301-00

• Yamaha 66M-14301-21

• Yamaha 6D4-14301-00

Aftermarket / Verified Equivalents:

• Recmar: PAF15-07090000W

• Sierra: 18-34600

• Sierra alternate format: 1834600

🚤 Compatibility

Commonly used on:

• Parsun and Yamaha-pattern four-stroke outboards with the matching electric-start carburettor configuration

Typically suits:

• Engine models:

• Parsun F9.9 electric-start applications

• Parsun F13.5 electric-start applications

• Parsun F15 electric-start applications

• Yamaha F9.9 and F15 four-stroke engines using the listed 66M or 6D4 number

• HP Range: 9.9HP - 15HP

• Engine Type: Carburetted four-stroke outboard

• Starting Configuration: Applicable electric-start models

• Year Range: Approximately 1998 - 2007

🔌 Function

The carburettor supplies the calibrated air-and-fuel mixture needed during cold starting, idle, transition and higher-speed operation. The W-version must also match the engine's starting-enrichment and linkage arrangement.

Common signs of failure:

• Electric-start engine cranks but is difficult to start

• Excessive choke or repeated priming is required

• Unstable idle or stalling when shifted into gear

• Hesitation, bogging or lean surge during acceleration

• Rich running, plug fouling or excessive fuel consumption

• Fuel overflow, bowl leakage or sticking float components

📦 Condition

• Brand new aftermarket replacement part

• New and unused

• Supplied in manufacturer or equivalent protective packaging
