150035022 VDO PSI Gauge | Genuine Used Part

🔧 Product Description

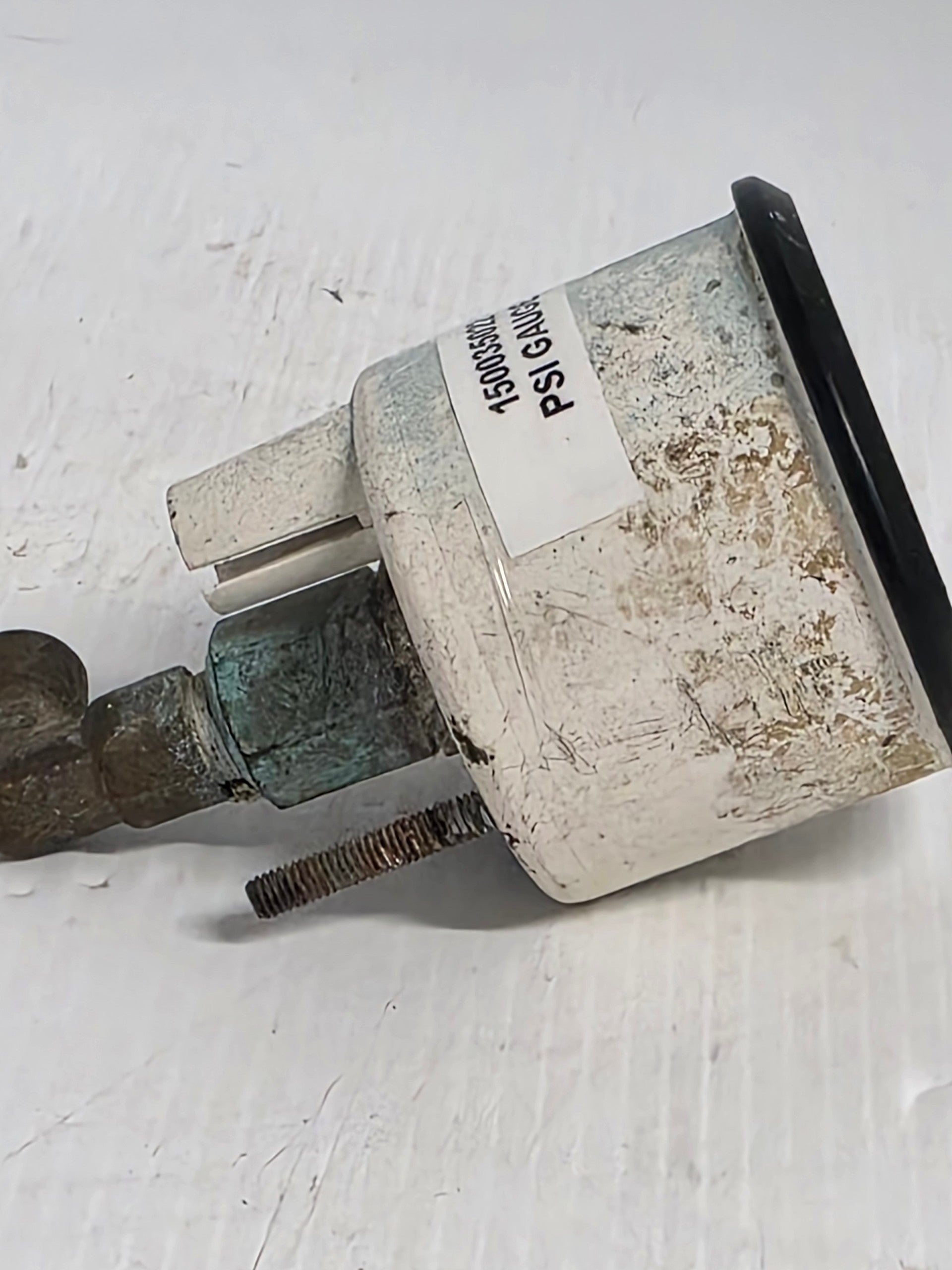

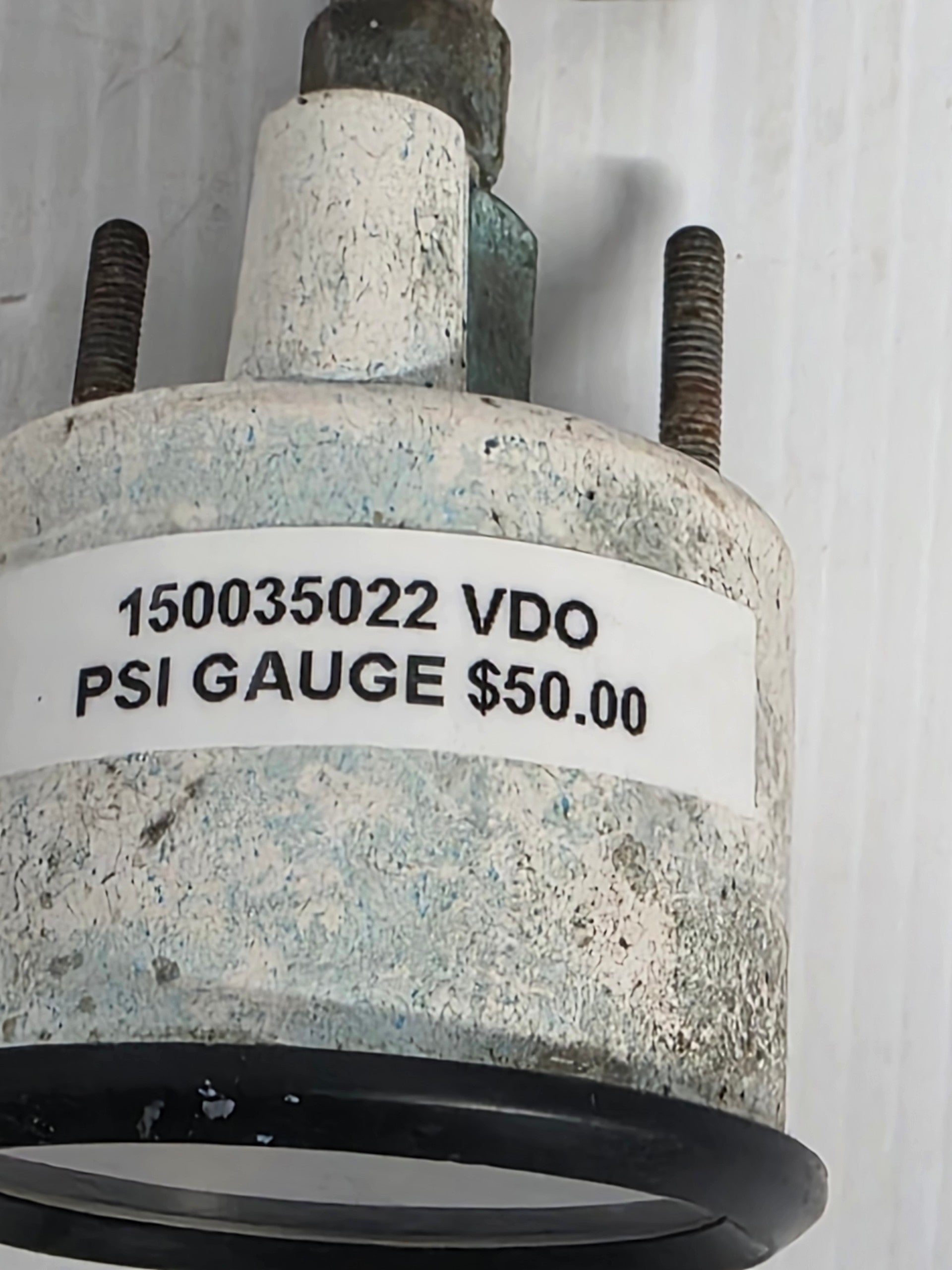

Genuine VDO Cockpit International Mechanical Pressure Gauge - Part Number: 150035022

A genuine VDO 52 mm full-sweep mechanical pressure gauge with a 0-2500 kPa scale.

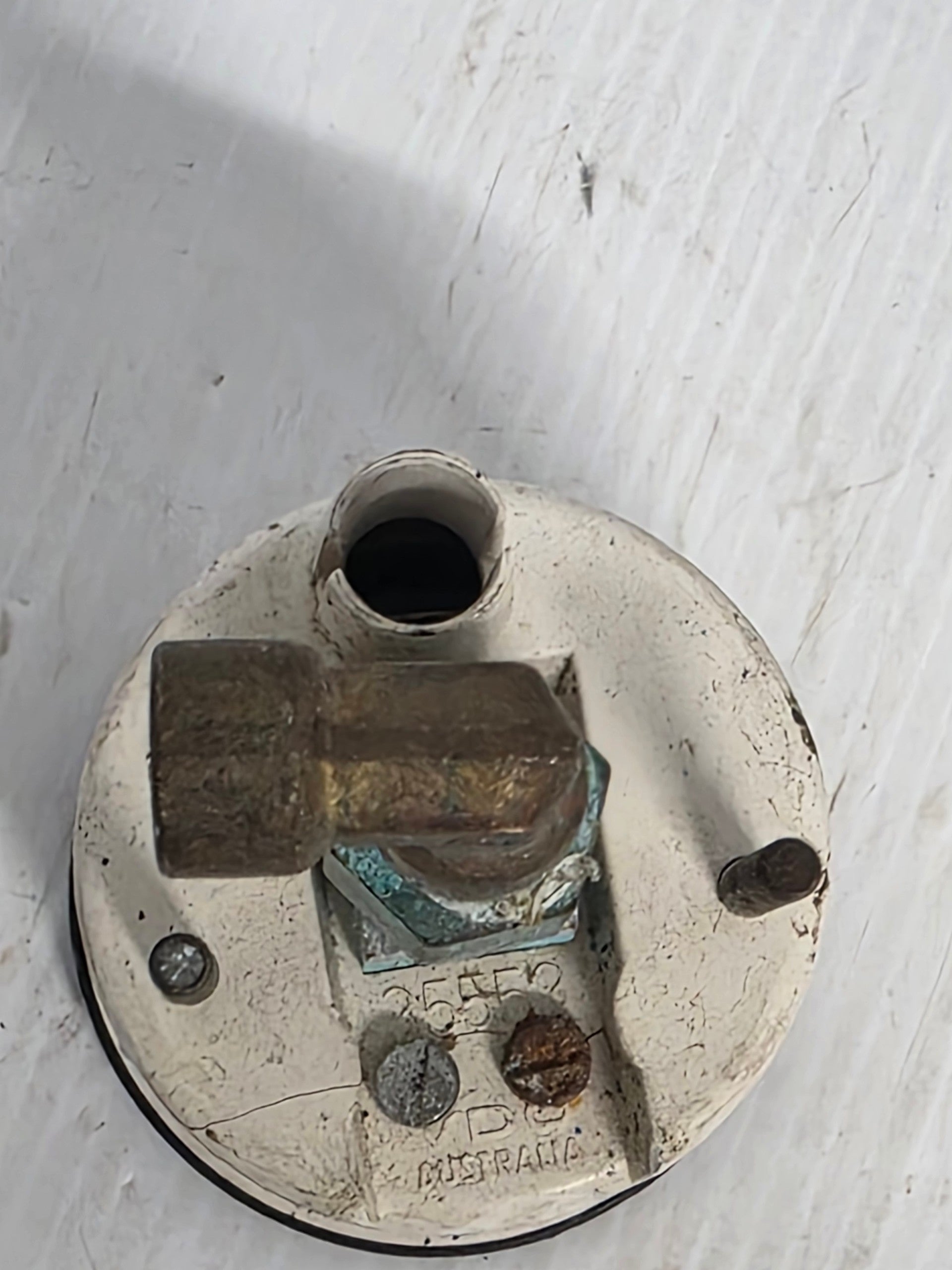

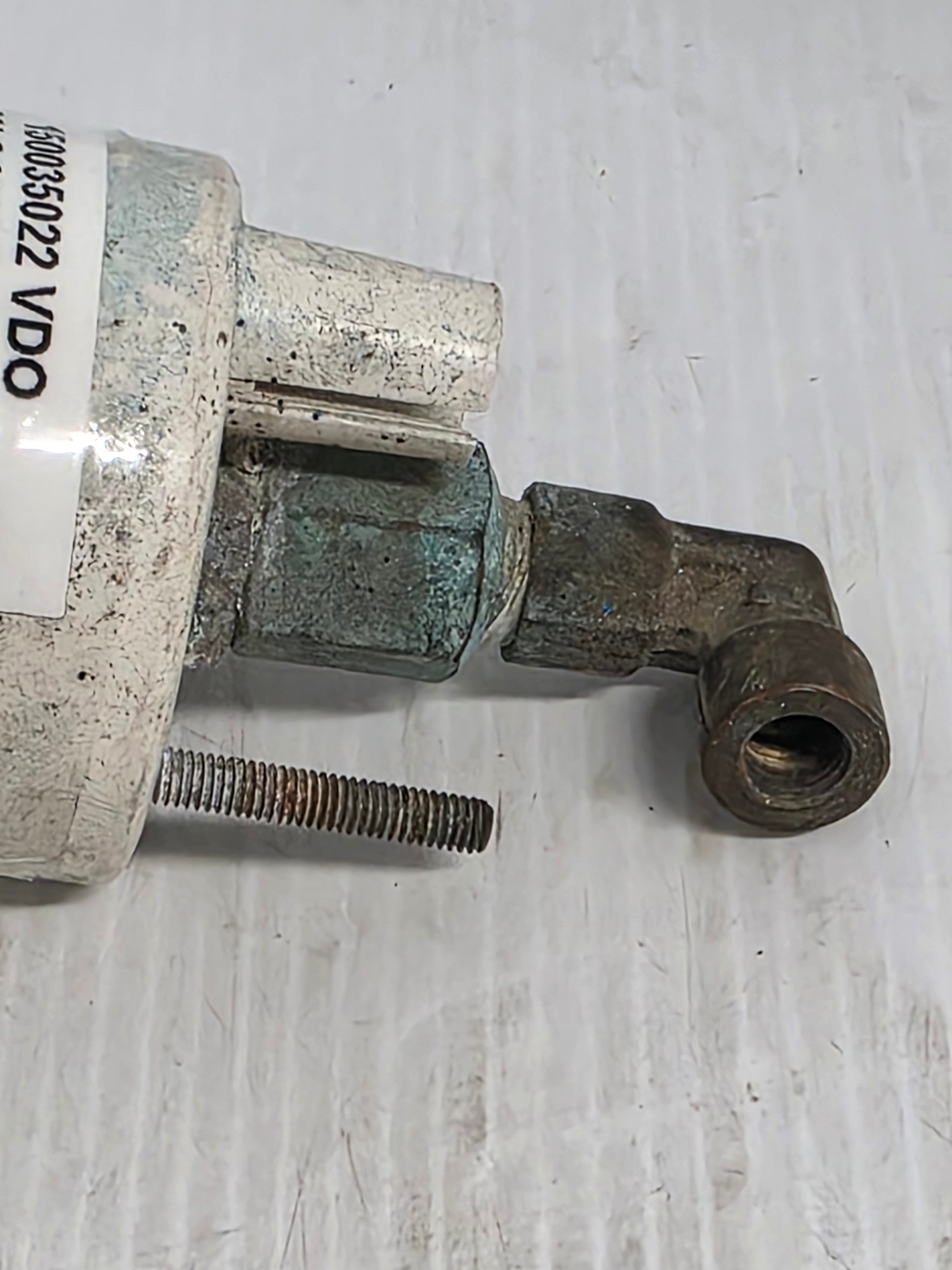

The instrument can be used to monitor oil, air or compatible fuel-system pressure. Pressure is transferred directly to the rear of the gauge through 3/16-inch PVC tubing, so no electrical pressure sender is required. Electrical connections are used only for illumination.

⚙️ Key Features

• Genuine VDO Cockpit International pressure gauge

• Correct part number 150035022

• 0-2500 kPa mechanical pressure range

• Approximately 0-363 PSI equivalent range

• 52 mm steel-bodied instrument

🔄 Supersession & Cross Reference

OEM Supersession Chain:

• 150035022 current documented VDO reference

• No confirmed superseding VDO number

OEM / Related Numbers:

• 150035022

• 150-035-022

• 150 035 022

• VDO fitting kit 240.053 - related 3/16-inch tubing and engine fitting kit

• Nut 230.096 - related tube fitting

• Cone 11131003 - related 3/16-inch tube fitting

• 800005003 - 24-volt illumination globe where required

Aftermarket / Verified Equivalents:

• VDO 150035022 is the verified direct replacement

• Other 52 mm mechanical 0-2500 kPa or approximately 0-360 PSI gauges are functional alternatives only when the fitting, pressure medium and scale are suitable

• Electrical pressure gauges are not direct replacements without adding a compatible sender

🚤 Compatibility

Commonly used on:

• Marine diesel and petrol engines

• Industrial engines, machinery and vehicles

• Oil, air and compatible fuel-pressure monitoring systems

• Dashboards accepting a 52 mm instrument

• Gauge Range: 0-2500 kPa

• Approximate Imperial Range: 0-363 PSI

• Input Type: Direct mechanical pressure

• Tube Size: 3/16-inch PVC tubing

• Illumination: 12 volt as normally supplied; 24-volt globe available

🔌 Function

System pressure is carried through the tubing to the gauge mechanism, which mechanically moves the pointer across the scale.

Common signs of failure:

• Gauge remains at zero despite verified pressure

• Tubing is split, kinked or blocked

• Oil or fluid leaks behind the dashboard

• Needle does not return to zero

• Internal Bourdon tube is damaged

• Fitting nut or cone does not seal correctly

📦 Condition

• Genuine used part

• Tubing and fittings included only where shown

• In good working condition unless otherwise stated
