15100-90J11 15100-90J1V Suzuki 5036797 Johnson Lift Pump Low Pressure Fuel Pump | Genuine Used Part

🔧 Product Description

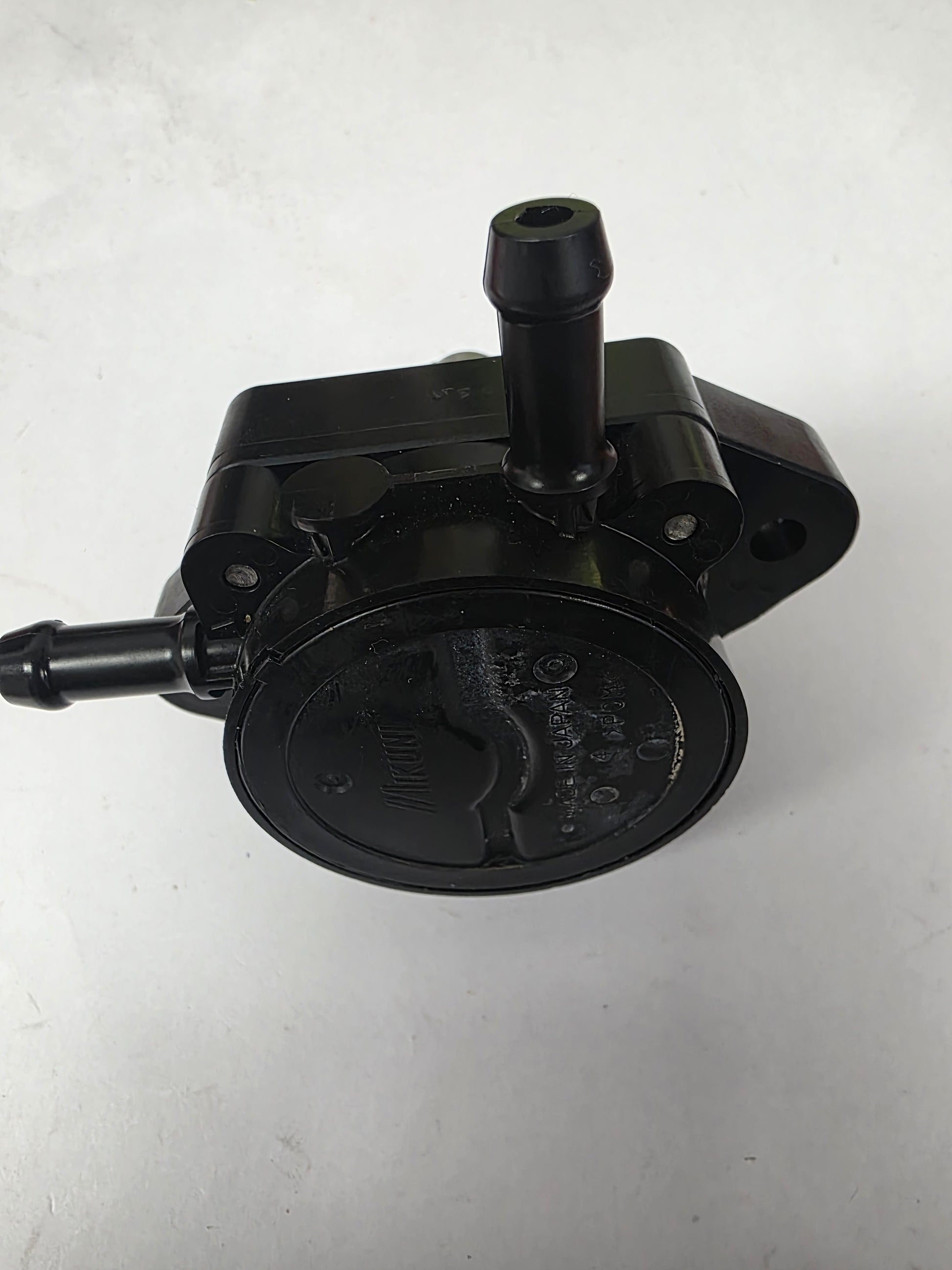

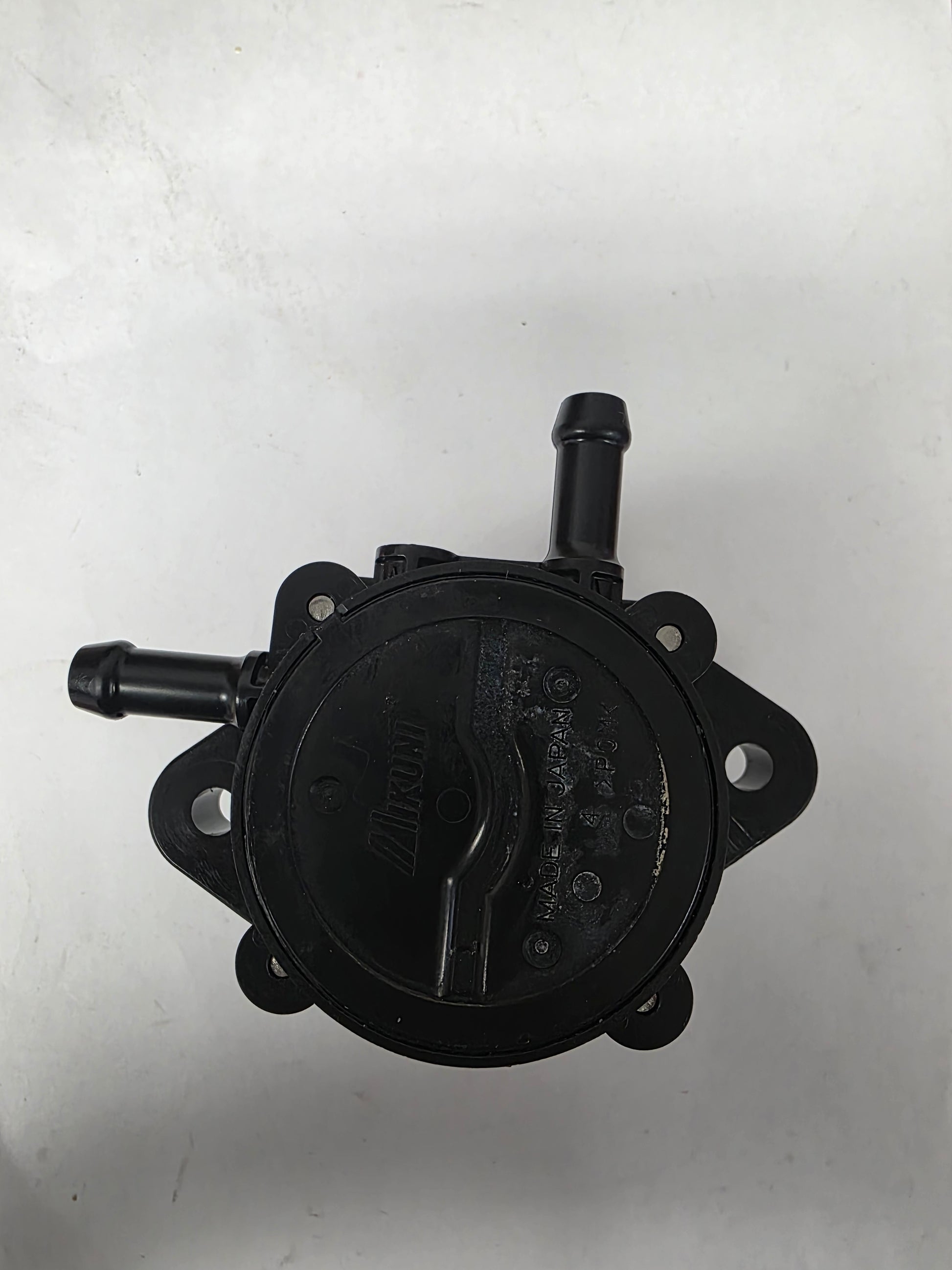

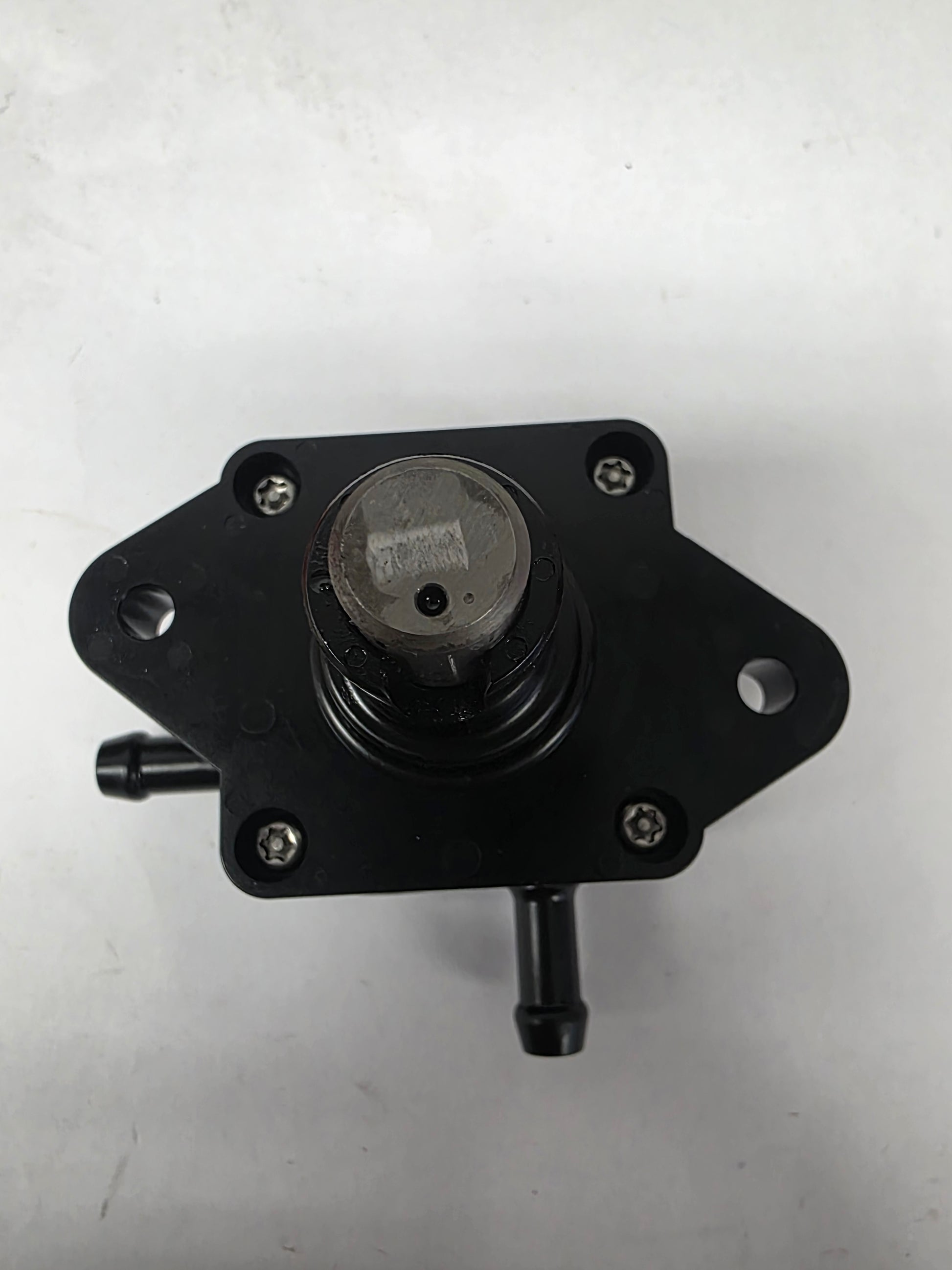

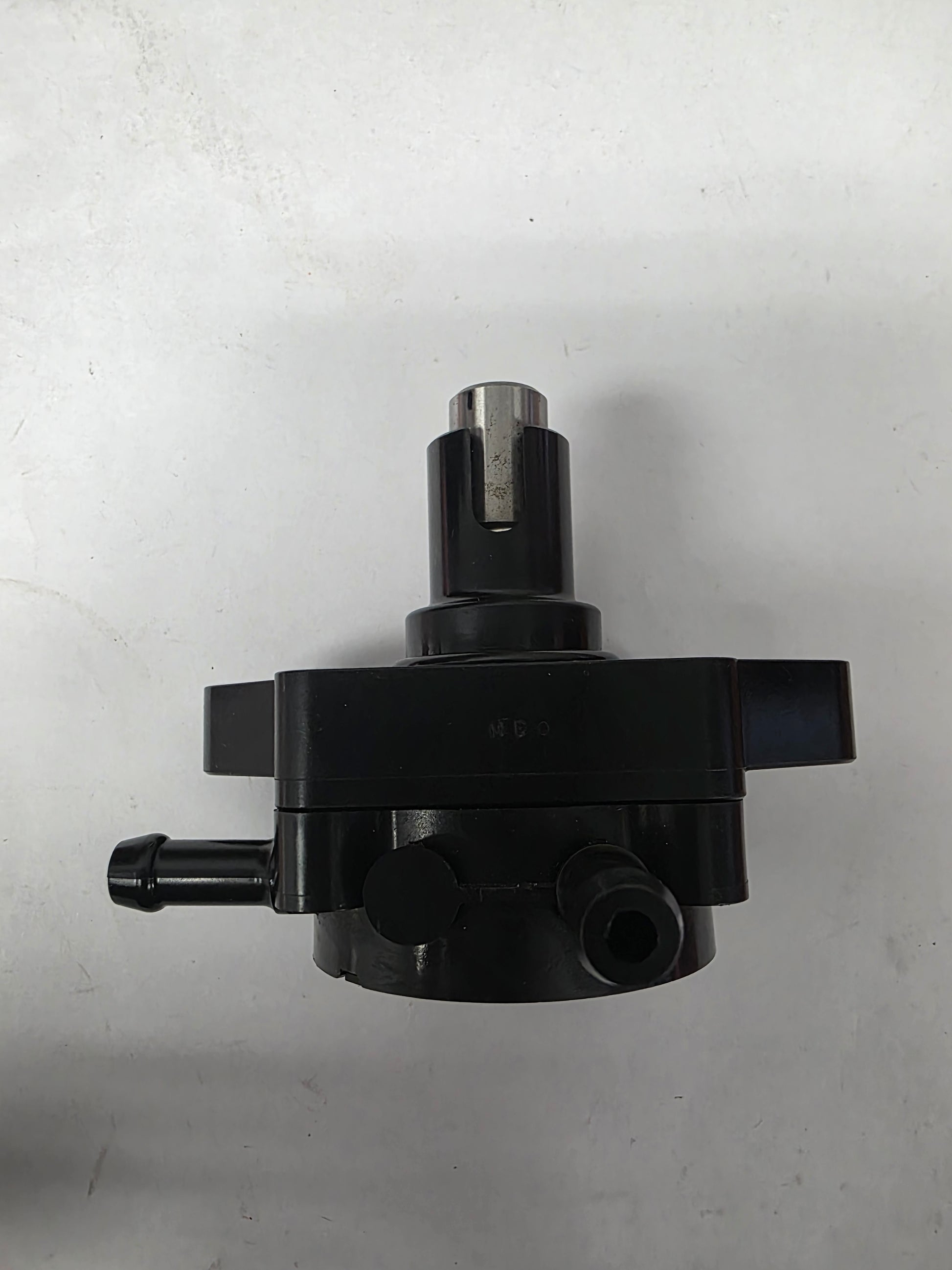

Genuine Suzuki / Johnson Low-Pressure Electric Lift Pump - Part Numbers: 15100-90J11 / 15100-90J1V / 5036797

A genuine low-pressure electric fuel-lift pump used across a broad range of Suzuki four-stroke outboards and Suzuki-manufactured Johnson / Evinrude engines. It transfers fuel from the vessel supply into the vapour separator before the high-pressure pump feeds the injectors.

⚙️ Key Features

• Genuine Suzuki OEM electric lift pump
• Suzuki service numbers 15100-90J11 and 15100-90J1V
• Johnson / BRP cross-reference 5036797
• Used on selected 40HP-140HP four-strokes
• Feeds the vapour-separator and high-pressure EFI system

🚤 Compatibility

• Suzuki DF40A, DF50A and DF60A families
• Suzuki DF70A, DF80A, DF90A and DF100B families
• Suzuki DF100A, DF115A and DF140A families
• Original-generation Suzuki DF90, DF115 and DF140 where the 90J pump is specified
• Suzuki-built Johnson / Evinrude 90HP, 115HP and 140HP four-strokes
• Documented example: 2012 Suzuki 70HP fuel-vapour-separator system
• Approximate year range: 2001-2016, with exact use controlled by model and serial number

🔌 Function

The electric lift pump supplies a steady low-pressure fuel flow to the vapour separator so the high-pressure EFI pump remains submerged and does not draw air.

⚠️ Common Signs of Failure

• Pump does not run during priming
• Engine starts then stalls
• High-pressure pump becomes noisy
• Fuel pressure falls under load
• Electrical connector or relay overheats
• Internal pump valves stick after long storage

🔄 Supersession & Cross Reference

OEM Supersession Chain

• 15100-90J11 is a later revision in the 90J lift-pump family
• Earlier related revisions: 15100-90J00, 15100-90J01 and 15100-90J10
• 15100-90J1V is the packaged service version
• 5036797 is the later Johnson / BRP cross-brand reference
• 5033699 is an earlier related Johnson / BRP cross-reference

OEM / Related Numbers

• 15100-90J11
• 15100-90J1V
• 15100-90J10
• 15100-90J01
• 15100-90J00
• 5036797
• 5033699
• Related fuel-pump relay, vapour separator, hoses and electrical connector

Aftermarket / Verified Equivalents

• Recmar REC15100-90J11
• Fuel Pump Factory FP-1403
• JLM aftermarket low-pressure pump for the 15100-90J family
• Other branded marine replacements cross-referenced to 15100-90J11 / 5036797

📦 Condition

• Genuine used part
• Removed from running engine where applicable
• In good working condition unless otherwise stated
