15100-95201 Suzuki Low Pressure Fuel Pump | Genuine Used Part

15100-95201 Suzuki Low Pressure Fuel Pump | Genuine Used Part

$90.00 AUD
$90.00 AUD
Sale Sold out
Shipping calculated at checkout.

Low stock: 2 left

🔧 Product Description

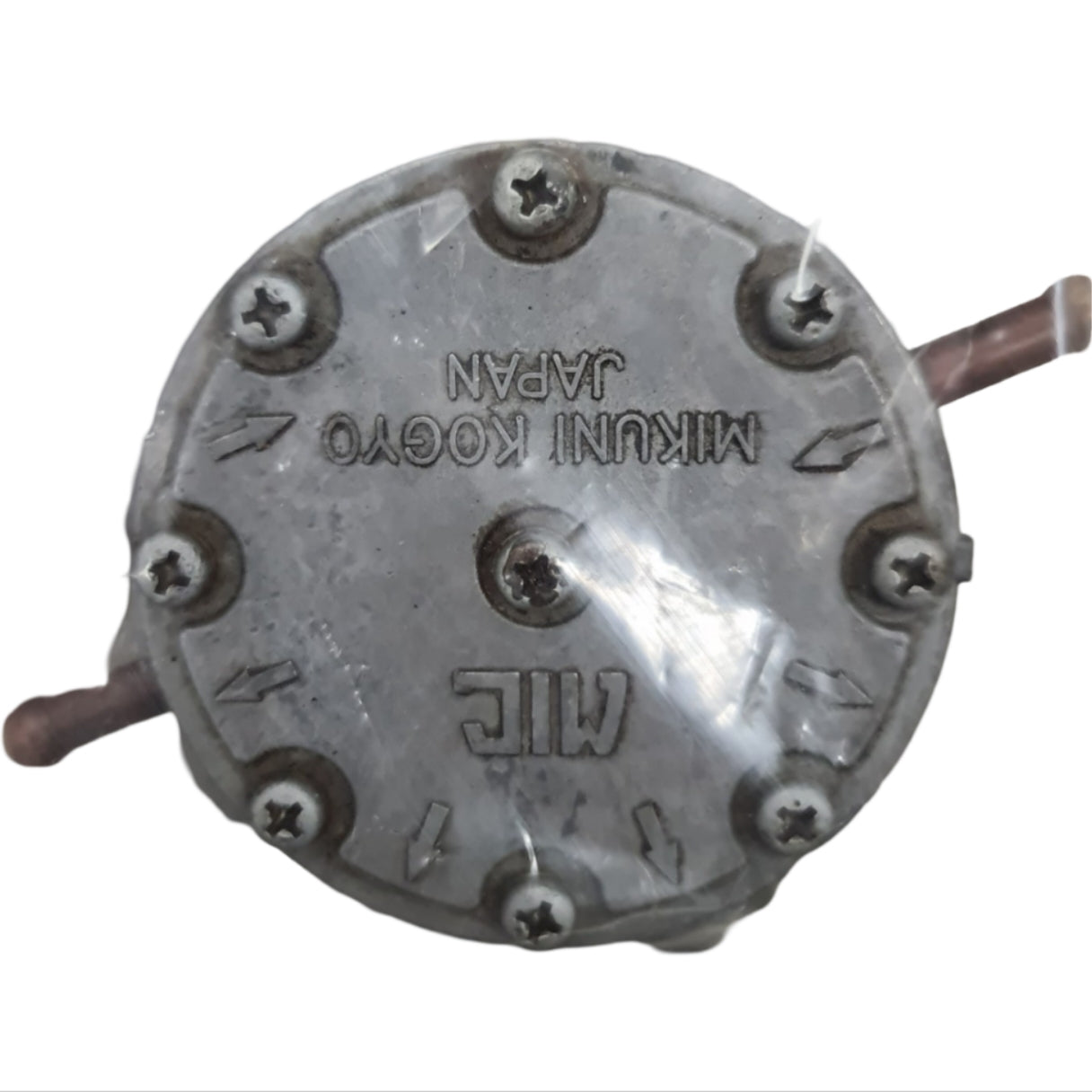

Genuine Suzuki DT40-DT65 Mechanical Fuel Pump - Part Number: 15100-95201

A genuine Suzuki pulse-operated fuel pump for selected early DT-series 40HP to 65HP two-stroke outboards. It mounts to the powerhead and uses crankcase pulses to lift fuel from the remote tank and feed the carburettors.

⚙️ Key Features

  • Genuine Suzuki OEM diaphragm pump
  • Correct part number 15100-95201
  • Used on selected DT40-DT65 engines
  • Mechanical low-pressure operation
  • Original hose and pulse-port layout

🚤 Compatibility

  • Suzuki DT40 model families using the 952 pump
  • Suzuki DT50 - documented 1981 and 1988 applications
  • Suzuki DT55 and DT60 related early two-stroke families where 15100-95201 is specified
  • Suzuki DT65 - documented 1980 and 1988 applications
  • Approximate horsepower range: 40HP-65HP
  • Approximate application era: early to late 1980s

🔌 Function

The pump converts crankcase pressure pulses into diaphragm movement, drawing fuel through inlet and outlet check valves to the carburettors.

⚠️ Common Signs of Failure

  • Engine requires continuous primer-bulb pumping
  • Fuel delivery weakens under load
  • Diaphragm leaks
  • Pump check valves stick
  • Pulse port is blocked
  • Fuel hoses harden or split

🔄 Supersession & Cross Reference

OEM Supersession Chain

  • 15100-95201 is the documented early service reference
  • 15100-95202 and 15100-95203 are later related configuration numbers
  • The later suffixes should be matched by engine model rather than assumed to be universal supersessions

OEM / Related Numbers

  • 15100-95201
  • 15100-95202
  • 15100-95203
  • Related pump gasket and pulse passage
  • Related fuel hoses, connectors and carburettor feed line

Aftermarket / Verified Equivalents

  • No verified branded complete aftermarket pump
  • Genuine Suzuki serviceable used pumps are the direct replacement
  • Aftermarket diaphragm or check-valve repairs require exact dimensional matching

📦 Condition

  • Genuine used part
  • Removed from running engine where applicable
  • In good working condition unless otherwise stated
