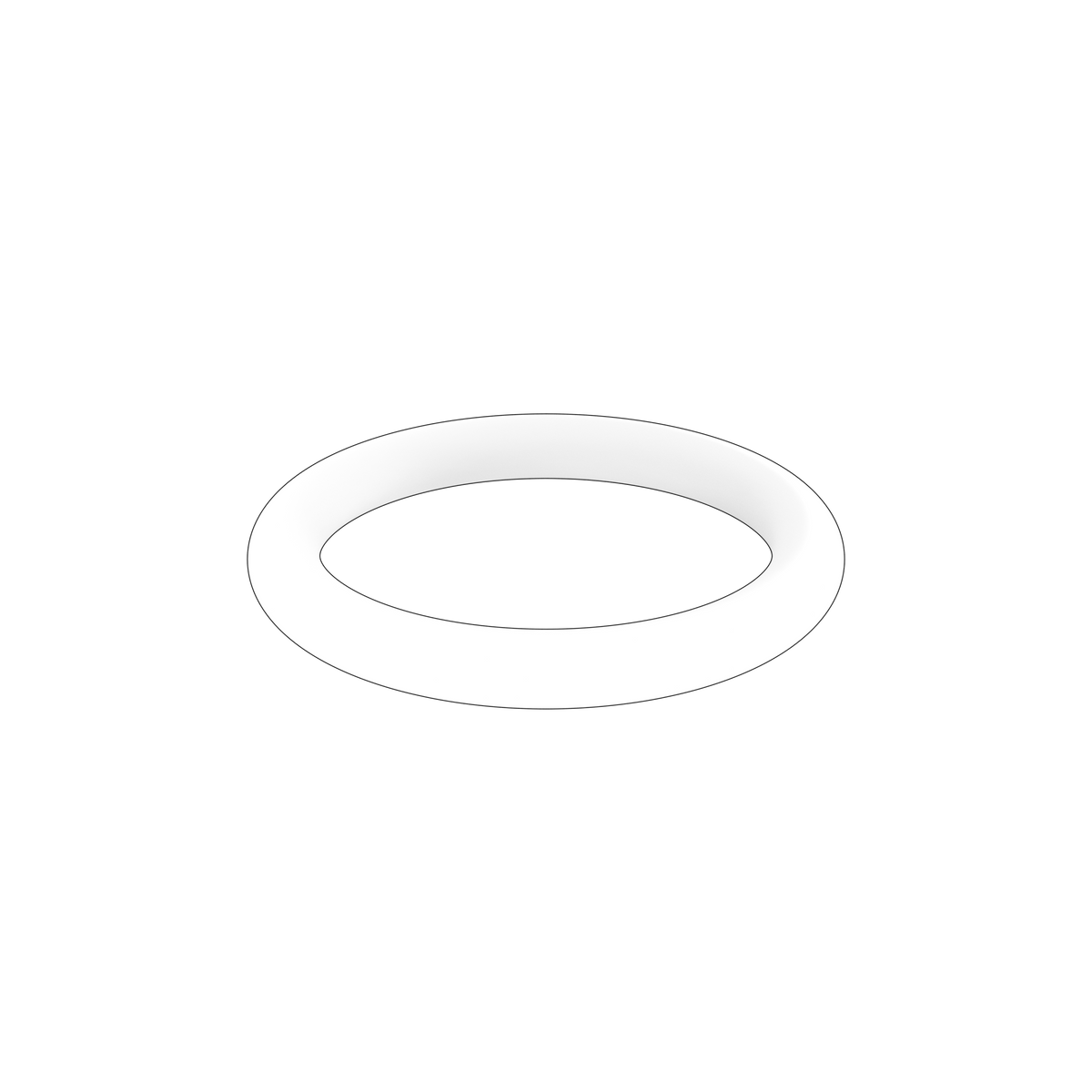

1526474 O-Ring | Genuine Volvo Penta Part

🔧 Product Description

Genuine Volvo Penta o-ring from the lubricating and oil system group, used to seal a joint face within the engine oil circuit. This small elastomeric ring forms the static seal that prevents oil seepage between mating components, and it is a standard replacement item whenever the connection it serves is disturbed. It is the current replacement for the earlier o-ring 925058.

🚤 Compatibility

• Engine Family: D, TAD, TWD, THD, DH, TADH
• HP Range: 145-320 HP
• Year Range: Approximately 1990s - 2020s

Full model list at the end of this description.

⚙️ Key Features

• OEM Volvo Penta part number 1526474
• System group: Lubricating and Oil System
• Net weight approximately 0.0023 kg
• Supersedes previous part number 925058
• Fits D4, D8, D9, D11, D12, D13 and D16 series marine engines as well as TAD, TWD and THD industrial and generator-set engines
• Engine type: Volvo Penta marine / industrial diesel fuel filtration system
• Quantity varies by assembly, most commonly one

🔌 Function

The o-ring creates a static seal at a joint in the engine's lubricating oil circuit, keeping pressurised oil contained within the system. It compresses between the mating faces to prevent leakage and loss of oil pressure.

⚠️ Common Signs of Failure

• Oil seepage or wet residue around the sealed joint
• Rubber hardened, cracked or taking a permanent flattened set
• Swelling, softening or general degradation from heat and oil exposure
• Falling or fluctuating oil pressure caused by an internal leak path
• Repeated need to top up engine oil with no other visible source of loss

🛠️ Service Notes

• Always fit a new O-ring — never refit one that has been removed, as it has already taken a set in its groove
• Clean the groove and both sealing faces and check them for nicks, scoring and corrosion pitting; a damaged groove will leak however good the new seal is
• Smear the ring with a little clean lubricant compatible with the fluid it seals, then roll it into place by hand so it sits untwisted and fully in its groove
• Never lever an O-ring over a sharp edge or thread with a screwdriver; use a blunt plastic tool and protect any edge the ring has to pass
• Assemble the joint squarely and tighten to the figure and sequence given in the workshop manual for your engine — over-tightening extrudes the ring and causes the very leak you were curing

🔄 Supersession & Cross Reference

OEM Supersession Chain

• 1526474 → Supersedes 925058 → Supersedes 125344

OEM / Related Numbers

• 925058 earlier number superseded by this part
• 852996 earlier number superseded by this part
• 125344 earlier number superseded by this part
• 23189362 related fuel-filter housing
• 22863609 related fuel-filter housing
• 3849120 related fuel-filter housing
• 3826073 related hand pump

Aftermarket / Verified Equivalents

• LEMA 122163

📦 Condition

• Genuine Volvo Penta part
• Brand new
• Supplied in original or equivalent packaging

🔎 Full Model Compatibility

Typically suits:

• Volvo Penta D13C3-B MH, D13C4-B MH, D13C1-B MH, D13C2-B MP, D13C1-A MP, D13C2-A MP, D13C3-A MP, D13C4-A MP, D13B-A MP, D13B-H MP, D13B-G MP, D13B-L MP, D13B-E MG, D13B-E MG (FE), D13B-E MH, D13B-E MH (FE), D13B-F MG, D13B-F MG (FE), D13B-K MP, D13B-N MH, D13B-N MH (FE), D13B-B MP, D13B-D MP, D13B-J MP, D13B-M MP, D13B-C MP, D13C4-B MP, D13C5-B MP, D13C6-A MP, D13C1-A MH, D13C2-A MH, D13C1-B MG, D13C3-B MG, D13C2-B MG, D13C4-B MG, D13C5-A MP, D13C2-A MG, D13C1-A MG, D13C7-B MP, D13C8-B MP, D13C9-A MP
• Volvo Penta D4-260A-F, D4-260D-F, D4-260I-F, D4-300A-F, D4-300D-F, D4-180I-F, D4-225I-F, D4-300I-F, D4-225A-F, D4-175I-G, D4-230I-G, D4-270I-G, D4-320I-G, D4-300I-G, D4-150A-G, D4-230A-G, D4-270A-G, D4-320A-G, D4-300A-G, D4-145I-G
• Volvo Penta D12C-A MP, D12D-A MG, D12D-A MH, D12D-A MP, D12D-B MH, D12D-B MP, D12D-C MH, D12D-C MP, D12D-D MP, D12D-E MG, D12D-E MH, D12D-E MP, D12D-F MP, D12D-G MH, D12D-G MP, D12D-H MP
• Volvo Penta D16C-A MG, D16C-A MH, D16C-B MH, D16C-C MH, D16C1-E MG, D16C1-F MG, D16C2-E MG, D16C2-F MG, D16C-D MH, D16C1-E MH, D16C1-F MH, D16C2-E MH, D16C2-F MH
• Volvo Penta D11C1-A MP, D11C3-A MP, D11C2-A MP, D11C4-A MP, D11B3-A MP, D11B4-A MP, D11A-C, D11B2-A MP, D11A-C MP, D11A-D MP, D11A-C (IPS), D11B1-A MP
• Volvo Penta D9A2J, D9A2G, D9A2L MH, D9A2D, D9A2B, D9A2F, D9A2K, D9A2H, D9A2M MP, D9A2A, D9A2C, D9A2E
• Volvo Penta D8A2-A MP, D8A5-A MH, D8A6-A MH, D8A5-A MG, D8A6-A MG, D8A4-A MP, D8A1-A MP, D8A3-A MP
• Volvo Penta TAD1241GE, TAD1241VE, TAD1241-42VE
• Volvo Penta TAD1641VE-B, TAD1641GE, TAD1641VE
• Volvo Penta TAD1642VE-B, TAD1642GE, TAD1642VE
• Volvo Penta TAD840GE, TAD840-43VE, TAD840GE-B
• Volvo Penta THD102KB, THD102KD, THD102K-KB
• Volvo Penta TAD1242GE, TAD1242VE
• Volvo Penta TAD1250VE, TAD1250-52VE
• Volvo Penta TAD1341-43GE-B, TAD1341GE
• Volvo Penta TAD1344-45GE-B, TAD1344GE
• Volvo Penta TAD1640GE, TAD1640VE-B
• Volvo Penta TAD1650GE, TAD1650VE
• Volvo Penta TAD570-72VE, TAD570-71VE-B
• Volvo Penta TAD880-82GE, TAD880-84VE
• Volvo Penta TADH880-82GE, TADH880-84VE
• Volvo Penta DH10A
• Volvo Penta TAD1240GE
• Volvo Penta TAD1251VE
• Volvo Penta TAD1252VE
• Volvo Penta TAD1342GE
• Volvo Penta TAD1343GE
• Volvo Penta TAD1345GE
• Volvo Penta TAD1350GE
• Volvo Penta TAD1351GE
• Volvo Penta TAD1352GE
• Volvo Penta TAD1353GE
• Volvo Penta TAD1354GE
• Volvo Penta TAD1355GE
• Volvo Penta TAD1643VE
• Volvo Penta TAD1651GE
• Volvo Penta TAD1660-62VE
• Volvo Penta TAD1662VE EU5
• Volvo Penta TAD540-42VE
• Volvo Penta TAD550-51VE
• Volvo Penta TAD552VE
• Volvo Penta TAD580-83VE
• Volvo Penta TAD841-43GE
• Volvo Penta TAD850-52VE
• Volvo Penta TAD851-53GE
• Volvo Penta TAD853VE
• Volvo Penta TAD870-73VE
• Volvo Penta TWD1240VE
• Volvo Penta TWD1643GE
• Volvo Penta TWD1652GE
• Volvo Penta TWD1653GE
• Volvo Penta TWD1663GE
