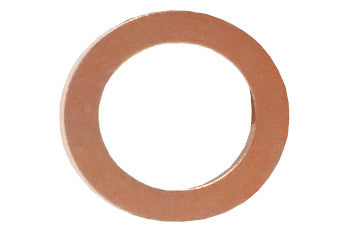

1542159 Washer/Injector | Genuine Volvo Penta Part

🔧 Product Description

A genuine Volvo Penta injector seating washer used in the injector and heat-shield mounting stack on 30- and 40-series indirect-injection diesel engines. The part is installed at every injector position and must be assembled in the sequence shown in the engine fuel-system arrangement. Four are normally required for a complete 30-series engine and six for a complete 40-series engine. The heat shield, waved washer, injector washer and support washer are separate service parts and should not be interchanged.

🚤 Compatibility

Typically suits:

• Volvo Penta MD40A
• Volvo Penta TMD40A
• Volvo Penta TMD40B
• Volvo Penta TMD40C
• Volvo Penta AQAD40B
• Volvo Penta AQAD30A
• Volvo Penta MD30A
• Volvo Penta TAMD30A
• Volvo Penta TD30A
• Volvo Penta TMD30A
• Volvo Penta AQAD40A
• Volvo Penta AQD40A
• Volvo Penta TD40A
• Volvo Penta TAMD40A
• Volvo Penta TAMD40B

• Engine Family: MD, TMD, AQAD, TAMD, TD, AQD
• Year Range: Approximately 1970s-early 1990s

⚙️ Key Features

• Genuine Volvo Penta OEM part number 1542159
• System group: Fuel System
• Injector sealing washer for the injector-to-cylinder-head joint
• Fits MD, TMD, TAMD, TD, AQD and AQAD 30-series and 40-series marine diesel engines
• Recommended for renewal each time an injector is removed
• Engine type: Volvo Penta four- and six-cylinder indirect-injection diesel
• Quantity varies by assembly, most commonly six

🔌 Function

The washer seals the injector where it enters the cylinder head, containing combustion pressure and gases at the nozzle seat. It also provides a consistent crush surface so the injector clamps down to the correct seated height.

⚠️ Common Signs of Failure

• Combustion gas or soot leakage tracking around the base of the injector
• Loss of compression or rough running on the affected cylinder
• Hard starting or uneven idle after injector service
• Flattened, cracked or previously crushed washer found on removal
• Injector difficult to seat correctly or loosening in service

🛠️ Service Notes

• Renew this washer every time the injector is removed — it is a crush washer and must not be reused.
• Fit in the correct stack order with the matching heat shield and waved washer for the engine; these are separate parts and must not be substituted for one another.
• Confirm quantity before ordering: 4 required for a complete 30-series engine, 6 for a complete 40-series engine.

🔄 Supersession & Cross Reference

OEM / Related Numbers

• 1542154 injector heat shield
• 1542157 heat-shield washer
• 1542158 waved washer
• 1542197 related retaining washer
• 1542155 original injector assembly
• 924068 → 980226 injector retaining stud
• 955782 retaining nut
• 1542167 related injector leak-off pipe
• 1544137 related injector leak-off pipe

OEM Reman Alternatives

• 3803239 exchange / later injector assembly

Aftermarket / Verified Equivalents

• Recmar: REC1542159
• Orbitrade: 17159

📦 Condition

• Genuine Volvo Penta part
• Brand new
• Supplied in original or equivalent packaging
