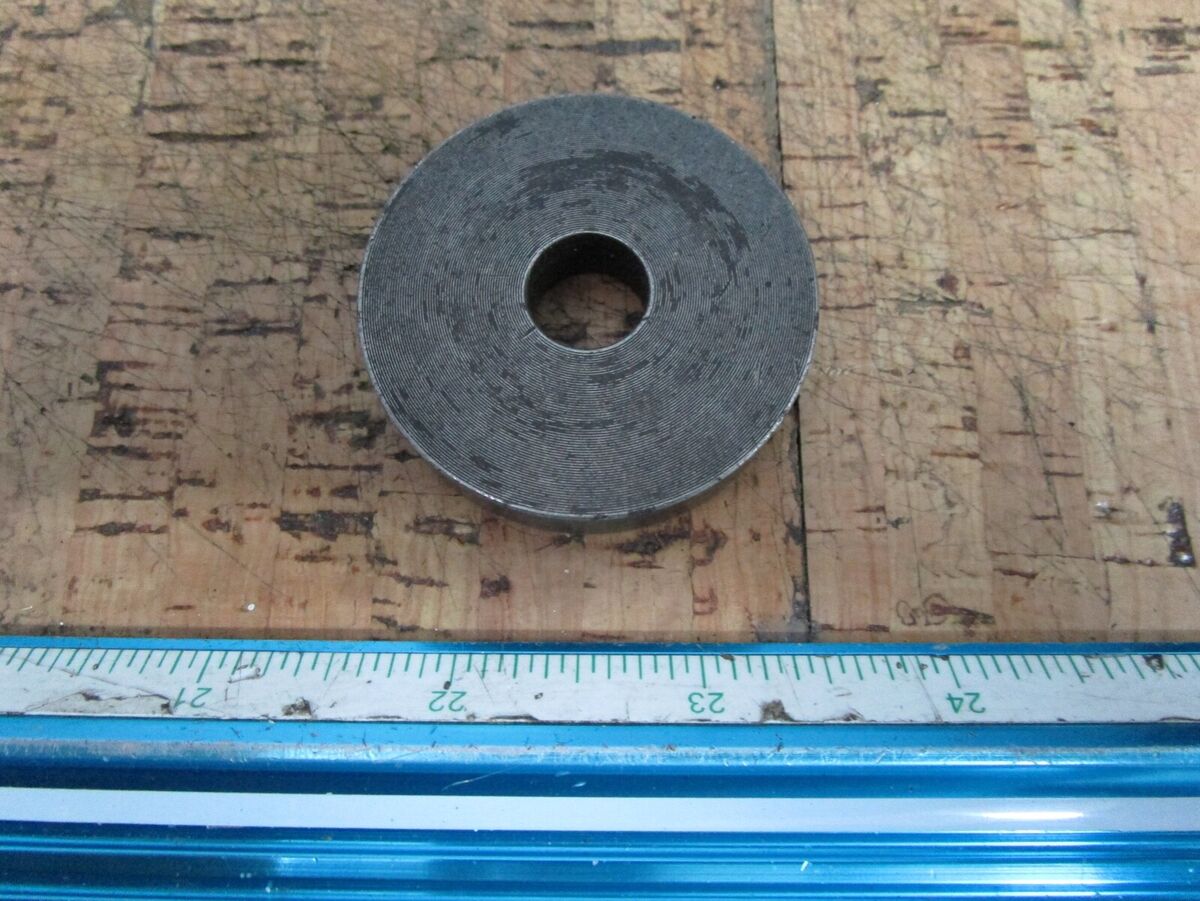

1542223 Washer 13*50*10 | Genuine Volvo Penta Part

🔧 Product Description

This is a genuine Volvo Penta washer in the 13 x 50 x 10 mm size, listed under the Engine system group. It sits under a fastener or against a mating face to spread clamping load and protect the surface beneath it. The 13 x 50 x 10 mm dimension is what separates this washer from otherwise similarly named parts, so confirm the size before ordering.

🚤 Compatibility

• Engine Family: MD, TMD, TAMD, AD, AQAD, D, TD, AQD, KAMD, KAD
• HP Range: Approximately 90-300 HP
• Year Range: Approximately 1970s - 2000s

Full model list at the end of this description.

⚙️ Key Features

• OEM Volvo Penta part number 1542223
• Dimensions: 13 x 50 x 10 mm (bore x outside diameter x thickness)
• System group: Engine
• Net weight: 0.147 kg
• Fits MD30, MD31, MD40, AD31, AD41, TMD30/31/40/41, TAMD30/31/40/41/42, KAD and KAMD series marine engines
• Supplied as a single washer
• Engine type: Volvo Penta marine diesel timing-gear train

🔌 Function

The washer distributes the clamping force of a bolt or nut over a wider area and shields the component face from marking or wear as the fastener is torqued. Its thickness also helps set correct fastener stack height and maintain joint tension in service.

⚠️ Common Signs of Failure

• Visible dishing, bending or flattening from over-torque
• Corrosion, pitting or scaling that reduces load-bearing thickness
• Fastener repeatedly working loose or losing torque
• Scoring, galling or wear marks on the bearing face
• Cracking or edge breakage around the bore

🛠️ Service Notes

• Fit alongside the related camshaft gear, spacer ring and woodruff key on record when doing timing-gear work, since these are commonly disturbed together
• Renew rather than reuse a washer found dished, pitted or scored, as it forms part of the bearing face in this assembly
• Tighten the retaining screw to the torque given in the workshop manual for your specific engine once the washer is correctly seated

🔄 Supersession & Cross Reference

OEM / Related Numbers

• 1542034 related camshaft gear
• 1542221 related spacer ring
• 965193 related flange screw
• 910116 related woodruff key

📦 Condition

• Genuine Volvo Penta part
• Brand new
• Supplied in original or equivalent packaging

🔎 Full Model Compatibility

Typically suits:

• Volvo Penta TAMD31L-A, TAMD31M-A, TAMD31P, TAMD31P-A, TAMD31S, TAMD31A, TAMD31B, TAMD31D
• Volvo Penta TAMD41B, TAMD41D, TAMD41H-A, TAMD41H-B, TAMD41P-A, TAMD41P, TAMD41A
• Volvo Penta AD31, AD31B, AD31D-A, AD31L-A, AD31P-A, AD31XD
• Volvo Penta AD41B, AD41D, AD41L-A, AD41P-A, AD41A, AD41BJ
• Volvo Penta TMD31A, TMD31B, TMD31D, TMD31L-A
• Volvo Penta TMD41A, TMD41B, TMD41D, TMD41L-A
• Volvo Penta D41B, D41D, D41L-A
• Volvo Penta KAD42A, KAD42B, KAD42P-A
• Volvo Penta KAD44P, KAD44P-B, KAD44P-C
• Volvo Penta KAMD42A, KAMD42B, KAMD42P-A
• Volvo Penta KAMD43P, KAMD43P-A, KAMD43P-B
• Volvo Penta KAMD44P-B, KAMD44P-C, KAMD44P-A
• Volvo Penta TMD40A, TMD40B, TMD40C
• Volvo Penta AQAD40B, AQAD40A
• Volvo Penta TAMD40A, TAMD40B
• Volvo Penta TAMD42WJ-A, TAMD42B
• Volvo Penta AQAD30A
• Volvo Penta AQD40A
• Volvo Penta KAD300-A
• Volvo Penta KAD32P
• Volvo Penta KAD43P-A
• Volvo Penta KAMD300-A
• Volvo Penta MD30A
• Volvo Penta MD31A
• Volvo Penta MD40A
• Volvo Penta TAMD30A
• Volvo Penta TD30A
• Volvo Penta TD31ACE
• Volvo Penta TD40A
• Volvo Penta TMD30A
