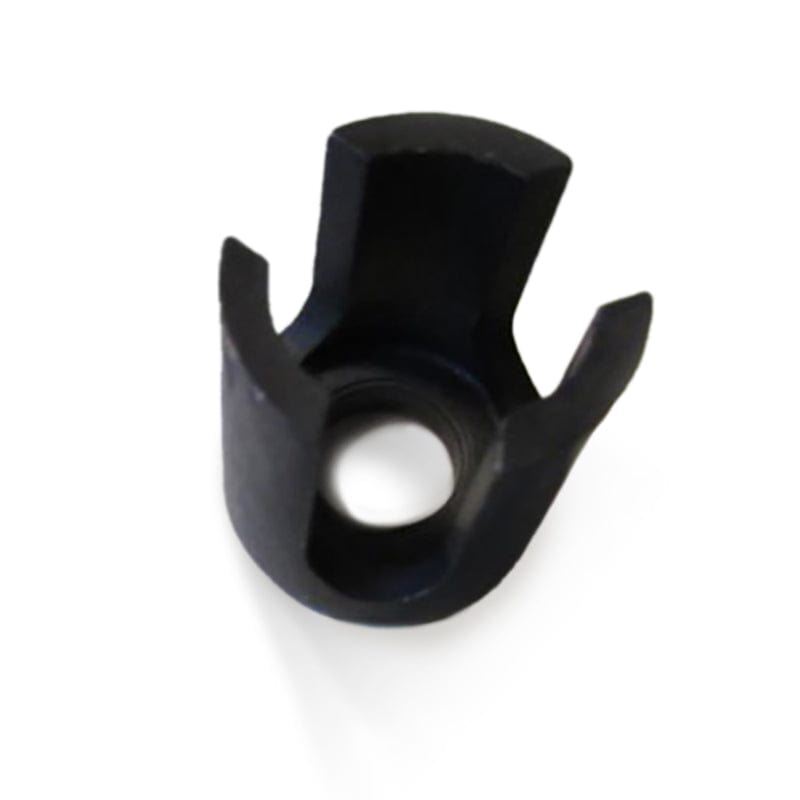

1542265 Valve Seat | Genuine Volvo Penta Part

🔧 Product Description

Genuine Volvo Penta valve seat (part number 1542265) from the lubricating and oil system group. It provides the machined sealing face that the oil system valve closes against, maintaining correct oil pressure control within the engine's lubrication circuit. This small precision component is a common service item whenever the oil pressure valve assembly is disturbed or overhauled.

🚤 Compatibility

• Engine Family: MD, TMD, TAMD, AD, AQAD, D, TWD, TID, TD, TAD, AQD, KAD, KAMD, IPS
• HP Range: Approximately 90-300 HP
• Year Range: Approximately 1970s - 2000s

Full model list at the end of this description.

⚙️ Key Features

• OEM Volvo Penta part number 1542265
• System group: Lubricating and Oil System
• Net weight approximately 0.027 kg
• Fits 2000-series, MD/TMD/TAMD 30, 31, 40, 41 and 42 series, AD31/AD41, KAD/KAMD 32-44 and TD/TWD/TAD 160-series engines
• Supplied as an individual seat component for oil system valve service
• Engine type: Volvo Penta marine diesel oil-filter and lubrication system

🔌 Function

The valve seat forms the fixed sealing surface against which the oil system valve closes, allowing the valve to regulate or relieve lubricating oil pressure. A true, undamaged seat is essential for the valve to seal fully and hold the correct oil pressure.

⚠️ Common Signs of Failure

• Low or fluctuating engine oil pressure readings
• Oil pressure warning light or alarm activating under load or at idle
• Visible pitting, scoring or wear ridges on the sealing face
• Valve failing to seat fully, allowing internal oil bypass
• Oil seepage or loss of pressure after the valve assembly has been disturbed

🛠️ Service Notes

• Seat inserts are an interference fit in the head, so the counterbore has to be clean, round, flat and square before a new seat goes in; normal practice is to chill the insert and warm the head so it drops into place rather than forcing it
• This is machine-shop work — the seat must be cut concentric with the valve guide after installation, so check or renew the guides at the same time and cut the seat angles once the insert is secure
• Inspect the head casting for cracks and for a pounded or spread counterbore before committing to a new seat; a seat that has come loose has usually damaged its pocket
• Use the interference fit, insert size and seat angles specified for your engine rather than any general figure, as they differ between heads
• Check each valve on its finished seat for an even contact band right the way round, and confirm valve position and any permitted recession against the workshop manual for your engine

🔄 Supersession & Cross Reference

OEM / Related Numbers

• 3581943 related oil-filter housing
• 471085 related valve cone - quantity 2
• 468087 related spring - quantity 2
• 1542267 related valve cover - quantity 2

📦 Condition

• Genuine Volvo Penta part
• Brand new
• Supplied in original or equivalent packaging

🔎 Full Model Compatibility

Typically suits:

• Volvo Penta 2003, 2003R, 2003R SOLAS, 2003TB, 2003TB SOLAS, 2001AG, 2001B, 2001BG, 2001D, 2003D, 2003T, 2003TR, 2002AG, 2002B, 2002BG, 2002D, 2003B, 2003B SOLAS, 2003 SOLAS, 2001, 2002, 2001R
• Volvo Penta TAMD31L-A, TAMD31M-A, TAMD31P, TAMD31P-A, TAMD31S, TAMD31A, TAMD31B, TAMD31D
• Volvo Penta TAMD41B, TAMD41D, TAMD41H-A, TAMD41H-B, TAMD41P-A, TAMD41P, TAMD41A
• Volvo Penta AD31, AD31B, AD31D-A, AD31L-A, AD31P-A, AD31XD
• Volvo Penta AD41B, AD41D, AD41L-A, AD41P-A, AD41A, AD41BJ
• Volvo Penta TAMD162C-C, TAMD162A, TAMD162B, TAMD162C, TAMD162C-B
• Volvo Penta TID162AG, TID162AGP, TID162AP, TID162APB
• Volvo Penta TMD31A, TMD31B, TMD31D, TMD31L-A
• Volvo Penta TMD41A, TMD41B, TMD41D, TMD41L-A
• Volvo Penta D41B, D41D, D41L-A
• Volvo Penta KAD42A, KAD42B, KAD42P-A
• Volvo Penta KAD44P, KAD44P-B, KAD44P-C
• Volvo Penta KAMD42A, KAMD42B, KAMD42P-A
• Volvo Penta KAMD43P, KAMD43P-A, KAMD43P-B
• Volvo Penta KAMD44P-B, KAMD44P-C, KAMD44P-A
• Volvo Penta TAD1630G, TAD1630GE, TAD1630P
• Volvo Penta TMD40A, TMD40B, TMD40C
• Volvo Penta TWD1630G, TWD1630P, TWD1630V
• Volvo Penta AQAD40B, AQAD40A
• Volvo Penta KAD43P-B, KAD43P-A
• Volvo Penta TAD1631GE, TAD1631G
• Volvo Penta TAMD163A-A, TAMD163P-A
• Volvo Penta TAMD165A, TAMD165C
• Volvo Penta TAMD40A, TAMD40B
• Volvo Penta TAMD42WJ-A, TAMD42B
• Volvo Penta AQAD30A
• Volvo Penta AQD40A
• Volvo Penta D2003AG
• Volvo Penta IPS-A
• Volvo Penta KAD300-A
• Volvo Penta KAD32P
• Volvo Penta KAMD300-A
• Volvo Penta MD30A
• Volvo Penta MD31A
• Volvo Penta MD40A
• Volvo Penta TAMD30A
• Volvo Penta TD164KAE
• Volvo Penta TD30A
• Volvo Penta TD31ACE
• Volvo Penta TD40A
• Volvo Penta TMD30A
• Volvo Penta TWD1620G
