1542267 Cover | Genuine Volvo Penta Part

🔧 Product Description

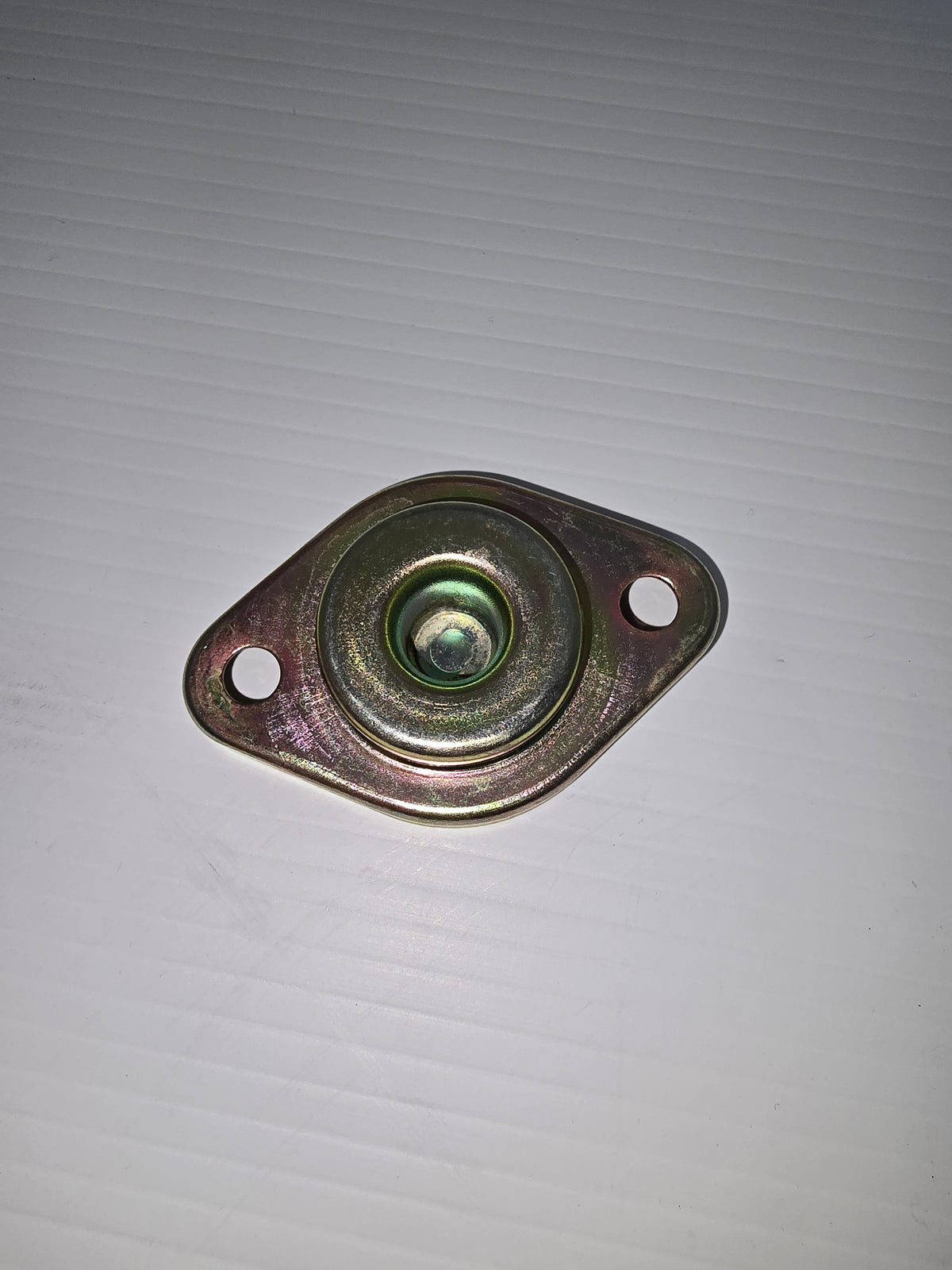

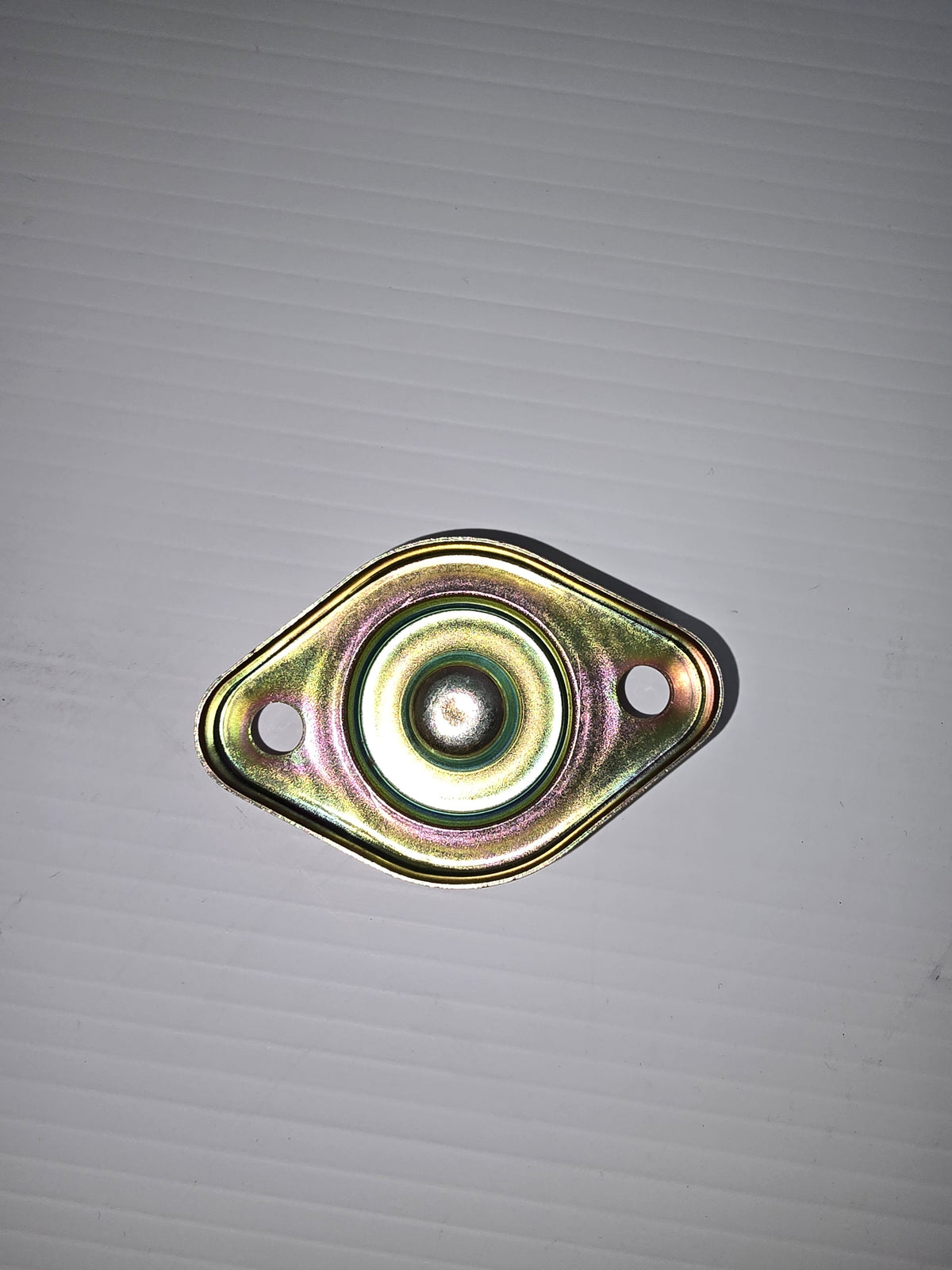

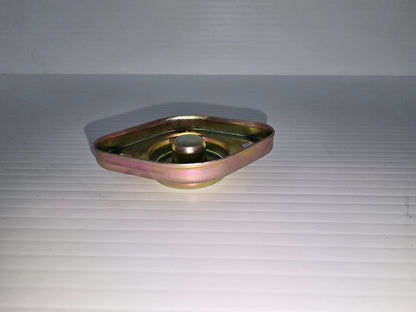

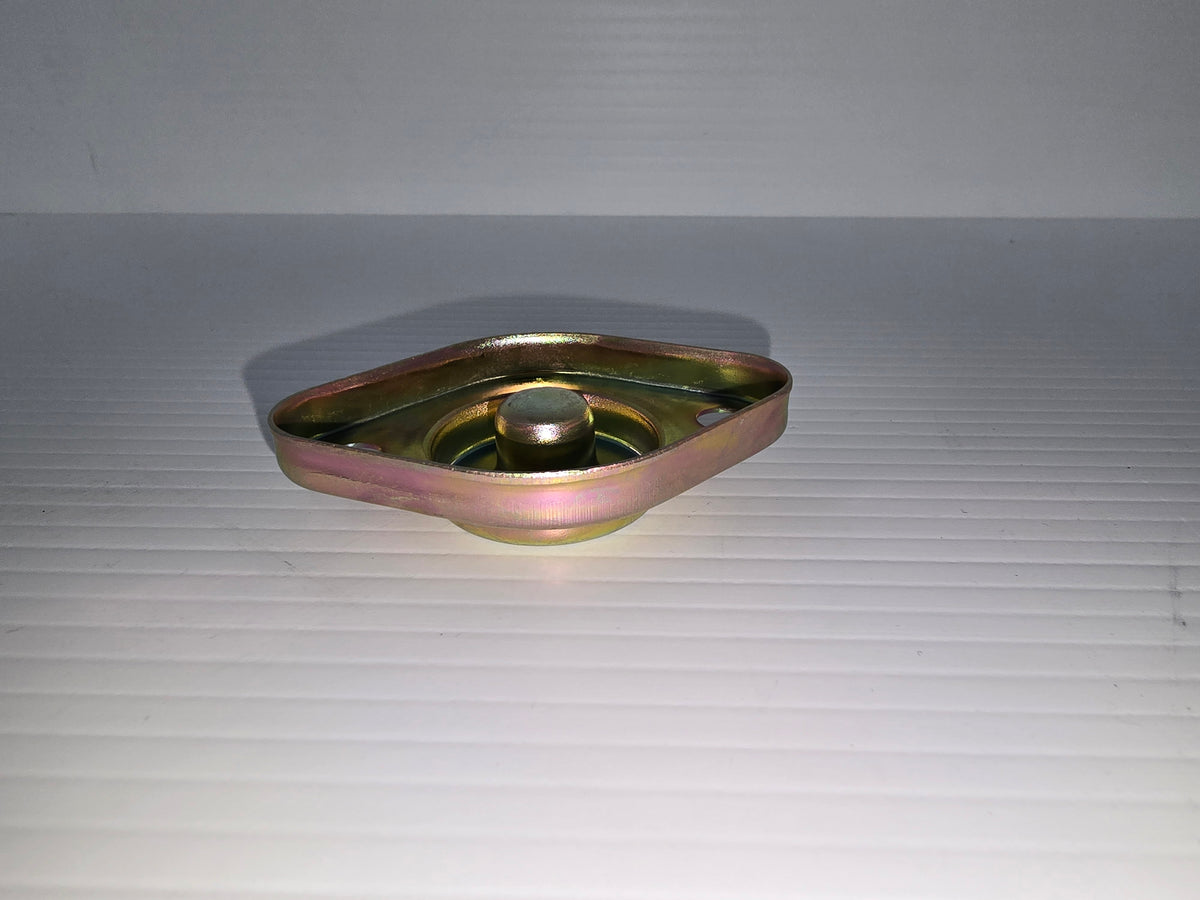

This is a genuine Volvo Penta cover from the lubricating and oil system group, part number 1542267. It is a small, lightweight component used to close off an opening within the engine's oil circuit so that lubricating oil is retained and contaminants are kept out. The same cover is used across a very wide span of Volvo Penta marine and industrial diesel engines, from the compact 2001-2003 series through to the larger TAMD162 and TWD/TAD1630 families.

🚤 Compatibility

• Engine Family: AQD, TMD, MD, TAMD, AD, AQAD, D, TWD, THD, TID, TD, DH, TAD, KAD, KAMD
• HP Range: Approximately 90-300 HP
• Year Range: Approximately 1970s - 2000s

Full model list at the end of this description.

⚙️ Key Features

• OEM Volvo Penta part number 1542267
• System group: Lubricating and Oil System
• Net weight 0.018 kg
• Fits 2001/2002/2003, MD30/31/40/41, AD31/AD41, TMD, TAMD, KAD/KAMD, THD102, TID162, TD70 and TWD/TAD1630 series engines
• Supplied as an individual cover component
• Engine type: Volvo Penta marine diesel lubrication and oil-filter system
• Quantity varies by assembly, most commonly two

🔌 Function

The cover closes an opening in the engine's lubrication circuit, helping keep pressurised oil contained and preventing dirt or water from entering. Correct sealing at this point supports stable oil pressure and clean oil throughout the engine.

⚠️ Common Signs of Failure

• Oil weeping or seepage around the cover and its sealing face
• Visible oil film or residue collecting below the cover after running
• Cracked, distorted or corroded cover that no longer seats flat
• Loss of oil level between services with no other identifiable leak point
• Damaged or pitted sealing surface found during service or reassembly

🛠️ Service Notes

• Clean both sealing faces back to clean metal and check the cover for distortion, cracks or pulled bolt holes before refitting — a warped flange will not seal even with a new gasket
• Where the joint uses a gasket, seal or O-ring, always fit a new one and seat it dry unless the workshop manual for your engine specifies a sealant; never try to make a poor joint tight with extra sealant
• Tighten the fasteners progressively and evenly, working out from the centre, to the figure given in the manual for your engine — pressed steel, alloy and plastic covers distort easily if pulled down hard or unevenly
• If the cover carries a shaft seal or bearing, support it square to the shaft as it goes on so the seal lip is not nicked or rolled over
• Check that any breather, drain or oil return passage in the cover is clear before final tightening, and look for leaks once the engine has been run up to temperature

🔄 Supersession & Cross Reference

OEM / Related Numbers

• 3581943 related oil-filter housing
• 1542265 related valve seat - quantity 2
• 471085 related valve cone - quantity 2
• 468087 related spring - quantity 2

📦 Condition

• Genuine Volvo Penta part
• Brand new
• Supplied in original or equivalent packaging

🔎 Full Model Compatibility

Typically suits:

• Volvo Penta 2003, 2003R, 2003R SOLAS, 2003TB, 2003TB SOLAS, 2001AG, 2001B, 2001BG, 2001D, 2003D, 2003T, 2003TR, 2002AG, 2002B, 2002BG, 2002D, 2003B, 2003B SOLAS, 2003 SOLAS, 2001, 2002, 2001R
• Volvo Penta TAMD31L-A, TAMD31M-A, TAMD31P, TAMD31P-A, TAMD31S, TAMD31A, TAMD31B, TAMD31D
• Volvo Penta TAMD41B, TAMD41D, TAMD41H-A, TAMD41H-B, TAMD41P-A, TAMD41P, TAMD41A
• Volvo Penta AD31, AD31B, AD31D-A, AD31L-A, AD31P-A, AD31XD
• Volvo Penta AD41B, AD41D, AD41L-A, AD41P-A, AD41A, AD41BJ
• Volvo Penta TAMD162C-C, TAMD162A, TAMD162B, TAMD162C, TAMD162C-B
• Volvo Penta TID162AG, TID162AGP, TID162AP, TID162APB
• Volvo Penta TMD31A, TMD31B, TMD31D, TMD31L-A
• Volvo Penta TMD41A, TMD41B, TMD41D, TMD41L-A
• Volvo Penta D41B, D41D, D41L-A
• Volvo Penta KAD42A, KAD42B, KAD42P-A
• Volvo Penta KAD44P, KAD44P-B, KAD44P-C
• Volvo Penta KAMD42A, KAMD42B, KAMD42P-A
• Volvo Penta KAMD43P, KAMD43P-A, KAMD43P-B
• Volvo Penta KAMD44P-B, KAMD44P-C, KAMD44P-A
• Volvo Penta TAD1630G, TAD1630GE, TAD1630P
• Volvo Penta TD70G, TD70B, TD70G-83
• Volvo Penta THD102KB, THD102KD, THD102K-KB
• Volvo Penta TMD40A, TMD40B, TMD40C
• Volvo Penta TWD1630G, TWD1630P, TWD1630V
• Volvo Penta AQAD40B, AQAD40A
• Volvo Penta KAD43P-B, KAD43P-A
• Volvo Penta MD70B, MD70C
• Volvo Penta TAD1631GE, TAD1631G
• Volvo Penta TAMD163A-A, TAMD163P-A
• Volvo Penta TAMD165A, TAMD165C
• Volvo Penta TAMD40A, TAMD40B
• Volvo Penta TAMD42WJ-A, TAMD42B
• Volvo Penta TMD70C, TMD70B
• Volvo Penta AQAD30A
• Volvo Penta AQD40A
• Volvo Penta AQD70B
• Volvo Penta D2003AG
• Volvo Penta D70B
• Volvo Penta DH10A
• Volvo Penta KAD300-A
• Volvo Penta KAD32P
• Volvo Penta KAMD300-A
• Volvo Penta MD30A
• Volvo Penta MD31A
• Volvo Penta MD40A
• Volvo Penta TAMD30A
• Volvo Penta TAMD70B
• Volvo Penta TD164KAE
• Volvo Penta TD30A
• Volvo Penta TD31ACE
• Volvo Penta TD40A
• Volvo Penta TID70G
• Volvo Penta TMD30A
• Volvo Penta TWD1620G
