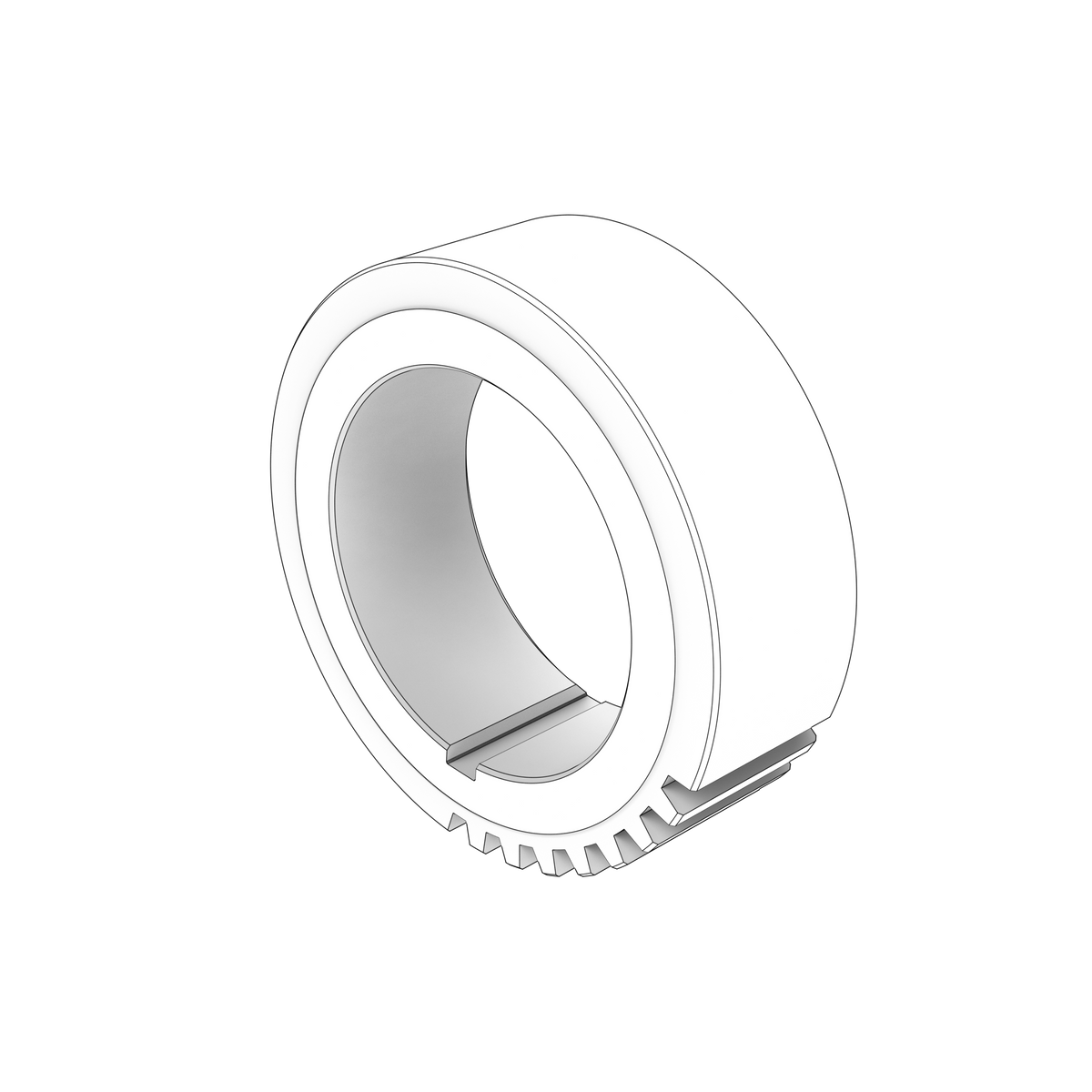

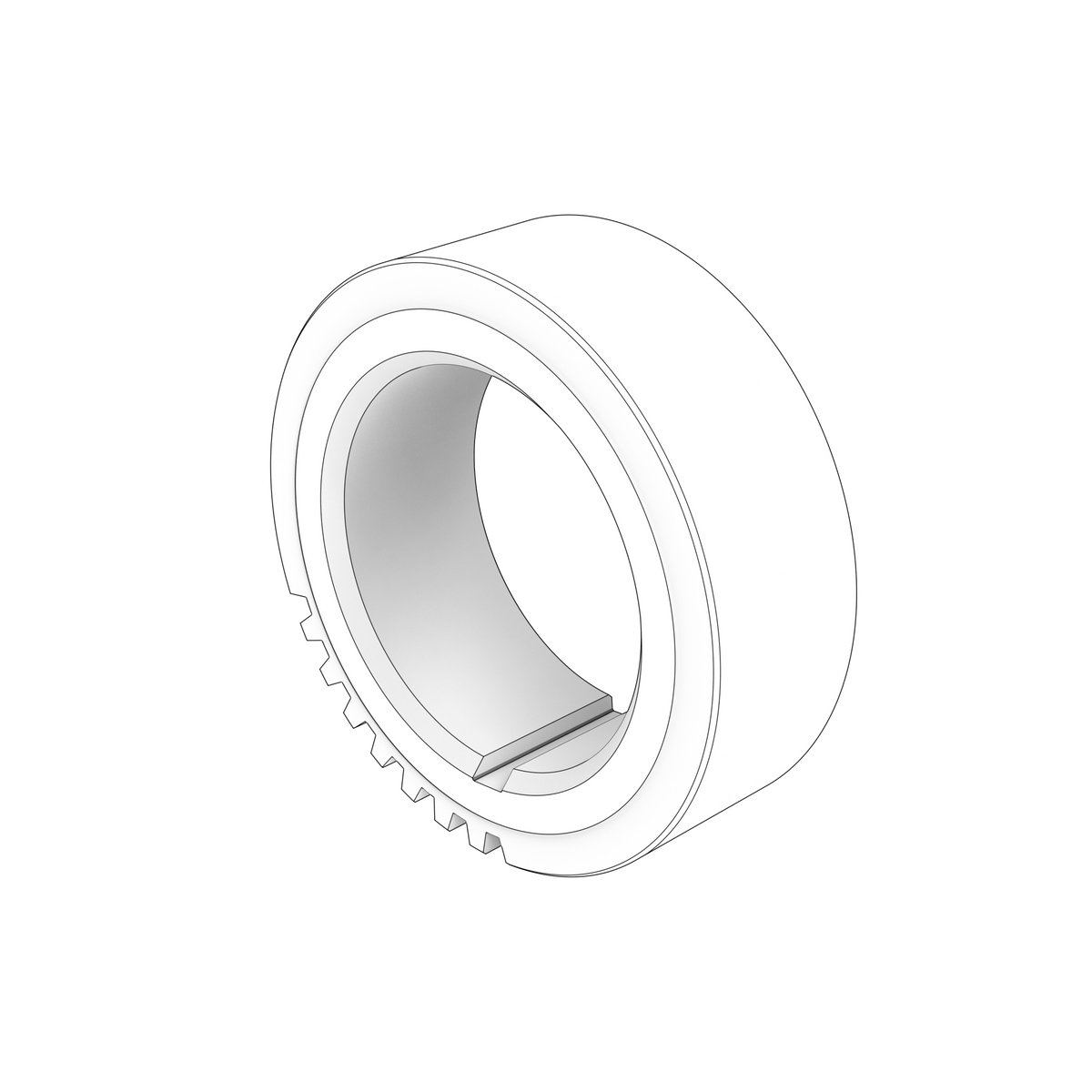

1542305 Gear | Genuine Volvo Penta Part

🔧 Product Description

A genuine Volvo Penta crankshaft timing gear for the front gear train of selected 30-, 31-, 40-, 41- and KAD-series engines. The gear is fixed to the crankshaft and drives the idler gears that operate the camshaft, injection pump and other timed components. It works with camshaft gear 1542034, idler gear 1542061 and the corresponding timing marks and key arrangement. Gear tooth condition must be assessed across the entire train.

🚤 Compatibility

• Engine Family: MD, TMD, AD, TAMD, AQAD, D, TD, DP, DPX, SP, AQD, KAMD, KAD
• HP Range: Approximately 90-300 HP
• Year Range: Approximately 1970s - 2000s

Full model list at the end of this description.

⚙️ Key Features

• OEM Volvo Penta part number 1542305
• System group: Engine
• Net weight: 0.36 kg (0.8 lb)
• Fits MD, TMD, TAMD, AD, AQAD, KAD and KAMD 30/31/40/41/42/43/44 series marine diesel engines and related SP/DP/DPX drive applications
• Supplied as a single gear, not as a kit or assembly
• Engine type: Volvo Penta 4- and 6-cylinder marine diesel timing-gear system

🔌 Function

The gear transfers rotational drive between shafts within the engine, meshing with its mating gear to maintain the correct drive ratio and timing relationship. Correct tooth condition and backlash are essential for quiet, reliable power transfer.

⚠️ Common Signs of Failure

• Whining, growling or cyclic noise from the gear train that changes with engine speed
• Visibly worn, chipped, pitted or broken gear teeth on inspection
• Excessive backlash or play between meshing gears
• Metal particles or bright flakes found in the oil or on the drain plug
• Loss of correct timing or drive to the driven component

🛠️ Service Notes

• Inspect the mating gear as well as the one being renewed; a chipped or worn tooth on the partner will quickly ruin a new gear, so change them as a pair where the wear is shared
• Check the shaft, bush or bearing the gear runs on for wear and scoring before assembly and renew anything that is not to size
• Fit the gear square and press it home rather than driving it with hammer blows, which spread the bore and mark the teeth
• Oil the teeth and bearing surfaces on assembly so the gear is not run up dry on first start
• Where the workshop manual for your engine gives backlash, end float or timing settings for the gear, set and check them to those figures rather than by feel

🔄 Supersession & Cross Reference

OEM / Related Numbers

• 1542034 related camshaft gear
• 1542061 related idler gear
• 1542065 related thrust washer
• 1542318 related front crankshaft sealing ring

📦 Condition

• Genuine Volvo Penta part
• Brand new
• Supplied in original or equivalent packaging

🔎 Full Model Compatibility

Typically suits:

• Volvo Penta AD41P-B, AD41B, AD41D, AD41L-A, AD41P-A, AD41, AD41A, AD41BJ
• Volvo Penta TAMD31L-A, TAMD31M-A, TAMD31P, TAMD31P-A, TAMD31S, TAMD31A, TAMD31B, TAMD31D
• Volvo Penta TAMD41B, TAMD41D, TAMD41H-A, TAMD41H-B, TAMD41M-A, TAMD41P-A, TAMD41A
• Volvo Penta AD31, AD31B, AD31D-A, AD31L-A, AD31P-A, AD31XD
• Volvo Penta D41, D41B, D41D, D41L-A
• Volvo Penta DP-A, DP-A1, DP-B, DP-B1
• Volvo Penta TMD31A, TMD31B, TMD31D, TMD31L-A
• Volvo Penta TMD41A, TMD41B, TMD41D, TMD41L-A
• Volvo Penta KAD42A, KAD42B, KAD42P-A
• Volvo Penta KAD44P, KAD44P-B, KAD44P-C
• Volvo Penta KAMD42A, KAMD42B, KAMD42P-A
• Volvo Penta KAMD43P, KAMD43P-A, KAMD43P-B
• Volvo Penta KAMD44P-B, KAMD44P-C, KAMD44P-A
• Volvo Penta TMD40A, TMD40B, TMD40C
• Volvo Penta AQAD40B, AQAD40A
• Volvo Penta 740A, 290A
• Volvo Penta SP-A, SP-A1
• Volvo Penta TAMD40A, TAMD40B
• Volvo Penta TAMD42WJ-A, TAMD42B
• Volvo Penta AQAD30A
• Volvo Penta AQD40A
• Volvo Penta DPX
• Volvo Penta KAD300-A
• Volvo Penta KAD32P
• Volvo Penta KAD43P-A
• Volvo Penta KAMD300-A
• Volvo Penta MD30A
• Volvo Penta MD31A
• Volvo Penta MD40A
• Volvo Penta TAMD30A
• Volvo Penta TD30A
• Volvo Penta TD31ACE
• Volvo Penta TD40A
• Volvo Penta TMD30A
