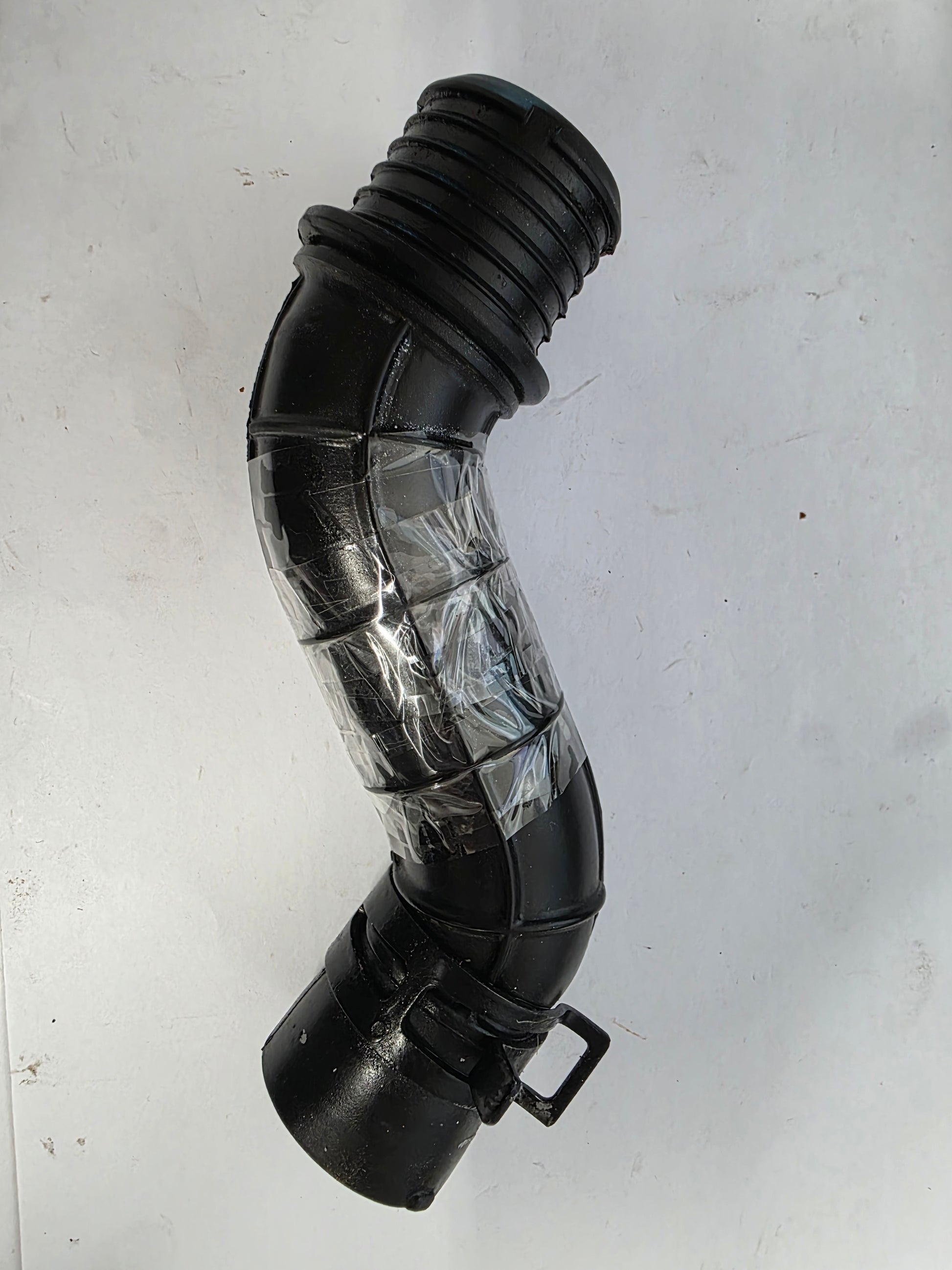

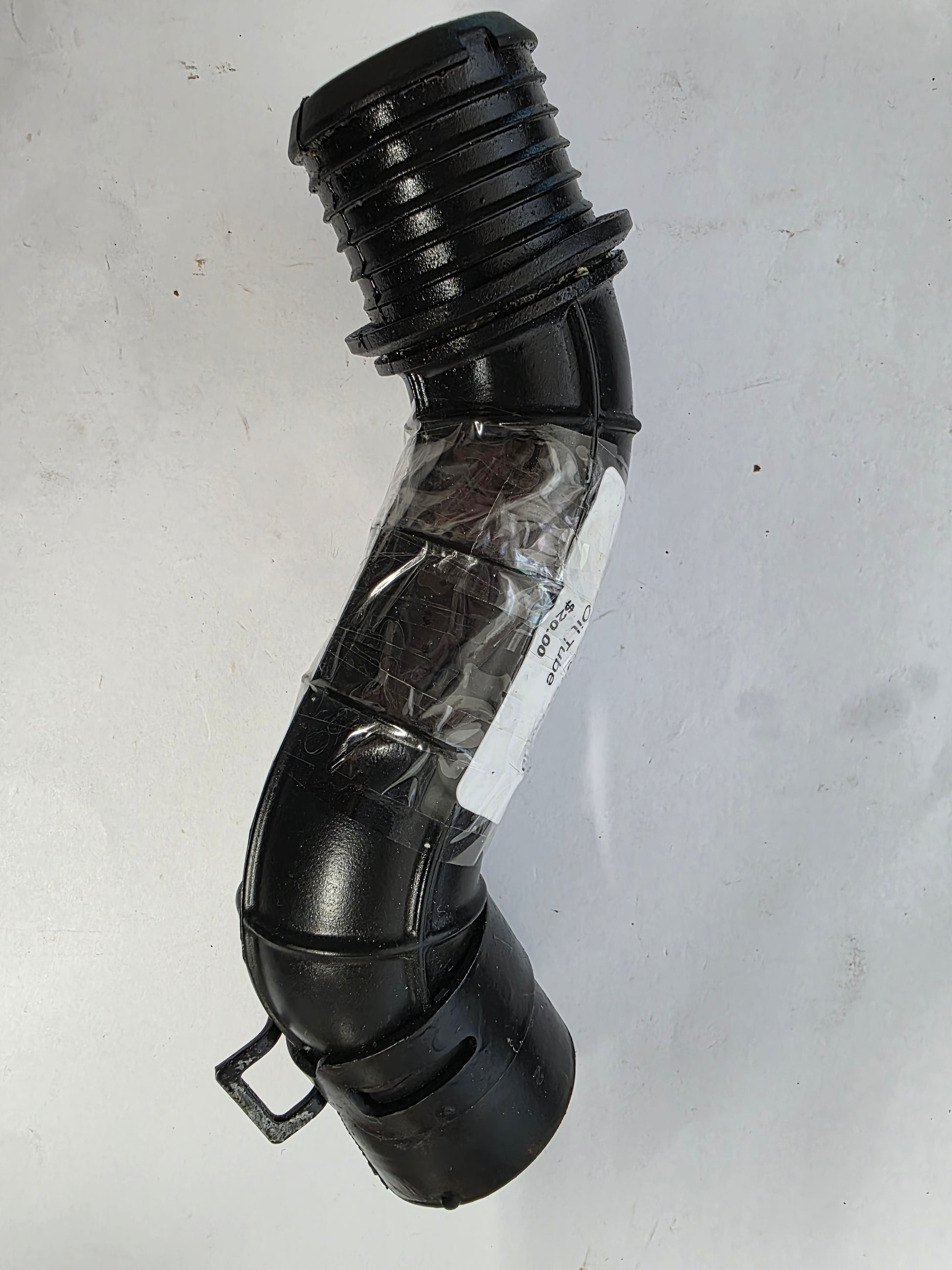

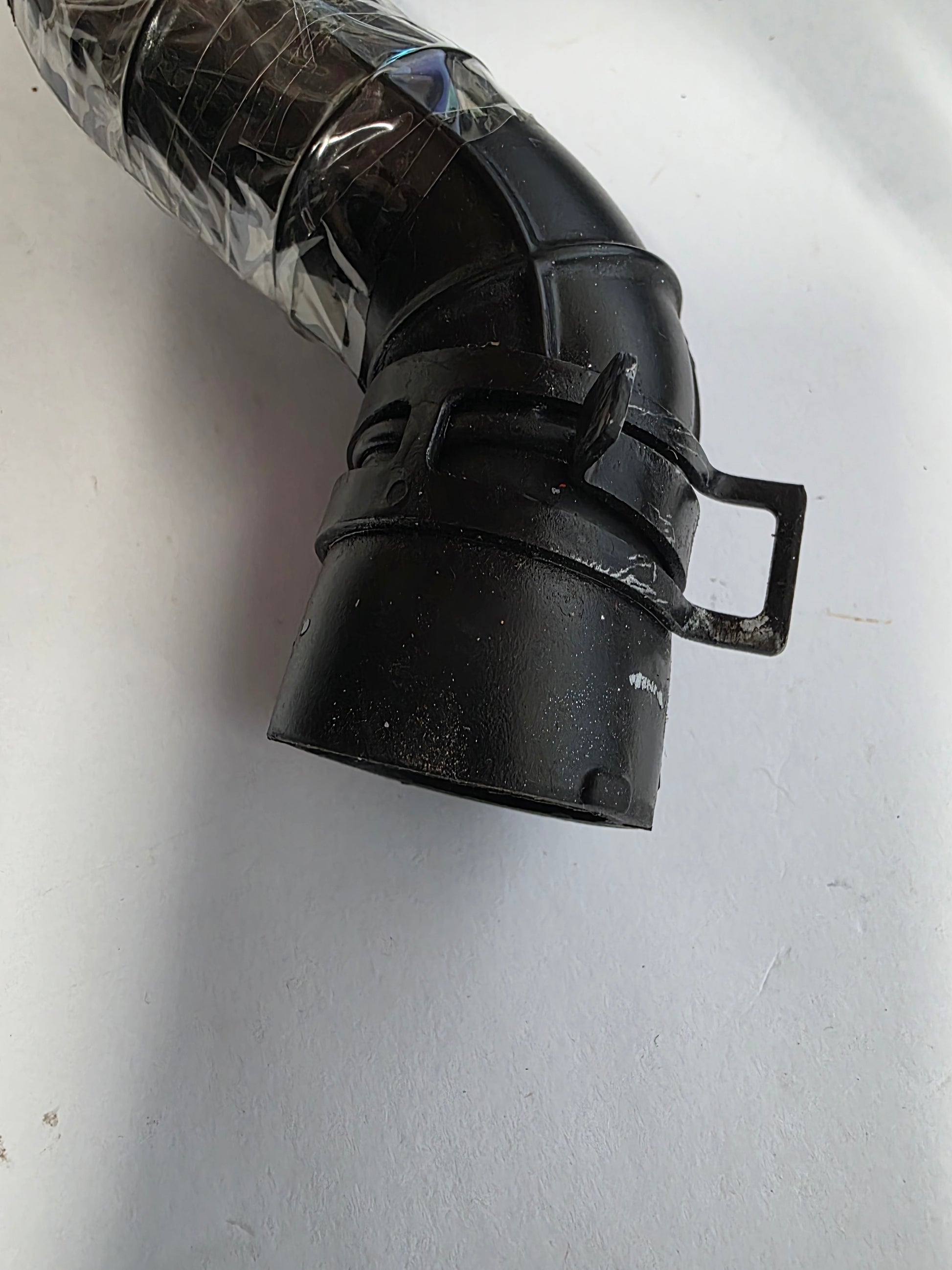

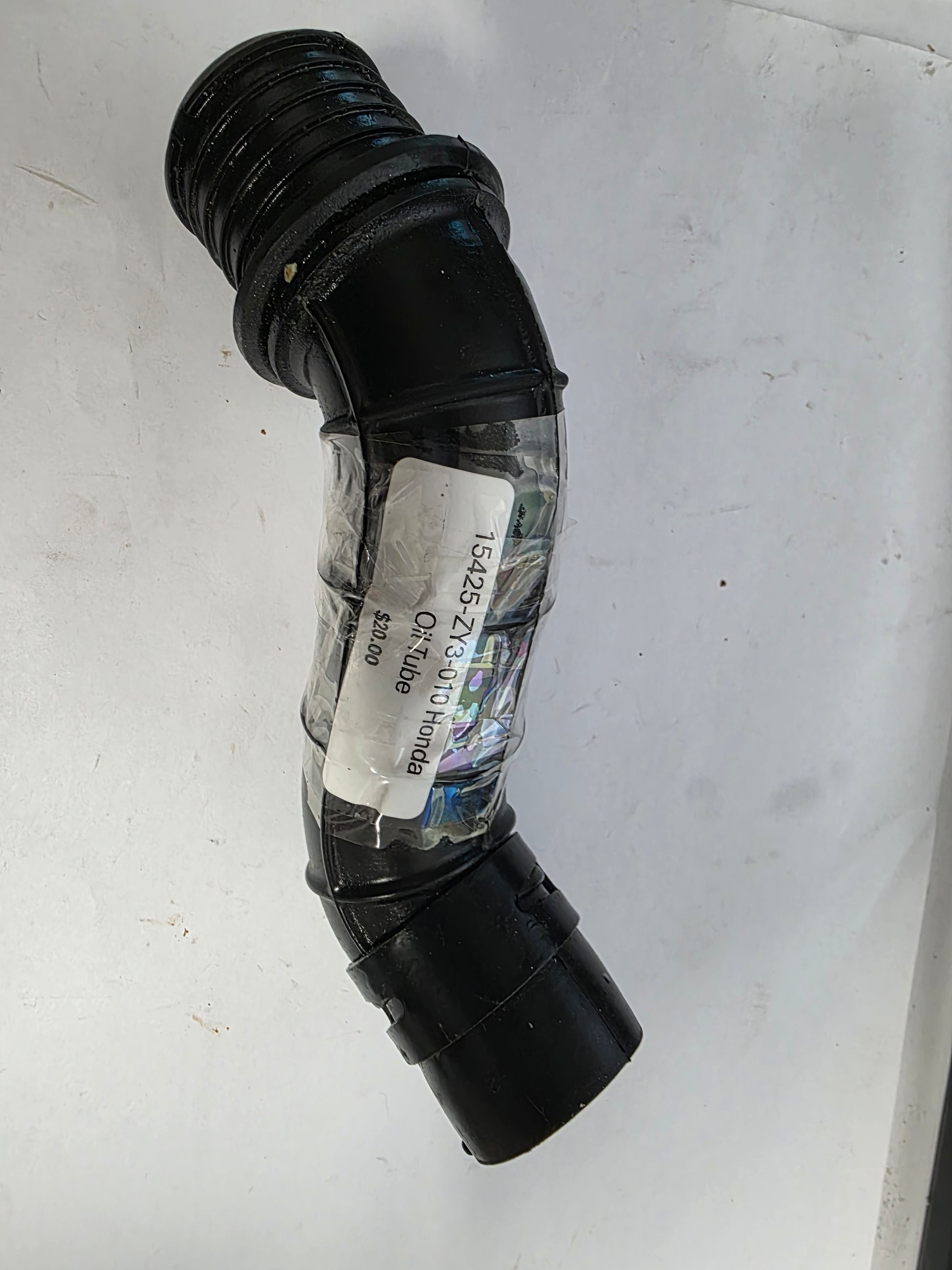

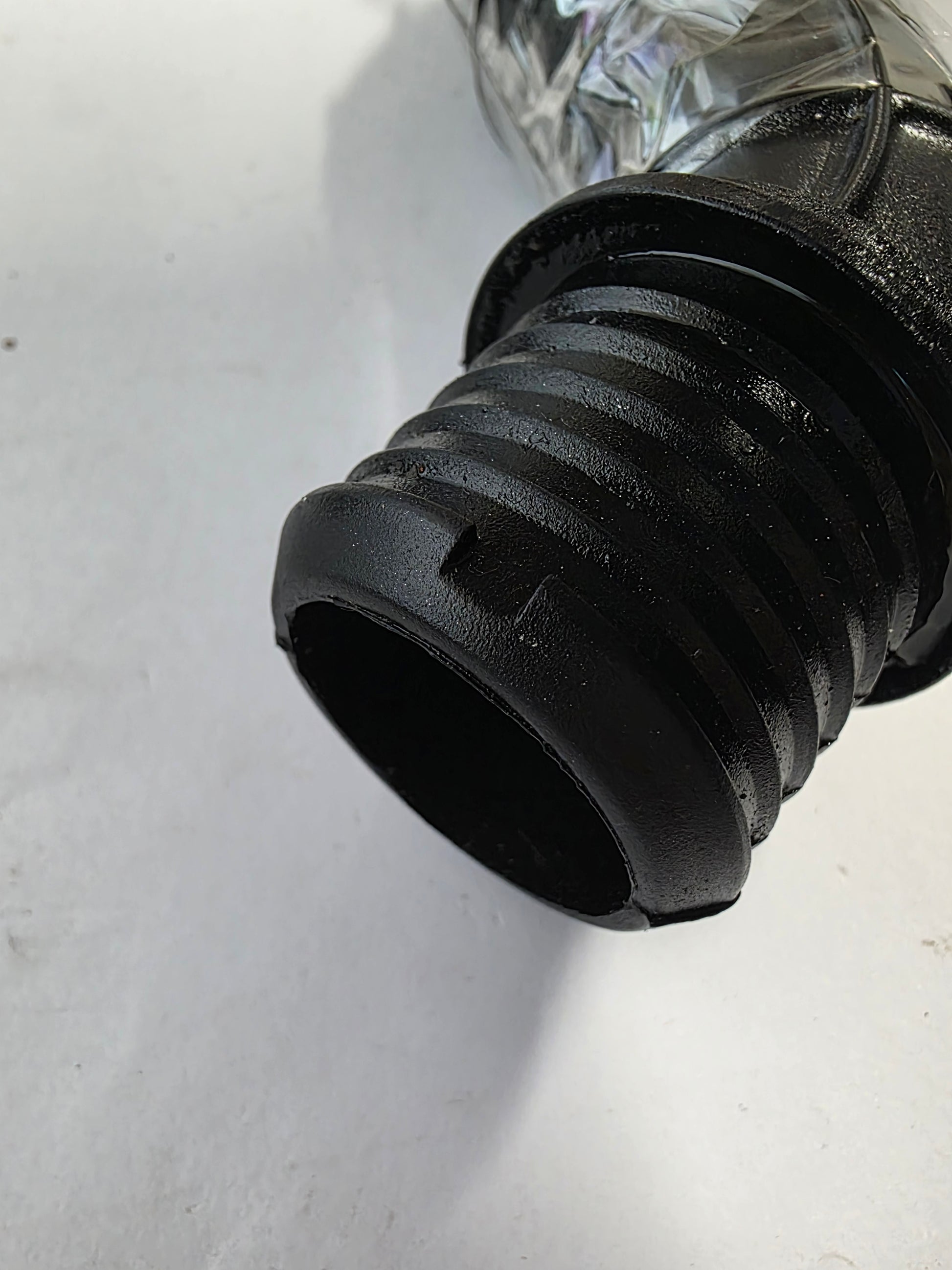

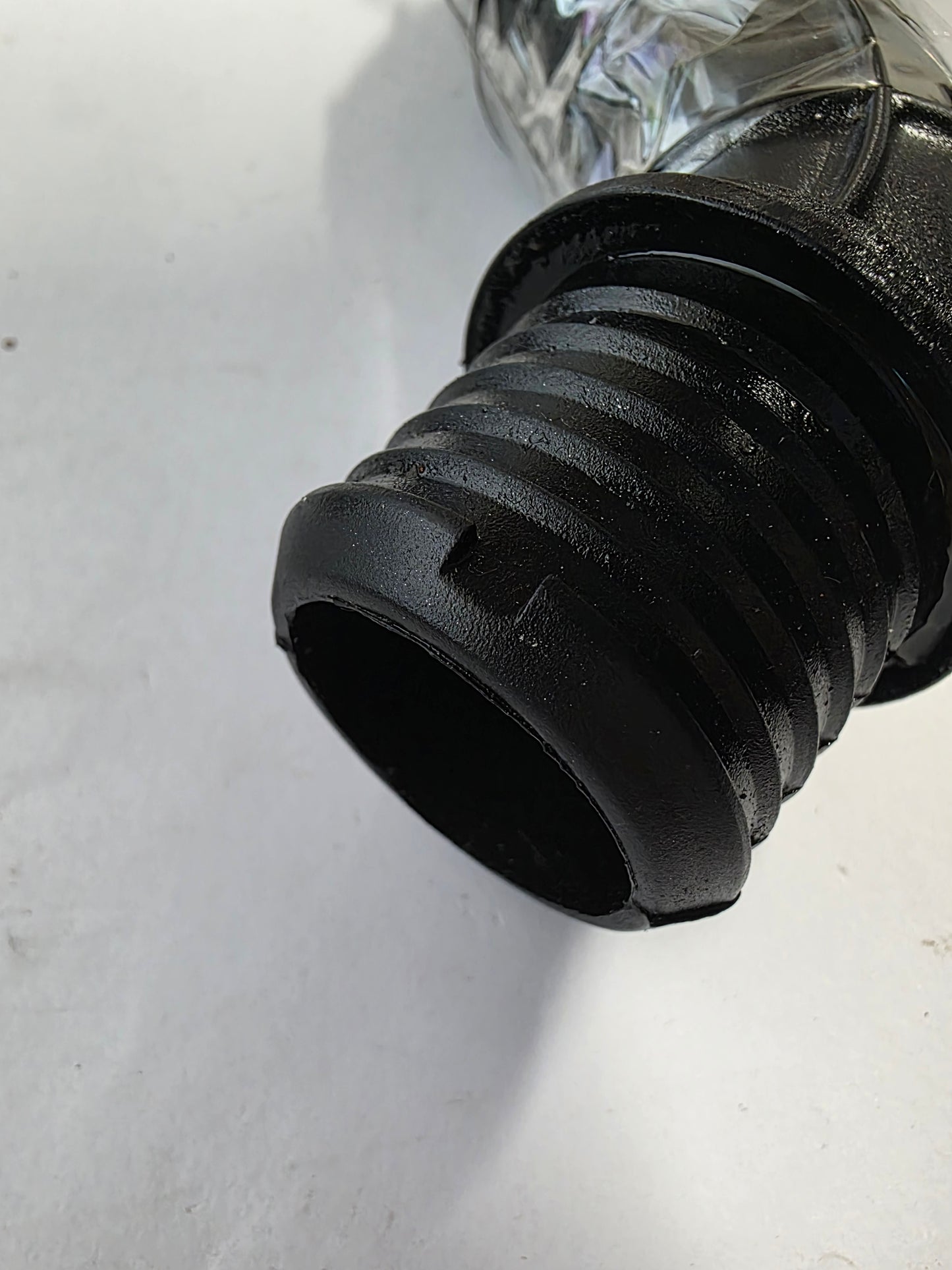

15425-ZY3-010 Honda Oil Tube | Genuine Used Part

🔧 Product Description

Genuine Honda V6 Cylinder-Head Oil Tube - Part Number: 15425-ZY3-010

A genuine used Honda Marine oil tube for selected BF200, BF225 and BF250 V6 four-stroke outboard motors.

The tube is installed within the cylinder-head-cover assembly and helps direct lubricating oil through the intended drain or return path. Correct routing is important for oil control within the upper valve-train area.

⚙️ Key Features

• Genuine used Honda Marine oil tube
• Correct OEM part number 15425-ZY3-010
• Fits within the V6 cylinder-head-cover assembly
• Factory-formed tube for correct oil routing
• Used on selected A-series and D-series engines

🚤 Compatibility

Commonly used on

• Honda large-displacement V6 cylinder-head covers
• Upper valve-train lubrication and oil-return systems

Typically suits

• Honda BF200A
• Honda BF200D
• Honda BF225A
• Honda BF225D
• Honda BF250A
• Honda BF250D
• Selected BF175 and later V6 applications only where the cylinder-head-cover diagram specifies 15425-ZY3-010
• HP Range: Approximately 200HP - 250HP
• Engine Type: Honda V6 EFI four-stroke outboard
• Year Range: Approximately 2002 onward, dependent on model and frame serial number

🔌 Function

The tube directs oil within the cylinder-head-cover area and helps maintain the intended lubrication and oil-drain path around the valve train.

⚠️ Common Signs of Failure

• Tube is cracked, split or distorted
• Oil collects excessively inside the cover
• Oil drainage from the cylinder head is restricted
• Tube is blocked by sludge
• Tube becomes loose in its mounting point
• Oil consumption or crankcase ventilation symptoms appear
• Incorrect tube routing causes contact with moving components

🔄 Supersession & Cross Reference

OEM Supersession Chain

• 15425-ZY3-010 current listed Honda oil-tube reference

OEM / Related Numbers

• 15425-ZY3-010
• 15425ZY3010
• 15425-ZY3
• Related cylinder-head cover
• Related cylinder-head-cover gasket and flange bolts
• Two tubes may be used across the paired V6 cylinder-head-cover assemblies where specified

Aftermarket / Verified Equivalents

• No aftermarket equivalent

📦 Condition

• Genuine used part
• Inspect for sludge, cracks and distortion before installation
• Removed from running engine where applicable
• In good working condition unless otherwise stated
