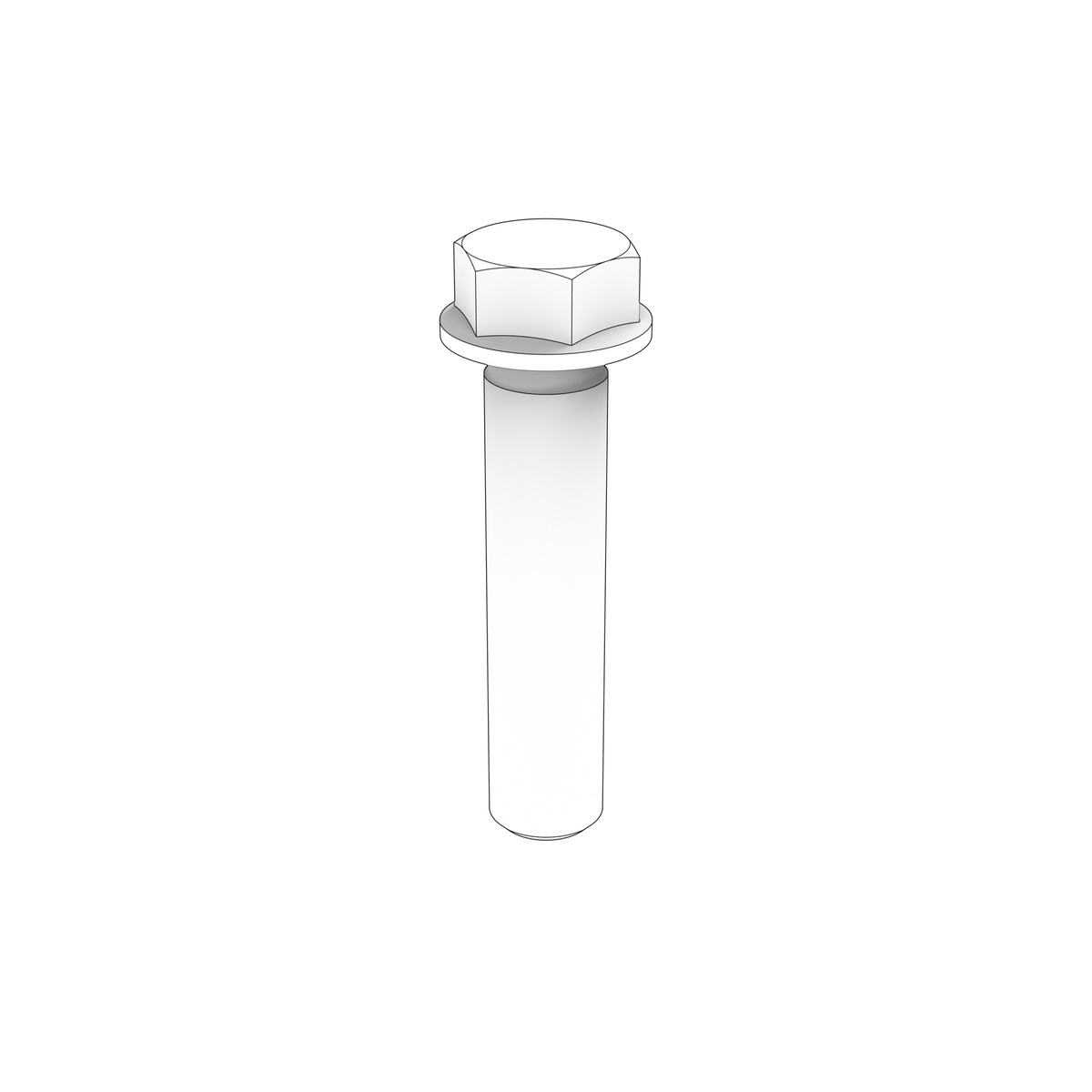

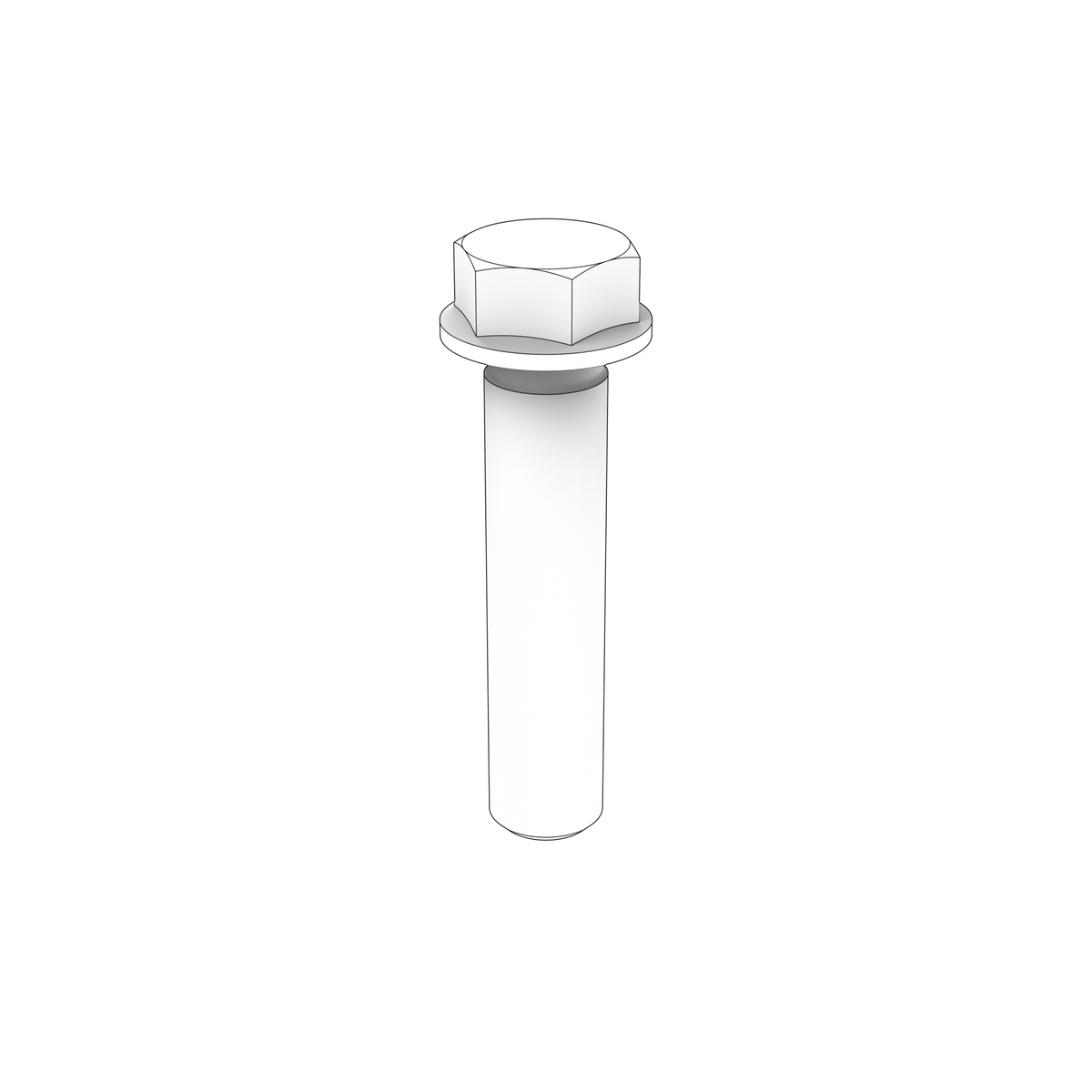

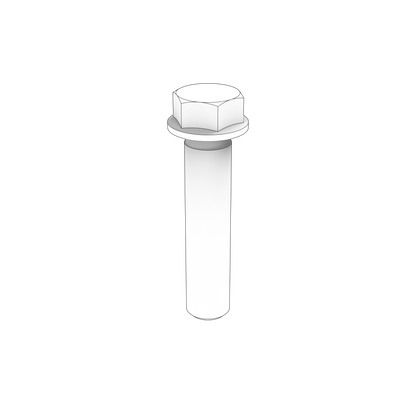

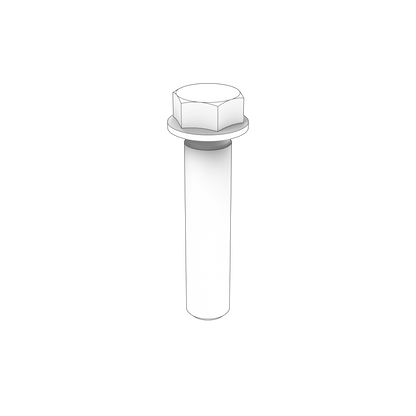

1543035 Flange Screw | Genuine Volvo Penta Part

🔧 Product Description

A genuine Volvo Penta high-strength connecting-rod flange screw used to clamp the connecting-rod cap on selected D12 and D16 engine families. The fastener is exposed to high cyclic tensile loading and must be tightened using the exact torque-and-angle procedure specified for the engine. Twelve screws are normally required for a complete six-cylinder engine. Reuse, stretch limits and replacement requirements must be determined from the applicable workshop manual rather than assumed.

🚤 Compatibility

• Engine Family: TAMD, D, TWD, TID, TD, TAD
• Year Range: Approximately 1990s through the 2010s, dependent on engine family

Full model list at the end of this description.

⚙️ Key Features

• OEM Volvo Penta part number 1543035
• Length: L=72mm
• System group: Engine
• Net weight: 0.066 kg
• Flanged head design spreads clamp load without a separate washer
• Fits D12, TAMD, TAD, TWD, TID and TD series marine and industrial diesel engines
• Engine type: Volvo Penta D12 and D16 inline 6-cylinder turbocharged diesel

🔌 Function

A flange screw clamps engine components, housings or brackets to their mating surface, with the wide flange head distributing load and helping the joint resist loosening under vibration. Correct length is essential to achieve full thread engagement and proper clamping force.

⚠️ Common Signs of Failure

• Corrosion or thread damage preventing correct torque being reached
• Stretched, necked or snapped shank after over-torquing or repeated re-use
• Loose fastener causing leaks, movement or noise at the joint it secures
• Damaged or deformed flange face leaving an uneven clamping surface
• Seized or galled threads discovered during removal

🛠️ Service Notes

• The integral flange spreads the load and forms the bearing face, so do not add a separate washer unless the workshop manual for your engine specifically calls for one
• Clean the threads and the seating face before fitting — grit, paint or old sealant under the flange gives a false torque reading and the joint will slacken off in service
• Where the flange is serrated it must bear directly on clean metal to grip; discard any screw with a deformed flange or damaged serrations rather than reusing it
• Tighten to the torque and sequence given in the workshop manual for your engine, and treat the screw as single-use where the manual specifies an angle-tightened or stretch fastener
• Check the thread in the receiving component at the same time; a pulled or corroded thread will not hold a new screw however carefully it is torqued

🔄 Supersession & Cross Reference

Aftermarket / Verified Equivalents

• BF 200604D1209
• BF Germany: 200604D1209
• DT Spare Parts: 2.10356

📦 Condition

• Genuine Volvo Penta part
• Brand new
• Supplied in original or equivalent packaging

🔎 Full Model Compatibility

Typically suits:

• Volvo Penta D12C-A MP, D12D-A MG, D12D-A MH, D12D-A MP, D12D-B MH, D12D-B MP, D12D-C MH, D12D-C MP, D12D-D MP, D12D-E MG, D12D-E MH, D12D-E MP, D12D-F MP, D12D-G MH, D12D-G MP, D12D-H MP
• Volvo Penta TAMD162C-C, TAMD162A, TAMD162B, TAMD162C, TAMD162C-B
• Volvo Penta TID162AG, TID162AGP, TID162AP, TID162APB
• Volvo Penta TAD1241GE, TAD1241VE, TAD1241-42VE
• Volvo Penta TAD1630G, TAD1630GE, TAD1630P
• Volvo Penta TAMD165A, TAMD165C, TAMD165P
• Volvo Penta TWD1630G, TWD1630P, TWD1630V
• Volvo Penta TAD1242GE, TAD1242VE
• Volvo Penta TAD1250VE, TAD1250-52VE
• Volvo Penta TAD1631GE, TAD1631G
• Volvo Penta TAMD163A-A, TAMD163P-A
• Volvo Penta TAMD63L-A, TAMD63P-A
• Volvo Penta TD610G, TD610V
• Volvo Penta TWD610G, TWD610V
• Volvo Penta TAD1240GE
• Volvo Penta TAD1251VE
• Volvo Penta TAD1252VE
• Volvo Penta TD164KAE
• Volvo Penta TD630VE
• Volvo Penta TD640VE
• Volvo Penta TWD1240VE
• Volvo Penta TWD1620G
• Volvo Penta TWD630VE
