1543173 Setting Indicator | Genuine Volvo Penta Part

🔧 Product Description

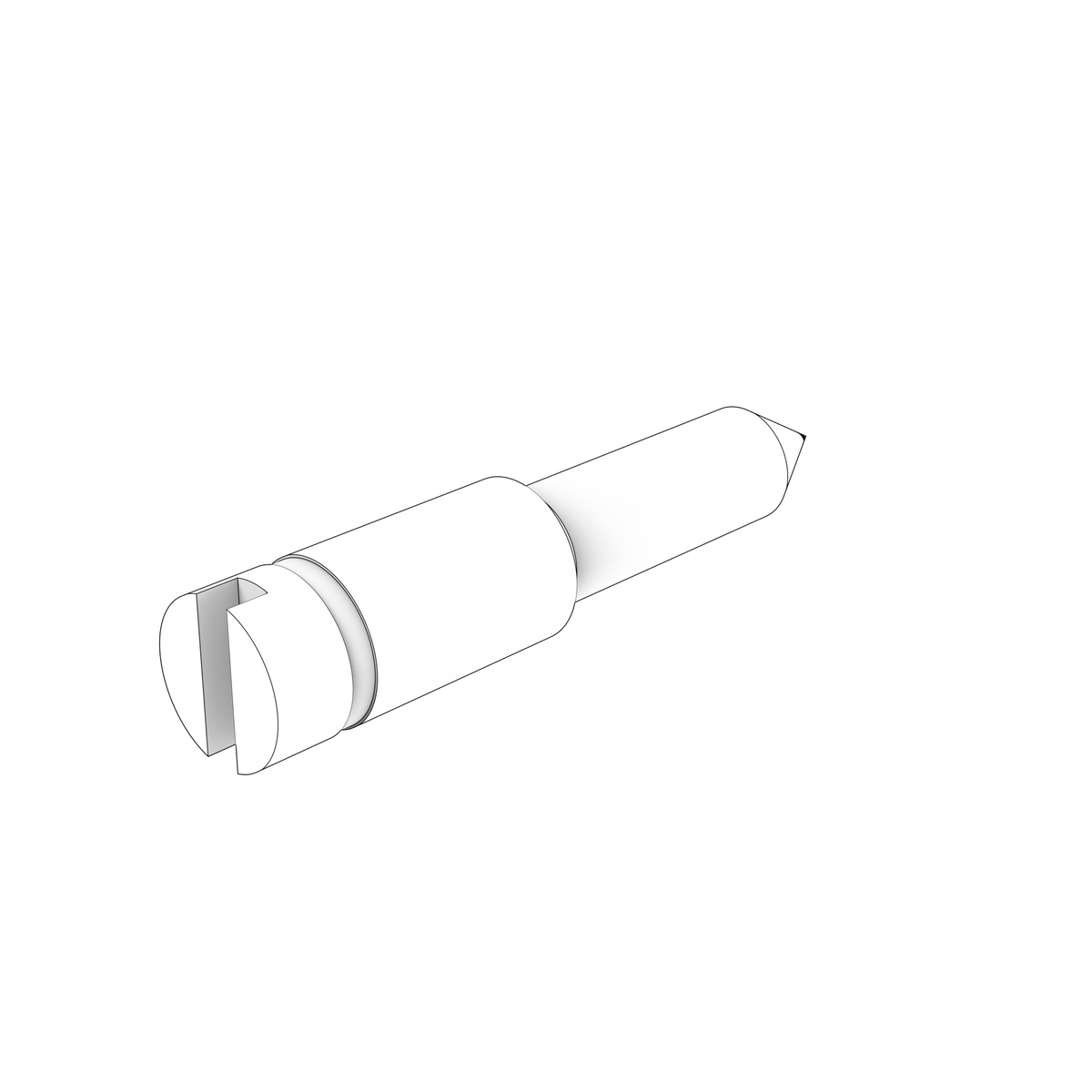

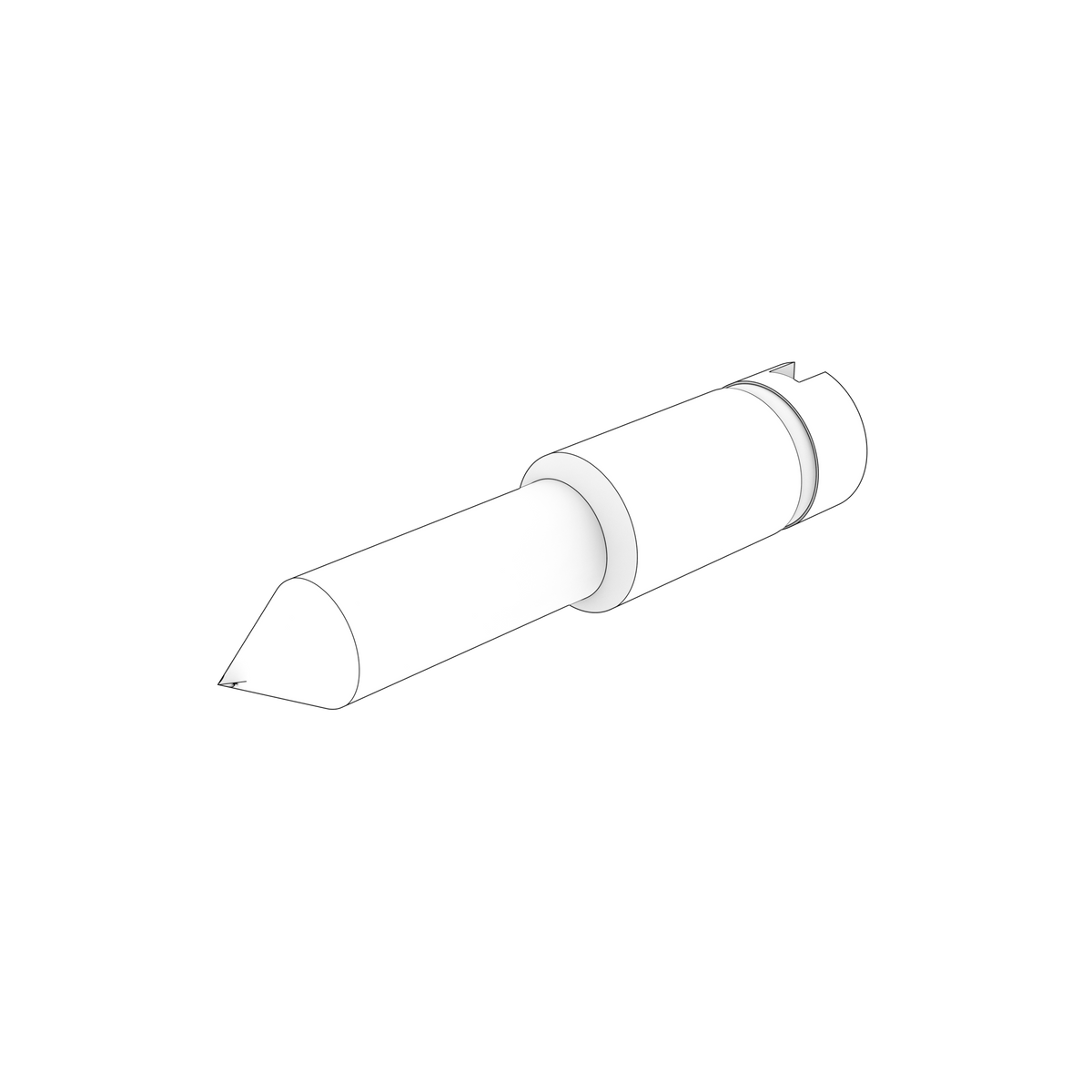

Genuine Volvo Penta setting indicator, part number 1543173, forming part of the fuel system group on Volvo Penta TD, TID, TWD, TAD and TAMD series engines. This lightweight indicator provides the reference marking used when setting and checking fuel injection pump timing, ensuring the pump is aligned to the correct position during service. It supersedes the earlier part number 4772141 and carries the same function across the later engine range.

🚤 Compatibility

• Engine Family: TWD, TID, TD, TAMD, TAD
• Year Range: Approximately 1970s through the 2000s

Full model list at the end of this description.

⚙️ Key Features

• OEM Volvo Penta part number 1543173
• System group: Fuel System
• Net weight 0.004 kg
• Supersedes previous part number 4772141
• Fits Volvo Penta TD, TID, TWD, TAD and TAMD series industrial and marine diesel engines
• Engine type: Volvo Penta inline 6-cylinder marine and industrial diesel

🔌 Function

The setting indicator provides the fixed reference mark used to establish correct injection pump setting during timing checks and adjustment. It allows the pump position to be read accurately against the engine's timing reference when servicing the fuel system.

⚠️ Common Signs of Failure

• Markings worn, corroded or no longer legible, making accurate timing impossible
• Bent or physically damaged indicator giving a false reference position
• Loose or missing fixing hardware allowing the indicator to shift out of position
• Injection pump timing repeatedly found out of specification after adjustment
• Corrosion or pitting from prolonged exposure in the engine bay

🛠️ Service Notes

• This indicator is for fuel injection pump timing, not a transmission shift-position indicator - other 'setting indicator' listings in this range serve Clark or ZF gearboxes instead, so confirm the application before ordering
• It's the current reference for the earlier part number 4772141, carrying the same timing-reference function onto the later engines in this fitment list

🔄 Supersession & Cross Reference

OEM Supersession Chain

• 1543173 → Supersedes 4772141

OEM / Related Numbers

• 4772141 earlier number superseded by this part
• 11032003 related flywheel housing
• 3837156 related flywheel housing
• 85108352 related rear crankshaft seal
• 4772168 related inspection cover
• 4804167 related cover gasket

Other-Brand OEM Numbers

• Volvo Construction Equipment: VOE4772141
• Volvo Construction Equipment: VOE1543173

📦 Condition

• Genuine Volvo Penta part
• Brand new
• Supplied in original or equivalent packaging

🔎 Full Model Compatibility

Typically suits:

• Volvo Penta TAMD162C-C, TAMD162A, TAMD162B, TAMD162C, TAMD162C-B
• Volvo Penta TAD1630G, TAD1630GE, TAD1630P, TAD1630PB
• Volvo Penta TID162AG, TID162AGP, TID162AP, TID162APB
• Volvo Penta TWD1630G, TWD1630P, TWD1630PP, TWD1630V
• Volvo Penta TAMD122P-A, TAMD122P-B, TAMD122P-C
• Volvo Penta TAMD165A, TAMD165C, TAMD165P
• Volvo Penta TWD610P, TWD610PB, TWD610V
• Volvo Penta TWD710P, TWD710PB, TWD710V
• Volvo Penta TAD1631GE, TAD1631G
• Volvo Penta TAD730P, TAD730V
• Volvo Penta TAMD163A-A, TAMD163P-A
• Volvo Penta TD730ME, TD730VE
• Volvo Penta TD164KAE
• Volvo Penta TD610V
• Volvo Penta TD630VE
• Volvo Penta TD71A
• Volvo Penta TID71A
• Volvo Penta TWD1620G
• Volvo Penta TWD630VE
• Volvo Penta TWD730ME
• Volvo Penta TWD731VE
