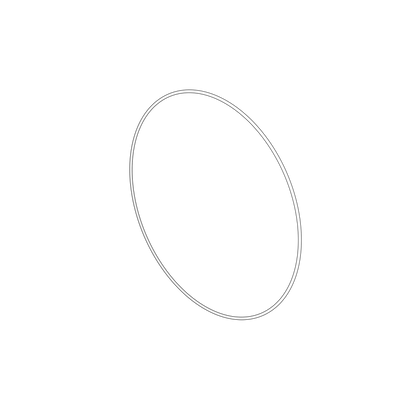

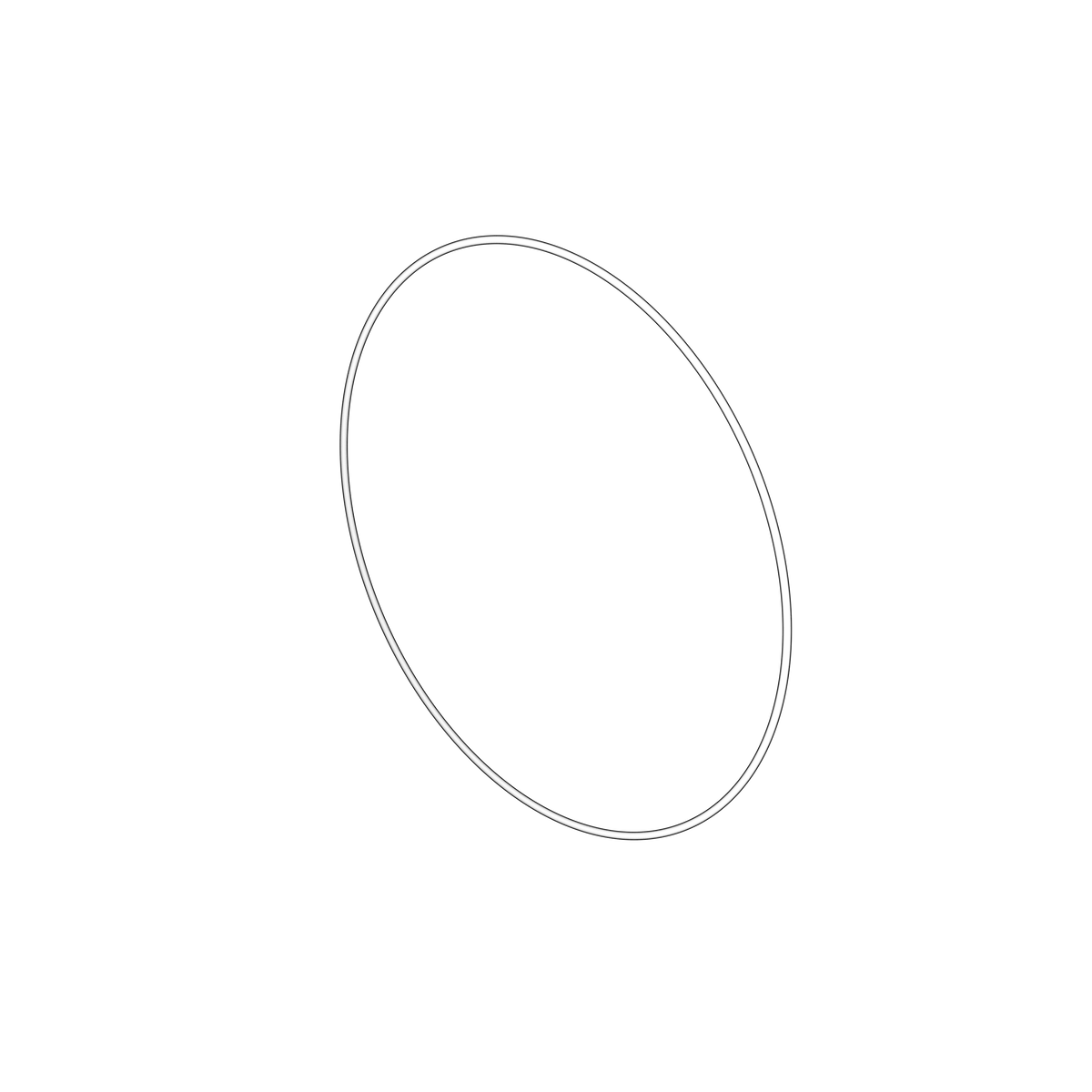

1543507 Sealing Ring | Genuine Volvo Penta Part

🔧 Product Description

Genuine Volvo Penta sealing ring from the Engine group, supplied in the upper position variant. It provides a static seal at its mating joint, and the "Upper" designation distinguishes it from the lower-position ring used at the same assembly. Fitted across the TAMD162, TAMD163, TAMD165, TAD1630/1631, TWD1630 and TD164 series engines.

🚤 Compatibility

Typically suits:

• Volvo Penta TWD1630G
• Volvo Penta TWD1630P
• Volvo Penta TWD1630V
• Volvo Penta TD164KAE
• Volvo Penta TAMD162C-C
• Volvo Penta TAMD162A
• Volvo Penta TAMD162B
• Volvo Penta TAMD162C
• Volvo Penta TAMD162C-B
• Volvo Penta TAD1630G
• Volvo Penta TAD1630GE
• Volvo Penta TAD1630P
• Volvo Penta TAD1631GE
• Volvo Penta TAMD163A-A
• Volvo Penta TAMD163P-A
• Volvo Penta TAMD165A
• Volvo Penta TAMD165C
• Volvo Penta TAMD165P
• Volvo Penta TAD1631G

• Engine Family: TWD, TD, TAMD, TAD

⚙️ Key Features

• OEM Volvo Penta part number 1543507
• Upper position sealing ring
• System group: Engine
• Net weight approximately 0.007 kg
• Fits TAMD162, TAMD163, TAMD165, TAD1630, TAD1631, TWD1630 and TD164 series engines
• Engine type: Volvo Penta heavy-duty inline-six diesel engine

🔌 Function

The sealing ring forms a static seal between two mating components to contain fluid or gas and prevent leakage at the joint. As the upper item, it seats at the top position of its assembly and works together with the corresponding lower ring.

⚠️ Common Signs of Failure

• Visible fluid seepage or drips around the sealed joint
• Hardened, cracked or brittle ring material on inspection
• Flattened, distorted or extruded ring that no longer holds its cross-section
• Loss of system pressure or air ingress at the sealed connection
• Staining or residue tracks below the joint indicating a slow weeping leak

🛠️ Service Notes

• Always fit a new sealing ring rather than reusing the old one — a ring that has been compressed once has taken a set and will not seal reliably a second time
• Clean the groove or seat and check it for scoring, corrosion and old sealant before fitting; a mark across the sealing face will leak however good the ring is
• Ease the ring into place without stretching, twisting or dragging it over sharp edges or threads, and check it is seated squarely all the way round before closing the joint
• Do not add sealant or jointing compound unless the workshop manual for your engine calls for it, and tighten the joint or union to the figure given in that manual
• Check the joint for weeping once the engine has been run up to temperature and allowed to cool, as many sealing rings only show a leak after a heat cycle

🔄 Supersession & Cross Reference

OEM / Related Numbers

• 270935 - Cylinder-liner sealing-ring kit
• 276924 - Cylinder-head sealing-ring kit requiring one 1543507 per cylinder on specified engines
• 877354 - Related cylinder-liner kit
• 914532 - Cylinder-liner snap ring
• 1543563 - Crankshaft/flywheel washer

Aftermarket / Verified Equivalents

• SLP: CLT-507

📦 Condition

• Genuine Volvo Penta part
• Brand new
• Supplied in original or equivalent packaging
