1543563 Washer | Genuine Volvo Penta Part

🔧 Product Description

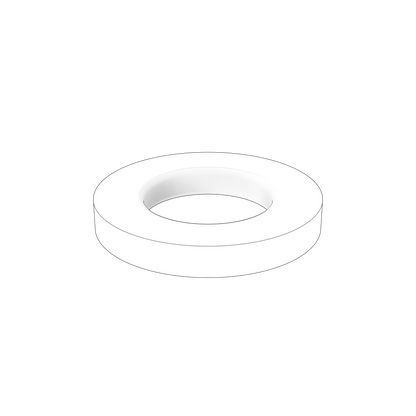

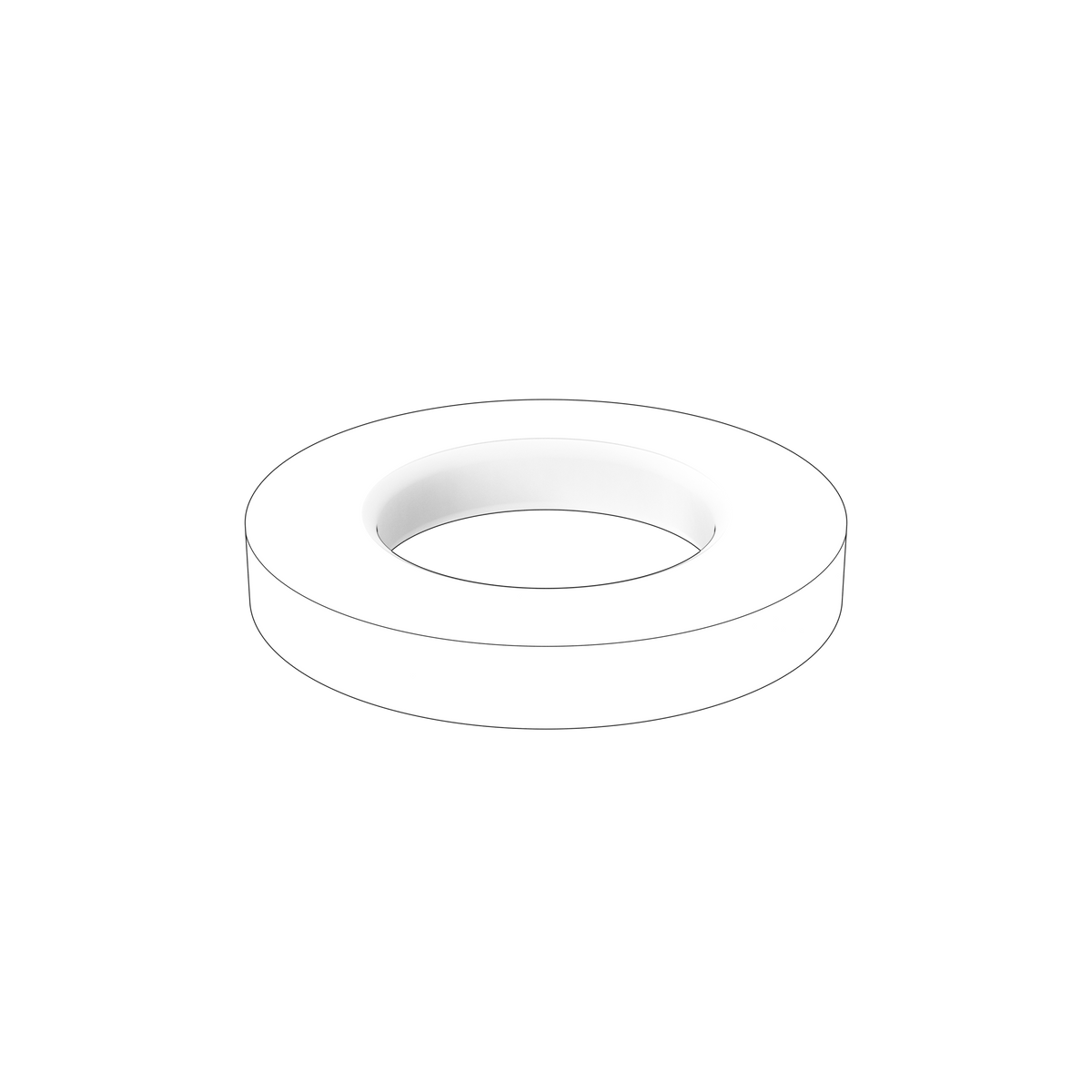

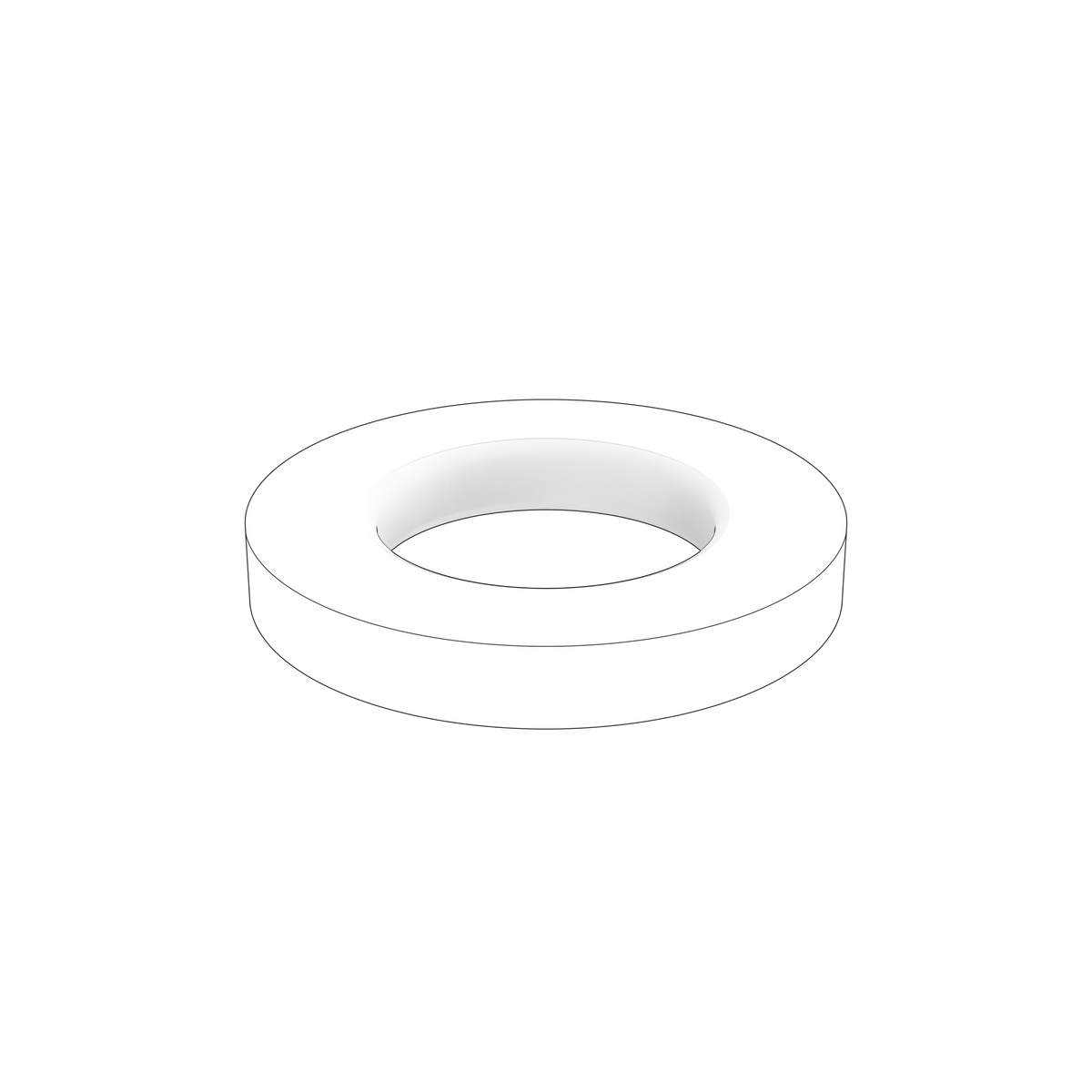

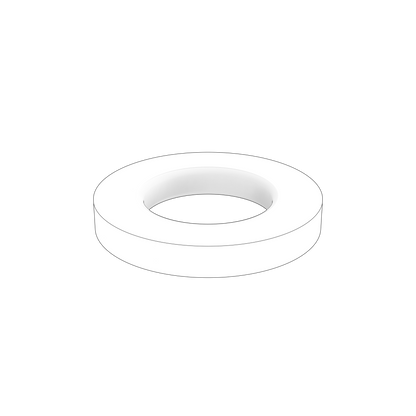

Genuine Volvo Penta washer, part number 1543563, used across the 12- and 16-litre D12, TWD, TID, TAD and TAMD engine series. It is a small fastener-support component that seats beneath a bolt or nut to distribute clamping load and protect the mating surface. Supplied as a single washer with a net weight of approximately 9 grams.

🚤 Compatibility

• Engine Family: D, TWD, TID, TD, TAMD, TAD

Full model list at the end of this description.

⚙️ Key Features

• OEM Volvo Penta part number 1543563
• Net weight 0.009 kg (approximately 9 grams)
• Fits D12, TWD, TID, TD, TAD and TAMD series marine and industrial diesel engines
• Supplied as an individual washer
• Genuine Volvo Penta replacement component
• Engine type: Volvo Penta heavy-duty inline-six diesel engine
• 14 used per assembly

🔌 Function

The washer spreads the clamping force of a bolt or nut over a wider area, helping maintain correct joint tension and preventing the fastener from damaging or embedding into the component surface.

⚠️ Common Signs of Failure

• Visible flattening, deformation or dishing from over-torquing
• Corrosion, pitting or scaling on the washer face
• Fastener loosening or loss of clamping torque at the joint
• Scoring or indentation of the mating surface beneath the washer
• Cracking or splitting around the bore

🛠️ Service Notes

• Check you are fitting the same type of washer that came out — plain, hardened, sealing and locking washers are not interchangeable, and the wrong one either fails to seal or fails to hold
• Treat sealing washers on fuel, oil and coolant unions as single-use; they seal by deforming onto the faces, so a used one will not seal reliably a second time
• Clean the seating faces and make sure the washer sits flat and square, fully under the head or nut, before tightening — a washer trapped on a chamfer or edge will crush unevenly
• Tighten the fastener to the figure given in the workshop manual for your engine, and account for every washer on reassembly so none is left loose inside a housing or the engine bay

🔄 Supersession & Cross Reference

OEM / Related Numbers

• 849912 - Hexagon screw used with flywheel 3825678
• 1677893 - Hexagon screw used with flywheel 889617
• 848851 - Flywheel hub
• 945512 - Hub O-ring

📦 Condition

• Genuine Volvo Penta part
• Brand new
• Supplied in original or equivalent packaging

🔎 Full Model Compatibility

Typically suits:

• Volvo Penta D12C-A MP, D12D-A MG, D12D-A MH, D12D-A MP, D12D-B MH, D12D-B MP, D12D-C MH, D12D-C MP, D12D-D MP, D12D-E MG, D12D-E MH, D12D-E MP, D12D-F MP, D12D-G MH, D12D-G MP, D12D-H MP
• Volvo Penta TAMD162C-C, TAMD162A, TAMD162B, TAMD162C, TAMD162C-B
• Volvo Penta TID162AG, TID162AGP, TID162AP, TID162APB
• Volvo Penta TAD1241GE, TAD1241VE, TAD1241-42VE
• Volvo Penta TAD1630G, TAD1630GE, TAD1630P
• Volvo Penta TAMD165A, TAMD165C, TAMD165P
• Volvo Penta TWD1630G, TWD1630P, TWD1630V
• Volvo Penta TAD1242GE, TAD1242VE
• Volvo Penta TAD1250VE, TAD1250-52VE
• Volvo Penta TAD1631GE, TAD1631G
• Volvo Penta TAMD163A-A, TAMD163P-A
• Volvo Penta TAD1240GE
• Volvo Penta TAD1251VE
• Volvo Penta TAD1252VE
• Volvo Penta TD164KAE
• Volvo Penta TWD1240VE
• Volvo Penta TWD1620G
