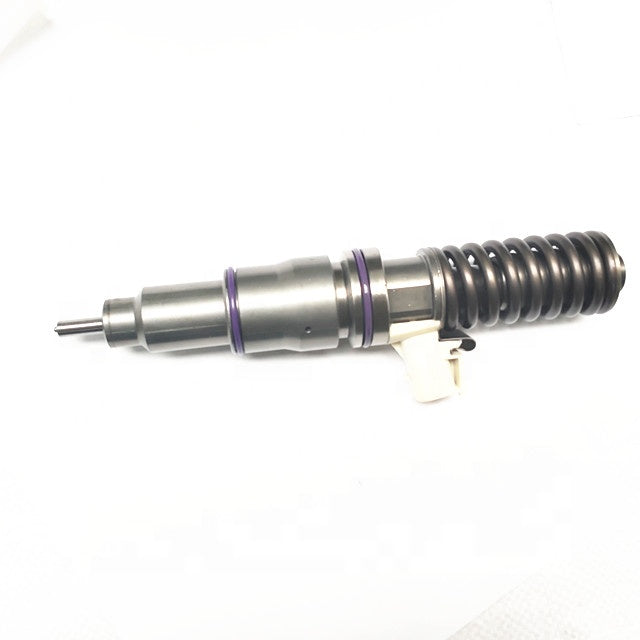

1543753 Injector | Genuine Volvo Penta Part

1543753 Injector | Genuine Volvo Penta Part

$678.51 AUD
$678.51 AUD
Sale Sold out
Shipping calculated at checkout.

Available from Volvo Penta international

Typically reaches our store in 10–14 business days

Availability checked daily with Volvo Penta

✓ Authorised Volvo Penta Dealer · Genuine Volvo Penta parts · Ships Australia-wide

🔧 Product Description

This is a genuine Volvo Penta fuel injector from the Fuel System group, part number 1543753. It delivers atomised diesel into the combustion chamber at high pressure and precise timing, and is used across the 16-litre TWD, TID, TAMD and TAD engine series. Each cylinder requires its own injector, so units are commonly replaced as a matched set.

🚤 Compatibility

Typically suits:

  • Volvo Penta TWD1620G
  • Volvo Penta TWD1630G
  • Volvo Penta TID162AG
  • Volvo Penta TID162AGP
  • Volvo Penta TID162AP
  • Volvo Penta TID162APB
  • Volvo Penta TAMD162A
  • Volvo Penta TAMD162B
  • Volvo Penta TAMD162C
  • Volvo Penta TAMD162C-B
  • Volvo Penta TAD1630G
  • Volvo Penta TAD1630GE
  • Volvo Penta TAD1631GE
  • Volvo Penta TAD1631G
  • Engine Family: TWD, TID, TAMD, TAD
  • HP Range: Approximately 468-550 HP
  • Year Range: Approximately 1987-1990s

⚙️ Key Features

  • OEM Volvo Penta part number 1543753
  • System group: Fuel System
  • Net weight: 0.697 kg
  • Fits TWD, TID, TAMD and TAD 16-litre marine and industrial diesel engines
  • Sold individually - one injector per cylinder
  • Engine type: 16.1L inline-six turbocharged/aftercooled mechanically injected diesel
  • Quantity varies by assembly, most commonly six

🔌 Function

The injector receives high-pressure diesel from the fuel system and sprays a finely atomised, correctly timed charge into the combustion chamber. Correct spray pattern and opening pressure are essential for clean combustion, rated power output and smooth running.

⚠️ Common Signs of Failure

  • Hard starting, rough idle or misfire on one cylinder
  • Black or white smoke and a noticeable drop in power
  • Knocking or diesel-type hammering noise under load
  • External fuel leakage around the injector body or return line
  • Rising fuel consumption and failure to reach rated speed

🛠️ Service Notes

  • Work clean: cap the fuel connections as they come off and clear the muck out of the injector recess before the injector is withdrawn, so nothing drops into the cylinder
  • Clean the carbon off the seat in the head and out of the bore — a chip of carbon under an injector holds it off its seat and lets combustion gas past
  • Renew the sealing washer, seal ring and O-rings supplied with the injector rather than reusing the old ones, and fit only the type of seal your engine's seat design uses
  • Pull the clamp or holder down evenly to the torque given in the workshop manual for your engine; an over-tightened injector distorts and a slack one blows by
  • Where the engine has electronically controlled injectors, the new injector's calibration code must be programmed into the control unit with Volvo Penta diagnostic equipment, then bleed the fuel system and leak-check before the boat goes back into service

🔄 Supersession & Cross Reference

OEM Supersession Chain

  • 3803258 (Volvo Penta exchange/service injector alternative)

OEM / Related Numbers

  • 1543933 injector nozzle
  • 876838 injector-installation gasket kit
  • 276836 copper injector-sleeve kit
  • 1543223 injector sleeve
  • 1543225 sealing ring
  • 243368 compression spring
  • 243367 push rod
  • 3094348 washer
  • 846293 pin
  • 844339 locating pin
  • 3095477 nozzle-holder nut - earlier reference 244995
  • 6231515 shim - 0.80 mm
  • 6231518 shim - 0.90 mm
  • 888502 shim - 0.98 mm; earlier reference 6231520
  • 6212455 shim - 1.00 mm
  • 870258 shim - 1.04 mm
  • 870259 shim - 1.10 mm
  • 870260 shim - 1.14 mm
  • 870261 shim - 1.20 mm
  • 870262 shim - 1.24 mm
  • 870263 shim - 1.30 mm
  • 870264 shim - 1.34 mm
  • 870265 shim - 1.40 mm
  • 870267 shim - 1.50 mm
  • 6212456 shim - 1.54 mm
  • 870269 shim - 1.60 mm
  • 870270 shim - 1.64 mm
  • 870271 shim - 1.70 mm
  • 11711242 shim - 1.74 mm; earlier reference 870272
  • 870273 shim - 1.80 mm
  • 11711243 shim - 1.84 mm; earlier reference 870274
  • 870275 shim - 1.90 mm
  • 870276 shim - 1.94 mm

Other-Brand OEM Numbers

  • Bosch: 0 432 291 635 - complete nozzle-holder assembly
  • Bosch: 0 433 271 756 / DLLA140S1054 - injector nozzle component

OEM Reman Alternatives

  • Bosch: 0 986 430 169 - exchange/remanufactured injector

📦 Condition

  • Genuine Volvo Penta part
  • Brand new
  • Supplied in original or equivalent packaging
