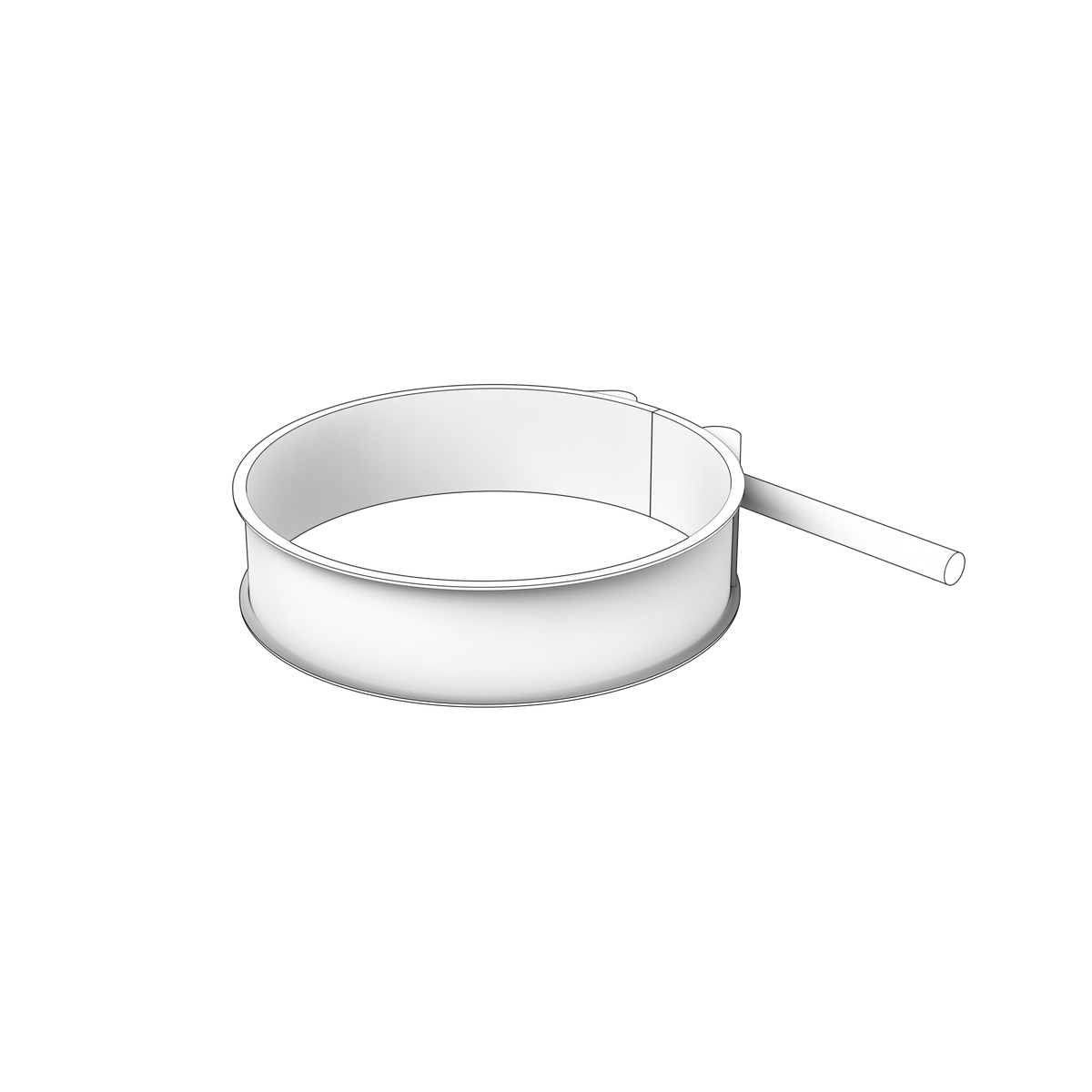

1544731 Hose Clamp | Genuine Volvo Penta Part

🔧 Product Description

This is a genuine Volvo Penta hose clamp, part number 1544731, from the fastening, spacing, locking and support group. It secures hoses and flexible connections onto their spigots to hold a leak-free joint under pressure and vibration, and is called out specifically for THD102KB and THD102KD applications within a wide inline-six and D11 service range. It replaces earlier part numbers 3826338 and 468938.

🚤 Compatibility

• Engine Family: TD, TAMD, TWD, TMD, THD, D, DH, TAD

Full model list at the end of this description.

⚙️ Key Features

• OEM Volvo Penta part number 1544731
• System group: Parts for Fastening, Spacing, Locking and Support, Stock Shape Materials
• Noted for THD102KB and THD102KD applications
• Net weight approximately 0.064 kg
• Supersedes previous part numbers 3826338 and 468938
• Fits TD/TMD/TAMD/TWD/THD/TAD inline engine series and D11 and DH10 series engines
• Engine type: Volvo Penta heavy-duty diesel
• Quantity varies by assembly, most commonly two

🔌 Function

A hose clamp compresses a hose end onto its fitting to maintain a sealed joint against internal pressure and engine vibration. It prevents the hose from slipping off or weeping at the connection.

⚠️ Common Signs of Failure

• Coolant, oil, air or fuel weeping or spraying from the hose joint
• Corroded, pitted or seized clamp band or tightening screw
• Clamp will no longer hold torque and loosens repeatedly after tightening
• Hose creeping or blowing off the spigot under pressure
• Cracked or distorted band that has cut into the hose surface

🛠️ Service Notes

• Match the clamp to the hose outside diameter so the band closes well within its working range rather than at the very end of its travel
• Position it over the spigot behind the bead or barb, with the screw where a driver or spanner can still reach it once everything is refitted
• Tighten to seal, not to crush — an over-tightened worm-drive clamp cuts into soft hose and starts the leak you were trying to stop
• Renew clamps when a hose is changed rather than reusing them, and keep band, housing and screw all marine-grade stainless so the clamp does not corrode against itself
• Where two clamps are fitted to one connection, stagger the screw heads and recheck both after the first running period

🔄 Supersession & Cross Reference

OEM Supersession Chain

• 1544731 → Supersedes 3826338 → Supersedes 866192

OEM / Related Numbers

• 468938 earlier number superseded by this part
• 3826338 earlier number superseded by this part
• 866192 earlier number superseded by this part
• 1544733 - alternative clamp at the DH10A air-filter connection
• 3035104 - related rubber bellows
• 9521629 - related rubber bellows
• 9517671 - air-filter housing

📦 Condition

• Genuine Volvo Penta part
• Brand new
• Supplied in original or equivalent packaging

🔎 Full Model Compatibility

Typically suits:

• Volvo Penta D11A-A, D11A-B, D11A-C, D11A-E, D11A-C MP, D11A-D MP
• Volvo Penta TAMD122A, TAMD122A/C, TAMD122D
• Volvo Penta TD121G-87, TD121CHC, TD121CRC
• Volvo Penta THD102KB, THD102KD, THD102K-KB
• Volvo Penta TAMD63L-A, TAMD63P-A
• Volvo Penta TAMD73P-A, TAMD73WJ-A
• Volvo Penta DH10A
• Volvo Penta TAD121CHC
• Volvo Penta TAMD102D
• Volvo Penta TAMD103A
• Volvo Penta TAMD121D
• Volvo Penta TAMD31S
• Volvo Penta TAMD71B
• Volvo Penta TAMD74A
• Volvo Penta TMD121C
• Volvo Penta TMD122A
• Volvo Penta TWD1031VE
• Volvo Penta TWD1230ME
